Minimal surfaces in architecture
We will consider the German pavillon at the Expo '67 as an example of minimal surface area used as an architectural design methodology. Pioneered by Otto Frei, the idea originates from the experimentation with soap bubbles and the idea, that the formed minimal surfaces should also be structurally relevant. The shapes, of the soap bubbles, minimise surface area, and thus are a great example of the previously discussed obstacle problems.

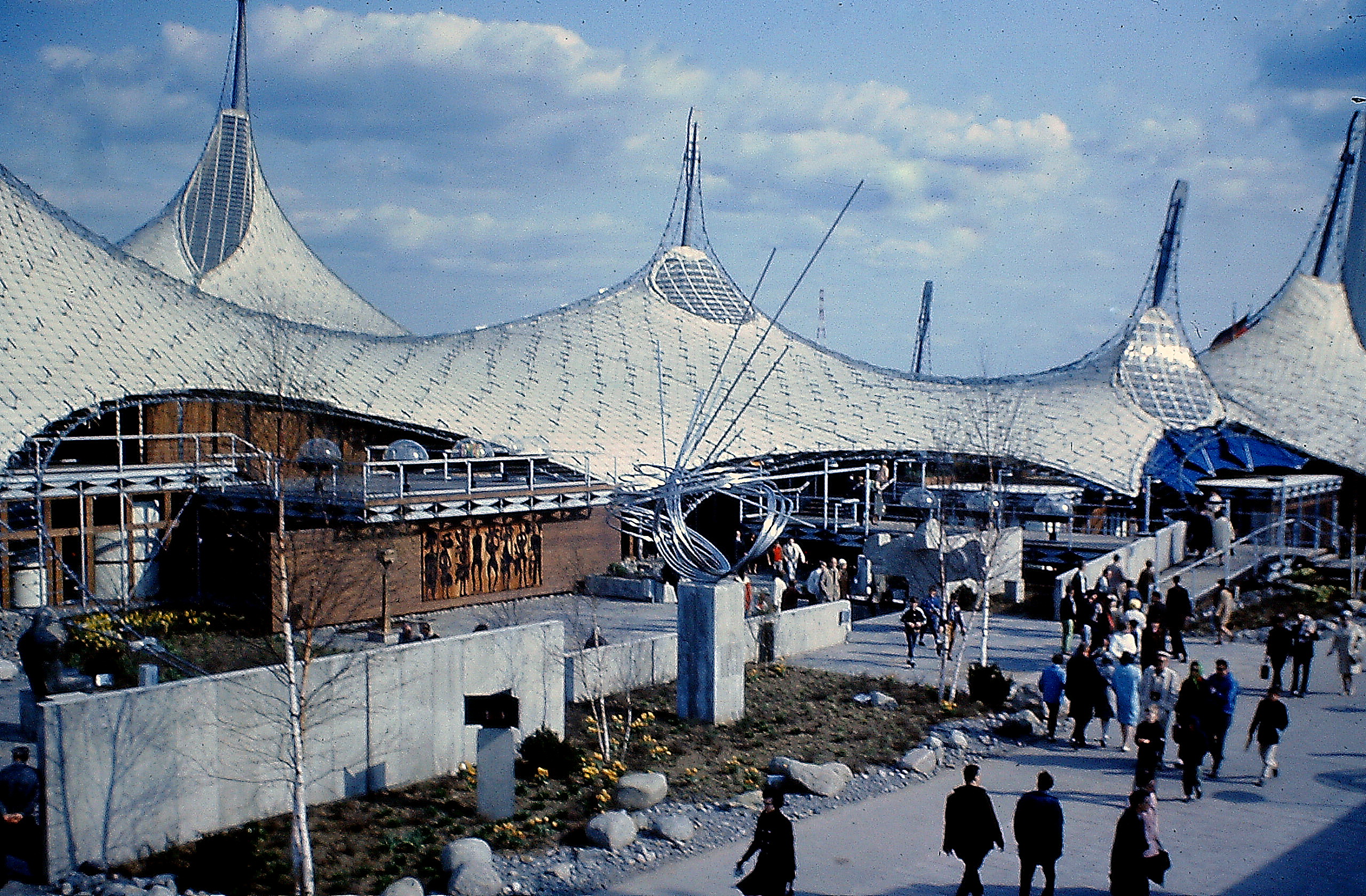

Figure 1:German Pavillon at Expo '67 in Montreal. René Lavigne, CC BY-SA 4.0, via Wikimedia Commons.
from mpi4py import MPI
from petsc4py import PETSc
import basix
import dolfinx
import dolfinx.fem.petsc
import dolfinx.io.gmsh
import ufl
import gmsh
import matplotlib.pyplot as plt
import numpy as np
import pyvista
import dolfiny
comm = MPI.COMM_WORLDGeometry of the Pavillon¶
The geometrical data, used in the following, is taken from the great visualizations in López Gómez et al., 2015. We model the pavillon based on the floorplan described by a list points connected with lines in between. The original structure relied on a curved boundary representation, however this is hard to reparameterize without detailed description of the required parameters. Therefore, we stick to a piecewise linear boundary representation here.
Additionally, the tent like structure is held in place by support trusses, for which we define the base positions and the corresponding lengths.
Notably the structure did not stand on even grounds which results in the pinned points (vertices of the floorplan) and the truss bases having a non-zero -component at times.
The support trusses are split into two groups. They either hold up the tent like structure, or pull it down. This corresponds to them acting as lower, positive, or upper, negative bounds for the underlying obstacle problem.
Source
geometry = np.array(
[
[0, 0, 13],
[5.04, -9.1, -1.8],
[20.95, -5.82, 3],
[41.07, -24.15, 3],
[68.22, -28.99, 3],
[90.04, -19.52, 3],
[108.99, -28.34, 3],
[119.15, -17.88, 3],
[124.75, -10.99, 3],
[124.8, -3.63, 3],
[124.94, 4.28, 3],
[124.94, 15.10, 3],
[119.47, 25.12, 3],
[124.43, 39.66, 3],
[123.83, 53.1, 3],
[110.67, 58.64, 3],
[87.42, 53.18, 3],
[75.72, 66.73, 0],
[56.37, 69.7, 0],
[49.44, 73.74, 0],
[31.77, 71.45, 0],
[27.52, 64.24, 0],
[35.25, 56.11, 0],
[28.49, 42.08, 0],
[32.02, 24.79, 0],
[23.04, 10.36, -1.8],
[12.15, 15.29, -1.8],
[0.18, 11.88, -1.8],
],
dtype=np.float64,
)
supports = np.array(
[
[0, 0, -1],
[65.06, -6.4, 0],
[102.9, 2.34, 0],
[54.55, 19.54, 0],
[86.3, 19.54, 0],
[38.81, 35.41, -3],
[65.06, 35.41, 0],
[102.86, 35.41, 0],
[38.81, 61.16, 0],
[65.05, 58.62, 0],
],
dtype=np.float64,
)
support_heights = np.array([14, 38, 27, 3, 3, 10, 16, 22, 23, 15], dtype=np.float64)
support_positive = np.array([1, 1, 1, 0, 0, 1, 1, 1, 1, 1], dtype=np.bool)
# plt.rcParams["font.family"] = "courier"
plt.rcParams["figure.dpi"] = 400

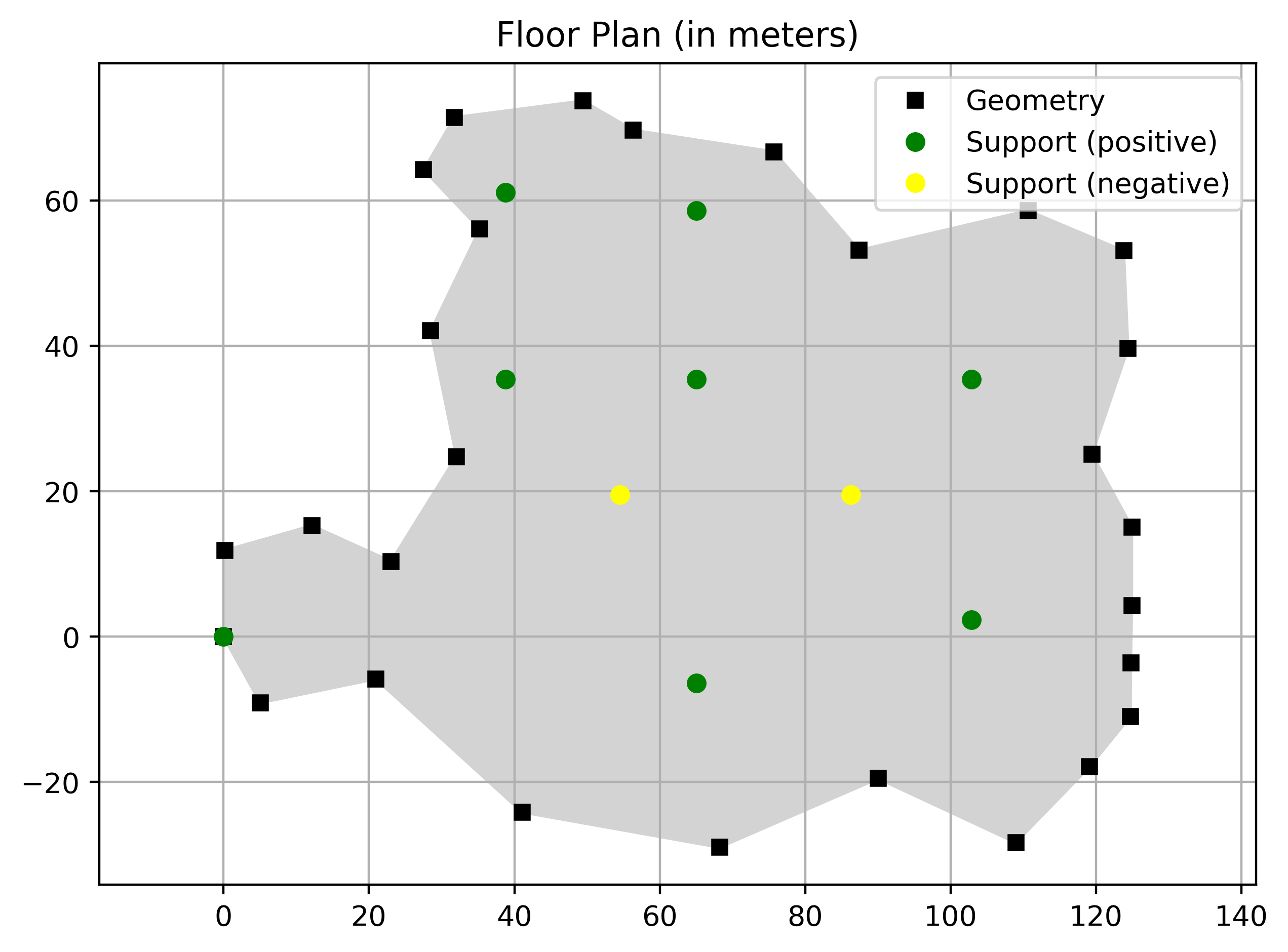

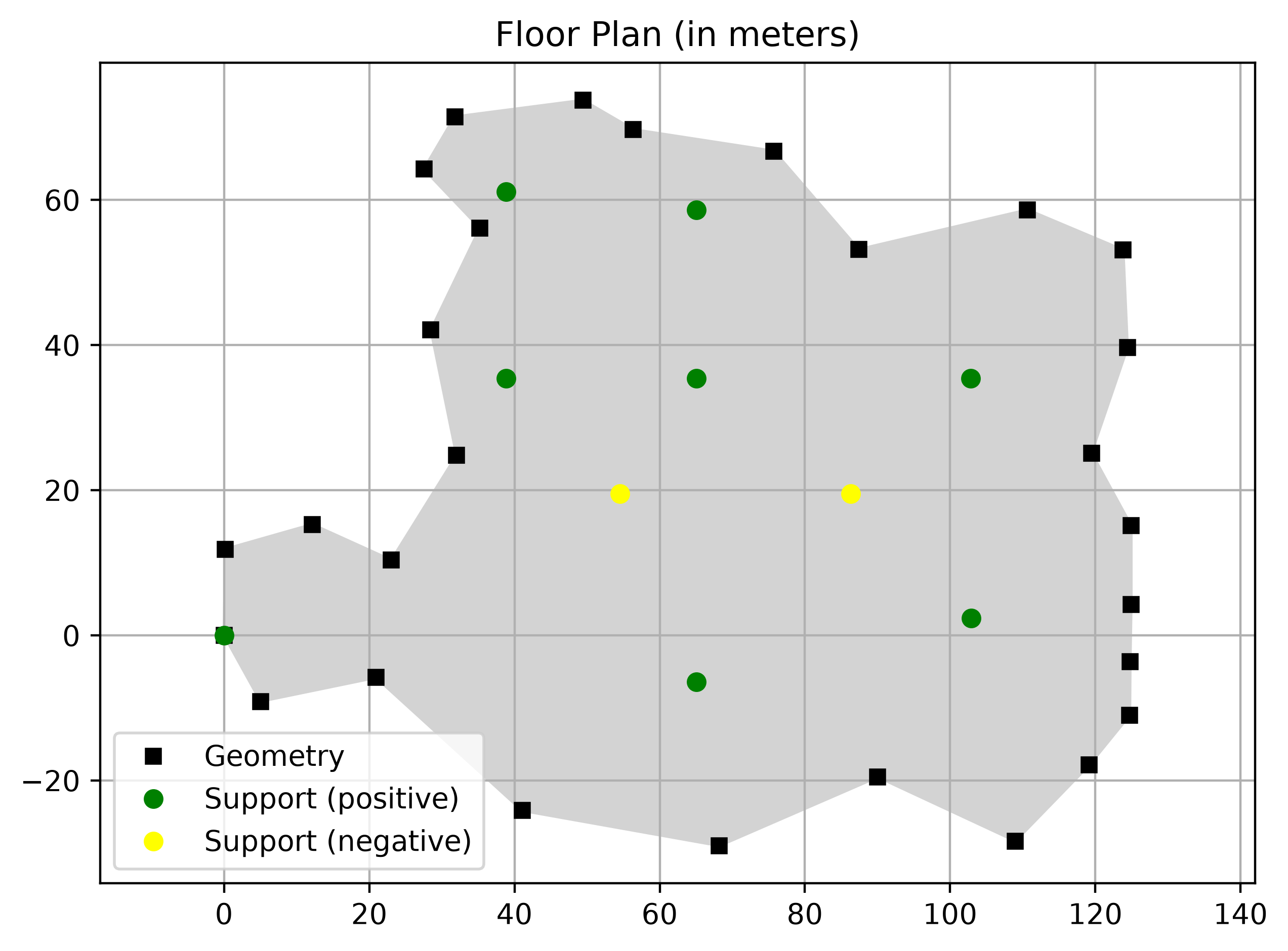

plt.title("Floor Plan (in meters)")
plt.fill(geometry[:, 0], geometry[:, 1], color="lightgray")
plt.plot(
geometry[:, 0],
geometry[:, 1],
"o",
marker="s",
markersize=5,
color="black",
label="Geometry",
)
plt.plot(
*zip(*supports[:, :-1][np.where(support_positive)]),
"o",
marker="o",
color="green",
label="Support (positive)",
)
plt.plot(
*zip(*supports[:, :-1][np.where(~support_positive)]),
"o",
marker="o",
color="yellow",
label="Support (negative)",
)
plt.axis("equal")
plt.legend()
plt.tight_layout()
plt.grid()
plt.show()/tmp/ipykernel_4438/1378886262.py:60: UserWarning: marker is redundantly defined by the 'marker' keyword argument and the fmt string "o" (-> marker='o'). The keyword argument will take precedence.
plt.plot(
/tmp/ipykernel_4438/1378886262.py:69: UserWarning: marker is redundantly defined by the 'marker' keyword argument and the fmt string "o" (-> marker='o'). The keyword argument will take precedence.
plt.plot(
/tmp/ipykernel_4438/1378886262.py:76: UserWarning: marker is redundantly defined by the 'marker' keyword argument and the fmt string "o" (-> marker='o'). The keyword argument will take precedence.
plt.plot(
Source

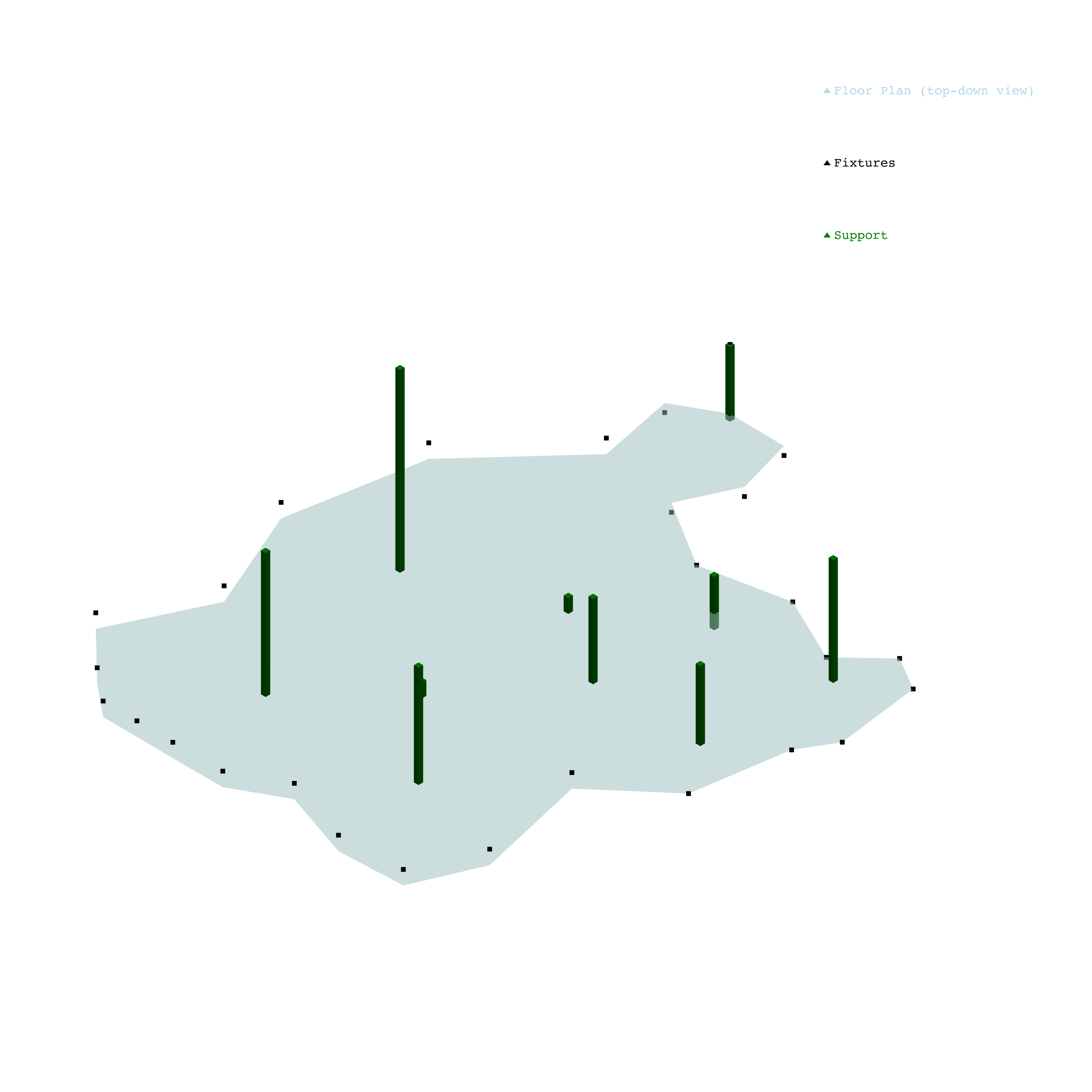

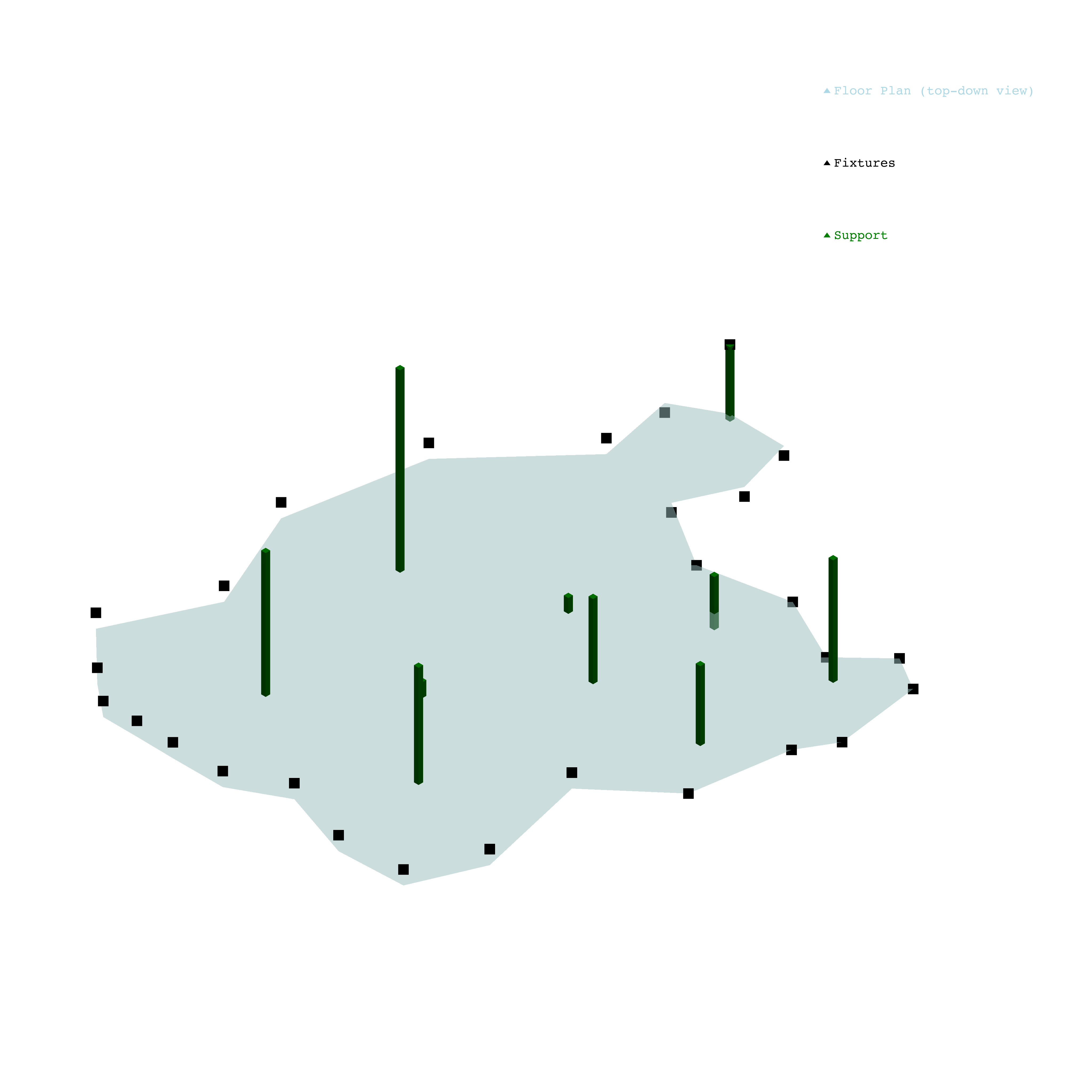

plotter = pyvista.Plotter(theme=dolfiny.pyvista.theme)
geometry_proj = geometry.copy()
geometry_proj[:, 2] = 0
floor_plan = pyvista.PolyData(
geometry_proj,
np.append(geometry.shape[0], np.append(np.arange(0, geometry.shape[0]), [0])),
).triangulate()
plotter.add_mesh(floor_plan, opacity=0.5, label="Floor Plan (top-down view)")
plotter.add_mesh(
pyvista.PolyData(geometry),
color="black",
point_size=dolfiny.pyvista.pixels // 100,
label="Fixtures",
)
width = 1
support_boxes = pyvista.MultiBlock(
[
pyvista.Box(
(
p[0] - 0.5 * width,
p[0] + 0.5 * width,
p[1] - 0.5 * width,
p[1] + 0.5 * width,
p[2],
p[2] + h,
)
)
for p, h in zip(supports, support_heights)
]
)
plotter.add_mesh(support_boxes.combine().extract_surface(), color="green", label="Support")
plotter.add_legend()
plotter.show()
Meshing¶
We will rely on GMSH for the generation of the mesh and generate a 2D mesh in the -plane
of the floorplan, which is then deflected into direction.
There is one additional geometrical nuance we need to take into account before we can begin to
setup the mesh.
As visible in the image the surface does not span all the way up to the truss
tops, but rather ends below the top.
We will take this into account by introducing circular cavities of radius for the model of
the membrane at the positions of the support trusses.

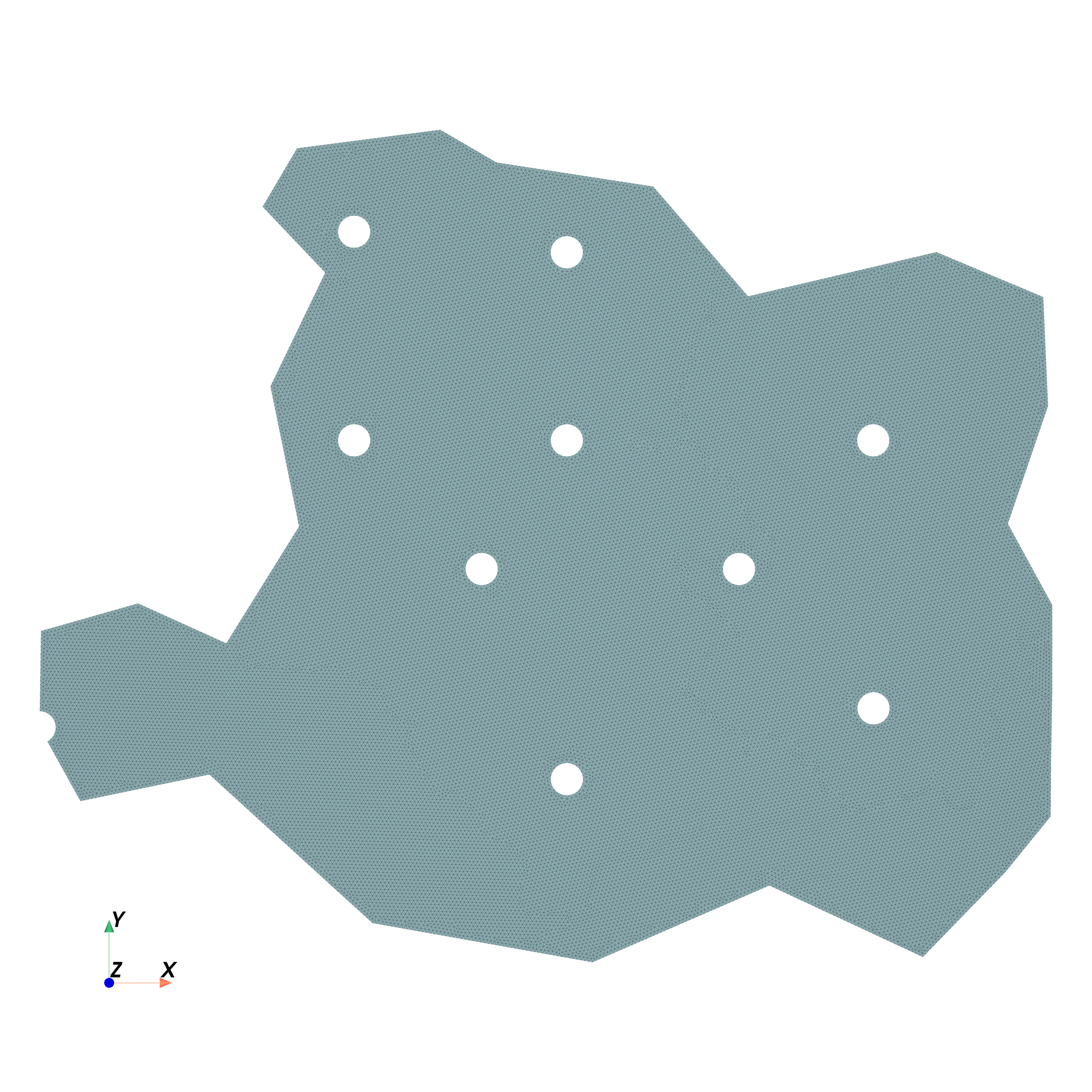

We end up with the following computational mesh.
Source
support_radius = 2.0
p_s = support_radius * geometry[-1, :-1] / np.linalg.norm(geometry[-1, :-1])
p_e = support_radius * geometry[1, :-1] / np.linalg.norm(geometry[1, :-1])
def mesh_pavillon() -> dolfinx.io.gmsh.MeshData:
if comm.rank > 0:
return dolfinx.io.gmsh.model_to_mesh(None, comm, rank=0, gdim=2)
gmsh.initialize()
gmsh.clear()
gmsh.option.setNumber("General.Terminal", 0) # No output
gmsh.option.setNumber("Mesh.MeshSizeFactor", 3e-2) # h
points = [gmsh.model.occ.addPoint(x, y, 0) for x, y, _ in geometry]
point_start = gmsh.model.occ.addPoint(p_s[0], p_s[1], 0)
point_center = gmsh.model.occ.addPoint(0, 0, 0)
point_end = gmsh.model.occ.addPoint(p_e[0], p_e[1], 0)
segments = [
gmsh.model.occ.addCircleArc(point_start, point_center, point_end),
gmsh.model.occ.addLine(point_end, points[1], tag=0),
]
segments += [
gmsh.model.occ.addLine(points[i], points[i + 1]) for i in range(1, len(points) - 1)
]
segments += [gmsh.model.occ.addLine(len(points), point_start)]
outer_loop = gmsh.model.occ.addCurveLoop(segments)
support_circles = [gmsh.model.occ.addCircle(p[0], p[1], 0, support_radius) for p in supports]
support_base = [gmsh.model.occ.addCurveLoop([c]) for c in support_circles]
surface = gmsh.model.occ.addPlaneSurface(
[outer_loop, *[support_base[i] for i in range(1, len(support_base))]]
)
gmsh.model.occ.synchronize()
# remove arc for physical group
gmsh.model.addPhysicalGroup(1, segments[1:], tag=100)
gmsh.model.addPhysicalGroup(1, [segments[0]], tag=101)
for i in range(1, len(support_circles)):
gmsh.model.addPhysicalGroup(1, [support_circles[i]], tag=101 + i)
gmsh.model.addPhysicalGroup(2, [surface])
gmsh.model.occ.synchronize()
gmsh.model.mesh.generate(2)
# Optionally store for debugging
# gmsh.write("pavillon.msh")
# gmsh.fltk.run()
return dolfinx.io.gmsh.model_to_mesh(gmsh.model, comm, rank=0, gdim=2)
mesh_data = mesh_pavillon()
mesh = mesh_data.mesh
facet_tags = mesh_data.facet_tags
pv_grid = pyvista.UnstructuredGrid(*dolfinx.plot.vtk_mesh(mesh, 2))
plotter = pyvista.Plotter(theme=dolfiny.pyvista.theme)
plotter.add_mesh(pv_grid, show_edges=True)
plotter.add_axes()
plotter.view_xy()
plotter.camera.zoom(1.2)
plotter.show()Info : Clearing all models and views...
Info : Done clearing all models and views
Obstacle problem and bounds¶
The construction of the lower bound and upper bound are given by the associated heights of the support trusses. If the support truss is a positive one, the cavity will be acting as a lower bound of value , for height/length of the truss and base -coordinate . Else, in the case of a negative one, it results in a lower bound with same value construction.
The computation of the Dirichlet boundary data is not as straightforward. We only have point data (on the boundary) available and need to extend this to the whole boundary. Choosing to linearly interpolate between the two closes boundary vertices, we achieve this by defining the boundary as a stand alone mesh and non matchingly interpolating into the deflection function space.
V = dolfinx.fem.functionspace(mesh, ("P", 1))
φ = dolfinx.fem.Function(V, name="lb")
φ.x.array[:] = -PETSc.INFINITY # type: ignore
ψ = dolfinx.fem.Function(V, name="ub")
ψ.x.array[:] = PETSc.INFINITY # type: ignore
for i in range(len(supports)):
dofs = dolfinx.fem.locate_dofs_topological(V, 1, facet_tags.find(101 + i)) # type: ignore
if support_positive[i]:
φ.x.array[dofs] = supports[i, 2] + support_heights[i]
else:
ψ.x.array[dofs] = supports[i, 2] + support_heights[i]
def fixed_boundary_data() -> tuple[dolfinx.fem.Function, dolfinx.fem.Function]:
# Creates boundary data on boundary mesh.
# Note: small vertex/cell count, but non-scaling for-loops.
cells = []
for i in range(geometry.shape[0]):
cells += [[i, (i + 1)]]
values = geometry[:, 2]
values = np.append(values, geometry[0, 2])
element = ufl.Mesh(basix.ufl.element("Lagrange", "interval", 1, shape=(2,)))
boundary_geometry = np.append([p_e], geometry[1:, :-1], axis=0)
boundary_geometry = np.append(boundary_geometry, [p_s], axis=0)
boundary_mesh = (
dolfinx.mesh.create_mesh(comm, np.array(cells, dtype=np.int64), element, boundary_geometry)
if comm.rank == 0
else dolfinx.mesh.create_mesh(
comm, np.zeros((0, 2), dtype=np.int64), element, np.zeros((0, 3), dtype=np.float64)
)
)
V_bdy = dolfinx.fem.functionspace(boundary_mesh, ("CG", 1))
h = dolfinx.fem.Function(V_bdy)
for i in range(boundary_geometry.shape[0]):
for j in range(boundary_mesh.geometry.x.shape[0]):
if np.isclose(boundary_geometry[i, 0], boundary_mesh.geometry.x[j, 0]) and np.isclose(
boundary_geometry[i, 1], boundary_mesh.geometry.x[j, 1]
):
h.x.array[j] = values[i]
break
h_interpolated = dolfinx.fem.Function(V)
num_cells_on_proc = (
V.mesh.topology.index_map(2).size_local + V.mesh.topology.index_map(2).num_ghosts
)
V_cells = np.arange(num_cells_on_proc, dtype=np.int32)
interpolation_data = dolfinx.fem.create_interpolation_data(V, V_bdy, V_cells, padding=1e-12)
h_interpolated.interpolate_nonmatching(h, V_cells, interpolation_data)
return h, h_interpolated
h, h_interpolated = fixed_boundary_data()
bc = dolfinx.fem.dirichletbc(
h_interpolated,
dolfinx.fem.locate_dofs_topological(V, 1, facet_tags.find(100)), # type: ignore

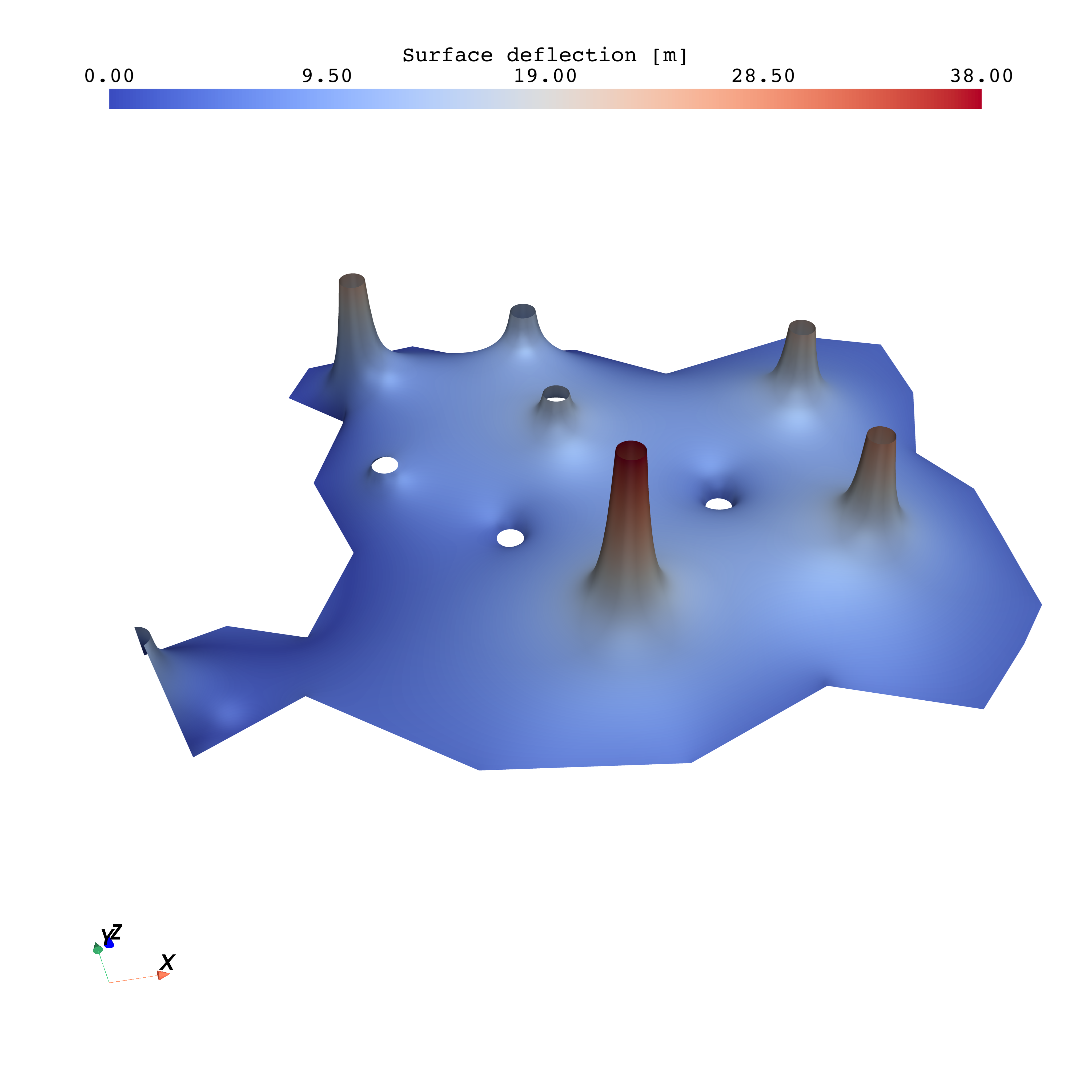

)As before we rely on the surace area functional. In this setting the obstacles are non-smooth (as functions over the whole domain), thus we require additionally some form of regularisation Caffarelli, 1998. We will use a -seminorm here. Our complete functional reads
def S(f):
return ufl.sqrt(1 + ufl.inner(ufl.grad(f), ufl.grad(f))) * ufl.dx
def S_linear(f):
return (1 + 0.5 * ufl.inner(ufl.grad(f), ufl.grad(f))) * ufl.dx
def R(f):
alpha = 5e-2
return alpha * ufl.inner(ufl.grad(f), ufl.grad(f)) * ufl.dx
opts = PETSc.Options() # type: ignore
opts["tao_type"] = "bnls"
opts["tao_max_it"] = "1000"
opts["tao_gatol"] = 0
opts["tao_gttol"] = 0
opts["tao_grtol"] = 1e-8
g_linear = dolfinx.fem.Function(V, name="g-linear")
tao_linear = dolfiny.taoproblem.TAOProblem(S_linear(g_linear), [g_linear], [bc], lb=[φ], ub=[ψ])
tao_linear.solve()
g = dolfinx.fem.Function(V, name="g")
tao = dolfiny.taoproblem.TAOProblem(S(g) + R(g), [g], [bc], lb=[φ], ub=[ψ])
tao.solve()Output
# TAO 0 (ITERATING)
# sub 0 [ 44k] |x|=3.141e+02 |J|=4.022e+02 (g-linear)
# all |x|=3.141e+02 |J|=4.022e+02 f=7.239e+04
# TAO 0, KSP 0 |r|=4.022e+02 (ITERATING)
# TAO 0, KSP 1 |r|=2.191e+02 (ITERATING)
# TAO 0, KSP 2 |r|=1.549e+02 (ITERATING)
# TAO 0, KSP 3 |r|=1.107e+02 (ITERATING)
# TAO 0, KSP 4 |r|=9.196e+01 (ITERATING)
# TAO 0, KSP 5 |r|=8.188e+01 (ITERATING)
# TAO 0, KSP 6 |r|=6.968e+01 (ITERATING)
# TAO 0, KSP 7 |r|=5.946e+01 (ITERATING)
# TAO 0, KSP 8 |r|=5.387e+01 (ITERATING)
# TAO 0, KSP 9 |r|=5.017e+01 (ITERATING)
# TAO 0, KSP 10 |r|=4.464e+01 (ITERATING)
# TAO 0, KSP 11 |r|=3.929e+01 (ITERATING)
# TAO 0, KSP 12 |r|=3.703e+01 (ITERATING)
# TAO 0, KSP 13 |r|=3.537e+01 (ITERATING)
# TAO 0, KSP 14 |r|=3.196e+01 (ITERATING)
# TAO 0, KSP 15 |r|=2.947e+01 (ITERATING)
# TAO 0, KSP 16 |r|=2.887e+01 (ITERATING)
# TAO 0, KSP 17 |r|=2.759e+01 (ITERATING)
# TAO 0, KSP 18 |r|=2.536e+01 (ITERATING)
# TAO 0, KSP 19 |r|=2.424e+01 (ITERATING)
# TAO 0, KSP 20 |r|=2.395e+01 (ITERATING)
# TAO 0, KSP 21 |r|=2.270e+01 (ITERATING)
# TAO 0, KSP 22 |r|=2.104e+01 (ITERATING)
# TAO 0, KSP 23 |r|=2.044e+01 (ITERATING)
# TAO 0, KSP 24 |r|=2.012e+01 (ITERATING)
# TAO 0, KSP 25 |r|=1.898e+01 (ITERATING)
# TAO 0, KSP 26 |r|=1.804e+01 (ITERATING)
# TAO 0, KSP 27 |r|=1.817e+01 (ITERATING)
# TAO 0, KSP 28 |r|=1.836e+01 (ITERATING)
# TAO 0, KSP 29 |r|=1.775e+01 (ITERATING)
# TAO 0, KSP 30 |r|=1.748e+01 (ITERATING)
# TAO 0, KSP 31 |r|=1.793e+01 (ITERATING)
# TAO 0, KSP 32 |r|=1.775e+01 (ITERATING)
# TAO 0, KSP 33 |r|=1.717e+01 (ITERATING)
# TAO 0, KSP 34 |r|=1.690e+01 (ITERATING)
# TAO 0, KSP 35 |r|=1.689e+01 (ITERATING)
# TAO 0, KSP 36 |r|=1.649e+01 (ITERATING)
# TAO 0, KSP 37 |r|=1.585e+01 (ITERATING)
# TAO 0, KSP 38 |r|=1.572e+01 (ITERATING)
# TAO 0, KSP 39 |r|=1.567e+01 (ITERATING)
# TAO 0, KSP 40 |r|=1.516e+01 (ITERATING)
# TAO 0, KSP 41 |r|=1.464e+01 (ITERATING)
# TAO 0, KSP 42 |r|=1.446e+01 (ITERATING)
# TAO 0, KSP 43 |r|=1.435e+01 (ITERATING)
# TAO 0, KSP 44 |r|=1.372e+01 (ITERATING)
# TAO 0, KSP 45 |r|=1.333e+01 (ITERATING)
# TAO 0, KSP 46 |r|=1.348e+01 (ITERATING)
# TAO 0, KSP 47 |r|=1.339e+01 (ITERATING)
# TAO 0, KSP 48 |r|=1.308e+01 (ITERATING)
# TAO 0, KSP 49 |r|=1.307e+01 (ITERATING)
# TAO 0, KSP 50 |r|=1.315e+01 (ITERATING)
# TAO 0, KSP 51 |r|=1.295e+01 (ITERATING)
# TAO 0, KSP 52 |r|=1.257e+01 (ITERATING)
# TAO 0, KSP 53 |r|=1.238e+01 (ITERATING)
# TAO 0, KSP 54 |r|=1.218e+01 (ITERATING)
# TAO 0, KSP 55 |r|=1.159e+01 (ITERATING)
# TAO 0, KSP 56 |r|=1.114e+01 (ITERATING)
# TAO 0, KSP 57 |r|=1.114e+01 (ITERATING)
# TAO 0, KSP 58 |r|=1.108e+01 (ITERATING)
# TAO 0, KSP 59 |r|=1.069e+01 (ITERATING)
# TAO 0, KSP 60 |r|=1.025e+01 (ITERATING)
# TAO 0, KSP 61 |r|=9.975e+00 (ITERATING)
# TAO 0, KSP 62 |r|=9.833e+00 (ITERATING)
# TAO 0, KSP 63 |r|=9.525e+00 (ITERATING)
# TAO 0, KSP 64 |r|=9.337e+00 (ITERATING)
# TAO 0, KSP 65 |r|=9.217e+00 (ITERATING)
# TAO 0, KSP 66 |r|=9.013e+00 (ITERATING)
# TAO 0, KSP 67 |r|=8.632e+00 (ITERATING)
# TAO 0, KSP 68 |r|=8.467e+00 (ITERATING)
# TAO 0, KSP 69 |r|=8.348e+00 (ITERATING)
# TAO 0, KSP 70 |r|=8.000e+00 (ITERATING)
# TAO 0, KSP 71 |r|=7.676e+00 (ITERATING)
# TAO 0, KSP 72 |r|=7.578e+00 (ITERATING)
# TAO 0, KSP 73 |r|=7.584e+00 (ITERATING)
# TAO 0, KSP 74 |r|=7.454e+00 (ITERATING)
# TAO 0, KSP 75 |r|=7.292e+00 (ITERATING)
# TAO 0, KSP 76 |r|=7.255e+00 (ITERATING)
# TAO 0, KSP 77 |r|=7.213e+00 (ITERATING)
# TAO 0, KSP 78 |r|=7.037e+00 (ITERATING)
# TAO 0, KSP 79 |r|=6.989e+00 (ITERATING)
# TAO 0, KSP 80 |r|=7.124e+00 (ITERATING)
# TAO 0, KSP 81 |r|=7.102e+00 (ITERATING)
# TAO 0, KSP 82 |r|=7.023e+00 (ITERATING)
# TAO 0, KSP 83 |r|=7.091e+00 (ITERATING)
# TAO 0, KSP 84 |r|=7.283e+00 (ITERATING)
# TAO 0, KSP 85 |r|=7.273e+00 (ITERATING)
# TAO 0, KSP 86 |r|=7.163e+00 (ITERATING)
# TAO 0, KSP 87 |r|=7.142e+00 (ITERATING)
# TAO 0, KSP 88 |r|=7.221e+00 (ITERATING)
# TAO 0, KSP 89 |r|=7.128e+00 (ITERATING)
# TAO 0, KSP 90 |r|=7.039e+00 (ITERATING)
# TAO 0, KSP 91 |r|=7.101e+00 (ITERATING)
# TAO 0, KSP 92 |r|=7.018e+00 (ITERATING)
# TAO 0, KSP 93 |r|=6.782e+00 (ITERATING)
# TAO 0, KSP 94 |r|=6.683e+00 (ITERATING)
# TAO 0, KSP 95 |r|=6.669e+00 (ITERATING)
# TAO 0, KSP 96 |r|=6.478e+00 (ITERATING)
# TAO 0, KSP 97 |r|=6.373e+00 (ITERATING)
# TAO 0, KSP 98 |r|=6.394e+00 (ITERATING)
# TAO 0, KSP 99 |r|=6.247e+00 (ITERATING)
# TAO 0, KSP 100 |r|=5.895e+00 (ITERATING)
# TAO 0, KSP 101 |r|=5.663e+00 (ITERATING)
# TAO 0, KSP 102 |r|=5.610e+00 (ITERATING)
# TAO 0, KSP 103 |r|=5.586e+00 (ITERATING)
# TAO 0, KSP 104 |r|=5.433e+00 (ITERATING)
# TAO 0, KSP 105 |r|=5.207e+00 (ITERATING)
# TAO 0, KSP 106 |r|=5.080e+00 (ITERATING)
# TAO 0, KSP 107 |r|=4.940e+00 (ITERATING)
# TAO 0, KSP 108 |r|=4.687e+00 (ITERATING)
# TAO 0, KSP 109 |r|=4.494e+00 (ITERATING)
# TAO 0, KSP 110 |r|=4.367e+00 (ITERATING)
# TAO 0, KSP 111 |r|=4.190e+00 (ITERATING)
# TAO 0, KSP 112 |r|=3.906e+00 (ITERATING)
# TAO 0, KSP 113 |r|=3.705e+00 (ITERATING)
# TAO 0, KSP 114 |r|=3.635e+00 (ITERATING)
# TAO 0, KSP 115 |r|=3.503e+00 (ITERATING)
# TAO 0, KSP 116 |r|=3.372e+00 (ITERATING)
# TAO 0, KSP 117 |r|=3.311e+00 (ITERATING)
# TAO 0, KSP 118 |r|=3.231e+00 (ITERATING)
# TAO 0, KSP 119 |r|=3.095e+00 (ITERATING)
# TAO 0, KSP 120 |r|=3.037e+00 (ITERATING)
# TAO 0, KSP 121 |r|=3.004e+00 (ITERATING)
# TAO 0, KSP 122 |r|=2.919e+00 (ITERATING)
# TAO 0, KSP 123 |r|=2.794e+00 (ITERATING)
# TAO 0, KSP 124 |r|=2.690e+00 (ITERATING)
# TAO 0, KSP 125 |r|=2.590e+00 (ITERATING)
# TAO 0, KSP 126 |r|=2.498e+00 (ITERATING)
# TAO 0, KSP 127 |r|=2.353e+00 (ITERATING)
# TAO 0, KSP 128 |r|=2.271e+00 (ITERATING)
# TAO 0, KSP 129 |r|=2.207e+00 (ITERATING)
# TAO 0, KSP 130 |r|=2.133e+00 (ITERATING)
# TAO 0, KSP 131 |r|=2.061e+00 (ITERATING)
# TAO 0, KSP 132 |r|=2.013e+00 (ITERATING)
# TAO 0, KSP 133 |r|=1.929e+00 (ITERATING)
# TAO 0, KSP 134 |r|=1.844e+00 (ITERATING)
# TAO 0, KSP 135 |r|=1.788e+00 (ITERATING)
# TAO 0, KSP 136 |r|=1.753e+00 (ITERATING)
# TAO 0, KSP 137 |r|=1.734e+00 (ITERATING)
# TAO 0, KSP 138 |r|=1.709e+00 (ITERATING)
# TAO 0, KSP 139 |r|=1.657e+00 (ITERATING)
# TAO 0, KSP 140 |r|=1.573e+00 (ITERATING)
# TAO 0, KSP 141 |r|=1.479e+00 (ITERATING)
# TAO 0, KSP 142 |r|=1.385e+00 (ITERATING)
# TAO 0, KSP 143 |r|=1.335e+00 (ITERATING)
# TAO 0, KSP 144 |r|=1.326e+00 (ITERATING)
# TAO 0, KSP 145 |r|=1.299e+00 (ITERATING)
# TAO 0, KSP 146 |r|=1.242e+00 (ITERATING)
# TAO 0, KSP 147 |r|=1.196e+00 (ITERATING)
# TAO 0, KSP 148 |r|=1.158e+00 (ITERATING)
# TAO 0, KSP 149 |r|=1.102e+00 (ITERATING)
# TAO 0, KSP 150 |r|=1.068e+00 (ITERATING)
# TAO 0, KSP 151 |r|=1.057e+00 (ITERATING)
# TAO 0, KSP 152 |r|=1.030e+00 (ITERATING)
# TAO 0, KSP 153 |r|=9.835e-01 (ITERATING)
# TAO 0, KSP 154 |r|=9.420e-01 (ITERATING)
# TAO 0, KSP 155 |r|=9.134e-01 (ITERATING)
# TAO 0, KSP 156 |r|=8.686e-01 (ITERATING)
# TAO 0, KSP 157 |r|=8.162e-01 (ITERATING)
# TAO 0, KSP 158 |r|=7.828e-01 (ITERATING)
# TAO 0, KSP 159 |r|=7.652e-01 (ITERATING)
# TAO 0, KSP 160 |r|=7.478e-01 (ITERATING)
# TAO 0, KSP 161 |r|=7.123e-01 (ITERATING)
# TAO 0, KSP 162 |r|=6.936e-01 (ITERATING)
# TAO 0, KSP 163 |r|=6.848e-01 (ITERATING)
# TAO 0, KSP 164 |r|=6.654e-01 (ITERATING)
# TAO 0, KSP 165 |r|=6.362e-01 (ITERATING)
# TAO 0, KSP 166 |r|=5.973e-01 (ITERATING)
# TAO 0, KSP 167 |r|=5.594e-01 (ITERATING)
# TAO 0, KSP 168 |r|=5.234e-01 (ITERATING)
# TAO 0, KSP 169 |r|=4.962e-01 (ITERATING)
# TAO 0, KSP 170 |r|=4.793e-01 (ITERATING)
# TAO 0, KSP 171 |r|=4.625e-01 (ITERATING)
# TAO 0, KSP 172 |r|=4.472e-01 (ITERATING)
# TAO 0, KSP 173 |r|=4.307e-01 (ITERATING)
# TAO 0, KSP 174 |r|=4.122e-01 (ITERATING)
# TAO 0, KSP 175 |r|=3.902e-01 (ITERATING)
# TAO 0, KSP 176 |r|=3.752e-01 (ITERATING)
# TAO 0, KSP 177 |r|=3.681e-01 (ITERATING)
# TAO 0, KSP 178 |r|=3.659e-01 (ITERATING)
# TAO 0, KSP 179 |r|=3.531e-01 (ITERATING)
# TAO 0, KSP 180 |r|=3.331e-01 (ITERATING)
# TAO 0, KSP 181 |r|=3.149e-01 (ITERATING)
# TAO 0, KSP 182 |r|=3.024e-01 (ITERATING)
# TAO 0, KSP 183 |r|=2.869e-01 (ITERATING)
# TAO 0, KSP 184 |r|=2.765e-01 (ITERATING)
# TAO 0, KSP 185 |r|=2.701e-01 (ITERATING)
# TAO 0, KSP 186 |r|=2.610e-01 (ITERATING)
# TAO 0, KSP 187 |r|=2.499e-01 (ITERATING)
# TAO 0, KSP 188 |r|=2.401e-01 (ITERATING)
# TAO 0, KSP 189 |r|=2.326e-01 (ITERATING)
# TAO 0, KSP 190 |r|=2.230e-01 (ITERATING)
# TAO 0, KSP 191 |r|=2.126e-01 (ITERATING)
# TAO 0, KSP 192 |r|=2.034e-01 (ITERATING)
# TAO 0, KSP 193 |r|=1.946e-01 (ITERATING)
# TAO 0, KSP 194 |r|=1.882e-01 (ITERATING)
# TAO 0, KSP 195 |r|=1.821e-01 (ITERATING)
# TAO 0, KSP 196 |r|=1.783e-01 (ITERATING)
# TAO 0, KSP 197 |r|=1.725e-01 (ITERATING)
# TAO 0, KSP 198 |r|=1.651e-01 (ITERATING)
# TAO 0, KSP 199 |r|=1.584e-01 (ITERATING)
# TAO 0, KSP 200 |r|=1.554e-01 (ITERATING)
# TAO 0, KSP 201 |r|=1.504e-01 (ITERATING)
# TAO 0, KSP 202 |r|=1.463e-01 (ITERATING)
# TAO 0, KSP 203 |r|=1.438e-01 (ITERATING)
# TAO 0, KSP 204 |r|=1.402e-01 (ITERATING)
# TAO 0, KSP 205 |r|=1.334e-01 (ITERATING)
# TAO 0, KSP 206 |r|=1.274e-01 (ITERATING)
# TAO 0, KSP 207 |r|=1.248e-01 (ITERATING)
# TAO 0, KSP 208 |r|=1.222e-01 (ITERATING)
# TAO 0, KSP 209 |r|=1.161e-01 (ITERATING)
# TAO 0, KSP 210 |r|=1.097e-01 (ITERATING)
# TAO 0, KSP 211 |r|=1.068e-01 (ITERATING)
# TAO 0, KSP 212 |r|=1.057e-01 (ITERATING)
# TAO 0, KSP 213 |r|=1.026e-01 (ITERATING)
# TAO 0, KSP 214 |r|=1.009e-01 (ITERATING)
# TAO 0, KSP 215 |r|=1.010e-01 (ITERATING)
# TAO 0, KSP 216 |r|=9.977e-02 (ITERATING)
# TAO 0, KSP 217 |r|=9.877e-02 (ITERATING)
# TAO 0, KSP 218 |r|=9.856e-02 (ITERATING)
# TAO 0, KSP 219 |r|=9.880e-02 (ITERATING)
# TAO 0, KSP 220 |r|=9.782e-02 (ITERATING)
# TAO 0, KSP 221 |r|=9.555e-02 (ITERATING)
# TAO 0, KSP 222 |r|=9.546e-02 (ITERATING)
# TAO 0, KSP 223 |r|=9.339e-02 (ITERATING)
# TAO 0, KSP 224 |r|=8.819e-02 (ITERATING)
# TAO 0, KSP 225 |r|=8.491e-02 (ITERATING)
# TAO 0, KSP 226 |r|=8.405e-02 (ITERATING)
# TAO 0, KSP 227 |r|=8.236e-02 (ITERATING)
# TAO 0, KSP 228 |r|=8.049e-02 (ITERATING)
# TAO 0, KSP 229 |r|=7.877e-02 (ITERATING)
# TAO 0, KSP 230 |r|=7.821e-02 (ITERATING)
# TAO 0, KSP 231 |r|=7.754e-02 (ITERATING)
# TAO 0, KSP 232 |r|=7.619e-02 (ITERATING)
# TAO 0, KSP 233 |r|=7.638e-02 (ITERATING)
# TAO 0, KSP 234 |r|=7.638e-02 (ITERATING)
# TAO 0, KSP 235 |r|=7.557e-02 (ITERATING)
# TAO 0, KSP 236 |r|=7.488e-02 (ITERATING)
# TAO 0, KSP 237 |r|=7.399e-02 (ITERATING)
# TAO 0, KSP 238 |r|=7.172e-02 (ITERATING)
# TAO 0, KSP 239 |r|=6.939e-02 (ITERATING)
# TAO 0, KSP 240 |r|=6.796e-02 (ITERATING)
# TAO 0, KSP 241 |r|=6.620e-02 (ITERATING)
# TAO 0, KSP 242 |r|=6.362e-02 (ITERATING)
# TAO 0, KSP 243 |r|=6.204e-02 (ITERATING)
# TAO 0, KSP 244 |r|=6.071e-02 (ITERATING)
# TAO 0, KSP 245 |r|=5.949e-02 (ITERATING)
# TAO 0, KSP 246 |r|=5.821e-02 (ITERATING)
# TAO 0, KSP 247 |r|=5.636e-02 (ITERATING)
# TAO 0, KSP 248 |r|=5.423e-02 (ITERATING)
# TAO 0, KSP 249 |r|=5.201e-02 (ITERATING)
# TAO 0, KSP 250 |r|=4.995e-02 (ITERATING)
# TAO 0, KSP 251 |r|=4.832e-02 (ITERATING)
# TAO 0, KSP 252 |r|=4.770e-02 (ITERATING)
# TAO 0, KSP 253 |r|=4.672e-02 (ITERATING)
# TAO 0, KSP 254 |r|=4.328e-02 (ITERATING)
# TAO 0, KSP 255 |r|=4.032e-02 (ITERATING)
# TAO 0, KSP 256 |r|=3.837e-02 (ITERATING)
# TAO 0, KSP 257 |r|=3.635e-02 (ITERATING)
# TAO 0, KSP 258 |r|=3.413e-02 (ITERATING)
# TAO 0, KSP 259 |r|=3.244e-02 (ITERATING)
# TAO 0, KSP 260 |r|=3.104e-02 (ITERATING)
# TAO 0, KSP 261 |r|=2.947e-02 (ITERATING)
# TAO 0, KSP 262 |r|=2.730e-02 (ITERATING)
# TAO 0, KSP 263 |r|=2.587e-02 (ITERATING)
# TAO 0, KSP 264 |r|=2.498e-02 (ITERATING)
# TAO 0, KSP 265 |r|=2.404e-02 (ITERATING)
# TAO 0, KSP 266 |r|=2.295e-02 (ITERATING)
# TAO 0, KSP 267 |r|=2.228e-02 (ITERATING)
# TAO 0, KSP 268 |r|=2.163e-02 (ITERATING)
# TAO 0, KSP 269 |r|=2.077e-02 (ITERATING)
# TAO 0, KSP 270 |r|=1.990e-02 (ITERATING)
# TAO 0, KSP 271 |r|=1.942e-02 (ITERATING)
# TAO 0, KSP 272 |r|=1.867e-02 (ITERATING)
# TAO 0, KSP 273 |r|=1.792e-02 (ITERATING)
# TAO 0, KSP 274 |r|=1.746e-02 (ITERATING)
# TAO 0, KSP 275 |r|=1.727e-02 (ITERATING)
# TAO 0, KSP 276 |r|=1.675e-02 (ITERATING)
# TAO 0, KSP 277 |r|=1.599e-02 (ITERATING)
# TAO 0, KSP 278 |r|=1.534e-02 (ITERATING)
# TAO 0, KSP 279 |r|=1.477e-02 (ITERATING)
# TAO 0, KSP 280 |r|=1.401e-02 (ITERATING)
# TAO 0, KSP 281 |r|=1.330e-02 (ITERATING)
# TAO 0, KSP 282 |r|=1.283e-02 (ITERATING)
# TAO 0, KSP 283 |r|=1.240e-02 (ITERATING)
# TAO 0, KSP 284 |r|=1.187e-02 (ITERATING)
# TAO 0, KSP 285 |r|=1.140e-02 (ITERATING)
# TAO 0, KSP 286 |r|=1.090e-02 (ITERATING)
# TAO 0, KSP 287 |r|=1.050e-02 (ITERATING)
# TAO 0, KSP 288 |r|=1.012e-02 (ITERATING)
# TAO 0, KSP 289 |r|=9.708e-03 (ITERATING)
# TAO 0, KSP 290 |r|=9.304e-03 (ITERATING)
# TAO 0, KSP 291 |r|=8.953e-03 (ITERATING)
# TAO 0, KSP 292 |r|=8.577e-03 (ITERATING)
# TAO 0, KSP 293 |r|=8.315e-03 (ITERATING)
# TAO 0, KSP 294 |r|=8.085e-03 (ITERATING)
# TAO 0, KSP 295 |r|=7.896e-03 (ITERATING)
# TAO 0, KSP 296 |r|=7.625e-03 (ITERATING)
# TAO 0, KSP 297 |r|=7.159e-03 (ITERATING)
# TAO 0, KSP 298 |r|=6.773e-03 (ITERATING)
# TAO 0, KSP 299 |r|=6.460e-03 (ITERATING)
# TAO 0, KSP 300 |r|=6.372e-03 (ITERATING)
# TAO 0, KSP 301 |r|=6.340e-03 (ITERATING)
# TAO 0, KSP 302 |r|=6.117e-03 (ITERATING)
# TAO 0, KSP 303 |r|=5.729e-03 (ITERATING)
# TAO 0, KSP 304 |r|=5.405e-03 (ITERATING)
# TAO 0, KSP 305 |r|=5.218e-03 (ITERATING)
# TAO 0, KSP 306 |r|=5.053e-03 (ITERATING)
# TAO 0, KSP 307 |r|=4.842e-03 (ITERATING)
# TAO 0, KSP 308 |r|=4.680e-03 (ITERATING)
# TAO 0, KSP 309 |r|=4.512e-03 (ITERATING)
# TAO 0, KSP 310 |r|=4.282e-03 (ITERATING)
# TAO 0, KSP 311 |r|=4.036e-03 (ITERATING)
# TAO 0, KSP 312 |r|=3.843e-03 (ITERATING)
# TAO 1 (ITERATING)
# sub 0 [ 44k] |x|=2.550e+03 |J|=1.040e+02 (g-linear)
# all |x|=2.550e+03 |J|=1.040e+02 |H|=7.805e+02 f=1.710e+04
# TAO 1, KSP 0 |r|=1.040e+02 (ITERATING)
# TAO 1, KSP 1 |r|=5.107e+01 (ITERATING)
# TAO 1, KSP 2 |r|=4.059e+01 (ITERATING)
# TAO 1, KSP 3 |r|=2.703e+01 (ITERATING)
# TAO 1, KSP 4 |r|=2.420e+01 (ITERATING)
# TAO 1, KSP 5 |r|=1.985e+01 (ITERATING)
# TAO 1, KSP 6 |r|=1.855e+01 (ITERATING)
# TAO 1, KSP 7 |r|=1.507e+01 (ITERATING)
# TAO 1, KSP 8 |r|=1.420e+01 (ITERATING)
# TAO 1, KSP 9 |r|=1.216e+01 (ITERATING)
# TAO 1, KSP 10 |r|=1.181e+01 (ITERATING)
# TAO 1, KSP 11 |r|=1.041e+01 (ITERATING)
# TAO 1, KSP 12 |r|=1.016e+01 (ITERATING)
# TAO 1, KSP 13 |r|=9.004e+00 (ITERATING)
# TAO 1, KSP 14 |r|=8.737e+00 (ITERATING)
# TAO 1, KSP 15 |r|=7.892e+00 (ITERATING)
# TAO 1, KSP 16 |r|=7.660e+00 (ITERATING)
# TAO 1, KSP 17 |r|=7.194e+00 (ITERATING)
# TAO 1, KSP 18 |r|=7.070e+00 (ITERATING)
# TAO 1, KSP 19 |r|=6.659e+00 (ITERATING)
# TAO 1, KSP 20 |r|=6.464e+00 (ITERATING)
# TAO 1, KSP 21 |r|=6.086e+00 (ITERATING)
# TAO 1, KSP 22 |r|=5.840e+00 (ITERATING)
# TAO 1, KSP 23 |r|=5.564e+00 (ITERATING)
# TAO 1, KSP 24 |r|=5.333e+00 (ITERATING)
# TAO 1, KSP 25 |r|=5.169e+00 (ITERATING)
# TAO 1, KSP 26 |r|=4.887e+00 (ITERATING)
# TAO 1, KSP 27 |r|=4.732e+00 (ITERATING)
# TAO 1, KSP 28 |r|=4.440e+00 (ITERATING)
# TAO 1, KSP 29 |r|=4.326e+00 (ITERATING)
# TAO 1, KSP 30 |r|=4.073e+00 (ITERATING)
# TAO 1, KSP 31 |r|=4.029e+00 (ITERATING)
# TAO 1, KSP 32 |r|=3.804e+00 (ITERATING)
# TAO 1, KSP 33 |r|=3.702e+00 (ITERATING)
# TAO 1, KSP 34 |r|=3.456e+00 (ITERATING)
# TAO 1, KSP 35 |r|=3.405e+00 (ITERATING)
# TAO 1, KSP 36 |r|=3.243e+00 (ITERATING)
# TAO 1, KSP 37 |r|=3.185e+00 (ITERATING)
# TAO 1, KSP 38 |r|=3.138e+00 (ITERATING)
# TAO 1, KSP 39 |r|=3.214e+00 (ITERATING)
# TAO 1, KSP 40 |r|=3.181e+00 (ITERATING)
# TAO 1, KSP 41 |r|=3.033e+00 (ITERATING)
# TAO 1, KSP 42 |r|=2.932e+00 (ITERATING)
# TAO 1, KSP 43 |r|=2.848e+00 (ITERATING)
# TAO 1, KSP 44 |r|=2.829e+00 (ITERATING)
# TAO 1, KSP 45 |r|=2.724e+00 (ITERATING)
# TAO 1, KSP 46 |r|=2.713e+00 (ITERATING)
# TAO 1, KSP 47 |r|=2.614e+00 (ITERATING)
# TAO 1, KSP 48 |r|=2.543e+00 (ITERATING)
# TAO 1, KSP 49 |r|=2.438e+00 (ITERATING)
# TAO 1, KSP 50 |r|=2.387e+00 (ITERATING)
# TAO 1, KSP 51 |r|=2.274e+00 (ITERATING)
# TAO 1, KSP 52 |r|=2.225e+00 (ITERATING)
# TAO 1, KSP 53 |r|=2.126e+00 (ITERATING)
# TAO 1, KSP 54 |r|=2.072e+00 (ITERATING)
# TAO 1, KSP 55 |r|=1.936e+00 (ITERATING)
# TAO 1, KSP 56 |r|=1.849e+00 (ITERATING)
# TAO 1, KSP 57 |r|=1.724e+00 (ITERATING)
# TAO 1, KSP 58 |r|=1.665e+00 (ITERATING)
# TAO 1, KSP 59 |r|=1.586e+00 (ITERATING)
# TAO 1, KSP 60 |r|=1.514e+00 (ITERATING)
# TAO 1, KSP 61 |r|=1.447e+00 (ITERATING)
# TAO 1, KSP 62 |r|=1.402e+00 (ITERATING)
# TAO 1, KSP 63 |r|=1.333e+00 (ITERATING)
# TAO 1, KSP 64 |r|=1.266e+00 (ITERATING)
# TAO 1, KSP 65 |r|=1.197e+00 (ITERATING)
# TAO 1, KSP 66 |r|=1.117e+00 (ITERATING)
# TAO 1, KSP 67 |r|=1.071e+00 (ITERATING)
# TAO 1, KSP 68 |r|=1.013e+00 (ITERATING)
# TAO 1, KSP 69 |r|=9.753e-01 (ITERATING)
# TAO 1, KSP 70 |r|=9.177e-01 (ITERATING)
# TAO 1, KSP 71 |r|=8.826e-01 (ITERATING)
# TAO 1, KSP 72 |r|=8.405e-01 (ITERATING)
# TAO 1, KSP 73 |r|=8.234e-01 (ITERATING)
# TAO 1, KSP 74 |r|=7.906e-01 (ITERATING)
# TAO 1, KSP 75 |r|=7.601e-01 (ITERATING)
# TAO 1, KSP 76 |r|=7.133e-01 (ITERATING)
# TAO 1, KSP 77 |r|=6.745e-01 (ITERATING)
# TAO 1, KSP 78 |r|=6.435e-01 (ITERATING)
# TAO 1, KSP 79 |r|=6.134e-01 (ITERATING)
# TAO 1, KSP 80 |r|=5.917e-01 (ITERATING)
# TAO 1, KSP 81 |r|=5.625e-01 (ITERATING)
# TAO 1, KSP 82 |r|=5.389e-01 (ITERATING)
# TAO 1, KSP 83 |r|=5.102e-01 (ITERATING)
# TAO 1, KSP 84 |r|=4.952e-01 (ITERATING)
# TAO 1, KSP 85 |r|=4.723e-01 (ITERATING)
# TAO 1, KSP 86 |r|=4.539e-01 (ITERATING)
# TAO 1, KSP 87 |r|=4.370e-01 (ITERATING)
# TAO 1, KSP 88 |r|=4.246e-01 (ITERATING)
# TAO 1, KSP 89 |r|=4.035e-01 (ITERATING)
# TAO 1, KSP 90 |r|=3.907e-01 (ITERATING)
# TAO 1, KSP 91 |r|=3.761e-01 (ITERATING)
# TAO 1, KSP 92 |r|=3.675e-01 (ITERATING)
# TAO 1, KSP 93 |r|=3.543e-01 (ITERATING)
# TAO 1, KSP 94 |r|=3.364e-01 (ITERATING)
# TAO 1, KSP 95 |r|=3.143e-01 (ITERATING)
# TAO 1, KSP 96 |r|=2.998e-01 (ITERATING)
# TAO 1, KSP 97 |r|=2.916e-01 (ITERATING)
# TAO 1, KSP 98 |r|=2.889e-01 (ITERATING)
# TAO 1, KSP 99 |r|=2.823e-01 (ITERATING)
# TAO 1, KSP 100 |r|=2.740e-01 (ITERATING)
# TAO 1, KSP 101 |r|=2.626e-01 (ITERATING)
# TAO 1, KSP 102 |r|=2.543e-01 (ITERATING)
# TAO 1, KSP 103 |r|=2.459e-01 (ITERATING)
# TAO 1, KSP 104 |r|=2.364e-01 (ITERATING)
# TAO 1, KSP 105 |r|=2.293e-01 (ITERATING)
# TAO 1, KSP 106 |r|=2.213e-01 (ITERATING)
# TAO 1, KSP 107 |r|=2.144e-01 (ITERATING)
# TAO 1, KSP 108 |r|=2.070e-01 (ITERATING)
# TAO 1, KSP 109 |r|=2.004e-01 (ITERATING)
# TAO 1, KSP 110 |r|=1.906e-01 (ITERATING)
# TAO 1, KSP 111 |r|=1.842e-01 (ITERATING)
# TAO 1, KSP 112 |r|=1.769e-01 (ITERATING)
# TAO 1, KSP 113 |r|=1.682e-01 (ITERATING)
# TAO 1, KSP 114 |r|=1.620e-01 (ITERATING)
# TAO 1, KSP 115 |r|=1.589e-01 (ITERATING)
# TAO 1, KSP 116 |r|=1.557e-01 (ITERATING)
# TAO 1, KSP 117 |r|=1.497e-01 (ITERATING)
# TAO 1, KSP 118 |r|=1.420e-01 (ITERATING)
# TAO 1, KSP 119 |r|=1.344e-01 (ITERATING)
# TAO 1, KSP 120 |r|=1.286e-01 (ITERATING)
# TAO 1, KSP 121 |r|=1.206e-01 (ITERATING)
# TAO 1, KSP 122 |r|=1.122e-01 (ITERATING)
# TAO 1, KSP 123 |r|=1.053e-01 (ITERATING)
# TAO 1, KSP 124 |r|=1.006e-01 (ITERATING)
# TAO 1, KSP 125 |r|=9.666e-02 (ITERATING)
# TAO 1, KSP 126 |r|=9.350e-02 (ITERATING)
# TAO 1, KSP 127 |r|=8.875e-02 (ITERATING)
# TAO 1, KSP 128 |r|=8.497e-02 (ITERATING)
# TAO 1, KSP 129 |r|=8.065e-02 (ITERATING)
# TAO 1, KSP 130 |r|=7.749e-02 (ITERATING)
# TAO 1, KSP 131 |r|=7.460e-02 (ITERATING)
# TAO 1, KSP 132 |r|=7.202e-02 (ITERATING)
# TAO 1, KSP 133 |r|=6.790e-02 (ITERATING)
# TAO 1, KSP 134 |r|=6.301e-02 (ITERATING)
# TAO 1, KSP 135 |r|=5.865e-02 (ITERATING)
# TAO 1, KSP 136 |r|=5.656e-02 (ITERATING)
# TAO 1, KSP 137 |r|=5.439e-02 (ITERATING)
# TAO 1, KSP 138 |r|=5.294e-02 (ITERATING)
# TAO 1, KSP 139 |r|=5.165e-02 (ITERATING)
# TAO 1, KSP 140 |r|=4.956e-02 (ITERATING)
# TAO 1, KSP 141 |r|=4.792e-02 (ITERATING)
# TAO 1, KSP 142 |r|=4.640e-02 (ITERATING)
# TAO 1, KSP 143 |r|=4.466e-02 (ITERATING)
# TAO 1, KSP 144 |r|=4.344e-02 (ITERATING)
# TAO 1, KSP 145 |r|=4.332e-02 (ITERATING)
# TAO 1, KSP 146 |r|=4.318e-02 (ITERATING)
# TAO 1, KSP 147 |r|=4.209e-02 (ITERATING)
# TAO 1, KSP 148 |r|=3.982e-02 (ITERATING)
# TAO 1, KSP 149 |r|=3.837e-02 (ITERATING)
# TAO 1, KSP 150 |r|=3.634e-02 (ITERATING)
# TAO 1, KSP 151 |r|=3.439e-02 (ITERATING)
# TAO 1, KSP 152 |r|=3.318e-02 (ITERATING)
# TAO 1, KSP 153 |r|=3.246e-02 (ITERATING)
# TAO 1, KSP 154 |r|=3.130e-02 (ITERATING)
# TAO 1, KSP 155 |r|=3.019e-02 (ITERATING)
# TAO 1, KSP 156 |r|=2.967e-02 (ITERATING)
# TAO 1, KSP 157 |r|=2.863e-02 (ITERATING)
# TAO 1, KSP 158 |r|=2.762e-02 (ITERATING)
# TAO 1, KSP 159 |r|=2.629e-02 (ITERATING)
# TAO 1, KSP 160 |r|=2.541e-02 (ITERATING)
# TAO 1, KSP 161 |r|=2.457e-02 (ITERATING)
# TAO 1, KSP 162 |r|=2.403e-02 (ITERATING)
# TAO 1, KSP 163 |r|=2.302e-02 (ITERATING)
# TAO 1, KSP 164 |r|=2.215e-02 (ITERATING)
# TAO 1, KSP 165 |r|=2.128e-02 (ITERATING)
# TAO 1, KSP 166 |r|=2.034e-02 (ITERATING)
# TAO 1, KSP 167 |r|=1.911e-02 (ITERATING)
# TAO 1, KSP 168 |r|=1.795e-02 (ITERATING)
# TAO 1, KSP 169 |r|=1.701e-02 (ITERATING)
# TAO 1, KSP 170 |r|=1.643e-02 (ITERATING)
# TAO 1, KSP 171 |r|=1.578e-02 (ITERATING)
# TAO 1, KSP 172 |r|=1.512e-02 (ITERATING)
# TAO 1, KSP 173 |r|=1.459e-02 (ITERATING)
# TAO 1, KSP 174 |r|=1.409e-02 (ITERATING)
# TAO 1, KSP 175 |r|=1.362e-02 (ITERATING)
# TAO 1, KSP 176 |r|=1.285e-02 (ITERATING)
# TAO 1, KSP 177 |r|=1.208e-02 (ITERATING)
# TAO 1, KSP 178 |r|=1.141e-02 (ITERATING)
# TAO 1, KSP 179 |r|=1.102e-02 (ITERATING)
# TAO 1, KSP 180 |r|=1.053e-02 (ITERATING)
# TAO 1, KSP 181 |r|=1.023e-02 (ITERATING)
# TAO 1, KSP 182 |r|=9.725e-03 (ITERATING)
# TAO 1, KSP 183 |r|=9.419e-03 (ITERATING)
# TAO 1, KSP 184 |r|=9.068e-03 (ITERATING)
# TAO 1, KSP 185 |r|=8.713e-03 (ITERATING)
# TAO 1, KSP 186 |r|=8.397e-03 (ITERATING)
# TAO 1, KSP 187 |r|=8.110e-03 (ITERATING)
# TAO 1, KSP 188 |r|=7.852e-03 (ITERATING)
# TAO 1, KSP 189 |r|=7.520e-03 (ITERATING)
# TAO 1, KSP 190 |r|=7.154e-03 (ITERATING)
# TAO 1, KSP 191 |r|=6.835e-03 (ITERATING)
# TAO 1, KSP 192 |r|=6.518e-03 (ITERATING)
# TAO 1, KSP 193 |r|=6.204e-03 (ITERATING)
# TAO 1, KSP 194 |r|=5.877e-03 (ITERATING)
# TAO 1, KSP 195 |r|=5.607e-03 (ITERATING)
# TAO 1, KSP 196 |r|=5.424e-03 (ITERATING)
# TAO 1, KSP 197 |r|=5.226e-03 (ITERATING)
# TAO 1, KSP 198 |r|=5.086e-03 (ITERATING)
# TAO 1, KSP 199 |r|=4.902e-03 (ITERATING)
# TAO 1, KSP 200 |r|=4.747e-03 (ITERATING)
# TAO 1, KSP 201 |r|=4.616e-03 (ITERATING)
# TAO 1, KSP 202 |r|=4.552e-03 (ITERATING)
# TAO 1, KSP 203 |r|=4.502e-03 (ITERATING)
# TAO 1, KSP 204 |r|=4.539e-03 (ITERATING)
# TAO 1, KSP 205 |r|=4.519e-03 (ITERATING)
# TAO 1, KSP 206 |r|=4.426e-03 (ITERATING)
# TAO 1, KSP 207 |r|=4.278e-03 (ITERATING)
# TAO 1, KSP 208 |r|=4.132e-03 (ITERATING)
# TAO 1, KSP 209 |r|=4.051e-03 (ITERATING)
# TAO 1, KSP 210 |r|=3.982e-03 (ITERATING)
# TAO 1, KSP 211 |r|=3.947e-03 (ITERATING)
# TAO 1, KSP 212 |r|=3.892e-03 (ITERATING)
# TAO 1, KSP 213 |r|=3.837e-03 (ITERATING)
# TAO 1, KSP 214 |r|=3.771e-03 (ITERATING)
# TAO 1, KSP 215 |r|=3.734e-03 (ITERATING)
# TAO 1, KSP 216 |r|=3.718e-03 (ITERATING)
# TAO 1, KSP 217 |r|=3.741e-03 (ITERATING)
# TAO 1, KSP 218 |r|=3.675e-03 (ITERATING)
# TAO 1, KSP 219 |r|=3.626e-03 (ITERATING)
# TAO 1, KSP 220 |r|=3.557e-03 (ITERATING)
# TAO 1, KSP 221 |r|=3.505e-03 (ITERATING)
# TAO 1, KSP 222 |r|=3.411e-03 (ITERATING)
# TAO 1, KSP 223 |r|=3.312e-03 (ITERATING)
# TAO 1, KSP 224 |r|=3.160e-03 (ITERATING)
# TAO 1, KSP 225 |r|=3.069e-03 (ITERATING)
# TAO 1, KSP 226 |r|=2.966e-03 (ITERATING)
# TAO 1, KSP 227 |r|=2.821e-03 (ITERATING)
# TAO 1, KSP 228 |r|=2.662e-03 (ITERATING)
# TAO 1, KSP 229 |r|=2.541e-03 (ITERATING)
# TAO 1, KSP 230 |r|=2.461e-03 (ITERATING)
# TAO 1, KSP 231 |r|=2.380e-03 (ITERATING)
# TAO 1, KSP 232 |r|=2.274e-03 (ITERATING)
# TAO 1, KSP 233 |r|=2.177e-03 (ITERATING)
# TAO 1, KSP 234 |r|=2.097e-03 (ITERATING)
# TAO 1, KSP 235 |r|=2.011e-03 (ITERATING)
# TAO 1, KSP 236 |r|=1.954e-03 (ITERATING)
# TAO 1, KSP 237 |r|=1.891e-03 (ITERATING)
# TAO 1, KSP 238 |r|=1.839e-03 (ITERATING)
# TAO 1, KSP 239 |r|=1.774e-03 (ITERATING)
# TAO 1, KSP 240 |r|=1.703e-03 (ITERATING)
# TAO 1, KSP 241 |r|=1.623e-03 (ITERATING)
# TAO 1, KSP 242 |r|=1.565e-03 (ITERATING)
# TAO 1, KSP 243 |r|=1.504e-03 (ITERATING)
# TAO 1, KSP 244 |r|=1.441e-03 (ITERATING)
# TAO 1, KSP 245 |r|=1.379e-03 (ITERATING)
# TAO 1, KSP 246 |r|=1.330e-03 (ITERATING)
# TAO 1, KSP 247 |r|=1.278e-03 (ITERATING)
# TAO 1, KSP 248 |r|=1.218e-03 (ITERATING)
# TAO 1, KSP 249 |r|=1.173e-03 (ITERATING)
# TAO 1, KSP 250 |r|=1.123e-03 (ITERATING)
# TAO 1, KSP 251 |r|=1.073e-03 (ITERATING)
# TAO 1, KSP 252 |r|=1.024e-03 (ITERATING)
# TAO 2 (ITERATING)
# sub 0 [ 44k] |x|=2.184e+03 |J|=6.143e-01 (g-linear)
# all |x|=2.184e+03 |J|=6.143e-01 |H|=7.805e+02 f=1.256e+04
# TAO 2, KSP 0 |r|=6.143e-01 (ITERATING)
# TAO 2, KSP 1 |r|=3.830e-01 (ITERATING)
# TAO 2, KSP 2 |r|=2.535e-01 (ITERATING)
# TAO 2, KSP 3 |r|=1.794e-01 (ITERATING)
# TAO 2, KSP 4 |r|=1.382e-01 (ITERATING)
# TAO 2, KSP 5 |r|=1.136e-01 (ITERATING)
# TAO 2, KSP 6 |r|=9.464e-02 (ITERATING)
# TAO 2, KSP 7 |r|=8.182e-02 (ITERATING)
# TAO 2, KSP 8 |r|=7.111e-02 (ITERATING)
# TAO 2, KSP 9 |r|=6.442e-02 (ITERATING)
# TAO 2, KSP 10 |r|=5.984e-02 (ITERATING)
# TAO 2, KSP 11 |r|=5.527e-02 (ITERATING)
# TAO 2, KSP 12 |r|=4.925e-02 (ITERATING)
# TAO 2, KSP 13 |r|=4.504e-02 (ITERATING)
# TAO 2, KSP 14 |r|=4.191e-02 (ITERATING)
# TAO 2, KSP 15 |r|=3.901e-02 (ITERATING)
# TAO 2, KSP 16 |r|=3.685e-02 (ITERATING)
# TAO 2, KSP 17 |r|=3.510e-02 (ITERATING)
# TAO 2, KSP 18 |r|=3.323e-02 (ITERATING)
# TAO 2, KSP 19 |r|=3.043e-02 (ITERATING)
# TAO 2, KSP 20 |r|=2.842e-02 (ITERATING)
# TAO 2, KSP 21 |r|=2.709e-02 (ITERATING)
# TAO 2, KSP 22 |r|=2.656e-02 (ITERATING)
# TAO 2, KSP 23 |r|=2.588e-02 (ITERATING)
# TAO 2, KSP 24 |r|=2.432e-02 (ITERATING)
# TAO 2, KSP 25 |r|=2.309e-02 (ITERATING)
# TAO 2, KSP 26 |r|=2.209e-02 (ITERATING)
# TAO 2, KSP 27 |r|=2.119e-02 (ITERATING)
# TAO 2, KSP 28 |r|=2.014e-02 (ITERATING)
# TAO 2, KSP 29 |r|=1.942e-02 (ITERATING)
# TAO 2, KSP 30 |r|=1.886e-02 (ITERATING)
# TAO 2, KSP 31 |r|=1.835e-02 (ITERATING)
# TAO 2, KSP 32 |r|=1.762e-02 (ITERATING)
# TAO 2, KSP 33 |r|=1.681e-02 (ITERATING)
# TAO 2, KSP 34 |r|=1.615e-02 (ITERATING)
# TAO 2, KSP 35 |r|=1.552e-02 (ITERATING)
# TAO 2, KSP 36 |r|=1.506e-02 (ITERATING)
# TAO 2, KSP 37 |r|=1.458e-02 (ITERATING)
# TAO 2, KSP 38 |r|=1.407e-02 (ITERATING)
# TAO 2, KSP 39 |r|=1.363e-02 (ITERATING)
# TAO 2, KSP 40 |r|=1.318e-02 (ITERATING)
# TAO 2, KSP 41 |r|=1.287e-02 (ITERATING)
# TAO 2, KSP 42 |r|=1.253e-02 (ITERATING)
# TAO 2, KSP 43 |r|=1.214e-02 (ITERATING)
# TAO 2, KSP 44 |r|=1.169e-02 (ITERATING)
# TAO 2, KSP 45 |r|=1.129e-02 (ITERATING)
# TAO 2, KSP 46 |r|=1.098e-02 (ITERATING)
# TAO 2, KSP 47 |r|=1.070e-02 (ITERATING)
# TAO 2, KSP 48 |r|=1.051e-02 (ITERATING)
# TAO 2, KSP 49 |r|=1.029e-02 (ITERATING)
# TAO 2, KSP 50 |r|=9.948e-03 (ITERATING)
# TAO 2, KSP 51 |r|=9.494e-03 (ITERATING)
# TAO 2, KSP 52 |r|=9.175e-03 (ITERATING)
# TAO 2, KSP 53 |r|=8.822e-03 (ITERATING)
# TAO 2, KSP 54 |r|=8.375e-03 (ITERATING)
# TAO 2, KSP 55 |r|=7.984e-03 (ITERATING)
# TAO 2, KSP 56 |r|=7.762e-03 (ITERATING)
# TAO 2, KSP 57 |r|=7.639e-03 (ITERATING)
# TAO 2, KSP 58 |r|=7.479e-03 (ITERATING)
# TAO 2, KSP 59 |r|=7.248e-03 (ITERATING)
# TAO 2, KSP 60 |r|=6.984e-03 (ITERATING)
# TAO 2, KSP 61 |r|=6.606e-03 (ITERATING)
# TAO 2, KSP 62 |r|=6.226e-03 (ITERATING)
# TAO 2, KSP 63 |r|=5.864e-03 (ITERATING)
# TAO 2, KSP 64 |r|=5.672e-03 (ITERATING)
# TAO 2, KSP 65 |r|=5.490e-03 (ITERATING)
# TAO 2, KSP 66 |r|=5.254e-03 (ITERATING)
# TAO 2, KSP 67 |r|=5.076e-03 (ITERATING)
# TAO 2, KSP 68 |r|=4.833e-03 (ITERATING)
# TAO 2, KSP 69 |r|=4.740e-03 (ITERATING)
# TAO 2, KSP 70 |r|=4.534e-03 (ITERATING)
# TAO 2, KSP 71 |r|=4.389e-03 (ITERATING)
# TAO 2, KSP 72 |r|=4.232e-03 (ITERATING)
# TAO 2, KSP 73 |r|=4.160e-03 (ITERATING)
# TAO 2, KSP 74 |r|=4.020e-03 (ITERATING)
# TAO 2, KSP 75 |r|=3.879e-03 (ITERATING)
# TAO 2, KSP 76 |r|=3.706e-03 (ITERATING)
# TAO 2, KSP 77 |r|=3.613e-03 (ITERATING)
# TAO 2, KSP 78 |r|=3.520e-03 (ITERATING)
# TAO 2, KSP 79 |r|=3.438e-03 (ITERATING)
# TAO 2, KSP 80 |r|=3.325e-03 (ITERATING)
# TAO 2, KSP 81 |r|=3.238e-03 (ITERATING)
# TAO 2, KSP 82 |r|=3.128e-03 (ITERATING)
# TAO 2, KSP 83 |r|=3.029e-03 (ITERATING)
# TAO 2, KSP 84 |r|=2.928e-03 (ITERATING)
# TAO 2, KSP 85 |r|=2.814e-03 (ITERATING)
# TAO 2, KSP 86 |r|=2.713e-03 (ITERATING)
# TAO 2, KSP 87 |r|=2.569e-03 (ITERATING)
# TAO 2, KSP 88 |r|=2.456e-03 (ITERATING)
# TAO 2, KSP 89 |r|=2.355e-03 (ITERATING)
# TAO 2, KSP 90 |r|=2.289e-03 (ITERATING)
# TAO 2, KSP 91 |r|=2.230e-03 (ITERATING)
# TAO 2, KSP 92 |r|=2.163e-03 (ITERATING)
# TAO 2, KSP 93 |r|=2.097e-03 (ITERATING)
# TAO 2, KSP 94 |r|=2.039e-03 (ITERATING)
# TAO 2, KSP 95 |r|=1.976e-03 (ITERATING)
# TAO 2, KSP 96 |r|=1.890e-03 (ITERATING)
# TAO 2, KSP 97 |r|=1.794e-03 (ITERATING)
# TAO 2, KSP 98 |r|=1.687e-03 (ITERATING)
# TAO 2, KSP 99 |r|=1.591e-03 (ITERATING)
# TAO 2, KSP 100 |r|=1.512e-03 (ITERATING)
# TAO 2, KSP 101 |r|=1.445e-03 (ITERATING)
# TAO 2, KSP 102 |r|=1.380e-03 (ITERATING)
# TAO 2, KSP 103 |r|=1.325e-03 (ITERATING)
# TAO 2, KSP 104 |r|=1.258e-03 (ITERATING)
# TAO 2, KSP 105 |r|=1.169e-03 (ITERATING)
# TAO 2, KSP 106 |r|=1.088e-03 (ITERATING)
# TAO 2, KSP 107 |r|=1.032e-03 (ITERATING)
# TAO 2, KSP 108 |r|=9.849e-04 (ITERATING)
# TAO 2, KSP 109 |r|=9.362e-04 (ITERATING)
# TAO 2, KSP 110 |r|=8.843e-04 (ITERATING)
# TAO 2, KSP 111 |r|=8.362e-04 (ITERATING)
# TAO 2, KSP 112 |r|=7.991e-04 (ITERATING)
# TAO 2, KSP 113 |r|=7.796e-04 (ITERATING)
# TAO 2, KSP 114 |r|=7.611e-04 (ITERATING)
# TAO 2, KSP 115 |r|=7.354e-04 (ITERATING)
# TAO 2, KSP 116 |r|=7.118e-04 (ITERATING)
# TAO 2, KSP 117 |r|=6.891e-04 (ITERATING)
# TAO 2, KSP 118 |r|=6.623e-04 (ITERATING)
# TAO 2, KSP 119 |r|=6.281e-04 (ITERATING)
# TAO 2, KSP 120 |r|=5.957e-04 (ITERATING)
# TAO 2, KSP 121 |r|=5.751e-04 (ITERATING)
# TAO 2, KSP 122 |r|=5.555e-04 (ITERATING)
# TAO 2, KSP 123 |r|=5.401e-04 (ITERATING)
# TAO 2, KSP 124 |r|=5.248e-04 (ITERATING)
# TAO 2, KSP 125 |r|=5.057e-04 (ITERATING)
# TAO 2, KSP 126 |r|=4.886e-04 (ITERATING)
# TAO 2, KSP 127 |r|=4.708e-04 (ITERATING)
# TAO 2, KSP 128 |r|=4.495e-04 (ITERATING)
# TAO 2, KSP 129 |r|=4.331e-04 (ITERATING)
# TAO 2, KSP 130 |r|=4.224e-04 (ITERATING)
# TAO 2, KSP 131 |r|=4.236e-04 (ITERATING)
# TAO 2, KSP 132 |r|=4.103e-04 (ITERATING)
# TAO 2, KSP 133 |r|=3.778e-04 (ITERATING)
# TAO 2, KSP 134 |r|=3.582e-04 (ITERATING)
# TAO 2, KSP 135 |r|=3.452e-04 (ITERATING)
# TAO 2, KSP 136 |r|=3.332e-04 (ITERATING)
# TAO 2, KSP 137 |r|=3.228e-04 (ITERATING)
# TAO 2, KSP 138 |r|=3.161e-04 (ITERATING)
# TAO 2, KSP 139 |r|=3.163e-04 (ITERATING)
# TAO 2, KSP 140 |r|=3.147e-04 (ITERATING)
# TAO 2, KSP 141 |r|=3.048e-04 (ITERATING)
# TAO 2, KSP 142 |r|=2.938e-04 (ITERATING)
# TAO 2, KSP 143 |r|=2.848e-04 (ITERATING)
# TAO 2, KSP 144 |r|=2.743e-04 (ITERATING)
# TAO 2, KSP 145 |r|=2.685e-04 (ITERATING)
# TAO 2, KSP 146 |r|=2.618e-04 (ITERATING)
# TAO 2, KSP 147 |r|=2.526e-04 (ITERATING)
# TAO 2, KSP 148 |r|=2.455e-04 (ITERATING)
# TAO 2, KSP 149 |r|=2.392e-04 (ITERATING)
# TAO 2, KSP 150 |r|=2.322e-04 (ITERATING)
# TAO 2, KSP 151 |r|=2.211e-04 (ITERATING)
# TAO 2, KSP 152 |r|=2.133e-04 (ITERATING)
# TAO 2, KSP 153 |r|=2.080e-04 (ITERATING)
# TAO 2, KSP 154 |r|=2.019e-04 (ITERATING)
# TAO 2, KSP 155 |r|=1.940e-04 (ITERATING)
# TAO 2, KSP 156 |r|=1.862e-04 (ITERATING)
# TAO 2, KSP 157 |r|=1.831e-04 (ITERATING)
# TAO 2, KSP 158 |r|=1.776e-04 (ITERATING)
# TAO 2, KSP 159 |r|=1.727e-04 (ITERATING)
# TAO 2, KSP 160 |r|=1.642e-04 (ITERATING)
# TAO 2, KSP 161 |r|=1.584e-04 (ITERATING)
# TAO 2, KSP 162 |r|=1.536e-04 (ITERATING)
# TAO 2, KSP 163 |r|=1.481e-04 (ITERATING)
# TAO 2, KSP 164 |r|=1.426e-04 (ITERATING)
# TAO 2, KSP 165 |r|=1.377e-04 (ITERATING)
# TAO 2, KSP 166 |r|=1.331e-04 (ITERATING)
# TAO 2, KSP 167 |r|=1.274e-04 (ITERATING)
# TAO 2, KSP 168 |r|=1.207e-04 (ITERATING)
# TAO 2, KSP 169 |r|=1.144e-04 (ITERATING)
# TAO 2, KSP 170 |r|=1.102e-04 (ITERATING)
# TAO 2, KSP 171 |r|=1.064e-04 (ITERATING)
# TAO 2, KSP 172 |r|=1.020e-04 (ITERATING)
# TAO 2, KSP 173 |r|=9.799e-05 (ITERATING)
# TAO 2, KSP 174 |r|=9.378e-05 (ITERATING)
# TAO 2, KSP 175 |r|=8.985e-05 (ITERATING)
# TAO 2, KSP 176 |r|=8.588e-05 (ITERATING)
# TAO 2, KSP 177 |r|=8.326e-05 (ITERATING)
# TAO 2, KSP 178 |r|=8.125e-05 (ITERATING)
# TAO 2, KSP 179 |r|=8.133e-05 (ITERATING)
# TAO 2, KSP 180 |r|=8.030e-05 (ITERATING)
# TAO 2, KSP 181 |r|=7.617e-05 (ITERATING)
# TAO 2, KSP 182 |r|=7.252e-05 (ITERATING)
# TAO 2, KSP 183 |r|=6.955e-05 (ITERATING)
# TAO 2, KSP 184 |r|=6.735e-05 (ITERATING)
# TAO 2, KSP 185 |r|=6.508e-05 (ITERATING)
# TAO 2, KSP 186 |r|=6.309e-05 (ITERATING)
# TAO 2, KSP 187 |r|=6.052e-05 (ITERATING)
# TAO 2, KSP 188 |r|=5.732e-05 (ITERATING)
# TAO 2, KSP 189 |r|=5.489e-05 (ITERATING)
# TAO 2, KSP 190 |r|=5.281e-05 (ITERATING)
# TAO 2, KSP 191 |r|=5.179e-05 (ITERATING)
# TAO 2, KSP 192 |r|=5.038e-05 (ITERATING)
# TAO 2, KSP 193 |r|=4.812e-05 (ITERATING)
# TAO 2, KSP 194 |r|=4.541e-05 (ITERATING)
# TAO 2, KSP 195 |r|=4.340e-05 (ITERATING)
# TAO 2, KSP 196 |r|=4.226e-05 (ITERATING)
# TAO 2, KSP 197 |r|=4.083e-05 (ITERATING)
# TAO 2, KSP 198 |r|=3.907e-05 (ITERATING)
# TAO 2, KSP 199 |r|=3.792e-05 (ITERATING)
# TAO 2, KSP 200 |r|=3.726e-05 (ITERATING)
# TAO 2, KSP 201 |r|=3.543e-05 (ITERATING)
# TAO 2, KSP 202 |r|=3.309e-05 (ITERATING)
# TAO 2, KSP 203 |r|=3.121e-05 (ITERATING)
# TAO 2, KSP 204 |r|=2.988e-05 (ITERATING)
# TAO 2, KSP 205 |r|=2.864e-05 (ITERATING)
# TAO 2, KSP 206 |r|=2.700e-05 (ITERATING)
# TAO 2, KSP 207 |r|=2.542e-05 (ITERATING)
# TAO 2, KSP 208 |r|=2.441e-05 (ITERATING)
# TAO 2, KSP 209 |r|=2.367e-05 (ITERATING)
# TAO 2, KSP 210 |r|=2.236e-05 (ITERATING)
# TAO 2, KSP 211 |r|=2.103e-05 (ITERATING)
# TAO 2, KSP 212 |r|=2.022e-05 (ITERATING)
# TAO 2, KSP 213 |r|=1.960e-05 (ITERATING)
# TAO 2, KSP 214 |r|=1.926e-05 (ITERATING)
# TAO 2, KSP 215 |r|=1.877e-05 (ITERATING)
# TAO 2, KSP 216 |r|=1.788e-05 (ITERATING)
# TAO 2, KSP 217 |r|=1.703e-05 (ITERATING)
# TAO 2, KSP 218 |r|=1.631e-05 (ITERATING)
# TAO 2, KSP 219 |r|=1.571e-05 (ITERATING)
# TAO 2, KSP 220 |r|=1.526e-05 (ITERATING)
# TAO 2, KSP 221 |r|=1.479e-05 (ITERATING)
# TAO 2, KSP 222 |r|=1.434e-05 (ITERATING)
# TAO 2, KSP 223 |r|=1.371e-05 (ITERATING)
# TAO 2, KSP 224 |r|=1.314e-05 (ITERATING)
# TAO 2, KSP 225 |r|=1.265e-05 (ITERATING)
# TAO 2, KSP 226 |r|=1.225e-05 (ITERATING)
# TAO 2, KSP 227 |r|=1.196e-05 (ITERATING)
# TAO 2, KSP 228 |r|=1.165e-05 (ITERATING)
# TAO 2, KSP 229 |r|=1.116e-05 (ITERATING)
# TAO 2, KSP 230 |r|=1.050e-05 (ITERATING)
# TAO 2, KSP 231 |r|=9.832e-06 (ITERATING)
# TAO 2, KSP 232 |r|=9.207e-06 (ITERATING)
# TAO 2, KSP 233 |r|=8.764e-06 (ITERATING)
# TAO 2, KSP 234 |r|=8.356e-06 (ITERATING)
# TAO 2, KSP 235 |r|=8.002e-06 (ITERATING)
# TAO 2, KSP 236 |r|=7.751e-06 (ITERATING)
# TAO 2, KSP 237 |r|=7.410e-06 (ITERATING)
# TAO 2, KSP 238 |r|=7.102e-06 (ITERATING)
# TAO 2, KSP 239 |r|=6.798e-06 (ITERATING)
# TAO 2, KSP 240 |r|=6.375e-06 (ITERATING)
# TAO 2, KSP 241 |r|=6.035e-06 (ITERATING)
# TAO 3 (ITERATING)
# sub 0 [ 44k] |x|=2.185e+03 |J|=6.035e-06 (g-linear)
# all |x|=2.185e+03 |J|=6.035e-06 |H|=7.805e+02 f=1.256e+04
# TAO 0 (ITERATING)
# sub 0 [ 44k] |x|=3.141e+02 |J|=1.402e+02 (g)
# all |x|=3.141e+02 |J|=1.402e+02 f=1.715e+04
# TAO 0, KSP 0 |r|=1.402e+02 (ITERATING)
# TAO 0, KSP 1 |r|=9.719e+01 (ITERATING)
# TAO 0, KSP 2 |r|=5.860e+01 (ITERATING)
# TAO 0, KSP 3 |r|=3.758e+01 (ITERATING)
# TAO 0, KSP 4 |r|=3.625e+01 (ITERATING)
# TAO 0, KSP 5 |r|=3.918e+01 (ITERATING)
# TAO 0, KSP 6 |r|=3.215e+01 (ITERATING)
# TAO 0, KSP 7 |r|=2.603e+01 (ITERATING)
# TAO 0, KSP 8 |r|=2.636e+01 (ITERATING)
# TAO 0, KSP 9 |r|=2.720e+01 (ITERATING)
# TAO 0, KSP 10 |r|=2.357e+01 (ITERATING)
# TAO 0, KSP 11 |r|=2.053e+01 (ITERATING)
# TAO 0, KSP 12 |r|=2.092e+01 (ITERATING)
# TAO 0, KSP 13 |r|=2.123e+01 (ITERATING)
# TAO 0, KSP 14 |r|=1.878e+01 (ITERATING)
# TAO 0, KSP 15 |r|=1.681e+01 (ITERATING)
# TAO 0, KSP 16 |r|=1.725e+01 (ITERATING)
# TAO 0, KSP 17 |r|=1.757e+01 (ITERATING)
# TAO 0, KSP 18 |r|=1.571e+01 (ITERATING)
# TAO 0, KSP 19 |r|=1.441e+01 (ITERATING)
# TAO 0, KSP 20 |r|=1.484e+01 (ITERATING)
# TAO 0, KSP 21 |r|=1.485e+01 (ITERATING)
# TAO 0, KSP 22 |r|=1.347e+01 (ITERATING)
# TAO 0, KSP 23 |r|=1.275e+01 (ITERATING)
# TAO 0, KSP 24 |r|=1.328e+01 (ITERATING)
# TAO 0, KSP 25 |r|=1.330e+01 (ITERATING)
# TAO 0, KSP 26 |r|=1.244e+01 (ITERATING)
# TAO 0, KSP 27 |r|=1.228e+01 (ITERATING)
# TAO 0, KSP 28 |r|=1.309e+01 (ITERATING)
# TAO 0, KSP 29 |r|=1.316e+01 (ITERATING)
# TAO 0, KSP 30 |r|=1.230e+01 (ITERATING)
# TAO 0, KSP 31 |r|=1.206e+01 (ITERATING)
# TAO 0, KSP 32 |r|=1.284e+01 (ITERATING)
# TAO 0, KSP 33 |r|=1.316e+01 (ITERATING)
# TAO 0, KSP 34 |r|=1.245e+01 (ITERATING)
# TAO 0, KSP 35 |r|=1.199e+01 (ITERATING)
# TAO 0, KSP 36 |r|=1.222e+01 (ITERATING)
# TAO 0, KSP 37 |r|=1.211e+01 (ITERATING)
# TAO 0, KSP 38 |r|=1.146e+01 (ITERATING)
# TAO 0, KSP 39 |r|=1.128e+01 (ITERATING)
# TAO 0, KSP 40 |r|=1.153e+01 (ITERATING)
# TAO 0, KSP 41 |r|=1.135e+01 (ITERATING)
# TAO 0, KSP 42 |r|=1.078e+01 (ITERATING)
# TAO 0, KSP 43 |r|=1.062e+01 (ITERATING)
# TAO 0, KSP 44 |r|=1.078e+01 (ITERATING)
# TAO 0, KSP 45 |r|=1.053e+01 (ITERATING)
# TAO 0, KSP 46 |r|=9.981e+00 (ITERATING)
# TAO 0, KSP 47 |r|=9.817e+00 (ITERATING)
# TAO 0, KSP 48 |r|=9.984e+00 (ITERATING)
# TAO 0, KSP 49 |r|=9.891e+00 (ITERATING)
# TAO 0, KSP 50 |r|=9.513e+00 (ITERATING)
# TAO 0, KSP 51 |r|=9.569e+00 (ITERATING)
# TAO 0, KSP 52 |r|=9.870e+00 (ITERATING)
# TAO 0, KSP 53 |r|=9.690e+00 (ITERATING)
# TAO 0, KSP 54 |r|=9.439e+00 (ITERATING)
# TAO 0, KSP 55 |r|=9.314e+00 (ITERATING)
# TAO 0, KSP 56 |r|=9.059e+00 (ITERATING)
# TAO 0, KSP 57 |r|=8.571e+00 (ITERATING)
# TAO 0, KSP 58 |r|=8.074e+00 (ITERATING)
# TAO 0, KSP 59 |r|=7.916e+00 (ITERATING)
# TAO 0, KSP 60 |r|=7.989e+00 (ITERATING)
# TAO 0, KSP 61 |r|=7.808e+00 (ITERATING)
# TAO 0, KSP 62 |r|=7.485e+00 (ITERATING)
# TAO 0, KSP 63 |r|=7.456e+00 (ITERATING)
# TAO 0, KSP 64 |r|=7.509e+00 (ITERATING)
# TAO 0, KSP 65 |r|=7.282e+00 (ITERATING)
# TAO 0, KSP 66 |r|=7.061e+00 (ITERATING)
# TAO 0, KSP 67 |r|=7.035e+00 (ITERATING)
# TAO 0, KSP 68 |r|=7.020e+00 (ITERATING)
# TAO 0, KSP 69 |r|=6.827e+00 (ITERATING)
# TAO 0, KSP 70 |r|=6.668e+00 (ITERATING)
# TAO 0, KSP 71 |r|=6.733e+00 (ITERATING)
# TAO 0, KSP 72 |r|=6.719e+00 (ITERATING)
# TAO 0, KSP 73 |r|=6.514e+00 (ITERATING)
# TAO 0, KSP 74 |r|=6.358e+00 (ITERATING)
# TAO 0, KSP 75 |r|=6.394e+00 (ITERATING)
# TAO 0, KSP 76 |r|=6.329e+00 (ITERATING)
# TAO 0, KSP 77 |r|=6.070e+00 (ITERATING)
# TAO 0, KSP 78 |r|=5.948e+00 (ITERATING)
# TAO 0, KSP 79 |r|=6.053e+00 (ITERATING)
# TAO 0, KSP 80 |r|=6.186e+00 (ITERATING)
# TAO 0, KSP 81 |r|=6.087e+00 (ITERATING)
# TAO 0, KSP 82 |r|=6.048e+00 (ITERATING)
# TAO 0, KSP 83 |r|=6.285e+00 (ITERATING)
# TAO 0, KSP 84 |r|=6.348e+00 (ITERATING)
# TAO 0, KSP 85 |r|=6.209e+00 (ITERATING)
# TAO 0, KSP 86 |r|=6.159e+00 (ITERATING)
# TAO 0, KSP 87 |r|=6.275e+00 (ITERATING)
# TAO 0, KSP 88 |r|=6.359e+00 (ITERATING)
# TAO 0, KSP 89 |r|=6.205e+00 (ITERATING)
# TAO 0, KSP 90 |r|=6.190e+00 (ITERATING)
# TAO 0, KSP 91 |r|=6.363e+00 (ITERATING)
# TAO 0, KSP 92 |r|=6.423e+00 (ITERATING)
# TAO 0, KSP 93 |r|=6.134e+00 (ITERATING)
# TAO 0, KSP 94 |r|=5.977e+00 (ITERATING)
# TAO 0, KSP 95 |r|=6.017e+00 (ITERATING)
# TAO 0, KSP 96 |r|=5.946e+00 (ITERATING)
# TAO 0, KSP 97 |r|=5.759e+00 (ITERATING)
# TAO 0, KSP 98 |r|=5.666e+00 (ITERATING)
# TAO 0, KSP 99 |r|=5.638e+00 (ITERATING)
# TAO 0, KSP 100 |r|=5.501e+00 (ITERATING)
# TAO 0, KSP 101 |r|=5.327e+00 (ITERATING)
# TAO 0, KSP 102 |r|=5.203e+00 (ITERATING)
# TAO 0, KSP 103 |r|=5.106e+00 (ITERATING)
# TAO 0, KSP 104 |r|=4.889e+00 (ITERATING)
# TAO 0, KSP 105 |r|=4.640e+00 (ITERATING)
# TAO 0, KSP 106 |r|=4.535e+00 (ITERATING)
# TAO 0, KSP 107 |r|=4.417e+00 (ITERATING)
# TAO 0, KSP 108 |r|=4.244e+00 (ITERATING)
# TAO 0, KSP 109 |r|=4.096e+00 (ITERATING)
# TAO 0, KSP 110 |r|=4.011e+00 (ITERATING)
# TAO 0, KSP 111 |r|=3.919e+00 (ITERATING)
# TAO 0, KSP 112 |r|=3.744e+00 (ITERATING)
# TAO 0, KSP 113 |r|=3.536e+00 (ITERATING)
# TAO 0, KSP 114 |r|=3.434e+00 (ITERATING)
# TAO 0, KSP 115 |r|=3.351e+00 (ITERATING)
# TAO 0, KSP 116 |r|=3.213e+00 (ITERATING)
# TAO 0, KSP 117 |r|=3.093e+00 (ITERATING)
# TAO 0, KSP 118 |r|=3.037e+00 (ITERATING)
# TAO 0, KSP 119 |r|=3.011e+00 (ITERATING)
# TAO 0, KSP 120 |r|=2.949e+00 (ITERATING)
# TAO 0, KSP 121 |r|=2.856e+00 (ITERATING)
# TAO 0, KSP 122 |r|=2.789e+00 (ITERATING)
# TAO 0, KSP 123 |r|=2.728e+00 (ITERATING)
# TAO 0, KSP 124 |r|=2.617e+00 (ITERATING)
# TAO 0, KSP 125 |r|=2.594e+00 (ITERATING)
# TAO 0, KSP 126 |r|=2.614e+00 (ITERATING)
# TAO 0, KSP 127 |r|=2.524e+00 (ITERATING)
# TAO 0, KSP 128 |r|=2.395e+00 (ITERATING)
# TAO 0, KSP 129 |r|=2.266e+00 (ITERATING)
# TAO 0, KSP 130 |r|=2.197e+00 (ITERATING)
# TAO 0, KSP 131 |r|=2.124e+00 (ITERATING)
# TAO 0, KSP 132 |r|=2.019e+00 (ITERATING)
# TAO 0, KSP 133 |r|=1.924e+00 (ITERATING)
# TAO 0, KSP 134 |r|=1.892e+00 (ITERATING)
# TAO 0, KSP 135 |r|=1.837e+00 (ITERATING)
# TAO 0, KSP 136 |r|=1.759e+00 (ITERATING)
# TAO 0, KSP 137 |r|=1.689e+00 (ITERATING)
# TAO 0, KSP 138 |r|=1.671e+00 (ITERATING)
# TAO 0, KSP 139 |r|=1.632e+00 (ITERATING)
# TAO 0, KSP 140 |r|=1.562e+00 (ITERATING)
# TAO 0, KSP 141 |r|=1.497e+00 (ITERATING)
# TAO 0, KSP 142 |r|=1.456e+00 (ITERATING)
# TAO 0, KSP 143 |r|=1.411e+00 (ITERATING)
# TAO 0, KSP 144 |r|=1.349e+00 (ITERATING)
# TAO 0, KSP 145 |r|=1.294e+00 (ITERATING)
# TAO 0, KSP 146 |r|=1.268e+00 (ITERATING)
# TAO 0, KSP 147 |r|=1.228e+00 (ITERATING)
# TAO 0, KSP 148 |r|=1.168e+00 (ITERATING)
# TAO 0, KSP 149 |r|=1.137e+00 (ITERATING)
# TAO 0, KSP 150 |r|=1.112e+00 (ITERATING)
# TAO 0, KSP 151 |r|=1.089e+00 (ITERATING)
# TAO 0, KSP 152 |r|=1.059e+00 (ITERATING)
# TAO 0, KSP 153 |r|=1.036e+00 (ITERATING)
# TAO 0, KSP 154 |r|=1.022e+00 (ITERATING)
# TAO 0, KSP 155 |r|=9.921e-01 (ITERATING)
# TAO 0, KSP 156 |r|=9.498e-01 (ITERATING)
# TAO 0, KSP 157 |r|=9.199e-01 (ITERATING)
# TAO 0, KSP 158 |r|=8.862e-01 (ITERATING)
# TAO 0, KSP 159 |r|=8.457e-01 (ITERATING)
# TAO 0, KSP 160 |r|=8.133e-01 (ITERATING)
# TAO 0, KSP 161 |r|=7.802e-01 (ITERATING)
# TAO 0, KSP 162 |r|=7.522e-01 (ITERATING)
# TAO 0, KSP 163 |r|=7.213e-01 (ITERATING)
# TAO 0, KSP 164 |r|=6.952e-01 (ITERATING)
# TAO 0, KSP 165 |r|=6.914e-01 (ITERATING)
# TAO 0, KSP 166 |r|=6.924e-01 (ITERATING)
# TAO 0, KSP 167 |r|=6.580e-01 (ITERATING)
# TAO 0, KSP 168 |r|=6.184e-01 (ITERATING)
# TAO 0, KSP 169 |r|=5.942e-01 (ITERATING)
# TAO 0, KSP 170 |r|=5.729e-01 (ITERATING)
# TAO 0, KSP 171 |r|=5.450e-01 (ITERATING)
# TAO 0, KSP 172 |r|=5.136e-01 (ITERATING)
# TAO 0, KSP 173 |r|=4.882e-01 (ITERATING)
# TAO 0, KSP 174 |r|=4.676e-01 (ITERATING)
# TAO 0, KSP 175 |r|=4.477e-01 (ITERATING)
# TAO 0, KSP 176 |r|=4.367e-01 (ITERATING)
# TAO 0, KSP 177 |r|=4.302e-01 (ITERATING)
# TAO 0, KSP 178 |r|=4.218e-01 (ITERATING)
# TAO 0, KSP 179 |r|=4.081e-01 (ITERATING)
# TAO 0, KSP 180 |r|=3.979e-01 (ITERATING)
# TAO 0, KSP 181 |r|=3.876e-01 (ITERATING)
# TAO 0, KSP 182 |r|=3.789e-01 (ITERATING)
# TAO 0, KSP 183 |r|=3.666e-01 (ITERATING)
# TAO 0, KSP 184 |r|=3.510e-01 (ITERATING)
# TAO 0, KSP 185 |r|=3.376e-01 (ITERATING)
# TAO 0, KSP 186 |r|=3.207e-01 (ITERATING)
# TAO 0, KSP 187 |r|=2.970e-01 (ITERATING)
# TAO 0, KSP 188 |r|=2.723e-01 (ITERATING)
# TAO 0, KSP 189 |r|=2.595e-01 (ITERATING)
# TAO 0, KSP 190 |r|=2.465e-01 (ITERATING)
# TAO 0, KSP 191 |r|=2.325e-01 (ITERATING)
# TAO 0, KSP 192 |r|=2.235e-01 (ITERATING)
# TAO 0, KSP 193 |r|=2.188e-01 (ITERATING)
# TAO 0, KSP 194 |r|=2.103e-01 (ITERATING)
# TAO 0, KSP 195 |r|=2.013e-01 (ITERATING)
# TAO 0, KSP 196 |r|=1.963e-01 (ITERATING)
# TAO 0, KSP 197 |r|=1.927e-01 (ITERATING)
# TAO 0, KSP 198 |r|=1.851e-01 (ITERATING)
# TAO 0, KSP 199 |r|=1.794e-01 (ITERATING)
# TAO 0, KSP 200 |r|=1.770e-01 (ITERATING)
# TAO 0, KSP 201 |r|=1.751e-01 (ITERATING)
# TAO 0, KSP 202 |r|=1.724e-01 (ITERATING)
# TAO 0, KSP 203 |r|=1.687e-01 (ITERATING)
# TAO 0, KSP 204 |r|=1.642e-01 (ITERATING)
# TAO 0, KSP 205 |r|=1.610e-01 (ITERATING)
# TAO 0, KSP 206 |r|=1.564e-01 (ITERATING)
# TAO 0, KSP 207 |r|=1.502e-01 (ITERATING)
# TAO 0, KSP 208 |r|=1.442e-01 (ITERATING)
# TAO 0, KSP 209 |r|=1.389e-01 (ITERATING)
# TAO 0, KSP 210 |r|=1.322e-01 (ITERATING)
# TAO 0, KSP 211 |r|=1.265e-01 (ITERATING)
# TAO 0, KSP 212 |r|=1.214e-01 (ITERATING)
# TAO 0, KSP 213 |r|=1.194e-01 (ITERATING)
# TAO 0, KSP 214 |r|=1.173e-01 (ITERATING)
# TAO 0, KSP 215 |r|=1.160e-01 (ITERATING)
# TAO 0, KSP 216 |r|=1.153e-01 (ITERATING)
# TAO 0, KSP 217 |r|=1.150e-01 (ITERATING)
# TAO 0, KSP 218 |r|=1.144e-01 (ITERATING)
# TAO 0, KSP 219 |r|=1.139e-01 (ITERATING)
# TAO 0, KSP 220 |r|=1.160e-01 (ITERATING)
# TAO 0, KSP 221 |r|=1.165e-01 (ITERATING)
# TAO 0, KSP 222 |r|=1.142e-01 (ITERATING)
# TAO 0, KSP 223 |r|=1.111e-01 (ITERATING)
# TAO 0, KSP 224 |r|=1.097e-01 (ITERATING)
# TAO 0, KSP 225 |r|=1.080e-01 (ITERATING)
# TAO 0, KSP 226 |r|=1.051e-01 (ITERATING)
# TAO 0, KSP 227 |r|=1.029e-01 (ITERATING)
# TAO 0, KSP 228 |r|=1.010e-01 (ITERATING)
# TAO 0, KSP 229 |r|=9.803e-02 (ITERATING)
# TAO 0, KSP 230 |r|=9.370e-02 (ITERATING)
# TAO 0, KSP 231 |r|=9.075e-02 (ITERATING)
# TAO 0, KSP 232 |r|=9.129e-02 (ITERATING)
# TAO 0, KSP 233 |r|=9.079e-02 (ITERATING)
# TAO 0, KSP 234 |r|=8.933e-02 (ITERATING)
# TAO 0, KSP 235 |r|=8.963e-02 (ITERATING)
# TAO 0, KSP 236 |r|=9.128e-02 (ITERATING)
# TAO 0, KSP 237 |r|=8.858e-02 (ITERATING)
# TAO 0, KSP 238 |r|=8.418e-02 (ITERATING)
# TAO 0, KSP 239 |r|=8.228e-02 (ITERATING)
# TAO 0, KSP 240 |r|=8.006e-02 (ITERATING)
# TAO 0, KSP 241 |r|=7.852e-02 (ITERATING)
# TAO 0, KSP 242 |r|=7.745e-02 (ITERATING)
# TAO 0, KSP 243 |r|=7.643e-02 (ITERATING)
# TAO 0, KSP 244 |r|=7.430e-02 (ITERATING)
# TAO 0, KSP 245 |r|=7.123e-02 (ITERATING)
# TAO 0, KSP 246 |r|=6.910e-02 (ITERATING)
# TAO 0, KSP 247 |r|=6.748e-02 (ITERATING)
# TAO 0, KSP 248 |r|=6.554e-02 (ITERATING)
# TAO 0, KSP 249 |r|=6.487e-02 (ITERATING)
# TAO 0, KSP 250 |r|=6.438e-02 (ITERATING)
# TAO 0, KSP 251 |r|=6.229e-02 (ITERATING)
# TAO 0, KSP 252 |r|=6.015e-02 (ITERATING)
# TAO 0, KSP 253 |r|=5.830e-02 (ITERATING)
# TAO 0, KSP 254 |r|=5.643e-02 (ITERATING)
# TAO 0, KSP 255 |r|=5.442e-02 (ITERATING)
# TAO 0, KSP 256 |r|=5.246e-02 (ITERATING)
# TAO 0, KSP 257 |r|=5.071e-02 (ITERATING)
# TAO 0, KSP 258 |r|=4.741e-02 (ITERATING)
# TAO 0, KSP 259 |r|=4.391e-02 (ITERATING)
# TAO 0, KSP 260 |r|=4.163e-02 (ITERATING)
# TAO 0, KSP 261 |r|=3.879e-02 (ITERATING)
# TAO 0, KSP 262 |r|=3.667e-02 (ITERATING)
# TAO 0, KSP 263 |r|=3.580e-02 (ITERATING)
# TAO 0, KSP 264 |r|=3.529e-02 (ITERATING)
# TAO 0, KSP 265 |r|=3.438e-02 (ITERATING)
# TAO 0, KSP 266 |r|=3.332e-02 (ITERATING)
# TAO 0, KSP 267 |r|=3.247e-02 (ITERATING)
# TAO 0, KSP 268 |r|=3.190e-02 (ITERATING)
# TAO 0, KSP 269 |r|=3.056e-02 (ITERATING)
# TAO 0, KSP 270 |r|=2.914e-02 (ITERATING)
# TAO 0, KSP 271 |r|=2.789e-02 (ITERATING)
# TAO 0, KSP 272 |r|=2.689e-02 (ITERATING)
# TAO 0, KSP 273 |r|=2.618e-02 (ITERATING)
# TAO 0, KSP 274 |r|=2.546e-02 (ITERATING)
# TAO 0, KSP 275 |r|=2.497e-02 (ITERATING)
# TAO 0, KSP 276 |r|=2.456e-02 (ITERATING)
# TAO 0, KSP 277 |r|=2.405e-02 (ITERATING)
# TAO 0, KSP 278 |r|=2.325e-02 (ITERATING)
# TAO 0, KSP 279 |r|=2.229e-02 (ITERATING)
# TAO 0, KSP 280 |r|=2.118e-02 (ITERATING)
# TAO 0, KSP 281 |r|=2.014e-02 (ITERATING)
# TAO 0, KSP 282 |r|=1.956e-02 (ITERATING)
# TAO 0, KSP 283 |r|=1.902e-02 (ITERATING)
# TAO 0, KSP 284 |r|=1.851e-02 (ITERATING)
# TAO 0, KSP 285 |r|=1.783e-02 (ITERATING)
# TAO 0, KSP 286 |r|=1.716e-02 (ITERATING)
# TAO 0, KSP 287 |r|=1.664e-02 (ITERATING)
# TAO 0, KSP 288 |r|=1.659e-02 (ITERATING)
# TAO 0, KSP 289 |r|=1.627e-02 (ITERATING)
# TAO 0, KSP 290 |r|=1.597e-02 (ITERATING)
# TAO 0, KSP 291 |r|=1.573e-02 (ITERATING)
# TAO 0, KSP 292 |r|=1.541e-02 (ITERATING)
# TAO 0, KSP 293 |r|=1.481e-02 (ITERATING)
# TAO 0, KSP 294 |r|=1.402e-02 (ITERATING)
# TAO 0, KSP 295 |r|=1.353e-02 (ITERATING)
# TAO 0, KSP 296 |r|=1.296e-02 (ITERATING)
# TAO 0, KSP 297 |r|=1.219e-02 (ITERATING)
# TAO 0, KSP 298 |r|=1.171e-02 (ITERATING)
# TAO 0, KSP 299 |r|=1.141e-02 (ITERATING)
# TAO 0, KSP 300 |r|=1.118e-02 (ITERATING)
# TAO 0, KSP 301 |r|=1.062e-02 (ITERATING)
# TAO 0, KSP 302 |r|=1.006e-02 (ITERATING)
# TAO 0, KSP 303 |r|=9.631e-03 (ITERATING)
# TAO 0, KSP 304 |r|=9.321e-03 (ITERATING)
# TAO 0, KSP 305 |r|=8.869e-03 (ITERATING)
# TAO 0, KSP 306 |r|=8.613e-03 (ITERATING)
# TAO 0, KSP 307 |r|=8.517e-03 (ITERATING)
# TAO 0, KSP 308 |r|=8.550e-03 (ITERATING)
# TAO 0, KSP 309 |r|=8.603e-03 (ITERATING)
# TAO 0, KSP 310 |r|=8.211e-03 (ITERATING)
# TAO 0, KSP 311 |r|=7.783e-03 (ITERATING)
# TAO 0, KSP 312 |r|=7.464e-03 (ITERATING)
# TAO 0, KSP 313 |r|=7.167e-03 (ITERATING)
# TAO 0, KSP 314 |r|=6.919e-03 (ITERATING)
# TAO 0, KSP 315 |r|=6.666e-03 (ITERATING)
# TAO 0, KSP 316 |r|=6.401e-03 (ITERATING)
# TAO 0, KSP 317 |r|=6.145e-03 (ITERATING)
# TAO 0, KSP 318 |r|=5.980e-03 (ITERATING)
# TAO 0, KSP 319 |r|=5.893e-03 (ITERATING)
# TAO 0, KSP 320 |r|=5.665e-03 (ITERATING)
# TAO 0, KSP 321 |r|=5.307e-03 (ITERATING)
# TAO 0, KSP 322 |r|=5.105e-03 (ITERATING)
# TAO 0, KSP 323 |r|=4.956e-03 (ITERATING)
# TAO 0, KSP 324 |r|=4.788e-03 (ITERATING)
# TAO 0, KSP 325 |r|=4.616e-03 (ITERATING)
# TAO 0, KSP 326 |r|=4.496e-03 (ITERATING)
# TAO 0, KSP 327 |r|=4.389e-03 (ITERATING)
# TAO 0, KSP 328 |r|=4.287e-03 (ITERATING)
# TAO 0, KSP 329 |r|=4.119e-03 (ITERATING)
# TAO 0, KSP 330 |r|=3.915e-03 (ITERATING)
# TAO 0, KSP 331 |r|=3.698e-03 (ITERATING)
# TAO 0, KSP 332 |r|=3.504e-03 (ITERATING)
# TAO 0, KSP 333 |r|=3.359e-03 (ITERATING)
# TAO 0, KSP 334 |r|=3.203e-03 (ITERATING)
# TAO 0, KSP 335 |r|=3.077e-03 (ITERATING)
# TAO 0, KSP 336 |r|=2.942e-03 (ITERATING)
# TAO 0, KSP 337 |r|=2.790e-03 (ITERATING)
# TAO 0, KSP 338 |r|=2.679e-03 (ITERATING)
# TAO 0, KSP 339 |r|=2.584e-03 (ITERATING)
# TAO 0, KSP 340 |r|=2.509e-03 (ITERATING)
# TAO 0, KSP 341 |r|=2.440e-03 (ITERATING)
# TAO 0, KSP 342 |r|=2.399e-03 (ITERATING)
# TAO 0, KSP 343 |r|=2.351e-03 (ITERATING)
# TAO 0, KSP 344 |r|=2.247e-03 (ITERATING)
# TAO 0, KSP 345 |r|=2.167e-03 (ITERATING)
# TAO 0, KSP 346 |r|=2.088e-03 (ITERATING)
# TAO 0, KSP 347 |r|=2.025e-03 (ITERATING)
# TAO 0, KSP 348 |r|=1.938e-03 (ITERATING)
# TAO 0, KSP 349 |r|=1.842e-03 (ITERATING)
# TAO 0, KSP 350 |r|=1.752e-03 (ITERATING)
# TAO 0, KSP 351 |r|=1.687e-03 (ITERATING)
# TAO 0, KSP 352 |r|=1.658e-03 (ITERATING)
# TAO 0, KSP 353 |r|=1.618e-03 (ITERATING)
# TAO 0, KSP 354 |r|=1.529e-03 (ITERATING)
# TAO 0, KSP 355 |r|=1.414e-03 (ITERATING)
# TAO 0, KSP 356 |r|=1.300e-03 (ITERATING)
# TAO 1 (ITERATING)
# sub 0 [ 44k] |x|=2.090e+03 |J|=1.592e+01 (g)
# all |x|=2.090e+03 |J|=1.592e+01 |H|=8.560e+02 f=1.193e+04
# TAO 1, KSP 0 |r|=1.592e+01 (ITERATING)
# TAO 1, KSP 1 |r|=1.806e+01 (ITERATING)
# TAO 1, KSP 2 |r|=1.642e+01 (ITERATING)
# TAO 1, KSP 3 |r|=1.348e+01 (ITERATING)
# TAO 1, KSP 4 |r|=1.195e+01 (ITERATING)
# TAO 1, KSP 5 |r|=1.111e+01 (ITERATING)
# TAO 1, KSP 6 |r|=1.047e+01 (ITERATING)
# TAO 1, KSP 7 |r|=9.538e+00 (ITERATING)
# TAO 1, KSP 8 |r|=8.659e+00 (ITERATING)
# TAO 1, KSP 9 |r|=7.980e+00 (ITERATING)
# TAO 1, KSP 10 |r|=7.439e+00 (ITERATING)
# TAO 1, KSP 11 |r|=6.953e+00 (ITERATING)
# TAO 1, KSP 12 |r|=6.496e+00 (ITERATING)
# TAO 1, KSP 13 |r|=6.125e+00 (ITERATING)
# TAO 1, KSP 14 |r|=5.764e+00 (ITERATING)
# TAO 1, KSP 15 |r|=5.437e+00 (ITERATING)
# TAO 1, KSP 16 |r|=5.146e+00 (ITERATING)
# TAO 1, KSP 17 |r|=4.936e+00 (ITERATING)
# TAO 1, KSP 18 |r|=4.681e+00 (ITERATING)
# TAO 1, KSP 19 |r|=4.508e+00 (ITERATING)
# TAO 1, KSP 20 |r|=4.332e+00 (ITERATING)
# TAO 1, KSP 21 |r|=4.181e+00 (ITERATING)
# TAO 1, KSP 22 |r|=4.037e+00 (ITERATING)
# TAO 1, KSP 23 |r|=3.856e+00 (ITERATING)
# TAO 1, KSP 24 |r|=3.723e+00 (ITERATING)
# TAO 1, KSP 25 |r|=3.657e+00 (ITERATING)
# TAO 1, KSP 26 |r|=3.602e+00 (ITERATING)
# TAO 1, KSP 27 |r|=3.448e+00 (ITERATING)
# TAO 1, KSP 28 |r|=3.277e+00 (ITERATING)
# TAO 1, KSP 29 |r|=3.174e+00 (ITERATING)
# TAO 1, KSP 30 |r|=3.042e+00 (ITERATING)
# TAO 1, KSP 31 |r|=2.878e+00 (ITERATING)
# TAO 1, KSP 32 |r|=2.679e+00 (ITERATING)
# TAO 1, KSP 33 |r|=2.539e+00 (ITERATING)
# TAO 1, KSP 34 |r|=2.454e+00 (ITERATING)
# TAO 1, KSP 35 |r|=2.390e+00 (ITERATING)
# TAO 1, KSP 36 |r|=2.327e+00 (ITERATING)
# TAO 1, KSP 37 |r|=2.280e+00 (ITERATING)
# TAO 1, KSP 38 |r|=2.264e+00 (ITERATING)
# TAO 1, KSP 39 |r|=2.209e+00 (ITERATING)
# TAO 1, KSP 40 |r|=2.168e+00 (ITERATING)
# TAO 1, KSP 41 |r|=2.155e+00 (ITERATING)
# TAO 1, KSP 42 |r|=2.111e+00 (ITERATING)
# TAO 1, KSP 43 |r|=2.077e+00 (ITERATING)
# TAO 1, KSP 44 |r|=2.004e+00 (ITERATING)
# TAO 1, KSP 45 |r|=1.953e+00 (ITERATING)
# TAO 1, KSP 46 |r|=1.910e+00 (ITERATING)
# TAO 1, KSP 47 |r|=1.883e+00 (ITERATING)
# TAO 1, KSP 48 |r|=1.849e+00 (ITERATING)
# TAO 1, KSP 49 |r|=1.800e+00 (ITERATING)
# TAO 1, KSP 50 |r|=1.752e+00 (ITERATING)
# TAO 1, KSP 51 |r|=1.727e+00 (ITERATING)
# TAO 1, KSP 52 |r|=1.701e+00 (ITERATING)
# TAO 1, KSP 53 |r|=1.662e+00 (ITERATING)
# TAO 1, KSP 54 |r|=1.628e+00 (ITERATING)
# TAO 1, KSP 55 |r|=1.604e+00 (ITERATING)
# TAO 1, KSP 56 |r|=1.577e+00 (ITERATING)
# TAO 1, KSP 57 |r|=1.534e+00 (ITERATING)
# TAO 1, KSP 58 |r|=1.475e+00 (ITERATING)
# TAO 1, KSP 59 |r|=1.431e+00 (ITERATING)
# TAO 1, KSP 60 |r|=1.389e+00 (ITERATING)
# TAO 1, KSP 61 |r|=1.345e+00 (ITERATING)
# TAO 1, KSP 62 |r|=1.303e+00 (ITERATING)
# TAO 1, KSP 63 |r|=1.267e+00 (ITERATING)
# TAO 1, KSP 64 |r|=1.242e+00 (ITERATING)
# TAO 1, KSP 65 |r|=1.219e+00 (ITERATING)
# TAO 1, KSP 66 |r|=1.176e+00 (ITERATING)
# TAO 1, KSP 67 |r|=1.134e+00 (ITERATING)
# TAO 1, KSP 68 |r|=1.100e+00 (ITERATING)
# TAO 1, KSP 69 |r|=1.066e+00 (ITERATING)
# TAO 1, KSP 70 |r|=1.042e+00 (ITERATING)
# TAO 1, KSP 71 |r|=1.013e+00 (ITERATING)
# TAO 1, KSP 72 |r|=9.801e-01 (ITERATING)
# TAO 1, KSP 73 |r|=9.336e-01 (ITERATING)
# TAO 1, KSP 74 |r|=8.946e-01 (ITERATING)
# TAO 1, KSP 75 |r|=8.707e-01 (ITERATING)
# TAO 1, KSP 76 |r|=8.459e-01 (ITERATING)
# TAO 1, KSP 77 |r|=8.120e-01 (ITERATING)
# TAO 1, KSP 78 |r|=7.750e-01 (ITERATING)
# TAO 1, KSP 79 |r|=7.424e-01 (ITERATING)
# TAO 1, KSP 80 |r|=7.097e-01 (ITERATING)
# TAO 1, KSP 81 |r|=6.804e-01 (ITERATING)
# TAO 1, KSP 82 |r|=6.591e-01 (ITERATING)
# TAO 1, KSP 83 |r|=6.461e-01 (ITERATING)
# TAO 1, KSP 84 |r|=6.349e-01 (ITERATING)
# TAO 1, KSP 85 |r|=6.274e-01 (ITERATING)
# TAO 1, KSP 86 |r|=6.164e-01 (ITERATING)
# TAO 1, KSP 87 |r|=6.038e-01 (ITERATING)
# TAO 1, KSP 88 |r|=5.858e-01 (ITERATING)
# TAO 1, KSP 89 |r|=5.631e-01 (ITERATING)
# TAO 1, KSP 90 |r|=5.370e-01 (ITERATING)
# TAO 1, KSP 91 |r|=5.148e-01 (ITERATING)
# TAO 1, KSP 92 |r|=4.937e-01 (ITERATING)
# TAO 1, KSP 93 |r|=4.768e-01 (ITERATING)
# TAO 1, KSP 94 |r|=4.606e-01 (ITERATING)
# TAO 1, KSP 95 |r|=4.447e-01 (ITERATING)
# TAO 1, KSP 96 |r|=4.343e-01 (ITERATING)
# TAO 1, KSP 97 |r|=4.182e-01 (ITERATING)
# TAO 1, KSP 98 |r|=4.011e-01 (ITERATING)
# TAO 1, KSP 99 |r|=3.833e-01 (ITERATING)
# TAO 1, KSP 100 |r|=3.706e-01 (ITERATING)
# TAO 1, KSP 101 |r|=3.659e-01 (ITERATING)
# TAO 1, KSP 102 |r|=3.666e-01 (ITERATING)
# TAO 1, KSP 103 |r|=3.533e-01 (ITERATING)
# TAO 1, KSP 104 |r|=3.334e-01 (ITERATING)
# TAO 1, KSP 105 |r|=3.200e-01 (ITERATING)
# TAO 1, KSP 106 |r|=3.098e-01 (ITERATING)
# TAO 1, KSP 107 |r|=3.050e-01 (ITERATING)
# TAO 1, KSP 108 |r|=3.055e-01 (ITERATING)
# TAO 1, KSP 109 |r|=3.040e-01 (ITERATING)
# TAO 1, KSP 110 |r|=2.985e-01 (ITERATING)
# TAO 1, KSP 111 |r|=2.920e-01 (ITERATING)
# TAO 1, KSP 112 |r|=2.861e-01 (ITERATING)
# TAO 1, KSP 113 |r|=2.795e-01 (ITERATING)
# TAO 1, KSP 114 |r|=2.716e-01 (ITERATING)
# TAO 1, KSP 115 |r|=2.627e-01 (ITERATING)
# TAO 1, KSP 116 |r|=2.544e-01 (ITERATING)
# TAO 1, KSP 117 |r|=2.475e-01 (ITERATING)
# TAO 1, KSP 118 |r|=2.424e-01 (ITERATING)
# TAO 1, KSP 119 |r|=2.376e-01 (ITERATING)
# TAO 1, KSP 120 |r|=2.310e-01 (ITERATING)
# TAO 1, KSP 121 |r|=2.237e-01 (ITERATING)
# TAO 1, KSP 122 |r|=2.194e-01 (ITERATING)
# TAO 1, KSP 123 |r|=2.144e-01 (ITERATING)
# TAO 1, KSP 124 |r|=2.092e-01 (ITERATING)
# TAO 1, KSP 125 |r|=2.062e-01 (ITERATING)
# TAO 1, KSP 126 |r|=2.047e-01 (ITERATING)
# TAO 1, KSP 127 |r|=2.009e-01 (ITERATING)
# TAO 1, KSP 128 |r|=1.948e-01 (ITERATING)
# TAO 1, KSP 129 |r|=1.890e-01 (ITERATING)
# TAO 1, KSP 130 |r|=1.845e-01 (ITERATING)
# TAO 1, KSP 131 |r|=1.823e-01 (ITERATING)
# TAO 1, KSP 132 |r|=1.776e-01 (ITERATING)
# TAO 1, KSP 133 |r|=1.737e-01 (ITERATING)
# TAO 1, KSP 134 |r|=1.689e-01 (ITERATING)
# TAO 1, KSP 135 |r|=1.645e-01 (ITERATING)
# TAO 1, KSP 136 |r|=1.609e-01 (ITERATING)
# TAO 1, KSP 137 |r|=1.580e-01 (ITERATING)
# TAO 1, KSP 138 |r|=1.570e-01 (ITERATING)
# TAO 1, KSP 139 |r|=1.506e-01 (ITERATING)
# TAO 1, KSP 140 |r|=1.431e-01 (ITERATING)
# TAO 1, KSP 141 |r|=1.369e-01 (ITERATING)
# TAO 1, KSP 142 |r|=1.325e-01 (ITERATING)
# TAO 1, KSP 143 |r|=1.291e-01 (ITERATING)
# TAO 1, KSP 144 |r|=1.261e-01 (ITERATING)
# TAO 1, KSP 145 |r|=1.222e-01 (ITERATING)
# TAO 1, KSP 146 |r|=1.177e-01 (ITERATING)
# TAO 1, KSP 147 |r|=1.134e-01 (ITERATING)
# TAO 1, KSP 148 |r|=1.100e-01 (ITERATING)
# TAO 1, KSP 149 |r|=1.066e-01 (ITERATING)
# TAO 1, KSP 150 |r|=1.023e-01 (ITERATING)
# TAO 1, KSP 151 |r|=9.870e-02 (ITERATING)
# TAO 1, KSP 152 |r|=9.683e-02 (ITERATING)
# TAO 1, KSP 153 |r|=9.452e-02 (ITERATING)
# TAO 1, KSP 154 |r|=9.293e-02 (ITERATING)
# TAO 1, KSP 155 |r|=9.200e-02 (ITERATING)
# TAO 1, KSP 156 |r|=8.970e-02 (ITERATING)
# TAO 1, KSP 157 |r|=8.770e-02 (ITERATING)
# TAO 1, KSP 158 |r|=8.635e-02 (ITERATING)
# TAO 1, KSP 159 |r|=8.517e-02 (ITERATING)
# TAO 1, KSP 160 |r|=8.396e-02 (ITERATING)
# TAO 1, KSP 161 |r|=8.209e-02 (ITERATING)
# TAO 1, KSP 162 |r|=8.079e-02 (ITERATING)
# TAO 1, KSP 163 |r|=7.942e-02 (ITERATING)
# TAO 1, KSP 164 |r|=7.802e-02 (ITERATING)
# TAO 1, KSP 165 |r|=7.568e-02 (ITERATING)
# TAO 1, KSP 166 |r|=7.444e-02 (ITERATING)
# TAO 1, KSP 167 |r|=7.293e-02 (ITERATING)
# TAO 1, KSP 168 |r|=7.058e-02 (ITERATING)
# TAO 1, KSP 169 |r|=6.793e-02 (ITERATING)
# TAO 1, KSP 170 |r|=6.600e-02 (ITERATING)
# TAO 1, KSP 171 |r|=6.460e-02 (ITERATING)
# TAO 1, KSP 172 |r|=6.173e-02 (ITERATING)
# TAO 1, KSP 173 |r|=5.893e-02 (ITERATING)
# TAO 1, KSP 174 |r|=5.680e-02 (ITERATING)
# TAO 1, KSP 175 |r|=5.476e-02 (ITERATING)
# TAO 1, KSP 176 |r|=5.273e-02 (ITERATING)
# TAO 1, KSP 177 |r|=5.094e-02 (ITERATING)
# TAO 1, KSP 178 |r|=4.940e-02 (ITERATING)
# TAO 1, KSP 179 |r|=4.771e-02 (ITERATING)
# TAO 1, KSP 180 |r|=4.603e-02 (ITERATING)
# TAO 1, KSP 181 |r|=4.475e-02 (ITERATING)
# TAO 1, KSP 182 |r|=4.414e-02 (ITERATING)
# TAO 1, KSP 183 |r|=4.346e-02 (ITERATING)
# TAO 1, KSP 184 |r|=4.295e-02 (ITERATING)
# TAO 1, KSP 185 |r|=4.175e-02 (ITERATING)
# TAO 1, KSP 186 |r|=4.058e-02 (ITERATING)
# TAO 1, KSP 187 |r|=3.978e-02 (ITERATING)
# TAO 1, KSP 188 |r|=3.894e-02 (ITERATING)
# TAO 1, KSP 189 |r|=3.781e-02 (ITERATING)
# TAO 1, KSP 190 |r|=3.661e-02 (ITERATING)
# TAO 1, KSP 191 |r|=3.503e-02 (ITERATING)
# TAO 1, KSP 192 |r|=3.372e-02 (ITERATING)
# TAO 1, KSP 193 |r|=3.284e-02 (ITERATING)
# TAO 1, KSP 194 |r|=3.159e-02 (ITERATING)
# TAO 1, KSP 195 |r|=3.044e-02 (ITERATING)
# TAO 1, KSP 196 |r|=2.926e-02 (ITERATING)
# TAO 1, KSP 197 |r|=2.798e-02 (ITERATING)
# TAO 1, KSP 198 |r|=2.675e-02 (ITERATING)
# TAO 1, KSP 199 |r|=2.562e-02 (ITERATING)
# TAO 1, KSP 200 |r|=2.445e-02 (ITERATING)
# TAO 1, KSP 201 |r|=2.346e-02 (ITERATING)
# TAO 1, KSP 202 |r|=2.244e-02 (ITERATING)
# TAO 1, KSP 203 |r|=2.152e-02 (ITERATING)
# TAO 1, KSP 204 |r|=2.052e-02 (ITERATING)
# TAO 1, KSP 205 |r|=1.963e-02 (ITERATING)
# TAO 1, KSP 206 |r|=1.865e-02 (ITERATING)
# TAO 1, KSP 207 |r|=1.760e-02 (ITERATING)
# TAO 1, KSP 208 |r|=1.690e-02 (ITERATING)
# TAO 1, KSP 209 |r|=1.651e-02 (ITERATING)
# TAO 1, KSP 210 |r|=1.555e-02 (ITERATING)
# TAO 1, KSP 211 |r|=1.432e-02 (ITERATING)
# TAO 1, KSP 212 |r|=1.352e-02 (ITERATING)
# TAO 1, KSP 213 |r|=1.284e-02 (ITERATING)
# TAO 1, KSP 214 |r|=1.233e-02 (ITERATING)
# TAO 1, KSP 215 |r|=1.194e-02 (ITERATING)
# TAO 1, KSP 216 |r|=1.163e-02 (ITERATING)
# TAO 1, KSP 217 |r|=1.118e-02 (ITERATING)
# TAO 1, KSP 218 |r|=1.056e-02 (ITERATING)
# TAO 1, KSP 219 |r|=1.003e-02 (ITERATING)
# TAO 1, KSP 220 |r|=9.673e-03 (ITERATING)
# TAO 1, KSP 221 |r|=9.432e-03 (ITERATING)
# TAO 1, KSP 222 |r|=9.237e-03 (ITERATING)
# TAO 1, KSP 223 |r|=8.851e-03 (ITERATING)
# TAO 1, KSP 224 |r|=8.491e-03 (ITERATING)
# TAO 1, KSP 225 |r|=8.254e-03 (ITERATING)
# TAO 1, KSP 226 |r|=8.010e-03 (ITERATING)
# TAO 1, KSP 227 |r|=7.870e-03 (ITERATING)
# TAO 1, KSP 228 |r|=7.694e-03 (ITERATING)
# TAO 1, KSP 229 |r|=7.426e-03 (ITERATING)
# TAO 1, KSP 230 |r|=7.193e-03 (ITERATING)
# TAO 1, KSP 231 |r|=6.981e-03 (ITERATING)
# TAO 1, KSP 232 |r|=6.919e-03 (ITERATING)
# TAO 1, KSP 233 |r|=6.930e-03 (ITERATING)
# TAO 1, KSP 234 |r|=6.914e-03 (ITERATING)
# TAO 1, KSP 235 |r|=6.832e-03 (ITERATING)
# TAO 1, KSP 236 |r|=6.623e-03 (ITERATING)
# TAO 1, KSP 237 |r|=6.421e-03 (ITERATING)
# TAO 1, KSP 238 |r|=6.254e-03 (ITERATING)
# TAO 1, KSP 239 |r|=6.213e-03 (ITERATING)
# TAO 1, KSP 240 |r|=6.235e-03 (ITERATING)
# TAO 1, KSP 241 |r|=6.132e-03 (ITERATING)
# TAO 1, KSP 242 |r|=5.966e-03 (ITERATING)
# TAO 1, KSP 243 |r|=5.754e-03 (ITERATING)
# TAO 1, KSP 244 |r|=5.498e-03 (ITERATING)
# TAO 1, KSP 245 |r|=5.276e-03 (ITERATING)
# TAO 1, KSP 246 |r|=5.085e-03 (ITERATING)
# TAO 1, KSP 247 |r|=4.966e-03 (ITERATING)
# TAO 1, KSP 248 |r|=4.811e-03 (ITERATING)
# TAO 1, KSP 249 |r|=4.589e-03 (ITERATING)
# TAO 1, KSP 250 |r|=4.381e-03 (ITERATING)
# TAO 1, KSP 251 |r|=4.222e-03 (ITERATING)
# TAO 1, KSP 252 |r|=4.114e-03 (ITERATING)
# TAO 1, KSP 253 |r|=4.008e-03 (ITERATING)
# TAO 1, KSP 254 |r|=3.868e-03 (ITERATING)
# TAO 1, KSP 255 |r|=3.738e-03 (ITERATING)
# TAO 1, KSP 256 |r|=3.631e-03 (ITERATING)
# TAO 1, KSP 257 |r|=3.531e-03 (ITERATING)
# TAO 1, KSP 258 |r|=3.442e-03 (ITERATING)
# TAO 1, KSP 259 |r|=3.370e-03 (ITERATING)
# TAO 1, KSP 260 |r|=3.282e-03 (ITERATING)
# TAO 1, KSP 261 |r|=3.235e-03 (ITERATING)
# TAO 1, KSP 262 |r|=3.161e-03 (ITERATING)
# TAO 1, KSP 263 |r|=3.051e-03 (ITERATING)
# TAO 1, KSP 264 |r|=2.953e-03 (ITERATING)
# TAO 1, KSP 265 |r|=2.848e-03 (ITERATING)
# TAO 1, KSP 266 |r|=2.752e-03 (ITERATING)
# TAO 1, KSP 267 |r|=2.646e-03 (ITERATING)
# TAO 1, KSP 268 |r|=2.523e-03 (ITERATING)
# TAO 1, KSP 269 |r|=2.427e-03 (ITERATING)
# TAO 1, KSP 270 |r|=2.340e-03 (ITERATING)
# TAO 1, KSP 271 |r|=2.251e-03 (ITERATING)
# TAO 1, KSP 272 |r|=2.156e-03 (ITERATING)
# TAO 1, KSP 273 |r|=2.116e-03 (ITERATING)
# TAO 1, KSP 274 |r|=2.093e-03 (ITERATING)
# TAO 1, KSP 275 |r|=2.089e-03 (ITERATING)
# TAO 1, KSP 276 |r|=2.041e-03 (ITERATING)
# TAO 1, KSP 277 |r|=1.952e-03 (ITERATING)
# TAO 1, KSP 278 |r|=1.881e-03 (ITERATING)
# TAO 1, KSP 279 |r|=1.823e-03 (ITERATING)
# TAO 1, KSP 280 |r|=1.761e-03 (ITERATING)
# TAO 1, KSP 281 |r|=1.695e-03 (ITERATING)
# TAO 1, KSP 282 |r|=1.620e-03 (ITERATING)
# TAO 1, KSP 283 |r|=1.561e-03 (ITERATING)
# TAO 1, KSP 284 |r|=1.488e-03 (ITERATING)
# TAO 1, KSP 285 |r|=1.411e-03 (ITERATING)
# TAO 1, KSP 286 |r|=1.328e-03 (ITERATING)
# TAO 1, KSP 287 |r|=1.267e-03 (ITERATING)
# TAO 1, KSP 288 |r|=1.214e-03 (ITERATING)
# TAO 1, KSP 289 |r|=1.171e-03 (ITERATING)
# TAO 1, KSP 290 |r|=1.117e-03 (ITERATING)
# TAO 1, KSP 291 |r|=1.066e-03 (ITERATING)
# TAO 1, KSP 292 |r|=1.022e-03 (ITERATING)
# TAO 1, KSP 293 |r|=9.876e-04 (ITERATING)
# TAO 1, KSP 294 |r|=9.452e-04 (ITERATING)
# TAO 1, KSP 295 |r|=9.153e-04 (ITERATING)
# TAO 1, KSP 296 |r|=8.794e-04 (ITERATING)
# TAO 1, KSP 297 |r|=8.572e-04 (ITERATING)
# TAO 1, KSP 298 |r|=8.452e-04 (ITERATING)
# TAO 1, KSP 299 |r|=8.321e-04 (ITERATING)
# TAO 1, KSP 300 |r|=8.084e-04 (ITERATING)
# TAO 1, KSP 301 |r|=7.877e-04 (ITERATING)
# TAO 1, KSP 302 |r|=7.816e-04 (ITERATING)
# TAO 1, KSP 303 |r|=7.638e-04 (ITERATING)
# TAO 1, KSP 304 |r|=7.361e-04 (ITERATING)
# TAO 1, KSP 305 |r|=7.007e-04 (ITERATING)
# TAO 1, KSP 306 |r|=6.761e-04 (ITERATING)
# TAO 1, KSP 307 |r|=6.532e-04 (ITERATING)
# TAO 1, KSP 308 |r|=6.380e-04 (ITERATING)
# TAO 1, KSP 309 |r|=6.168e-04 (ITERATING)
# TAO 1, KSP 310 |r|=5.946e-04 (ITERATING)
# TAO 1, KSP 311 |r|=5.767e-04 (ITERATING)
# TAO 1, KSP 312 |r|=5.646e-04 (ITERATING)
# TAO 1, KSP 313 |r|=5.543e-04 (ITERATING)
# TAO 1, KSP 314 |r|=5.306e-04 (ITERATING)
# TAO 1, KSP 315 |r|=5.087e-04 (ITERATING)
# TAO 1, KSP 316 |r|=5.009e-04 (ITERATING)
# TAO 1, KSP 317 |r|=4.933e-04 (ITERATING)
# TAO 1, KSP 318 |r|=4.754e-04 (ITERATING)
# TAO 1, KSP 319 |r|=4.484e-04 (ITERATING)
# TAO 1, KSP 320 |r|=4.222e-04 (ITERATING)
# TAO 1, KSP 321 |r|=4.014e-04 (ITERATING)
# TAO 1, KSP 322 |r|=3.815e-04 (ITERATING)
# TAO 1, KSP 323 |r|=3.636e-04 (ITERATING)
# TAO 1, KSP 324 |r|=3.509e-04 (ITERATING)
# TAO 1, KSP 325 |r|=3.388e-04 (ITERATING)
# TAO 1, KSP 326 |r|=3.259e-04 (ITERATING)
# TAO 1, KSP 327 |r|=3.152e-04 (ITERATING)
# TAO 1, KSP 328 |r|=3.023e-04 (ITERATING)
# TAO 1, KSP 329 |r|=2.923e-04 (ITERATING)
# TAO 1, KSP 330 |r|=2.832e-04 (ITERATING)
# TAO 1, KSP 331 |r|=2.743e-04 (ITERATING)
# TAO 1, KSP 332 |r|=2.656e-04 (ITERATING)
# TAO 1, KSP 333 |r|=2.584e-04 (ITERATING)
# TAO 1, KSP 334 |r|=2.513e-04 (ITERATING)
# TAO 1, KSP 335 |r|=2.443e-04 (ITERATING)
# TAO 1, KSP 336 |r|=2.385e-04 (ITERATING)
# TAO 1, KSP 337 |r|=2.325e-04 (ITERATING)
# TAO 1, KSP 338 |r|=2.267e-04 (ITERATING)
# TAO 1, KSP 339 |r|=2.251e-04 (ITERATING)
# TAO 1, KSP 340 |r|=2.260e-04 (ITERATING)
# TAO 1, KSP 341 |r|=2.227e-04 (ITERATING)
# TAO 1, KSP 342 |r|=2.156e-04 (ITERATING)
# TAO 1, KSP 343 |r|=2.124e-04 (ITERATING)
# TAO 1, KSP 344 |r|=2.082e-04 (ITERATING)
# TAO 1, KSP 345 |r|=2.067e-04 (ITERATING)
# TAO 1, KSP 346 |r|=2.076e-04 (ITERATING)
# TAO 1, KSP 347 |r|=2.087e-04 (ITERATING)
# TAO 1, KSP 348 |r|=2.070e-04 (ITERATING)
# TAO 1, KSP 349 |r|=2.047e-04 (ITERATING)
# TAO 1, KSP 350 |r|=2.014e-04 (ITERATING)
# TAO 1, KSP 351 |r|=1.975e-04 (ITERATING)
# TAO 1, KSP 352 |r|=1.935e-04 (ITERATING)
# TAO 1, KSP 353 |r|=1.923e-04 (ITERATING)
# TAO 1, KSP 354 |r|=1.884e-04 (ITERATING)
# TAO 1, KSP 355 |r|=1.847e-04 (ITERATING)
# TAO 1, KSP 356 |r|=1.802e-04 (ITERATING)
# TAO 1, KSP 357 |r|=1.754e-04 (ITERATING)
# TAO 1, KSP 358 |r|=1.684e-04 (ITERATING)
# TAO 1, KSP 359 |r|=1.625e-04 (ITERATING)
# TAO 1, KSP 360 |r|=1.564e-04 (ITERATING)
# TAO 2 (ITERATING)
# sub 0 [ 44k] |x|=1.569e+03 |J|=5.940e+00 (g)
# all |x|=1.569e+03 |J|=5.940e+00 |H|=7.091e+02 f=1.125e+04
# TAO 2, KSP 0 |r|=5.940e+00 (ITERATING)
# TAO 2, KSP 1 |r|=5.628e+00 (ITERATING)
# TAO 2, KSP 2 |r|=4.857e+00 (ITERATING)
# TAO 2, KSP 3 |r|=3.988e+00 (ITERATING)
# TAO 2, KSP 4 |r|=3.392e+00 (ITERATING)
# TAO 2, KSP 5 |r|=2.842e+00 (ITERATING)
# TAO 2, KSP 6 |r|=2.398e+00 (ITERATING)
# TAO 2, KSP 7 |r|=1.946e+00 (ITERATING)
# TAO 2, KSP 8 |r|=1.699e+00 (ITERATING)
# TAO 2, KSP 9 |r|=1.518e+00 (ITERATING)
# TAO 2, KSP 10 |r|=1.388e+00 (ITERATING)
# TAO 2, KSP 11 |r|=1.290e+00 (ITERATING)
# TAO 2, KSP 12 |r|=1.234e+00 (ITERATING)
# TAO 2, KSP 13 |r|=1.215e+00 (ITERATING)
# TAO 2, KSP 14 |r|=1.192e+00 (ITERATING)
# TAO 2, KSP 15 |r|=1.150e+00 (ITERATING)
# TAO 2, KSP 16 |r|=1.090e+00 (ITERATING)
# TAO 2, KSP 17 |r|=1.047e+00 (ITERATING)
# TAO 2, KSP 18 |r|=9.979e-01 (ITERATING)
# TAO 2, KSP 19 |r|=9.378e-01 (ITERATING)
# TAO 2, KSP 20 |r|=8.521e-01 (ITERATING)
# TAO 2, KSP 21 |r|=7.804e-01 (ITERATING)
# TAO 2, KSP 22 |r|=7.345e-01 (ITERATING)
# TAO 2, KSP 23 |r|=6.888e-01 (ITERATING)
# TAO 2, KSP 24 |r|=6.551e-01 (ITERATING)
# TAO 2, KSP 25 |r|=6.330e-01 (ITERATING)
# TAO 2, KSP 26 |r|=6.219e-01 (ITERATING)
# TAO 2, KSP 27 |r|=5.984e-01 (ITERATING)
# TAO 2, KSP 28 |r|=5.935e-01 (ITERATING)
# TAO 2, KSP 29 |r|=5.814e-01 (ITERATING)
# TAO 2, KSP 30 |r|=5.699e-01 (ITERATING)
# TAO 2, KSP 31 |r|=5.566e-01 (ITERATING)
# TAO 2, KSP 32 |r|=5.396e-01 (ITERATING)
# TAO 2, KSP 33 |r|=5.211e-01 (ITERATING)
# TAO 2, KSP 34 |r|=5.019e-01 (ITERATING)
# TAO 2, KSP 35 |r|=4.875e-01 (ITERATING)
# TAO 2, KSP 36 |r|=4.697e-01 (ITERATING)
# TAO 2, KSP 37 |r|=4.569e-01 (ITERATING)
# TAO 2, KSP 38 |r|=4.368e-01 (ITERATING)
# TAO 2, KSP 39 |r|=4.232e-01 (ITERATING)
# TAO 2, KSP 40 |r|=4.113e-01 (ITERATING)
# TAO 2, KSP 41 |r|=4.017e-01 (ITERATING)
# TAO 2, KSP 42 |r|=3.953e-01 (ITERATING)
# TAO 2, KSP 43 |r|=3.860e-01 (ITERATING)
# TAO 2, KSP 44 |r|=3.795e-01 (ITERATING)
# TAO 2, KSP 45 |r|=3.687e-01 (ITERATING)
# TAO 2, KSP 46 |r|=3.610e-01 (ITERATING)
# TAO 2, KSP 47 |r|=3.545e-01 (ITERATING)
# TAO 2, KSP 48 |r|=3.437e-01 (ITERATING)
# TAO 2, KSP 49 |r|=3.350e-01 (ITERATING)
# TAO 2, KSP 50 |r|=3.290e-01 (ITERATING)
# TAO 2, KSP 51 |r|=3.215e-01 (ITERATING)
# TAO 2, KSP 52 |r|=3.192e-01 (ITERATING)
# TAO 2, KSP 53 |r|=3.179e-01 (ITERATING)
# TAO 2, KSP 54 |r|=3.131e-01 (ITERATING)
# TAO 2, KSP 55 |r|=3.102e-01 (ITERATING)
# TAO 2, KSP 56 |r|=3.046e-01 (ITERATING)
# TAO 2, KSP 57 |r|=2.991e-01 (ITERATING)
# TAO 2, KSP 58 |r|=2.946e-01 (ITERATING)
# TAO 2, KSP 59 |r|=2.862e-01 (ITERATING)
# TAO 2, KSP 60 |r|=2.810e-01 (ITERATING)
# TAO 2, KSP 61 |r|=2.752e-01 (ITERATING)
# TAO 2, KSP 62 |r|=2.713e-01 (ITERATING)
# TAO 2, KSP 63 |r|=2.630e-01 (ITERATING)
# TAO 2, KSP 64 |r|=2.548e-01 (ITERATING)
# TAO 2, KSP 65 |r|=2.470e-01 (ITERATING)
# TAO 2, KSP 66 |r|=2.370e-01 (ITERATING)
# TAO 2, KSP 67 |r|=2.284e-01 (ITERATING)
# TAO 2, KSP 68 |r|=2.204e-01 (ITERATING)
# TAO 2, KSP 69 |r|=2.141e-01 (ITERATING)
# TAO 2, KSP 70 |r|=2.082e-01 (ITERATING)
# TAO 2, KSP 71 |r|=2.034e-01 (ITERATING)
# TAO 2, KSP 72 |r|=1.954e-01 (ITERATING)
# TAO 2, KSP 73 |r|=1.891e-01 (ITERATING)
# TAO 2, KSP 74 |r|=1.816e-01 (ITERATING)
# TAO 2, KSP 75 |r|=1.752e-01 (ITERATING)
# TAO 2, KSP 76 |r|=1.684e-01 (ITERATING)
# TAO 2, KSP 77 |r|=1.637e-01 (ITERATING)
# TAO 2, KSP 78 |r|=1.599e-01 (ITERATING)
# TAO 2, KSP 79 |r|=1.566e-01 (ITERATING)
# TAO 2, KSP 80 |r|=1.518e-01 (ITERATING)
# TAO 2, KSP 81 |r|=1.483e-01 (ITERATING)
# TAO 2, KSP 82 |r|=1.452e-01 (ITERATING)
# TAO 2, KSP 83 |r|=1.416e-01 (ITERATING)
# TAO 2, KSP 84 |r|=1.380e-01 (ITERATING)
# TAO 2, KSP 85 |r|=1.352e-01 (ITERATING)
# TAO 2, KSP 86 |r|=1.320e-01 (ITERATING)
# TAO 2, KSP 87 |r|=1.294e-01 (ITERATING)
# TAO 2, KSP 88 |r|=1.262e-01 (ITERATING)
# TAO 2, KSP 89 |r|=1.244e-01 (ITERATING)
# TAO 2, KSP 90 |r|=1.217e-01 (ITERATING)
# TAO 2, KSP 91 |r|=1.177e-01 (ITERATING)
# TAO 2, KSP 92 |r|=1.126e-01 (ITERATING)
# TAO 2, KSP 93 |r|=1.073e-01 (ITERATING)
# TAO 2, KSP 94 |r|=1.047e-01 (ITERATING)
# TAO 2, KSP 95 |r|=1.035e-01 (ITERATING)
# TAO 2, KSP 96 |r|=1.025e-01 (ITERATING)
# TAO 2, KSP 97 |r|=1.012e-01 (ITERATING)
# TAO 2, KSP 98 |r|=9.939e-02 (ITERATING)
# TAO 2, KSP 99 |r|=9.803e-02 (ITERATING)
# TAO 2, KSP 100 |r|=9.702e-02 (ITERATING)
# TAO 2, KSP 101 |r|=9.681e-02 (ITERATING)
# TAO 2, KSP 102 |r|=9.554e-02 (ITERATING)
# TAO 2, KSP 103 |r|=9.384e-02 (ITERATING)
# TAO 2, KSP 104 |r|=9.217e-02 (ITERATING)
# TAO 2, KSP 105 |r|=8.976e-02 (ITERATING)
# TAO 2, KSP 106 |r|=8.787e-02 (ITERATING)
# TAO 2, KSP 107 |r|=8.551e-02 (ITERATING)
# TAO 2, KSP 108 |r|=8.331e-02 (ITERATING)
# TAO 2, KSP 109 |r|=8.226e-02 (ITERATING)
# TAO 2, KSP 110 |r|=7.962e-02 (ITERATING)
# TAO 2, KSP 111 |r|=7.718e-02 (ITERATING)
# TAO 2, KSP 112 |r|=7.431e-02 (ITERATING)
# TAO 2, KSP 113 |r|=7.252e-02 (ITERATING)
# TAO 2, KSP 114 |r|=6.957e-02 (ITERATING)
# TAO 2, KSP 115 |r|=6.790e-02 (ITERATING)
# TAO 2, KSP 116 |r|=6.546e-02 (ITERATING)
# TAO 2, KSP 117 |r|=6.342e-02 (ITERATING)
# TAO 2, KSP 118 |r|=6.206e-02 (ITERATING)
# TAO 2, KSP 119 |r|=6.037e-02 (ITERATING)
# TAO 2, KSP 120 |r|=5.831e-02 (ITERATING)
# TAO 2, KSP 121 |r|=5.605e-02 (ITERATING)
# TAO 2, KSP 122 |r|=5.441e-02 (ITERATING)
# TAO 2, KSP 123 |r|=5.297e-02 (ITERATING)
# TAO 2, KSP 124 |r|=5.168e-02 (ITERATING)
# TAO 2, KSP 125 |r|=4.992e-02 (ITERATING)
# TAO 2, KSP 126 |r|=4.816e-02 (ITERATING)
# TAO 2, KSP 127 |r|=4.641e-02 (ITERATING)
# TAO 2, KSP 128 |r|=4.440e-02 (ITERATING)
# TAO 2, KSP 129 |r|=4.286e-02 (ITERATING)
# TAO 2, KSP 130 |r|=4.154e-02 (ITERATING)
# TAO 2, KSP 131 |r|=3.989e-02 (ITERATING)
# TAO 2, KSP 132 |r|=3.774e-02 (ITERATING)
# TAO 2, KSP 133 |r|=3.597e-02 (ITERATING)
# TAO 2, KSP 134 |r|=3.460e-02 (ITERATING)
# TAO 2, KSP 135 |r|=3.347e-02 (ITERATING)
# TAO 2, KSP 136 |r|=3.276e-02 (ITERATING)
# TAO 2, KSP 137 |r|=3.228e-02 (ITERATING)
# TAO 2, KSP 138 |r|=3.153e-02 (ITERATING)
# TAO 2, KSP 139 |r|=3.098e-02 (ITERATING)
# TAO 2, KSP 140 |r|=3.010e-02 (ITERATING)
# TAO 2, KSP 141 |r|=2.938e-02 (ITERATING)
# TAO 2, KSP 142 |r|=2.845e-02 (ITERATING)
# TAO 2, KSP 143 |r|=2.742e-02 (ITERATING)
# TAO 2, KSP 144 |r|=2.628e-02 (ITERATING)
# TAO 2, KSP 145 |r|=2.554e-02 (ITERATING)
# TAO 2, KSP 146 |r|=2.492e-02 (ITERATING)
# TAO 2, KSP 147 |r|=2.392e-02 (ITERATING)
# TAO 2, KSP 148 |r|=2.275e-02 (ITERATING)
# TAO 2, KSP 149 |r|=2.171e-02 (ITERATING)
# TAO 2, KSP 150 |r|=2.087e-02 (ITERATING)
# TAO 2, KSP 151 |r|=2.033e-02 (ITERATING)
# TAO 2, KSP 152 |r|=1.941e-02 (ITERATING)
# TAO 2, KSP 153 |r|=1.834e-02 (ITERATING)
# TAO 2, KSP 154 |r|=1.732e-02 (ITERATING)
# TAO 2, KSP 155 |r|=1.658e-02 (ITERATING)
# TAO 2, KSP 156 |r|=1.614e-02 (ITERATING)
# TAO 2, KSP 157 |r|=1.593e-02 (ITERATING)
# TAO 2, KSP 158 |r|=1.532e-02 (ITERATING)
# TAO 2, KSP 159 |r|=1.445e-02 (ITERATING)
# TAO 2, KSP 160 |r|=1.377e-02 (ITERATING)
# TAO 2, KSP 161 |r|=1.312e-02 (ITERATING)
# TAO 2, KSP 162 |r|=1.248e-02 (ITERATING)
# TAO 2, KSP 163 |r|=1.211e-02 (ITERATING)
# TAO 2, KSP 164 |r|=1.190e-02 (ITERATING)
# TAO 2, KSP 165 |r|=1.177e-02 (ITERATING)
# TAO 2, KSP 166 |r|=1.141e-02 (ITERATING)
# TAO 2, KSP 167 |r|=1.110e-02 (ITERATING)
# TAO 2, KSP 168 |r|=1.066e-02 (ITERATING)
# TAO 2, KSP 169 |r|=1.028e-02 (ITERATING)
# TAO 2, KSP 170 |r|=9.977e-03 (ITERATING)
# TAO 2, KSP 171 |r|=9.814e-03 (ITERATING)
# TAO 2, KSP 172 |r|=9.708e-03 (ITERATING)
# TAO 2, KSP 173 |r|=9.537e-03 (ITERATING)
# TAO 2, KSP 174 |r|=9.336e-03 (ITERATING)
# TAO 2, KSP 175 |r|=9.263e-03 (ITERATING)
# TAO 2, KSP 176 |r|=9.095e-03 (ITERATING)
# TAO 2, KSP 177 |r|=8.934e-03 (ITERATING)
# TAO 2, KSP 178 |r|=8.744e-03 (ITERATING)
# TAO 2, KSP 179 |r|=8.556e-03 (ITERATING)
# TAO 2, KSP 180 |r|=8.347e-03 (ITERATING)
# TAO 2, KSP 181 |r|=8.127e-03 (ITERATING)
# TAO 2, KSP 182 |r|=7.852e-03 (ITERATING)
# TAO 2, KSP 183 |r|=7.640e-03 (ITERATING)
# TAO 2, KSP 184 |r|=7.401e-03 (ITERATING)
# TAO 2, KSP 185 |r|=7.169e-03 (ITERATING)
# TAO 2, KSP 186 |r|=6.946e-03 (ITERATING)
# TAO 2, KSP 187 |r|=6.759e-03 (ITERATING)
# TAO 2, KSP 188 |r|=6.526e-03 (ITERATING)
# TAO 2, KSP 189 |r|=6.299e-03 (ITERATING)
# TAO 2, KSP 190 |r|=6.120e-03 (ITERATING)
# TAO 2, KSP 191 |r|=5.955e-03 (ITERATING)
# TAO 2, KSP 192 |r|=5.722e-03 (ITERATING)
# TAO 2, KSP 193 |r|=5.514e-03 (ITERATING)
# TAO 2, KSP 194 |r|=5.298e-03 (ITERATING)
# TAO 2, KSP 195 |r|=5.096e-03 (ITERATING)
# TAO 2, KSP 196 |r|=4.827e-03 (ITERATING)
# TAO 2, KSP 197 |r|=4.660e-03 (ITERATING)
# TAO 2, KSP 198 |r|=4.531e-03 (ITERATING)
# TAO 2, KSP 199 |r|=4.423e-03 (ITERATING)
# TAO 2, KSP 200 |r|=4.271e-03 (ITERATING)
# TAO 2, KSP 201 |r|=4.068e-03 (ITERATING)
# TAO 2, KSP 202 |r|=3.924e-03 (ITERATING)
# TAO 2, KSP 203 |r|=3.858e-03 (ITERATING)
# TAO 2, KSP 204 |r|=3.760e-03 (ITERATING)
# TAO 2, KSP 205 |r|=3.652e-03 (ITERATING)
# TAO 2, KSP 206 |r|=3.504e-03 (ITERATING)
# TAO 2, KSP 207 |r|=3.401e-03 (ITERATING)
# TAO 2, KSP 208 |r|=3.303e-03 (ITERATING)
# TAO 2, KSP 209 |r|=3.250e-03 (ITERATING)
# TAO 2, KSP 210 |r|=3.154e-03 (ITERATING)
# TAO 2, KSP 211 |r|=3.077e-03 (ITERATING)
# TAO 2, KSP 212 |r|=3.006e-03 (ITERATING)
# TAO 2, KSP 213 |r|=2.891e-03 (ITERATING)
# TAO 2, KSP 214 |r|=2.806e-03 (ITERATING)
# TAO 2, KSP 215 |r|=2.720e-03 (ITERATING)
# TAO 2, KSP 216 |r|=2.648e-03 (ITERATING)
# TAO 2, KSP 217 |r|=2.566e-03 (ITERATING)
# TAO 2, KSP 218 |r|=2.461e-03 (ITERATING)
# TAO 2, KSP 219 |r|=2.342e-03 (ITERATING)
# TAO 2, KSP 220 |r|=2.241e-03 (ITERATING)
# TAO 2, KSP 221 |r|=2.200e-03 (ITERATING)
# TAO 2, KSP 222 |r|=2.145e-03 (ITERATING)
# TAO 2, KSP 223 |r|=2.043e-03 (ITERATING)
# TAO 2, KSP 224 |r|=1.931e-03 (ITERATING)
# TAO 2, KSP 225 |r|=1.833e-03 (ITERATING)
# TAO 2, KSP 226 |r|=1.749e-03 (ITERATING)
# TAO 2, KSP 227 |r|=1.674e-03 (ITERATING)
# TAO 2, KSP 228 |r|=1.574e-03 (ITERATING)
# TAO 2, KSP 229 |r|=1.497e-03 (ITERATING)
# TAO 2, KSP 230 |r|=1.435e-03 (ITERATING)
# TAO 2, KSP 231 |r|=1.370e-03 (ITERATING)
# TAO 2, KSP 232 |r|=1.316e-03 (ITERATING)
# TAO 2, KSP 233 |r|=1.269e-03 (ITERATING)
# TAO 2, KSP 234 |r|=1.223e-03 (ITERATING)
# TAO 2, KSP 235 |r|=1.175e-03 (ITERATING)
# TAO 2, KSP 236 |r|=1.124e-03 (ITERATING)
# TAO 2, KSP 237 |r|=1.080e-03 (ITERATING)
# TAO 2, KSP 238 |r|=1.040e-03 (ITERATING)
# TAO 2, KSP 239 |r|=9.921e-04 (ITERATING)
# TAO 2, KSP 240 |r|=9.440e-04 (ITERATING)
# TAO 2, KSP 241 |r|=9.069e-04 (ITERATING)
# TAO 2, KSP 242 |r|=8.735e-04 (ITERATING)
# TAO 2, KSP 243 |r|=8.398e-04 (ITERATING)
# TAO 2, KSP 244 |r|=8.084e-04 (ITERATING)
# TAO 2, KSP 245 |r|=7.774e-04 (ITERATING)
# TAO 2, KSP 246 |r|=7.517e-04 (ITERATING)
# TAO 2, KSP 247 |r|=7.314e-04 (ITERATING)
# TAO 2, KSP 248 |r|=7.020e-04 (ITERATING)
# TAO 2, KSP 249 |r|=6.676e-04 (ITERATING)
# TAO 2, KSP 250 |r|=6.361e-04 (ITERATING)
# TAO 2, KSP 251 |r|=6.128e-04 (ITERATING)
# TAO 2, KSP 252 |r|=5.927e-04 (ITERATING)
# TAO 2, KSP 253 |r|=5.758e-04 (ITERATING)
# TAO 2, KSP 254 |r|=5.644e-04 (ITERATING)
# TAO 2, KSP 255 |r|=5.531e-04 (ITERATING)
# TAO 2, KSP 256 |r|=5.371e-04 (ITERATING)
# TAO 2, KSP 257 |r|=5.139e-04 (ITERATING)
# TAO 2, KSP 258 |r|=4.899e-04 (ITERATING)
# TAO 2, KSP 259 |r|=4.649e-04 (ITERATING)
# TAO 2, KSP 260 |r|=4.445e-04 (ITERATING)
# TAO 2, KSP 261 |r|=4.271e-04 (ITERATING)
# TAO 2, KSP 262 |r|=4.131e-04 (ITERATING)
# TAO 2, KSP 263 |r|=4.067e-04 (ITERATING)
# TAO 2, KSP 264 |r|=3.966e-04 (ITERATING)
# TAO 2, KSP 265 |r|=3.882e-04 (ITERATING)
# TAO 2, KSP 266 |r|=3.790e-04 (ITERATING)
# TAO 2, KSP 267 |r|=3.661e-04 (ITERATING)
# TAO 2, KSP 268 |r|=3.555e-04 (ITERATING)
# TAO 2, KSP 269 |r|=3.484e-04 (ITERATING)
# TAO 2, KSP 270 |r|=3.421e-04 (ITERATING)
# TAO 2, KSP 271 |r|=3.340e-04 (ITERATING)
# TAO 2, KSP 272 |r|=3.272e-04 (ITERATING)
# TAO 2, KSP 273 |r|=3.205e-04 (ITERATING)
# TAO 2, KSP 274 |r|=3.155e-04 (ITERATING)
# TAO 2, KSP 275 |r|=3.127e-04 (ITERATING)
# TAO 2, KSP 276 |r|=3.118e-04 (ITERATING)
# TAO 2, KSP 277 |r|=3.037e-04 (ITERATING)
# TAO 2, KSP 278 |r|=2.989e-04 (ITERATING)
# TAO 2, KSP 279 |r|=2.926e-04 (ITERATING)
# TAO 2, KSP 280 |r|=2.840e-04 (ITERATING)
# TAO 2, KSP 281 |r|=2.784e-04 (ITERATING)
# TAO 2, KSP 282 |r|=2.710e-04 (ITERATING)
# TAO 2, KSP 283 |r|=2.677e-04 (ITERATING)
# TAO 2, KSP 284 |r|=2.624e-04 (ITERATING)
# TAO 2, KSP 285 |r|=2.547e-04 (ITERATING)
# TAO 2, KSP 286 |r|=2.456e-04 (ITERATING)
# TAO 2, KSP 287 |r|=2.400e-04 (ITERATING)
# TAO 2, KSP 288 |r|=2.375e-04 (ITERATING)
# TAO 2, KSP 289 |r|=2.355e-04 (ITERATING)
# TAO 2, KSP 290 |r|=2.317e-04 (ITERATING)
# TAO 2, KSP 291 |r|=2.269e-04 (ITERATING)
# TAO 2, KSP 292 |r|=2.247e-04 (ITERATING)
# TAO 2, KSP 293 |r|=2.219e-04 (ITERATING)
# TAO 2, KSP 294 |r|=2.180e-04 (ITERATING)
# TAO 2, KSP 295 |r|=2.120e-04 (ITERATING)
# TAO 2, KSP 296 |r|=2.057e-04 (ITERATING)
# TAO 2, KSP 297 |r|=1.989e-04 (ITERATING)
# TAO 2, KSP 298 |r|=1.897e-04 (ITERATING)
# TAO 2, KSP 299 |r|=1.827e-04 (ITERATING)
# TAO 2, KSP 300 |r|=1.785e-04 (ITERATING)
# TAO 2, KSP 301 |r|=1.725e-04 (ITERATING)
# TAO 2, KSP 302 |r|=1.681e-04 (ITERATING)
# TAO 2, KSP 303 |r|=1.663e-04 (ITERATING)
# TAO 2, KSP 304 |r|=1.629e-04 (ITERATING)
# TAO 2, KSP 305 |r|=1.581e-04 (ITERATING)
# TAO 2, KSP 306 |r|=1.526e-04 (ITERATING)
# TAO 2, KSP 307 |r|=1.477e-04 (ITERATING)
# TAO 2, KSP 308 |r|=1.435e-04 (ITERATING)
# TAO 2, KSP 309 |r|=1.416e-04 (ITERATING)
# TAO 2, KSP 310 |r|=1.417e-04 (ITERATING)
# TAO 2, KSP 311 |r|=1.384e-04 (ITERATING)
# TAO 2, KSP 312 |r|=1.330e-04 (ITERATING)
# TAO 2, KSP 313 |r|=1.287e-04 (ITERATING)
# TAO 2, KSP 314 |r|=1.266e-04 (ITERATING)
# TAO 2, KSP 315 |r|=1.240e-04 (ITERATING)
# TAO 2, KSP 316 |r|=1.198e-04 (ITERATING)
# TAO 2, KSP 317 |r|=1.162e-04 (ITERATING)
# TAO 2, KSP 318 |r|=1.141e-04 (ITERATING)
# TAO 2, KSP 319 |r|=1.104e-04 (ITERATING)
# TAO 2, KSP 320 |r|=1.066e-04 (ITERATING)
# TAO 2, KSP 321 |r|=1.041e-04 (ITERATING)
# TAO 2, KSP 322 |r|=1.012e-04 (ITERATING)
# TAO 2, KSP 323 |r|=9.746e-05 (ITERATING)
# TAO 2, KSP 324 |r|=9.332e-05 (ITERATING)
# TAO 2, KSP 325 |r|=8.781e-05 (ITERATING)
# TAO 2, KSP 326 |r|=8.359e-05 (ITERATING)
# TAO 2, KSP 327 |r|=8.073e-05 (ITERATING)
# TAO 2, KSP 328 |r|=7.873e-05 (ITERATING)
# TAO 2, KSP 329 |r|=7.723e-05 (ITERATING)
# TAO 2, KSP 330 |r|=7.536e-05 (ITERATING)
# TAO 2, KSP 331 |r|=7.394e-05 (ITERATING)
# TAO 2, KSP 332 |r|=7.133e-05 (ITERATING)
# TAO 2, KSP 333 |r|=6.915e-05 (ITERATING)
# TAO 2, KSP 334 |r|=6.654e-05 (ITERATING)
# TAO 2, KSP 335 |r|=6.322e-05 (ITERATING)
# TAO 2, KSP 336 |r|=6.014e-05 (ITERATING)
# TAO 2, KSP 337 |r|=5.775e-05 (ITERATING)
# TAO 3 (ITERATING)
# sub 0 [ 44k] |x|=1.569e+03 |J|=3.630e+00 (g)
# all |x|=1.569e+03 |J|=3.630e+00 |H|=7.336e+02 f=1.122e+04
# TAO 3, KSP 0 |r|=3.630e+00 (ITERATING)
# TAO 3, KSP 1 |r|=3.399e+00 (ITERATING)
# TAO 3, KSP 2 |r|=2.141e+00 (ITERATING)
# TAO 3, KSP 3 |r|=1.511e+00 (ITERATING)
# TAO 3, KSP 4 |r|=1.436e+00 (ITERATING)
# TAO 3, KSP 5 |r|=1.429e+00 (ITERATING)
# TAO 3, KSP 6 |r|=1.241e+00 (ITERATING)
# TAO 3, KSP 7 |r|=1.035e+00 (ITERATING)
# TAO 3, KSP 8 |r|=9.557e-01 (ITERATING)
# TAO 3, KSP 9 |r|=9.046e-01 (ITERATING)
# TAO 3, KSP 10 |r|=8.225e-01 (ITERATING)
# TAO 3, KSP 11 |r|=7.560e-01 (ITERATING)
# TAO 3, KSP 12 |r|=7.118e-01 (ITERATING)
# TAO 3, KSP 13 |r|=6.533e-01 (ITERATING)
# TAO 3, KSP 14 |r|=6.064e-01 (ITERATING)
# TAO 3, KSP 15 |r|=5.726e-01 (ITERATING)
# TAO 3, KSP 16 |r|=5.399e-01 (ITERATING)
# TAO 3, KSP 17 |r|=5.201e-01 (ITERATING)
# TAO 3, KSP 18 |r|=5.005e-01 (ITERATING)
# TAO 3, KSP 19 |r|=4.738e-01 (ITERATING)
# TAO 3, KSP 20 |r|=4.576e-01 (ITERATING)
# TAO 3, KSP 21 |r|=4.465e-01 (ITERATING)
# TAO 3, KSP 22 |r|=4.238e-01 (ITERATING)
# TAO 3, KSP 23 |r|=3.991e-01 (ITERATING)
# TAO 3, KSP 24 |r|=3.809e-01 (ITERATING)
# TAO 3, KSP 25 |r|=3.518e-01 (ITERATING)
# TAO 3, KSP 26 |r|=3.178e-01 (ITERATING)
# TAO 3, KSP 27 |r|=2.890e-01 (ITERATING)
# TAO 3, KSP 28 |r|=2.727e-01 (ITERATING)
# TAO 3, KSP 29 |r|=2.714e-01 (ITERATING)
# TAO 3, KSP 30 |r|=2.627e-01 (ITERATING)
# TAO 3, KSP 31 |r|=2.469e-01 (ITERATING)
# TAO 3, KSP 32 |r|=2.383e-01 (ITERATING)
# TAO 3, KSP 33 |r|=2.289e-01 (ITERATING)
# TAO 3, KSP 34 |r|=2.185e-01 (ITERATING)
# TAO 3, KSP 35 |r|=2.082e-01 (ITERATING)
# TAO 3, KSP 36 |r|=1.973e-01 (ITERATING)
# TAO 3, KSP 37 |r|=1.881e-01 (ITERATING)
# TAO 3, KSP 38 |r|=1.823e-01 (ITERATING)
# TAO 3, KSP 39 |r|=1.762e-01 (ITERATING)
# TAO 3, KSP 40 |r|=1.677e-01 (ITERATING)
# TAO 3, KSP 41 |r|=1.603e-01 (ITERATING)
# TAO 3, KSP 42 |r|=1.552e-01 (ITERATING)
# TAO 3, KSP 43 |r|=1.502e-01 (ITERATING)
# TAO 3, KSP 44 |r|=1.440e-01 (ITERATING)
# TAO 3, KSP 45 |r|=1.383e-01 (ITERATING)
# TAO 3, KSP 46 |r|=1.331e-01 (ITERATING)
# TAO 3, KSP 47 |r|=1.283e-01 (ITERATING)
# TAO 3, KSP 48 |r|=1.235e-01 (ITERATING)
# TAO 3, KSP 49 |r|=1.185e-01 (ITERATING)
# TAO 3, KSP 50 |r|=1.140e-01 (ITERATING)
# TAO 3, KSP 51 |r|=1.110e-01 (ITERATING)
# TAO 3, KSP 52 |r|=1.074e-01 (ITERATING)
# TAO 3, KSP 53 |r|=1.028e-01 (ITERATING)
# TAO 3, KSP 54 |r|=9.859e-02 (ITERATING)
# TAO 3, KSP 55 |r|=9.565e-02 (ITERATING)
# TAO 3, KSP 56 |r|=9.332e-02 (ITERATING)
# TAO 3, KSP 57 |r|=9.098e-02 (ITERATING)
# TAO 3, KSP 58 |r|=8.905e-02 (ITERATING)
# TAO 3, KSP 59 |r|=8.646e-02 (ITERATING)
# TAO 3, KSP 60 |r|=8.299e-02 (ITERATING)
# TAO 3, KSP 61 |r|=7.895e-02 (ITERATING)
# TAO 3, KSP 62 |r|=7.514e-02 (ITERATING)
# TAO 3, KSP 63 |r|=7.202e-02 (ITERATING)
# TAO 3, KSP 64 |r|=6.931e-02 (ITERATING)
# TAO 3, KSP 65 |r|=6.715e-02 (ITERATING)
# TAO 3, KSP 66 |r|=6.418e-02 (ITERATING)
# TAO 3, KSP 67 |r|=6.044e-02 (ITERATING)
# TAO 3, KSP 68 |r|=5.817e-02 (ITERATING)
# TAO 3, KSP 69 |r|=5.661e-02 (ITERATING)
# TAO 3, KSP 70 |r|=5.398e-02 (ITERATING)
# TAO 3, KSP 71 |r|=5.139e-02 (ITERATING)
# TAO 3, KSP 72 |r|=4.858e-02 (ITERATING)
# TAO 3, KSP 73 |r|=4.656e-02 (ITERATING)
# TAO 3, KSP 74 |r|=4.515e-02 (ITERATING)
# TAO 3, KSP 75 |r|=4.381e-02 (ITERATING)
# TAO 3, KSP 76 |r|=4.270e-02 (ITERATING)
# TAO 3, KSP 77 |r|=4.171e-02 (ITERATING)
# TAO 3, KSP 78 |r|=3.999e-02 (ITERATING)
# TAO 3, KSP 79 |r|=3.891e-02 (ITERATING)
# TAO 3, KSP 80 |r|=3.765e-02 (ITERATING)
# TAO 3, KSP 81 |r|=3.617e-02 (ITERATING)
# TAO 3, KSP 82 |r|=3.493e-02 (ITERATING)
# TAO 3, KSP 83 |r|=3.412e-02 (ITERATING)
# TAO 3, KSP 84 |r|=3.326e-02 (ITERATING)
# TAO 3, KSP 85 |r|=3.194e-02 (ITERATING)
# TAO 3, KSP 86 |r|=3.102e-02 (ITERATING)
# TAO 3, KSP 87 |r|=3.057e-02 (ITERATING)
# TAO 3, KSP 88 |r|=2.987e-02 (ITERATING)
# TAO 3, KSP 89 |r|=2.904e-02 (ITERATING)
# TAO 3, KSP 90 |r|=2.836e-02 (ITERATING)
# TAO 3, KSP 91 |r|=2.829e-02 (ITERATING)
# TAO 3, KSP 92 |r|=2.838e-02 (ITERATING)
# TAO 3, KSP 93 |r|=2.784e-02 (ITERATING)
# TAO 3, KSP 94 |r|=2.690e-02 (ITERATING)
# TAO 3, KSP 95 |r|=2.600e-02 (ITERATING)
# TAO 3, KSP 96 |r|=2.566e-02 (ITERATING)
# TAO 3, KSP 97 |r|=2.518e-02 (ITERATING)
# TAO 3, KSP 98 |r|=2.454e-02 (ITERATING)
# TAO 3, KSP 99 |r|=2.334e-02 (ITERATING)
# TAO 3, KSP 100 |r|=2.235e-02 (ITERATING)
# TAO 3, KSP 101 |r|=2.159e-02 (ITERATING)
# TAO 3, KSP 102 |r|=2.110e-02 (ITERATING)
# TAO 3, KSP 103 |r|=2.087e-02 (ITERATING)
# TAO 3, KSP 104 |r|=2.045e-02 (ITERATING)
# TAO 3, KSP 105 |r|=1.972e-02 (ITERATING)
# TAO 3, KSP 106 |r|=1.886e-02 (ITERATING)
# TAO 3, KSP 107 |r|=1.813e-02 (ITERATING)
# TAO 3, KSP 108 |r|=1.733e-02 (ITERATING)
# TAO 3, KSP 109 |r|=1.665e-02 (ITERATING)
# TAO 3, KSP 110 |r|=1.598e-02 (ITERATING)
# TAO 3, KSP 111 |r|=1.536e-02 (ITERATING)
# TAO 3, KSP 112 |r|=1.503e-02 (ITERATING)
# TAO 3, KSP 113 |r|=1.458e-02 (ITERATING)
# TAO 3, KSP 114 |r|=1.425e-02 (ITERATING)
# TAO 3, KSP 115 |r|=1.386e-02 (ITERATING)
# TAO 3, KSP 116 |r|=1.332e-02 (ITERATING)
# TAO 3, KSP 117 |r|=1.273e-02 (ITERATING)
# TAO 3, KSP 118 |r|=1.241e-02 (ITERATING)
# TAO 3, KSP 119 |r|=1.210e-02 (ITERATING)
# TAO 3, KSP 120 |r|=1.144e-02 (ITERATING)
# TAO 3, KSP 121 |r|=1.080e-02 (ITERATING)
# TAO 3, KSP 122 |r|=1.044e-02 (ITERATING)
# TAO 3, KSP 123 |r|=1.015e-02 (ITERATING)
# TAO 3, KSP 124 |r|=9.991e-03 (ITERATING)
# TAO 3, KSP 125 |r|=9.687e-03 (ITERATING)
# TAO 3, KSP 126 |r|=9.494e-03 (ITERATING)
# TAO 3, KSP 127 |r|=9.243e-03 (ITERATING)
# TAO 3, KSP 128 |r|=8.967e-03 (ITERATING)
# TAO 3, KSP 129 |r|=8.717e-03 (ITERATING)
# TAO 3, KSP 130 |r|=8.502e-03 (ITERATING)
# TAO 3, KSP 131 |r|=8.302e-03 (ITERATING)
# TAO 3, KSP 132 |r|=8.113e-03 (ITERATING)
# TAO 3, KSP 133 |r|=7.831e-03 (ITERATING)
# TAO 3, KSP 134 |r|=7.539e-03 (ITERATING)
# TAO 3, KSP 135 |r|=7.272e-03 (ITERATING)
# TAO 3, KSP 136 |r|=6.991e-03 (ITERATING)
# TAO 3, KSP 137 |r|=6.669e-03 (ITERATING)
# TAO 3, KSP 138 |r|=6.466e-03 (ITERATING)
# TAO 3, KSP 139 |r|=6.169e-03 (ITERATING)
# TAO 3, KSP 140 |r|=5.965e-03 (ITERATING)
# TAO 3, KSP 141 |r|=5.695e-03 (ITERATING)
# TAO 3, KSP 142 |r|=5.485e-03 (ITERATING)
# TAO 3, KSP 143 |r|=5.330e-03 (ITERATING)
# TAO 3, KSP 144 |r|=5.245e-03 (ITERATING)
# TAO 3, KSP 145 |r|=5.097e-03 (ITERATING)
# TAO 3, KSP 146 |r|=4.967e-03 (ITERATING)
# TAO 3, KSP 147 |r|=4.854e-03 (ITERATING)
# TAO 3, KSP 148 |r|=4.816e-03 (ITERATING)
# TAO 3, KSP 149 |r|=4.730e-03 (ITERATING)
# TAO 3, KSP 150 |r|=4.635e-03 (ITERATING)
# TAO 3, KSP 151 |r|=4.565e-03 (ITERATING)
# TAO 3, KSP 152 |r|=4.509e-03 (ITERATING)
# TAO 3, KSP 153 |r|=4.414e-03 (ITERATING)
# TAO 3, KSP 154 |r|=4.273e-03 (ITERATING)
# TAO 3, KSP 155 |r|=4.219e-03 (ITERATING)
# TAO 3, KSP 156 |r|=4.179e-03 (ITERATING)
# TAO 3, KSP 157 |r|=4.100e-03 (ITERATING)
# TAO 3, KSP 158 |r|=3.949e-03 (ITERATING)
# TAO 3, KSP 159 |r|=3.809e-03 (ITERATING)
# TAO 3, KSP 160 |r|=3.651e-03 (ITERATING)
# TAO 3, KSP 161 |r|=3.520e-03 (ITERATING)
# TAO 3, KSP 162 |r|=3.452e-03 (ITERATING)
# TAO 3, KSP 163 |r|=3.369e-03 (ITERATING)
# TAO 3, KSP 164 |r|=3.219e-03 (ITERATING)
# TAO 3, KSP 165 |r|=3.107e-03 (ITERATING)
# TAO 3, KSP 166 |r|=2.995e-03 (ITERATING)
# TAO 3, KSP 167 |r|=2.807e-03 (ITERATING)
# TAO 3, KSP 168 |r|=2.642e-03 (ITERATING)
# TAO 3, KSP 169 |r|=2.537e-03 (ITERATING)
# TAO 3, KSP 170 |r|=2.452e-03 (ITERATING)
# TAO 3, KSP 171 |r|=2.371e-03 (ITERATING)
# TAO 3, KSP 172 |r|=2.268e-03 (ITERATING)
# TAO 3, KSP 173 |r|=2.162e-03 (ITERATING)
# TAO 3, KSP 174 |r|=2.065e-03 (ITERATING)
# TAO 3, KSP 175 |r|=1.948e-03 (ITERATING)
# TAO 3, KSP 176 |r|=1.848e-03 (ITERATING)
# TAO 3, KSP 177 |r|=1.762e-03 (ITERATING)
# TAO 3, KSP 178 |r|=1.673e-03 (ITERATING)
# TAO 3, KSP 179 |r|=1.610e-03 (ITERATING)
# TAO 3, KSP 180 |r|=1.562e-03 (ITERATING)
# TAO 3, KSP 181 |r|=1.523e-03 (ITERATING)
# TAO 3, KSP 182 |r|=1.467e-03 (ITERATING)
# TAO 3, KSP 183 |r|=1.409e-03 (ITERATING)
# TAO 3, KSP 184 |r|=1.355e-03 (ITERATING)
# TAO 3, KSP 185 |r|=1.292e-03 (ITERATING)
# TAO 3, KSP 186 |r|=1.216e-03 (ITERATING)
# TAO 3, KSP 187 |r|=1.147e-03 (ITERATING)
# TAO 3, KSP 188 |r|=1.084e-03 (ITERATING)
# TAO 3, KSP 189 |r|=1.026e-03 (ITERATING)
# TAO 3, KSP 190 |r|=9.718e-04 (ITERATING)
# TAO 3, KSP 191 |r|=9.224e-04 (ITERATING)
# TAO 3, KSP 192 |r|=8.849e-04 (ITERATING)
# TAO 3, KSP 193 |r|=8.463e-04 (ITERATING)
# TAO 3, KSP 194 |r|=8.071e-04 (ITERATING)
# TAO 3, KSP 195 |r|=7.695e-04 (ITERATING)
# TAO 3, KSP 196 |r|=7.329e-04 (ITERATING)
# TAO 3, KSP 197 |r|=6.944e-04 (ITERATING)
# TAO 3, KSP 198 |r|=6.661e-04 (ITERATING)
# TAO 3, KSP 199 |r|=6.362e-04 (ITERATING)
# TAO 3, KSP 200 |r|=6.153e-04 (ITERATING)
# TAO 3, KSP 201 |r|=6.002e-04 (ITERATING)
# TAO 3, KSP 202 |r|=5.886e-04 (ITERATING)
# TAO 3, KSP 203 |r|=5.757e-04 (ITERATING)
# TAO 3, KSP 204 |r|=5.583e-04 (ITERATING)
# TAO 3, KSP 205 |r|=5.397e-04 (ITERATING)
# TAO 3, KSP 206 |r|=5.224e-04 (ITERATING)
# TAO 3, KSP 207 |r|=4.998e-04 (ITERATING)
# TAO 3, KSP 208 |r|=4.814e-04 (ITERATING)
# TAO 3, KSP 209 |r|=4.644e-04 (ITERATING)
# TAO 3, KSP 210 |r|=4.435e-04 (ITERATING)
# TAO 3, KSP 211 |r|=4.288e-04 (ITERATING)
# TAO 3, KSP 212 |r|=4.135e-04 (ITERATING)
# TAO 3, KSP 213 |r|=3.997e-04 (ITERATING)
# TAO 3, KSP 214 |r|=3.896e-04 (ITERATING)
# TAO 3, KSP 215 |r|=3.833e-04 (ITERATING)
# TAO 3, KSP 216 |r|=3.743e-04 (ITERATING)
# TAO 3, KSP 217 |r|=3.614e-04 (ITERATING)
# TAO 3, KSP 218 |r|=3.479e-04 (ITERATING)
# TAO 3, KSP 219 |r|=3.292e-04 (ITERATING)
# TAO 3, KSP 220 |r|=3.157e-04 (ITERATING)
# TAO 3, KSP 221 |r|=3.036e-04 (ITERATING)
# TAO 3, KSP 222 |r|=2.921e-04 (ITERATING)
# TAO 3, KSP 223 |r|=2.869e-04 (ITERATING)
# TAO 3, KSP 224 |r|=2.804e-04 (ITERATING)
# TAO 3, KSP 225 |r|=2.758e-04 (ITERATING)
# TAO 3, KSP 226 |r|=2.707e-04 (ITERATING)
# TAO 3, KSP 227 |r|=2.670e-04 (ITERATING)
# TAO 3, KSP 228 |r|=2.645e-04 (ITERATING)
# TAO 3, KSP 229 |r|=2.623e-04 (ITERATING)
# TAO 3, KSP 230 |r|=2.524e-04 (ITERATING)
# TAO 3, KSP 231 |r|=2.418e-04 (ITERATING)
# TAO 3, KSP 232 |r|=2.376e-04 (ITERATING)
# TAO 3, KSP 233 |r|=2.360e-04 (ITERATING)
# TAO 3, KSP 234 |r|=2.294e-04 (ITERATING)
# TAO 3, KSP 235 |r|=2.196e-04 (ITERATING)
# TAO 3, KSP 236 |r|=2.106e-04 (ITERATING)
# TAO 3, KSP 237 |r|=2.060e-04 (ITERATING)
# TAO 3, KSP 238 |r|=2.006e-04 (ITERATING)
# TAO 3, KSP 239 |r|=1.930e-04 (ITERATING)
# TAO 3, KSP 240 |r|=1.859e-04 (ITERATING)
# TAO 3, KSP 241 |r|=1.796e-04 (ITERATING)
# TAO 3, KSP 242 |r|=1.741e-04 (ITERATING)
# TAO 3, KSP 243 |r|=1.709e-04 (ITERATING)
# TAO 3, KSP 244 |r|=1.664e-04 (ITERATING)
# TAO 3, KSP 245 |r|=1.589e-04 (ITERATING)
# TAO 3, KSP 246 |r|=1.511e-04 (ITERATING)
# TAO 3, KSP 247 |r|=1.443e-04 (ITERATING)
# TAO 3, KSP 248 |r|=1.391e-04 (ITERATING)
# TAO 3, KSP 249 |r|=1.349e-04 (ITERATING)
# TAO 3, KSP 250 |r|=1.309e-04 (ITERATING)
# TAO 3, KSP 251 |r|=1.276e-04 (ITERATING)
# TAO 3, KSP 252 |r|=1.248e-04 (ITERATING)
# TAO 3, KSP 253 |r|=1.214e-04 (ITERATING)
# TAO 3, KSP 254 |r|=1.180e-04 (ITERATING)
# TAO 3, KSP 255 |r|=1.143e-04 (ITERATING)
# TAO 3, KSP 256 |r|=1.124e-04 (ITERATING)
# TAO 3, KSP 257 |r|=1.108e-04 (ITERATING)
# TAO 3, KSP 258 |r|=1.074e-04 (ITERATING)
# TAO 3, KSP 259 |r|=1.030e-04 (ITERATING)
# TAO 3, KSP 260 |r|=9.975e-05 (ITERATING)
# TAO 3, KSP 261 |r|=9.743e-05 (ITERATING)
# TAO 3, KSP 262 |r|=9.559e-05 (ITERATING)
# TAO 3, KSP 263 |r|=9.346e-05 (ITERATING)
# TAO 3, KSP 264 |r|=9.132e-05 (ITERATING)
# TAO 3, KSP 265 |r|=9.008e-05 (ITERATING)
# TAO 3, KSP 266 |r|=8.951e-05 (ITERATING)
# TAO 3, KSP 267 |r|=8.769e-05 (ITERATING)
# TAO 3, KSP 268 |r|=8.575e-05 (ITERATING)
# TAO 3, KSP 269 |r|=8.336e-05 (ITERATING)
# TAO 3, KSP 270 |r|=8.118e-05 (ITERATING)
# TAO 3, KSP 271 |r|=7.901e-05 (ITERATING)
# TAO 3, KSP 272 |r|=7.881e-05 (ITERATING)
# TAO 3, KSP 273 |r|=7.745e-05 (ITERATING)
# TAO 3, KSP 274 |r|=7.584e-05 (ITERATING)
# TAO 3, KSP 275 |r|=7.442e-05 (ITERATING)
# TAO 3, KSP 276 |r|=7.298e-05 (ITERATING)
# TAO 3, KSP 277 |r|=7.005e-05 (ITERATING)
# TAO 3, KSP 278 |r|=6.682e-05 (ITERATING)
# TAO 3, KSP 279 |r|=6.293e-05 (ITERATING)
# TAO 3, KSP 280 |r|=6.020e-05 (ITERATING)
# TAO 3, KSP 281 |r|=5.816e-05 (ITERATING)
# TAO 3, KSP 282 |r|=5.666e-05 (ITERATING)
# TAO 3, KSP 283 |r|=5.497e-05 (ITERATING)
# TAO 3, KSP 284 |r|=5.281e-05 (ITERATING)
# TAO 3, KSP 285 |r|=5.030e-05 (ITERATING)
# TAO 3, KSP 286 |r|=4.843e-05 (ITERATING)
# TAO 3, KSP 287 |r|=4.656e-05 (ITERATING)
# TAO 3, KSP 288 |r|=4.412e-05 (ITERATING)
# TAO 3, KSP 289 |r|=4.191e-05 (ITERATING)
# TAO 3, KSP 290 |r|=4.024e-05 (ITERATING)
# TAO 3, KSP 291 |r|=3.874e-05 (ITERATING)
# TAO 3, KSP 292 |r|=3.747e-05 (ITERATING)
# TAO 3, KSP 293 |r|=3.610e-05 (ITERATING)
# TAO 4 (ITERATING)
# sub 0 [ 44k] |x|=1.559e+03 |J|=1.480e+00 (g)
# all |x|=1.559e+03 |J|=1.480e+00 |H|=7.386e+02 f=1.121e+04
# TAO 4, KSP 0 |r|=1.480e+00 (ITERATING)
# TAO 4, KSP 1 |r|=1.260e+00 (ITERATING)
# TAO 4, KSP 2 |r|=4.869e-01 (ITERATING)
# TAO 4, KSP 3 |r|=2.591e-01 (ITERATING)
# TAO 4, KSP 4 |r|=1.764e-01 (ITERATING)
# TAO 4, KSP 5 |r|=1.192e-01 (ITERATING)
# TAO 4, KSP 6 |r|=8.809e-02 (ITERATING)
# TAO 4, KSP 7 |r|=7.118e-02 (ITERATING)
# TAO 4, KSP 8 |r|=6.036e-02 (ITERATING)
# TAO 4, KSP 9 |r|=5.349e-02 (ITERATING)
# TAO 4, KSP 10 |r|=4.974e-02 (ITERATING)
# TAO 4, KSP 11 |r|=4.361e-02 (ITERATING)
# TAO 4, KSP 12 |r|=3.922e-02 (ITERATING)
# TAO 4, KSP 13 |r|=3.559e-02 (ITERATING)
# TAO 4, KSP 14 |r|=3.331e-02 (ITERATING)
# TAO 4, KSP 15 |r|=3.117e-02 (ITERATING)
# TAO 4, KSP 16 |r|=2.858e-02 (ITERATING)
# TAO 4, KSP 17 |r|=2.669e-02 (ITERATING)
# TAO 4, KSP 18 |r|=2.500e-02 (ITERATING)
# TAO 4, KSP 19 |r|=2.382e-02 (ITERATING)
# TAO 4, KSP 20 |r|=2.217e-02 (ITERATING)
# TAO 4, KSP 21 |r|=2.059e-02 (ITERATING)
# TAO 4, KSP 22 |r|=1.942e-02 (ITERATING)
# TAO 4, KSP 23 |r|=1.859e-02 (ITERATING)
# TAO 4, KSP 24 |r|=1.785e-02 (ITERATING)
# TAO 4, KSP 25 |r|=1.703e-02 (ITERATING)
# TAO 4, KSP 26 |r|=1.594e-02 (ITERATING)
# TAO 4, KSP 27 |r|=1.485e-02 (ITERATING)
# TAO 4, KSP 28 |r|=1.389e-02 (ITERATING)
# TAO 4, KSP 29 |r|=1.328e-02 (ITERATING)
# TAO 4, KSP 30 |r|=1.301e-02 (ITERATING)
# TAO 4, KSP 31 |r|=1.243e-02 (ITERATING)
# TAO 4, KSP 32 |r|=1.163e-02 (ITERATING)
# TAO 4, KSP 33 |r|=1.105e-02 (ITERATING)
# TAO 4, KSP 34 |r|=1.080e-02 (ITERATING)
# TAO 4, KSP 35 |r|=1.058e-02 (ITERATING)
# TAO 4, KSP 36 |r|=1.022e-02 (ITERATING)
# TAO 4, KSP 37 |r|=9.749e-03 (ITERATING)
# TAO 4, KSP 38 |r|=9.269e-03 (ITERATING)
# TAO 4, KSP 39 |r|=8.937e-03 (ITERATING)
# TAO 4, KSP 40 |r|=8.730e-03 (ITERATING)
# TAO 4, KSP 41 |r|=8.387e-03 (ITERATING)
# TAO 4, KSP 42 |r|=7.971e-03 (ITERATING)
# TAO 4, KSP 43 |r|=7.651e-03 (ITERATING)
# TAO 4, KSP 44 |r|=7.230e-03 (ITERATING)
# TAO 4, KSP 45 |r|=6.920e-03 (ITERATING)
# TAO 4, KSP 46 |r|=6.748e-03 (ITERATING)
# TAO 4, KSP 47 |r|=6.555e-03 (ITERATING)
# TAO 4, KSP 48 |r|=6.267e-03 (ITERATING)
# TAO 4, KSP 49 |r|=5.985e-03 (ITERATING)
# TAO 4, KSP 50 |r|=5.630e-03 (ITERATING)
# TAO 4, KSP 51 |r|=5.451e-03 (ITERATING)
# TAO 4, KSP 52 |r|=5.296e-03 (ITERATING)
# TAO 4, KSP 53 |r|=5.109e-03 (ITERATING)
# TAO 4, KSP 54 |r|=4.933e-03 (ITERATING)
# TAO 4, KSP 55 |r|=4.680e-03 (ITERATING)
# TAO 4, KSP 56 |r|=4.532e-03 (ITERATING)
# TAO 4, KSP 57 |r|=4.331e-03 (ITERATING)
# TAO 4, KSP 58 |r|=4.203e-03 (ITERATING)
# TAO 4, KSP 59 |r|=4.112e-03 (ITERATING)
# TAO 4, KSP 60 |r|=3.991e-03 (ITERATING)
# TAO 4, KSP 61 |r|=3.903e-03 (ITERATING)
# TAO 4, KSP 62 |r|=3.759e-03 (ITERATING)
# TAO 4, KSP 63 |r|=3.667e-03 (ITERATING)
# TAO 4, KSP 64 |r|=3.567e-03 (ITERATING)
# TAO 4, KSP 65 |r|=3.539e-03 (ITERATING)
# TAO 4, KSP 66 |r|=3.456e-03 (ITERATING)
# TAO 4, KSP 67 |r|=3.337e-03 (ITERATING)
# TAO 4, KSP 68 |r|=3.282e-03 (ITERATING)
# TAO 4, KSP 69 |r|=3.189e-03 (ITERATING)
# TAO 4, KSP 70 |r|=3.129e-03 (ITERATING)
# TAO 4, KSP 71 |r|=3.063e-03 (ITERATING)
# TAO 4, KSP 72 |r|=2.970e-03 (ITERATING)
# TAO 4, KSP 73 |r|=2.904e-03 (ITERATING)
# TAO 4, KSP 74 |r|=2.819e-03 (ITERATING)
# TAO 4, KSP 75 |r|=2.740e-03 (ITERATING)
# TAO 4, KSP 76 |r|=2.702e-03 (ITERATING)
# TAO 4, KSP 77 |r|=2.640e-03 (ITERATING)
# TAO 4, KSP 78 |r|=2.575e-03 (ITERATING)
# TAO 4, KSP 79 |r|=2.471e-03 (ITERATING)
# TAO 4, KSP 80 |r|=2.381e-03 (ITERATING)
# TAO 4, KSP 81 |r|=2.282e-03 (ITERATING)
# TAO 4, KSP 82 |r|=2.217e-03 (ITERATING)
# TAO 4, KSP 83 |r|=2.144e-03 (ITERATING)
# TAO 4, KSP 84 |r|=2.084e-03 (ITERATING)
# TAO 4, KSP 85 |r|=2.026e-03 (ITERATING)
# TAO 4, KSP 86 |r|=1.976e-03 (ITERATING)
# TAO 4, KSP 87 |r|=1.898e-03 (ITERATING)
# TAO 4, KSP 88 |r|=1.862e-03 (ITERATING)
# TAO 4, KSP 89 |r|=1.789e-03 (ITERATING)
# TAO 4, KSP 90 |r|=1.715e-03 (ITERATING)
# TAO 4, KSP 91 |r|=1.680e-03 (ITERATING)
# TAO 4, KSP 92 |r|=1.667e-03 (ITERATING)
# TAO 4, KSP 93 |r|=1.657e-03 (ITERATING)
# TAO 4, KSP 94 |r|=1.611e-03 (ITERATING)
# TAO 4, KSP 95 |r|=1.531e-03 (ITERATING)
# TAO 4, KSP 96 |r|=1.479e-03 (ITERATING)
# TAO 4, KSP 97 |r|=1.423e-03 (ITERATING)
# TAO 4, KSP 98 |r|=1.361e-03 (ITERATING)
# TAO 4, KSP 99 |r|=1.315e-03 (ITERATING)
# TAO 4, KSP 100 |r|=1.297e-03 (ITERATING)
# TAO 4, KSP 101 |r|=1.261e-03 (ITERATING)
# TAO 4, KSP 102 |r|=1.230e-03 (ITERATING)
# TAO 4, KSP 103 |r|=1.183e-03 (ITERATING)
# TAO 4, KSP 104 |r|=1.156e-03 (ITERATING)
# TAO 4, KSP 105 |r|=1.130e-03 (ITERATING)
# TAO 4, KSP 106 |r|=1.084e-03 (ITERATING)
# TAO 4, KSP 107 |r|=1.042e-03 (ITERATING)
# TAO 4, KSP 108 |r|=1.005e-03 (ITERATING)
# TAO 4, KSP 109 |r|=9.729e-04 (ITERATING)
# TAO 4, KSP 110 |r|=9.448e-04 (ITERATING)
# TAO 4, KSP 111 |r|=9.231e-04 (ITERATING)
# TAO 4, KSP 112 |r|=8.975e-04 (ITERATING)
# TAO 4, KSP 113 |r|=8.570e-04 (ITERATING)
# TAO 4, KSP 114 |r|=8.284e-04 (ITERATING)
# TAO 4, KSP 115 |r|=7.996e-04 (ITERATING)
# TAO 4, KSP 116 |r|=7.796e-04 (ITERATING)
# TAO 4, KSP 117 |r|=7.540e-04 (ITERATING)
# TAO 4, KSP 118 |r|=7.306e-04 (ITERATING)
# TAO 4, KSP 119 |r|=7.080e-04 (ITERATING)
# TAO 4, KSP 120 |r|=6.913e-04 (ITERATING)
# TAO 4, KSP 121 |r|=6.697e-04 (ITERATING)
# TAO 4, KSP 122 |r|=6.396e-04 (ITERATING)
# TAO 4, KSP 123 |r|=6.253e-04 (ITERATING)
# TAO 4, KSP 124 |r|=6.086e-04 (ITERATING)
# TAO 4, KSP 125 |r|=5.926e-04 (ITERATING)
# TAO 4, KSP 126 |r|=5.859e-04 (ITERATING)
# TAO 4, KSP 127 |r|=5.613e-04 (ITERATING)
# TAO 4, KSP 128 |r|=5.479e-04 (ITERATING)
# TAO 4, KSP 129 |r|=5.374e-04 (ITERATING)
# TAO 4, KSP 130 |r|=5.341e-04 (ITERATING)
# TAO 4, KSP 131 |r|=5.221e-04 (ITERATING)
# TAO 4, KSP 132 |r|=5.201e-04 (ITERATING)
# TAO 4, KSP 133 |r|=5.149e-04 (ITERATING)
# TAO 4, KSP 134 |r|=5.066e-04 (ITERATING)
# TAO 4, KSP 135 |r|=5.043e-04 (ITERATING)
# TAO 4, KSP 136 |r|=4.962e-04 (ITERATING)
# TAO 4, KSP 137 |r|=4.921e-04 (ITERATING)
# TAO 4, KSP 138 |r|=4.818e-04 (ITERATING)
# TAO 4, KSP 139 |r|=4.756e-04 (ITERATING)
# TAO 4, KSP 140 |r|=4.718e-04 (ITERATING)
# TAO 4, KSP 141 |r|=4.595e-04 (ITERATING)
# TAO 4, KSP 142 |r|=4.433e-04 (ITERATING)
# TAO 4, KSP 143 |r|=4.273e-04 (ITERATING)
# TAO 4, KSP 144 |r|=4.170e-04 (ITERATING)
# TAO 4, KSP 145 |r|=4.070e-04 (ITERATING)
# TAO 4, KSP 146 |r|=4.000e-04 (ITERATING)
# TAO 4, KSP 147 |r|=3.857e-04 (ITERATING)
# TAO 4, KSP 148 |r|=3.681e-04 (ITERATING)
# TAO 4, KSP 149 |r|=3.512e-04 (ITERATING)
# TAO 4, KSP 150 |r|=3.315e-04 (ITERATING)
# TAO 4, KSP 151 |r|=3.185e-04 (ITERATING)
# TAO 4, KSP 152 |r|=3.034e-04 (ITERATING)
# TAO 4, KSP 153 |r|=2.875e-04 (ITERATING)
# TAO 4, KSP 154 |r|=2.731e-04 (ITERATING)
# TAO 4, KSP 155 |r|=2.651e-04 (ITERATING)
# TAO 4, KSP 156 |r|=2.557e-04 (ITERATING)
# TAO 4, KSP 157 |r|=2.467e-04 (ITERATING)
# TAO 4, KSP 158 |r|=2.387e-04 (ITERATING)
# TAO 4, KSP 159 |r|=2.338e-04 (ITERATING)
# TAO 4, KSP 160 |r|=2.230e-04 (ITERATING)
# TAO 4, KSP 161 |r|=2.122e-04 (ITERATING)
# TAO 4, KSP 162 |r|=2.009e-04 (ITERATING)
# TAO 4, KSP 163 |r|=1.918e-04 (ITERATING)
# TAO 4, KSP 164 |r|=1.818e-04 (ITERATING)
# TAO 4, KSP 165 |r|=1.731e-04 (ITERATING)
# TAO 4, KSP 166 |r|=1.641e-04 (ITERATING)
# TAO 4, KSP 167 |r|=1.559e-04 (ITERATING)
# TAO 4, KSP 168 |r|=1.492e-04 (ITERATING)
# TAO 4, KSP 169 |r|=1.423e-04 (ITERATING)
# TAO 4, KSP 170 |r|=1.342e-04 (ITERATING)
# TAO 4, KSP 171 |r|=1.286e-04 (ITERATING)
# TAO 4, KSP 172 |r|=1.236e-04 (ITERATING)
# TAO 4, KSP 173 |r|=1.190e-04 (ITERATING)
# TAO 4, KSP 174 |r|=1.147e-04 (ITERATING)
# TAO 4, KSP 175 |r|=1.110e-04 (ITERATING)
# TAO 4, KSP 176 |r|=1.078e-04 (ITERATING)
# TAO 4, KSP 177 |r|=1.034e-04 (ITERATING)
# TAO 4, KSP 178 |r|=9.862e-05 (ITERATING)
# TAO 4, KSP 179 |r|=9.535e-05 (ITERATING)
# TAO 4, KSP 180 |r|=9.250e-05 (ITERATING)
# TAO 4, KSP 181 |r|=8.831e-05 (ITERATING)
# TAO 4, KSP 182 |r|=8.438e-05 (ITERATING)
# TAO 4, KSP 183 |r|=7.993e-05 (ITERATING)
# TAO 4, KSP 184 |r|=7.599e-05 (ITERATING)
# TAO 4, KSP 185 |r|=7.346e-05 (ITERATING)
# TAO 4, KSP 186 |r|=7.053e-05 (ITERATING)
# TAO 4, KSP 187 |r|=6.915e-05 (ITERATING)
# TAO 4, KSP 188 |r|=6.885e-05 (ITERATING)
# TAO 4, KSP 189 |r|=6.751e-05 (ITERATING)
# TAO 4, KSP 190 |r|=6.651e-05 (ITERATING)
# TAO 4, KSP 191 |r|=6.413e-05 (ITERATING)
# TAO 4, KSP 192 |r|=6.232e-05 (ITERATING)
# TAO 4, KSP 193 |r|=6.041e-05 (ITERATING)
# TAO 4, KSP 194 |r|=5.911e-05 (ITERATING)
# TAO 4, KSP 195 |r|=5.753e-05 (ITERATING)
# TAO 4, KSP 196 |r|=5.624e-05 (ITERATING)
# TAO 4, KSP 197 |r|=5.462e-05 (ITERATING)
# TAO 4, KSP 198 |r|=5.348e-05 (ITERATING)
# TAO 4, KSP 199 |r|=5.278e-05 (ITERATING)
# TAO 4, KSP 200 |r|=5.240e-05 (ITERATING)
# TAO 4, KSP 201 |r|=5.160e-05 (ITERATING)
# TAO 4, KSP 202 |r|=5.055e-05 (ITERATING)
# TAO 4, KSP 203 |r|=4.923e-05 (ITERATING)
# TAO 4, KSP 204 |r|=4.869e-05 (ITERATING)
# TAO 4, KSP 205 |r|=4.777e-05 (ITERATING)
# TAO 4, KSP 206 |r|=4.665e-05 (ITERATING)
# TAO 4, KSP 207 |r|=4.536e-05 (ITERATING)
# TAO 4, KSP 208 |r|=4.450e-05 (ITERATING)
# TAO 4, KSP 209 |r|=4.323e-05 (ITERATING)
# TAO 4, KSP 210 |r|=4.305e-05 (ITERATING)
# TAO 4, KSP 211 |r|=4.251e-05 (ITERATING)
# TAO 4, KSP 212 |r|=4.162e-05 (ITERATING)
# TAO 4, KSP 213 |r|=4.014e-05 (ITERATING)
# TAO 4, KSP 214 |r|=3.883e-05 (ITERATING)
# TAO 4, KSP 215 |r|=3.787e-05 (ITERATING)
# TAO 4, KSP 216 |r|=3.719e-05 (ITERATING)
# TAO 4, KSP 217 |r|=3.634e-05 (ITERATING)
# TAO 4, KSP 218 |r|=3.544e-05 (ITERATING)
# TAO 4, KSP 219 |r|=3.416e-05 (ITERATING)
# TAO 4, KSP 220 |r|=3.307e-05 (ITERATING)
# TAO 4, KSP 221 |r|=3.155e-05 (ITERATING)
# TAO 4, KSP 222 |r|=3.032e-05 (ITERATING)
# TAO 4, KSP 223 |r|=2.941e-05 (ITERATING)
# TAO 4, KSP 224 |r|=2.864e-05 (ITERATING)
# TAO 4, KSP 225 |r|=2.772e-05 (ITERATING)
# TAO 4, KSP 226 |r|=2.680e-05 (ITERATING)
# TAO 4, KSP 227 |r|=2.607e-05 (ITERATING)
# TAO 4, KSP 228 |r|=2.509e-05 (ITERATING)
# TAO 4, KSP 229 |r|=2.486e-05 (ITERATING)
# TAO 4, KSP 230 |r|=2.423e-05 (ITERATING)
# TAO 4, KSP 231 |r|=2.371e-05 (ITERATING)
# TAO 4, KSP 232 |r|=2.315e-05 (ITERATING)
# TAO 4, KSP 233 |r|=2.266e-05 (ITERATING)
# TAO 4, KSP 234 |r|=2.244e-05 (ITERATING)
# TAO 4, KSP 235 |r|=2.205e-05 (ITERATING)
# TAO 4, KSP 236 |r|=2.172e-05 (ITERATING)
# TAO 4, KSP 237 |r|=2.123e-05 (ITERATING)
# TAO 4, KSP 238 |r|=2.042e-05 (ITERATING)
# TAO 4, KSP 239 |r|=1.964e-05 (ITERATING)
# TAO 4, KSP 240 |r|=1.887e-05 (ITERATING)
# TAO 4, KSP 241 |r|=1.845e-05 (ITERATING)
# TAO 4, KSP 242 |r|=1.803e-05 (ITERATING)
# TAO 4, KSP 243 |r|=1.741e-05 (ITERATING)
# TAO 4, KSP 244 |r|=1.676e-05 (ITERATING)
# TAO 4, KSP 245 |r|=1.599e-05 (ITERATING)
# TAO 4, KSP 246 |r|=1.518e-05 (ITERATING)
# TAO 4, KSP 247 |r|=1.428e-05 (ITERATING)
# TAO 5 (ITERATING)
# sub 0 [ 44k] |x|=1.556e+03 |J|=6.292e-01 (g)
# all |x|=1.556e+03 |J|=6.292e-01 |H|=7.388e+02 f=1.121e+04
# TAO 5, KSP 0 |r|=6.292e-01 (ITERATING)
# TAO 5, KSP 1 |r|=1.907e-01 (ITERATING)
# TAO 5, KSP 2 |r|=1.168e-01 (ITERATING)
# TAO 5, KSP 3 |r|=9.781e-02 (ITERATING)
# TAO 5, KSP 4 |r|=5.850e-02 (ITERATING)
# TAO 5, KSP 5 |r|=4.678e-02 (ITERATING)
# TAO 5, KSP 6 |r|=3.968e-02 (ITERATING)
# TAO 5, KSP 7 |r|=3.077e-02 (ITERATING)
# TAO 5, KSP 8 |r|=2.768e-02 (ITERATING)
# TAO 5, KSP 9 |r|=2.419e-02 (ITERATING)
# TAO 5, KSP 10 |r|=2.123e-02 (ITERATING)
# TAO 5, KSP 11 |r|=2.016e-02 (ITERATING)
# TAO 5, KSP 12 |r|=1.811e-02 (ITERATING)
# TAO 5, KSP 13 |r|=1.680e-02 (ITERATING)
# TAO 5, KSP 14 |r|=1.567e-02 (ITERATING)
# TAO 5, KSP 15 |r|=1.461e-02 (ITERATING)
# TAO 5, KSP 16 |r|=1.334e-02 (ITERATING)
# TAO 5, KSP 17 |r|=1.267e-02 (ITERATING)
# TAO 5, KSP 18 |r|=1.186e-02 (ITERATING)
# TAO 5, KSP 19 |r|=1.105e-02 (ITERATING)
# TAO 5, KSP 20 |r|=1.049e-02 (ITERATING)
# TAO 5, KSP 21 |r|=1.016e-02 (ITERATING)
# TAO 5, KSP 22 |r|=9.589e-03 (ITERATING)
# TAO 5, KSP 23 |r|=8.908e-03 (ITERATING)
# TAO 5, KSP 24 |r|=8.204e-03 (ITERATING)
# TAO 5, KSP 25 |r|=7.712e-03 (ITERATING)
# TAO 5, KSP 26 |r|=7.348e-03 (ITERATING)
# TAO 5, KSP 27 |r|=6.926e-03 (ITERATING)
# TAO 5, KSP 28 |r|=6.503e-03 (ITERATING)
# TAO 5, KSP 29 |r|=6.243e-03 (ITERATING)
# TAO 5, KSP 30 |r|=5.977e-03 (ITERATING)
# TAO 5, KSP 31 |r|=5.783e-03 (ITERATING)
# TAO 5, KSP 32 |r|=5.706e-03 (ITERATING)
# TAO 5, KSP 33 |r|=5.499e-03 (ITERATING)
# TAO 5, KSP 34 |r|=5.246e-03 (ITERATING)
# TAO 5, KSP 35 |r|=5.058e-03 (ITERATING)
# TAO 5, KSP 36 |r|=4.841e-03 (ITERATING)
# TAO 5, KSP 37 |r|=4.590e-03 (ITERATING)
# TAO 5, KSP 38 |r|=4.401e-03 (ITERATING)
# TAO 5, KSP 39 |r|=4.216e-03 (ITERATING)
# TAO 5, KSP 40 |r|=4.027e-03 (ITERATING)
# TAO 5, KSP 41 |r|=3.881e-03 (ITERATING)
# TAO 5, KSP 42 |r|=3.858e-03 (ITERATING)
# TAO 5, KSP 43 |r|=3.796e-03 (ITERATING)
# TAO 5, KSP 44 |r|=3.677e-03 (ITERATING)
# TAO 5, KSP 45 |r|=3.543e-03 (ITERATING)
# TAO 5, KSP 46 |r|=3.421e-03 (ITERATING)
# TAO 5, KSP 47 |r|=3.294e-03 (ITERATING)
# TAO 5, KSP 48 |r|=3.234e-03 (ITERATING)
# TAO 5, KSP 49 |r|=3.222e-03 (ITERATING)
# TAO 5, KSP 50 |r|=3.137e-03 (ITERATING)
# TAO 5, KSP 51 |r|=3.034e-03 (ITERATING)
# TAO 5, KSP 52 |r|=2.922e-03 (ITERATING)
# TAO 5, KSP 53 |r|=2.806e-03 (ITERATING)
# TAO 5, KSP 54 |r|=2.714e-03 (ITERATING)
# TAO 5, KSP 55 |r|=2.631e-03 (ITERATING)
# TAO 5, KSP 56 |r|=2.531e-03 (ITERATING)
# TAO 5, KSP 57 |r|=2.419e-03 (ITERATING)
# TAO 5, KSP 58 |r|=2.349e-03 (ITERATING)
# TAO 5, KSP 59 |r|=2.274e-03 (ITERATING)
# TAO 5, KSP 60 |r|=2.194e-03 (ITERATING)
# TAO 5, KSP 61 |r|=2.117e-03 (ITERATING)
# TAO 5, KSP 62 |r|=2.033e-03 (ITERATING)
# TAO 5, KSP 63 |r|=1.977e-03 (ITERATING)
# TAO 5, KSP 64 |r|=1.906e-03 (ITERATING)
# TAO 5, KSP 65 |r|=1.843e-03 (ITERATING)
# TAO 5, KSP 66 |r|=1.774e-03 (ITERATING)
# TAO 5, KSP 67 |r|=1.710e-03 (ITERATING)
# TAO 5, KSP 68 |r|=1.680e-03 (ITERATING)
# TAO 5, KSP 69 |r|=1.640e-03 (ITERATING)
# TAO 5, KSP 70 |r|=1.591e-03 (ITERATING)
# TAO 5, KSP 71 |r|=1.536e-03 (ITERATING)
# TAO 5, KSP 72 |r|=1.493e-03 (ITERATING)
# TAO 5, KSP 73 |r|=1.466e-03 (ITERATING)
# TAO 5, KSP 74 |r|=1.459e-03 (ITERATING)
# TAO 5, KSP 75 |r|=1.426e-03 (ITERATING)
# TAO 5, KSP 76 |r|=1.364e-03 (ITERATING)
# TAO 5, KSP 77 |r|=1.317e-03 (ITERATING)
# TAO 5, KSP 78 |r|=1.265e-03 (ITERATING)
# TAO 5, KSP 79 |r|=1.213e-03 (ITERATING)
# TAO 5, KSP 80 |r|=1.176e-03 (ITERATING)
# TAO 5, KSP 81 |r|=1.167e-03 (ITERATING)
# TAO 5, KSP 82 |r|=1.153e-03 (ITERATING)
# TAO 5, KSP 83 |r|=1.132e-03 (ITERATING)
# TAO 5, KSP 84 |r|=1.112e-03 (ITERATING)
# TAO 5, KSP 85 |r|=1.104e-03 (ITERATING)
# TAO 5, KSP 86 |r|=1.087e-03 (ITERATING)
# TAO 5, KSP 87 |r|=1.066e-03 (ITERATING)
# TAO 5, KSP 88 |r|=1.048e-03 (ITERATING)
# TAO 5, KSP 89 |r|=1.043e-03 (ITERATING)
# TAO 5, KSP 90 |r|=1.052e-03 (ITERATING)
# TAO 5, KSP 91 |r|=1.015e-03 (ITERATING)
# TAO 5, KSP 92 |r|=9.644e-04 (ITERATING)
# TAO 5, KSP 93 |r|=9.360e-04 (ITERATING)
# TAO 5, KSP 94 |r|=9.113e-04 (ITERATING)
# TAO 5, KSP 95 |r|=8.857e-04 (ITERATING)
# TAO 5, KSP 96 |r|=8.485e-04 (ITERATING)
# TAO 5, KSP 97 |r|=8.116e-04 (ITERATING)
# TAO 5, KSP 98 |r|=7.819e-04 (ITERATING)
# TAO 5, KSP 99 |r|=7.537e-04 (ITERATING)
# TAO 5, KSP 100 |r|=7.315e-04 (ITERATING)
# TAO 5, KSP 101 |r|=7.127e-04 (ITERATING)
# TAO 5, KSP 102 |r|=6.874e-04 (ITERATING)
# TAO 5, KSP 103 |r|=6.614e-04 (ITERATING)
# TAO 5, KSP 104 |r|=6.302e-04 (ITERATING)
# TAO 5, KSP 105 |r|=6.079e-04 (ITERATING)
# TAO 5, KSP 106 |r|=5.842e-04 (ITERATING)
# TAO 5, KSP 107 |r|=5.635e-04 (ITERATING)
# TAO 5, KSP 108 |r|=5.367e-04 (ITERATING)
# TAO 5, KSP 109 |r|=5.215e-04 (ITERATING)
# TAO 5, KSP 110 |r|=5.084e-04 (ITERATING)
# TAO 5, KSP 111 |r|=4.872e-04 (ITERATING)
# TAO 5, KSP 112 |r|=4.646e-04 (ITERATING)
# TAO 5, KSP 113 |r|=4.523e-04 (ITERATING)
# TAO 5, KSP 114 |r|=4.418e-04 (ITERATING)
# TAO 5, KSP 115 |r|=4.287e-04 (ITERATING)
# TAO 5, KSP 116 |r|=4.174e-04 (ITERATING)
# TAO 5, KSP 117 |r|=4.056e-04 (ITERATING)
# TAO 5, KSP 118 |r|=3.936e-04 (ITERATING)
# TAO 5, KSP 119 |r|=3.871e-04 (ITERATING)
# TAO 5, KSP 120 |r|=3.773e-04 (ITERATING)
# TAO 5, KSP 121 |r|=3.629e-04 (ITERATING)
# TAO 5, KSP 122 |r|=3.541e-04 (ITERATING)
# TAO 5, KSP 123 |r|=3.440e-04 (ITERATING)
# TAO 5, KSP 124 |r|=3.324e-04 (ITERATING)
# TAO 5, KSP 125 |r|=3.274e-04 (ITERATING)
# TAO 5, KSP 126 |r|=3.234e-04 (ITERATING)
# TAO 5, KSP 127 |r|=3.154e-04 (ITERATING)
# TAO 5, KSP 128 |r|=3.091e-04 (ITERATING)
# TAO 5, KSP 129 |r|=2.968e-04 (ITERATING)
# TAO 5, KSP 130 |r|=2.897e-04 (ITERATING)
# TAO 5, KSP 131 |r|=2.810e-04 (ITERATING)
# TAO 5, KSP 132 |r|=2.756e-04 (ITERATING)
# TAO 5, KSP 133 |r|=2.687e-04 (ITERATING)
# TAO 5, KSP 134 |r|=2.594e-04 (ITERATING)
# TAO 5, KSP 135 |r|=2.507e-04 (ITERATING)
# TAO 5, KSP 136 |r|=2.406e-04 (ITERATING)
# TAO 5, KSP 137 |r|=2.306e-04 (ITERATING)
# TAO 5, KSP 138 |r|=2.207e-04 (ITERATING)
# TAO 5, KSP 139 |r|=2.146e-04 (ITERATING)
# TAO 5, KSP 140 |r|=2.076e-04 (ITERATING)
# TAO 5, KSP 141 |r|=2.001e-04 (ITERATING)
# TAO 5, KSP 142 |r|=1.946e-04 (ITERATING)
# TAO 5, KSP 143 |r|=1.866e-04 (ITERATING)
# TAO 5, KSP 144 |r|=1.810e-04 (ITERATING)
# TAO 5, KSP 145 |r|=1.766e-04 (ITERATING)
# TAO 5, KSP 146 |r|=1.720e-04 (ITERATING)
# TAO 5, KSP 147 |r|=1.664e-04 (ITERATING)
# TAO 5, KSP 148 |r|=1.602e-04 (ITERATING)
# TAO 5, KSP 149 |r|=1.540e-04 (ITERATING)
# TAO 5, KSP 150 |r|=1.482e-04 (ITERATING)
# TAO 5, KSP 151 |r|=1.428e-04 (ITERATING)
# TAO 5, KSP 152 |r|=1.363e-04 (ITERATING)
# TAO 5, KSP 153 |r|=1.317e-04 (ITERATING)
# TAO 5, KSP 154 |r|=1.287e-04 (ITERATING)
# TAO 5, KSP 155 |r|=1.245e-04 (ITERATING)
# TAO 5, KSP 156 |r|=1.207e-04 (ITERATING)
# TAO 5, KSP 157 |r|=1.182e-04 (ITERATING)
# TAO 5, KSP 158 |r|=1.132e-04 (ITERATING)
# TAO 5, KSP 159 |r|=1.079e-04 (ITERATING)
# TAO 5, KSP 160 |r|=1.024e-04 (ITERATING)
# TAO 5, KSP 161 |r|=9.895e-05 (ITERATING)
# TAO 5, KSP 162 |r|=9.522e-05 (ITERATING)
# TAO 5, KSP 163 |r|=9.167e-05 (ITERATING)
# TAO 5, KSP 164 |r|=8.865e-05 (ITERATING)
# TAO 5, KSP 165 |r|=8.520e-05 (ITERATING)
# TAO 5, KSP 166 |r|=8.233e-05 (ITERATING)
# TAO 5, KSP 167 |r|=7.901e-05 (ITERATING)
# TAO 5, KSP 168 |r|=7.492e-05 (ITERATING)
# TAO 5, KSP 169 |r|=7.105e-05 (ITERATING)
# TAO 5, KSP 170 |r|=6.687e-05 (ITERATING)
# TAO 5, KSP 171 |r|=6.392e-05 (ITERATING)
# TAO 5, KSP 172 |r|=6.173e-05 (ITERATING)
# TAO 5, KSP 173 |r|=5.964e-05 (ITERATING)
# TAO 5, KSP 174 |r|=5.777e-05 (ITERATING)
# TAO 5, KSP 175 |r|=5.571e-05 (ITERATING)
# TAO 5, KSP 176 |r|=5.415e-05 (ITERATING)
# TAO 5, KSP 177 |r|=5.223e-05 (ITERATING)
# TAO 5, KSP 178 |r|=5.059e-05 (ITERATING)
# TAO 5, KSP 179 |r|=4.916e-05 (ITERATING)
# TAO 5, KSP 180 |r|=4.696e-05 (ITERATING)
# TAO 5, KSP 181 |r|=4.529e-05 (ITERATING)
# TAO 5, KSP 182 |r|=4.335e-05 (ITERATING)
# TAO 5, KSP 183 |r|=4.182e-05 (ITERATING)
# TAO 5, KSP 184 |r|=4.055e-05 (ITERATING)
# TAO 5, KSP 185 |r|=3.939e-05 (ITERATING)
# TAO 5, KSP 186 |r|=3.888e-05 (ITERATING)
# TAO 5, KSP 187 |r|=3.848e-05 (ITERATING)
# TAO 5, KSP 188 |r|=3.746e-05 (ITERATING)
# TAO 5, KSP 189 |r|=3.659e-05 (ITERATING)
# TAO 5, KSP 190 |r|=3.521e-05 (ITERATING)
# TAO 5, KSP 191 |r|=3.394e-05 (ITERATING)
# TAO 5, KSP 192 |r|=3.268e-05 (ITERATING)
# TAO 5, KSP 193 |r|=3.180e-05 (ITERATING)
# TAO 5, KSP 194 |r|=3.122e-05 (ITERATING)
# TAO 5, KSP 195 |r|=3.079e-05 (ITERATING)
# TAO 5, KSP 196 |r|=3.044e-05 (ITERATING)
# TAO 5, KSP 197 |r|=3.001e-05 (ITERATING)
# TAO 5, KSP 198 |r|=2.937e-05 (ITERATING)
# TAO 5, KSP 199 |r|=2.877e-05 (ITERATING)
# TAO 5, KSP 200 |r|=2.786e-05 (ITERATING)
# TAO 5, KSP 201 |r|=2.709e-05 (ITERATING)
# TAO 5, KSP 202 |r|=2.623e-05 (ITERATING)
# TAO 5, KSP 203 |r|=2.536e-05 (ITERATING)
# TAO 5, KSP 204 |r|=2.455e-05 (ITERATING)
# TAO 5, KSP 205 |r|=2.397e-05 (ITERATING)
# TAO 5, KSP 206 |r|=2.292e-05 (ITERATING)
# TAO 5, KSP 207 |r|=2.214e-05 (ITERATING)
# TAO 5, KSP 208 |r|=2.147e-05 (ITERATING)
# TAO 5, KSP 209 |r|=2.093e-05 (ITERATING)
# TAO 5, KSP 210 |r|=2.037e-05 (ITERATING)
# TAO 5, KSP 211 |r|=1.997e-05 (ITERATING)
# TAO 5, KSP 212 |r|=1.965e-05 (ITERATING)
# TAO 5, KSP 213 |r|=1.930e-05 (ITERATING)
# TAO 5, KSP 214 |r|=1.888e-05 (ITERATING)
# TAO 5, KSP 215 |r|=1.829e-05 (ITERATING)
# TAO 5, KSP 216 |r|=1.782e-05 (ITERATING)
# TAO 5, KSP 217 |r|=1.726e-05 (ITERATING)
# TAO 5, KSP 218 |r|=1.689e-05 (ITERATING)
# TAO 5, KSP 219 |r|=1.666e-05 (ITERATING)
# TAO 5, KSP 220 |r|=1.644e-05 (ITERATING)
# TAO 5, KSP 221 |r|=1.594e-05 (ITERATING)
# TAO 5, KSP 222 |r|=1.542e-05 (ITERATING)
# TAO 5, KSP 223 |r|=1.503e-05 (ITERATING)
# TAO 5, KSP 224 |r|=1.477e-05 (ITERATING)
# TAO 5, KSP 225 |r|=1.461e-05 (ITERATING)
# TAO 5, KSP 226 |r|=1.455e-05 (ITERATING)
# TAO 5, KSP 227 |r|=1.440e-05 (ITERATING)
# TAO 5, KSP 228 |r|=1.417e-05 (ITERATING)
# TAO 5, KSP 229 |r|=1.377e-05 (ITERATING)
# TAO 5, KSP 230 |r|=1.334e-05 (ITERATING)
# TAO 5, KSP 231 |r|=1.293e-05 (ITERATING)
# TAO 5, KSP 232 |r|=1.258e-05 (ITERATING)
# TAO 5, KSP 233 |r|=1.242e-05 (ITERATING)
# TAO 5, KSP 234 |r|=1.216e-05 (ITERATING)
# TAO 5, KSP 235 |r|=1.178e-05 (ITERATING)
# TAO 5, KSP 236 |r|=1.128e-05 (ITERATING)
# TAO 5, KSP 237 |r|=1.087e-05 (ITERATING)
# TAO 5, KSP 238 |r|=1.061e-05 (ITERATING)
# TAO 5, KSP 239 |r|=1.022e-05 (ITERATING)
# TAO 5, KSP 240 |r|=9.874e-06 (ITERATING)
# TAO 5, KSP 241 |r|=9.523e-06 (ITERATING)
# TAO 5, KSP 242 |r|=9.094e-06 (ITERATING)
# TAO 5, KSP 243 |r|=8.741e-06 (ITERATING)
# TAO 5, KSP 244 |r|=8.388e-06 (ITERATING)
# TAO 5, KSP 245 |r|=7.923e-06 (ITERATING)
# TAO 5, KSP 246 |r|=7.540e-06 (ITERATING)
# TAO 5, KSP 247 |r|=7.322e-06 (ITERATING)
# TAO 5, KSP 248 |r|=7.086e-06 (ITERATING)
# TAO 5, KSP 249 |r|=6.834e-06 (ITERATING)
# TAO 5, KSP 250 |r|=6.598e-06 (ITERATING)
# TAO 5, KSP 251 |r|=6.328e-06 (ITERATING)
# TAO 5, KSP 252 |r|=6.115e-06 (ITERATING)
# TAO 6 (ITERATING)
# sub 0 [ 44k] |x|=1.556e+03 |J|=1.231e-01 (g)
# all |x|=1.556e+03 |J|=1.231e-01 |H|=7.388e+02 f=1.121e+04
# TAO 6, KSP 0 |r|=1.231e-01 (ITERATING)
# TAO 6, KSP 1 |r|=4.930e-02 (ITERATING)
# TAO 6, KSP 2 |r|=2.220e-02 (ITERATING)
# TAO 6, KSP 3 |r|=1.494e-02 (ITERATING)
# TAO 6, KSP 4 |r|=1.237e-02 (ITERATING)
# TAO 6, KSP 5 |r|=1.057e-02 (ITERATING)
# TAO 6, KSP 6 |r|=9.185e-03 (ITERATING)
# TAO 6, KSP 7 |r|=7.962e-03 (ITERATING)
# TAO 6, KSP 8 |r|=6.746e-03 (ITERATING)
# TAO 6, KSP 9 |r|=5.591e-03 (ITERATING)
# TAO 6, KSP 10 |r|=4.866e-03 (ITERATING)
# TAO 6, KSP 11 |r|=4.379e-03 (ITERATING)
# TAO 6, KSP 12 |r|=3.824e-03 (ITERATING)
# TAO 6, KSP 13 |r|=3.409e-03 (ITERATING)
# TAO 6, KSP 14 |r|=3.044e-03 (ITERATING)
# TAO 6, KSP 15 |r|=2.922e-03 (ITERATING)
# TAO 6, KSP 16 |r|=2.697e-03 (ITERATING)
# TAO 6, KSP 17 |r|=2.440e-03 (ITERATING)
# TAO 6, KSP 18 |r|=2.216e-03 (ITERATING)
# TAO 6, KSP 19 |r|=2.016e-03 (ITERATING)
# TAO 6, KSP 20 |r|=1.834e-03 (ITERATING)
# TAO 6, KSP 21 |r|=1.703e-03 (ITERATING)
# TAO 6, KSP 22 |r|=1.539e-03 (ITERATING)
# TAO 6, KSP 23 |r|=1.435e-03 (ITERATING)
# TAO 6, KSP 24 |r|=1.328e-03 (ITERATING)
# TAO 6, KSP 25 |r|=1.214e-03 (ITERATING)
# TAO 6, KSP 26 |r|=1.125e-03 (ITERATING)
# TAO 6, KSP 27 |r|=1.038e-03 (ITERATING)
# TAO 6, KSP 28 |r|=9.745e-04 (ITERATING)
# TAO 6, KSP 29 |r|=9.655e-04 (ITERATING)
# TAO 6, KSP 30 |r|=9.550e-04 (ITERATING)
# TAO 6, KSP 31 |r|=9.039e-04 (ITERATING)
# TAO 6, KSP 32 |r|=8.436e-04 (ITERATING)
# TAO 6, KSP 33 |r|=7.914e-04 (ITERATING)
# TAO 6, KSP 34 |r|=7.319e-04 (ITERATING)
# TAO 6, KSP 35 |r|=6.844e-04 (ITERATING)
# TAO 6, KSP 36 |r|=6.529e-04 (ITERATING)
# TAO 6, KSP 37 |r|=6.321e-04 (ITERATING)
# TAO 6, KSP 38 |r|=6.029e-04 (ITERATING)
# TAO 6, KSP 39 |r|=5.647e-04 (ITERATING)
# TAO 6, KSP 40 |r|=5.308e-04 (ITERATING)
# TAO 6, KSP 41 |r|=5.060e-04 (ITERATING)
# TAO 6, KSP 42 |r|=4.967e-04 (ITERATING)
# TAO 6, KSP 43 |r|=4.865e-04 (ITERATING)
# TAO 6, KSP 44 |r|=4.600e-04 (ITERATING)
# TAO 6, KSP 45 |r|=4.370e-04 (ITERATING)
# TAO 6, KSP 46 |r|=4.195e-04 (ITERATING)
# TAO 6, KSP 47 |r|=4.024e-04 (ITERATING)
# TAO 6, KSP 48 |r|=3.899e-04 (ITERATING)
# TAO 6, KSP 49 |r|=3.850e-04 (ITERATING)
# TAO 6, KSP 50 |r|=3.815e-04 (ITERATING)
# TAO 6, KSP 51 |r|=3.724e-04 (ITERATING)
# TAO 6, KSP 52 |r|=3.572e-04 (ITERATING)
# TAO 6, KSP 53 |r|=3.355e-04 (ITERATING)
# TAO 6, KSP 54 |r|=3.222e-04 (ITERATING)
# TAO 6, KSP 55 |r|=3.168e-04 (ITERATING)
# TAO 6, KSP 56 |r|=3.096e-04 (ITERATING)
# TAO 6, KSP 57 |r|=2.959e-04 (ITERATING)
# TAO 6, KSP 58 |r|=2.837e-04 (ITERATING)
# TAO 6, KSP 59 |r|=2.689e-04 (ITERATING)
# TAO 6, KSP 60 |r|=2.530e-04 (ITERATING)
# TAO 6, KSP 61 |r|=2.406e-04 (ITERATING)
# TAO 6, KSP 62 |r|=2.324e-04 (ITERATING)
# TAO 6, KSP 63 |r|=2.257e-04 (ITERATING)
# TAO 6, KSP 64 |r|=2.172e-04 (ITERATING)
# TAO 6, KSP 65 |r|=2.093e-04 (ITERATING)
# TAO 6, KSP 66 |r|=1.989e-04 (ITERATING)
# TAO 6, KSP 67 |r|=1.924e-04 (ITERATING)
# TAO 6, KSP 68 |r|=1.884e-04 (ITERATING)
# TAO 6, KSP 69 |r|=1.828e-04 (ITERATING)
# TAO 6, KSP 70 |r|=1.788e-04 (ITERATING)
# TAO 6, KSP 71 |r|=1.760e-04 (ITERATING)
# TAO 6, KSP 72 |r|=1.695e-04 (ITERATING)
# TAO 6, KSP 73 |r|=1.634e-04 (ITERATING)
# TAO 6, KSP 74 |r|=1.591e-04 (ITERATING)
# TAO 6, KSP 75 |r|=1.565e-04 (ITERATING)
# TAO 6, KSP 76 |r|=1.509e-04 (ITERATING)
# TAO 6, KSP 77 |r|=1.448e-04 (ITERATING)
# TAO 6, KSP 78 |r|=1.406e-04 (ITERATING)
# TAO 6, KSP 79 |r|=1.346e-04 (ITERATING)
# TAO 6, KSP 80 |r|=1.307e-04 (ITERATING)
# TAO 6, KSP 81 |r|=1.306e-04 (ITERATING)
# TAO 6, KSP 82 |r|=1.302e-04 (ITERATING)
# TAO 6, KSP 83 |r|=1.278e-04 (ITERATING)
# TAO 6, KSP 84 |r|=1.254e-04 (ITERATING)
# TAO 6, KSP 85 |r|=1.234e-04 (ITERATING)
# TAO 6, KSP 86 |r|=1.223e-04 (ITERATING)
# TAO 6, KSP 87 |r|=1.183e-04 (ITERATING)
# TAO 6, KSP 88 |r|=1.148e-04 (ITERATING)
# TAO 6, KSP 89 |r|=1.136e-04 (ITERATING)
# TAO 6, KSP 90 |r|=1.119e-04 (ITERATING)
# TAO 6, KSP 91 |r|=1.084e-04 (ITERATING)
# TAO 6, KSP 92 |r|=1.045e-04 (ITERATING)
# TAO 6, KSP 93 |r|=1.015e-04 (ITERATING)
# TAO 6, KSP 94 |r|=9.796e-05 (ITERATING)
# TAO 6, KSP 95 |r|=9.516e-05 (ITERATING)
# TAO 6, KSP 96 |r|=9.115e-05 (ITERATING)
# TAO 6, KSP 97 |r|=8.792e-05 (ITERATING)
# TAO 6, KSP 98 |r|=8.510e-05 (ITERATING)
# TAO 6, KSP 99 |r|=8.200e-05 (ITERATING)
# TAO 6, KSP 100 |r|=7.913e-05 (ITERATING)
# TAO 6, KSP 101 |r|=7.668e-05 (ITERATING)
# TAO 6, KSP 102 |r|=7.522e-05 (ITERATING)
# TAO 6, KSP 103 |r|=7.186e-05 (ITERATING)
# TAO 6, KSP 104 |r|=6.787e-05 (ITERATING)
# TAO 6, KSP 105 |r|=6.528e-05 (ITERATING)
# TAO 6, KSP 106 |r|=6.229e-05 (ITERATING)
# TAO 6, KSP 107 |r|=6.031e-05 (ITERATING)
# TAO 6, KSP 108 |r|=5.783e-05 (ITERATING)
# TAO 6, KSP 109 |r|=5.552e-05 (ITERATING)
# TAO 6, KSP 110 |r|=5.365e-05 (ITERATING)
# TAO 6, KSP 111 |r|=5.145e-05 (ITERATING)
# TAO 6, KSP 112 |r|=4.965e-05 (ITERATING)
# TAO 6, KSP 113 |r|=4.756e-05 (ITERATING)
# TAO 6, KSP 114 |r|=4.662e-05 (ITERATING)
# TAO 6, KSP 115 |r|=4.512e-05 (ITERATING)
# TAO 6, KSP 116 |r|=4.398e-05 (ITERATING)
# TAO 6, KSP 117 |r|=4.280e-05 (ITERATING)
# TAO 6, KSP 118 |r|=4.135e-05 (ITERATING)
# TAO 6, KSP 119 |r|=4.009e-05 (ITERATING)
# TAO 6, KSP 120 |r|=3.891e-05 (ITERATING)
# TAO 6, KSP 121 |r|=3.826e-05 (ITERATING)
# TAO 6, KSP 122 |r|=3.759e-05 (ITERATING)
# TAO 6, KSP 123 |r|=3.651e-05 (ITERATING)
# TAO 6, KSP 124 |r|=3.551e-05 (ITERATING)
# TAO 6, KSP 125 |r|=3.480e-05 (ITERATING)
# TAO 6, KSP 126 |r|=3.404e-05 (ITERATING)
# TAO 6, KSP 127 |r|=3.334e-05 (ITERATING)
# TAO 6, KSP 128 |r|=3.246e-05 (ITERATING)
# TAO 6, KSP 129 |r|=3.160e-05 (ITERATING)
# TAO 6, KSP 130 |r|=3.131e-05 (ITERATING)
# TAO 6, KSP 131 |r|=3.108e-05 (ITERATING)
# TAO 6, KSP 132 |r|=3.035e-05 (ITERATING)
# TAO 6, KSP 133 |r|=2.932e-05 (ITERATING)
# TAO 6, KSP 134 |r|=2.850e-05 (ITERATING)
# TAO 6, KSP 135 |r|=2.753e-05 (ITERATING)
# TAO 6, KSP 136 |r|=2.658e-05 (ITERATING)
# TAO 6, KSP 137 |r|=2.617e-05 (ITERATING)
# TAO 6, KSP 138 |r|=2.527e-05 (ITERATING)
# TAO 6, KSP 139 |r|=2.452e-05 (ITERATING)
# TAO 6, KSP 140 |r|=2.346e-05 (ITERATING)
# TAO 6, KSP 141 |r|=2.261e-05 (ITERATING)
# TAO 6, KSP 142 |r|=2.200e-05 (ITERATING)
# TAO 6, KSP 143 |r|=2.142e-05 (ITERATING)
# TAO 6, KSP 144 |r|=2.053e-05 (ITERATING)
# TAO 6, KSP 145 |r|=1.974e-05 (ITERATING)
# TAO 6, KSP 146 |r|=1.923e-05 (ITERATING)
# TAO 6, KSP 147 |r|=1.899e-05 (ITERATING)
# TAO 6, KSP 148 |r|=1.857e-05 (ITERATING)
# TAO 6, KSP 149 |r|=1.775e-05 (ITERATING)
# TAO 6, KSP 150 |r|=1.706e-05 (ITERATING)
# TAO 6, KSP 151 |r|=1.657e-05 (ITERATING)
# TAO 6, KSP 152 |r|=1.587e-05 (ITERATING)
# TAO 6, KSP 153 |r|=1.533e-05 (ITERATING)
# TAO 6, KSP 154 |r|=1.501e-05 (ITERATING)
# TAO 6, KSP 155 |r|=1.466e-05 (ITERATING)
# TAO 6, KSP 156 |r|=1.414e-05 (ITERATING)
# TAO 6, KSP 157 |r|=1.356e-05 (ITERATING)
# TAO 6, KSP 158 |r|=1.309e-05 (ITERATING)
# TAO 6, KSP 159 |r|=1.276e-05 (ITERATING)
# TAO 6, KSP 160 |r|=1.258e-05 (ITERATING)
# TAO 6, KSP 161 |r|=1.237e-05 (ITERATING)
# TAO 6, KSP 162 |r|=1.199e-05 (ITERATING)
# TAO 6, KSP 163 |r|=1.139e-05 (ITERATING)
# TAO 6, KSP 164 |r|=1.095e-05 (ITERATING)
# TAO 6, KSP 165 |r|=1.055e-05 (ITERATING)
# TAO 6, KSP 166 |r|=1.027e-05 (ITERATING)
# TAO 6, KSP 167 |r|=9.892e-06 (ITERATING)
# TAO 6, KSP 168 |r|=9.412e-06 (ITERATING)
# TAO 6, KSP 169 |r|=8.945e-06 (ITERATING)
# TAO 6, KSP 170 |r|=8.579e-06 (ITERATING)
# TAO 6, KSP 171 |r|=8.333e-06 (ITERATING)
# TAO 6, KSP 172 |r|=8.081e-06 (ITERATING)
# TAO 6, KSP 173 |r|=7.849e-06 (ITERATING)
# TAO 6, KSP 174 |r|=7.572e-06 (ITERATING)
# TAO 6, KSP 175 |r|=7.245e-06 (ITERATING)
# TAO 6, KSP 176 |r|=6.897e-06 (ITERATING)
# TAO 6, KSP 177 |r|=6.522e-06 (ITERATING)
# TAO 6, KSP 178 |r|=6.206e-06 (ITERATING)
# TAO 6, KSP 179 |r|=5.940e-06 (ITERATING)
# TAO 6, KSP 180 |r|=5.700e-06 (ITERATING)
# TAO 6, KSP 181 |r|=5.425e-06 (ITERATING)
# TAO 6, KSP 182 |r|=5.163e-06 (ITERATING)
# TAO 6, KSP 183 |r|=5.019e-06 (ITERATING)
# TAO 6, KSP 184 |r|=4.860e-06 (ITERATING)
# TAO 6, KSP 185 |r|=4.670e-06 (ITERATING)
# TAO 6, KSP 186 |r|=4.493e-06 (ITERATING)
# TAO 6, KSP 187 |r|=4.357e-06 (ITERATING)
# TAO 6, KSP 188 |r|=4.247e-06 (ITERATING)
# TAO 6, KSP 189 |r|=4.170e-06 (ITERATING)
# TAO 6, KSP 190 |r|=4.072e-06 (ITERATING)
# TAO 6, KSP 191 |r|=4.034e-06 (ITERATING)
# TAO 6, KSP 192 |r|=3.917e-06 (ITERATING)
# TAO 6, KSP 193 |r|=3.839e-06 (ITERATING)
# TAO 6, KSP 194 |r|=3.794e-06 (ITERATING)
# TAO 6, KSP 195 |r|=3.705e-06 (ITERATING)
# TAO 6, KSP 196 |r|=3.657e-06 (ITERATING)
# TAO 6, KSP 197 |r|=3.597e-06 (ITERATING)
# TAO 6, KSP 198 |r|=3.490e-06 (ITERATING)
# TAO 6, KSP 199 |r|=3.409e-06 (ITERATING)
# TAO 6, KSP 200 |r|=3.320e-06 (ITERATING)
# TAO 6, KSP 201 |r|=3.236e-06 (ITERATING)
# TAO 6, KSP 202 |r|=3.138e-06 (ITERATING)
# TAO 6, KSP 203 |r|=2.996e-06 (ITERATING)
# TAO 6, KSP 204 |r|=2.852e-06 (ITERATING)
# TAO 6, KSP 205 |r|=2.750e-06 (ITERATING)
# TAO 6, KSP 206 |r|=2.641e-06 (ITERATING)
# TAO 6, KSP 207 |r|=2.533e-06 (ITERATING)
# TAO 6, KSP 208 |r|=2.423e-06 (ITERATING)
# TAO 6, KSP 209 |r|=2.368e-06 (ITERATING)
# TAO 6, KSP 210 |r|=2.331e-06 (ITERATING)
# TAO 6, KSP 211 |r|=2.280e-06 (ITERATING)
# TAO 6, KSP 212 |r|=2.226e-06 (ITERATING)
# TAO 6, KSP 213 |r|=2.147e-06 (ITERATING)
# TAO 6, KSP 214 |r|=2.063e-06 (ITERATING)
# TAO 6, KSP 215 |r|=2.025e-06 (ITERATING)
# TAO 6, KSP 216 |r|=1.986e-06 (ITERATING)
# TAO 6, KSP 217 |r|=1.899e-06 (ITERATING)
# TAO 6, KSP 218 |r|=1.792e-06 (ITERATING)
# TAO 6, KSP 219 |r|=1.719e-06 (ITERATING)
# TAO 6, KSP 220 |r|=1.682e-06 (ITERATING)
# TAO 6, KSP 221 |r|=1.623e-06 (ITERATING)
# TAO 6, KSP 222 |r|=1.577e-06 (ITERATING)
# TAO 6, KSP 223 |r|=1.536e-06 (ITERATING)
# TAO 6, KSP 224 |r|=1.497e-06 (ITERATING)
# TAO 6, KSP 225 |r|=1.465e-06 (ITERATING)
# TAO 6, KSP 226 |r|=1.454e-06 (ITERATING)
# TAO 6, KSP 227 |r|=1.429e-06 (ITERATING)
# TAO 6, KSP 228 |r|=1.400e-06 (ITERATING)
# TAO 6, KSP 229 |r|=1.378e-06 (ITERATING)
# TAO 6, KSP 230 |r|=1.357e-06 (ITERATING)
# TAO 6, KSP 231 |r|=1.363e-06 (ITERATING)
# TAO 6, KSP 232 |r|=1.371e-06 (ITERATING)
# TAO 6, KSP 233 |r|=1.364e-06 (ITERATING)
# TAO 6, KSP 234 |r|=1.341e-06 (ITERATING)
# TAO 6, KSP 235 |r|=1.319e-06 (ITERATING)
# TAO 6, KSP 236 |r|=1.301e-06 (ITERATING)
# TAO 6, KSP 237 |r|=1.295e-06 (ITERATING)
# TAO 6, KSP 238 |r|=1.283e-06 (ITERATING)
# TAO 6, KSP 239 |r|=1.241e-06 (ITERATING)
# TAO 6, KSP 240 |r|=1.198e-06 (ITERATING)
# TAO 7 (ITERATING)
# sub 0 [ 44k] |x|=1.556e+03 |J|=5.352e-03 (g)
# all |x|=1.556e+03 |J|=5.352e-03 |H|=7.388e+02 f=1.121e+04
# TAO 7, KSP 0 |r|=5.352e-03 (ITERATING)
# TAO 7, KSP 1 |r|=1.304e-03 (ITERATING)
# TAO 7, KSP 2 |r|=7.802e-04 (ITERATING)
# TAO 7, KSP 3 |r|=5.388e-04 (ITERATING)
# TAO 7, KSP 4 |r|=3.159e-04 (ITERATING)
# TAO 7, KSP 5 |r|=2.070e-04 (ITERATING)
# TAO 7, KSP 6 |r|=1.614e-04 (ITERATING)
# TAO 7, KSP 7 |r|=1.320e-04 (ITERATING)
# TAO 7, KSP 8 |r|=1.086e-04 (ITERATING)
# TAO 7, KSP 9 |r|=8.969e-05 (ITERATING)
# TAO 7, KSP 10 |r|=7.803e-05 (ITERATING)
# TAO 7, KSP 11 |r|=6.721e-05 (ITERATING)
# TAO 7, KSP 12 |r|=5.924e-05 (ITERATING)
# TAO 7, KSP 13 |r|=5.333e-05 (ITERATING)
# TAO 7, KSP 14 |r|=4.807e-05 (ITERATING)
# TAO 7, KSP 15 |r|=4.294e-05 (ITERATING)
# TAO 7, KSP 16 |r|=3.907e-05 (ITERATING)
# TAO 7, KSP 17 |r|=3.662e-05 (ITERATING)
# TAO 7, KSP 18 |r|=3.493e-05 (ITERATING)
# TAO 7, KSP 19 |r|=3.328e-05 (ITERATING)
# TAO 7, KSP 20 |r|=3.141e-05 (ITERATING)
# TAO 7, KSP 21 |r|=2.903e-05 (ITERATING)
# TAO 7, KSP 22 |r|=2.768e-05 (ITERATING)
# TAO 7, KSP 23 |r|=2.680e-05 (ITERATING)
# TAO 7, KSP 24 |r|=2.537e-05 (ITERATING)
# TAO 7, KSP 25 |r|=2.450e-05 (ITERATING)
# TAO 7, KSP 26 |r|=2.330e-05 (ITERATING)
# TAO 7, KSP 27 |r|=2.143e-05 (ITERATING)
# TAO 7, KSP 28 |r|=2.051e-05 (ITERATING)
# TAO 7, KSP 29 |r|=2.046e-05 (ITERATING)
# TAO 7, KSP 30 |r|=1.964e-05 (ITERATING)
# TAO 7, KSP 31 |r|=1.850e-05 (ITERATING)
# TAO 7, KSP 32 |r|=1.774e-05 (ITERATING)
# TAO 7, KSP 33 |r|=1.722e-05 (ITERATING)
# TAO 7, KSP 34 |r|=1.714e-05 (ITERATING)
# TAO 7, KSP 35 |r|=1.668e-05 (ITERATING)
# TAO 7, KSP 36 |r|=1.572e-05 (ITERATING)
# TAO 7, KSP 37 |r|=1.496e-05 (ITERATING)
# TAO 7, KSP 38 |r|=1.441e-05 (ITERATING)
# TAO 7, KSP 39 |r|=1.392e-05 (ITERATING)
# TAO 7, KSP 40 |r|=1.355e-05 (ITERATING)
# TAO 7, KSP 41 |r|=1.334e-05 (ITERATING)
# TAO 7, KSP 42 |r|=1.308e-05 (ITERATING)
# TAO 7, KSP 43 |r|=1.251e-05 (ITERATING)
# TAO 7, KSP 44 |r|=1.204e-05 (ITERATING)
# TAO 7, KSP 45 |r|=1.169e-05 (ITERATING)
# TAO 7, KSP 46 |r|=1.147e-05 (ITERATING)
# TAO 7, KSP 47 |r|=1.134e-05 (ITERATING)
# TAO 7, KSP 48 |r|=1.102e-05 (ITERATING)
# TAO 7, KSP 49 |r|=1.049e-05 (ITERATING)
# TAO 7, KSP 50 |r|=1.013e-05 (ITERATING)
# TAO 7, KSP 51 |r|=9.889e-06 (ITERATING)
# TAO 7, KSP 52 |r|=9.567e-06 (ITERATING)
# TAO 7, KSP 53 |r|=9.240e-06 (ITERATING)
# TAO 7, KSP 54 |r|=9.080e-06 (ITERATING)
# TAO 7, KSP 55 |r|=8.909e-06 (ITERATING)
# TAO 7, KSP 56 |r|=8.657e-06 (ITERATING)
# TAO 7, KSP 57 |r|=8.335e-06 (ITERATING)
# TAO 7, KSP 58 |r|=7.938e-06 (ITERATING)
# TAO 7, KSP 59 |r|=7.626e-06 (ITERATING)
# TAO 7, KSP 60 |r|=7.441e-06 (ITERATING)
# TAO 7, KSP 61 |r|=7.267e-06 (ITERATING)
# TAO 7, KSP 62 |r|=7.158e-06 (ITERATING)
# TAO 7, KSP 63 |r|=7.086e-06 (ITERATING)
# TAO 7, KSP 64 |r|=6.954e-06 (ITERATING)
# TAO 7, KSP 65 |r|=6.766e-06 (ITERATING)
# TAO 7, KSP 66 |r|=6.658e-06 (ITERATING)
# TAO 7, KSP 67 |r|=6.663e-06 (ITERATING)
# TAO 7, KSP 68 |r|=6.627e-06 (ITERATING)
# TAO 7, KSP 69 |r|=6.529e-06 (ITERATING)
# TAO 7, KSP 70 |r|=6.518e-06 (ITERATING)
# TAO 7, KSP 71 |r|=6.437e-06 (ITERATING)
# TAO 7, KSP 72 |r|=6.309e-06 (ITERATING)
# TAO 7, KSP 73 |r|=6.353e-06 (ITERATING)
# TAO 7, KSP 74 |r|=6.264e-06 (ITERATING)
# TAO 7, KSP 75 |r|=6.160e-06 (ITERATING)
# TAO 7, KSP 76 |r|=5.986e-06 (ITERATING)
# TAO 7, KSP 77 |r|=5.902e-06 (ITERATING)
# TAO 7, KSP 78 |r|=5.864e-06 (ITERATING)
# TAO 7, KSP 79 |r|=5.803e-06 (ITERATING)
# TAO 7, KSP 80 |r|=5.593e-06 (ITERATING)
# TAO 7, KSP 81 |r|=5.458e-06 (ITERATING)
# TAO 7, KSP 82 |r|=5.264e-06 (ITERATING)
# TAO 7, KSP 83 |r|=5.145e-06 (ITERATING)
# TAO 7, KSP 84 |r|=4.987e-06 (ITERATING)
# TAO 7, KSP 85 |r|=4.877e-06 (ITERATING)
# TAO 7, KSP 86 |r|=4.719e-06 (ITERATING)
# TAO 7, KSP 87 |r|=4.525e-06 (ITERATING)
# TAO 7, KSP 88 |r|=4.377e-06 (ITERATING)
# TAO 7, KSP 89 |r|=4.150e-06 (ITERATING)
# TAO 7, KSP 90 |r|=3.866e-06 (ITERATING)
# TAO 7, KSP 91 |r|=3.680e-06 (ITERATING)
# TAO 7, KSP 92 |r|=3.517e-06 (ITERATING)
# TAO 7, KSP 93 |r|=3.423e-06 (ITERATING)
# TAO 7, KSP 94 |r|=3.276e-06 (ITERATING)
# TAO 7, KSP 95 |r|=3.137e-06 (ITERATING)
# TAO 7, KSP 96 |r|=2.955e-06 (ITERATING)
# TAO 7, KSP 97 |r|=2.797e-06 (ITERATING)
# TAO 7, KSP 98 |r|=2.707e-06 (ITERATING)
# TAO 7, KSP 99 |r|=2.585e-06 (ITERATING)
# TAO 7, KSP 100 |r|=2.511e-06 (ITERATING)
# TAO 7, KSP 101 |r|=2.425e-06 (ITERATING)
# TAO 7, KSP 102 |r|=2.337e-06 (ITERATING)
# TAO 7, KSP 103 |r|=2.236e-06 (ITERATING)
# TAO 7, KSP 104 |r|=2.140e-06 (ITERATING)
# TAO 7, KSP 105 |r|=2.057e-06 (ITERATING)
# TAO 7, KSP 106 |r|=1.966e-06 (ITERATING)
# TAO 7, KSP 107 |r|=1.914e-06 (ITERATING)
# TAO 7, KSP 108 |r|=1.838e-06 (ITERATING)
# TAO 7, KSP 109 |r|=1.758e-06 (ITERATING)
# TAO 7, KSP 110 |r|=1.687e-06 (ITERATING)
# TAO 7, KSP 111 |r|=1.619e-06 (ITERATING)
# TAO 7, KSP 112 |r|=1.549e-06 (ITERATING)
# TAO 7, KSP 113 |r|=1.476e-06 (ITERATING)
# TAO 7, KSP 114 |r|=1.412e-06 (ITERATING)
# TAO 7, KSP 115 |r|=1.352e-06 (ITERATING)
# TAO 7, KSP 116 |r|=1.326e-06 (ITERATING)
# TAO 7, KSP 117 |r|=1.300e-06 (ITERATING)
# TAO 7, KSP 118 |r|=1.264e-06 (ITERATING)
# TAO 7, KSP 119 |r|=1.229e-06 (ITERATING)
# TAO 7, KSP 120 |r|=1.202e-06 (ITERATING)
# TAO 7, KSP 121 |r|=1.153e-06 (ITERATING)
# TAO 7, KSP 122 |r|=1.101e-06 (ITERATING)
# TAO 7, KSP 123 |r|=1.060e-06 (ITERATING)
# TAO 7, KSP 124 |r|=1.019e-06 (ITERATING)
# TAO 7, KSP 125 |r|=9.866e-07 (ITERATING)
# TAO 7, KSP 126 |r|=9.723e-07 (ITERATING)
# TAO 7, KSP 127 |r|=9.445e-07 (ITERATING)
# TAO 7, KSP 128 |r|=9.155e-07 (ITERATING)
# TAO 7, KSP 129 |r|=8.769e-07 (ITERATING)
# TAO 7, KSP 130 |r|=8.426e-07 (ITERATING)
# TAO 7, KSP 131 |r|=8.045e-07 (ITERATING)
# TAO 7, KSP 132 |r|=7.757e-07 (ITERATING)
# TAO 7, KSP 133 |r|=7.566e-07 (ITERATING)
# TAO 7, KSP 134 |r|=7.501e-07 (ITERATING)
# TAO 7, KSP 135 |r|=7.349e-07 (ITERATING)
# TAO 7, KSP 136 |r|=7.078e-07 (ITERATING)
# TAO 7, KSP 137 |r|=6.781e-07 (ITERATING)
# TAO 7, KSP 138 |r|=6.470e-07 (ITERATING)
# TAO 7, KSP 139 |r|=6.390e-07 (ITERATING)
# TAO 7, KSP 140 |r|=6.228e-07 (ITERATING)
# TAO 7, KSP 141 |r|=5.995e-07 (ITERATING)
# TAO 7, KSP 142 |r|=5.800e-07 (ITERATING)
# TAO 7, KSP 143 |r|=5.614e-07 (ITERATING)
# TAO 7, KSP 144 |r|=5.461e-07 (ITERATING)
# TAO 7, KSP 145 |r|=5.362e-07 (ITERATING)
# TAO 7, KSP 146 |r|=5.215e-07 (ITERATING)
# TAO 7, KSP 147 |r|=5.025e-07 (ITERATING)
# TAO 7, KSP 148 |r|=4.877e-07 (ITERATING)
# TAO 7, KSP 149 |r|=4.767e-07 (ITERATING)
# TAO 7, KSP 150 |r|=4.657e-07 (ITERATING)
# TAO 7, KSP 151 |r|=4.533e-07 (ITERATING)
# TAO 7, KSP 152 |r|=4.338e-07 (ITERATING)
# TAO 7, KSP 153 |r|=4.264e-07 (ITERATING)
# TAO 7, KSP 154 |r|=4.231e-07 (ITERATING)
# TAO 7, KSP 155 |r|=4.075e-07 (ITERATING)
# TAO 7, KSP 156 |r|=3.915e-07 (ITERATING)
# TAO 7, KSP 157 |r|=3.832e-07 (ITERATING)
# TAO 7, KSP 158 |r|=3.753e-07 (ITERATING)
# TAO 7, KSP 159 |r|=3.663e-07 (ITERATING)
# TAO 7, KSP 160 |r|=3.624e-07 (ITERATING)
# TAO 7, KSP 161 |r|=3.606e-07 (ITERATING)
# TAO 7, KSP 162 |r|=3.564e-07 (ITERATING)
# TAO 7, KSP 163 |r|=3.495e-07 (ITERATING)
# TAO 7, KSP 164 |r|=3.409e-07 (ITERATING)
# TAO 7, KSP 165 |r|=3.284e-07 (ITERATING)
# TAO 7, KSP 166 |r|=3.202e-07 (ITERATING)
# TAO 7, KSP 167 |r|=3.170e-07 (ITERATING)
# TAO 7, KSP 168 |r|=3.042e-07 (ITERATING)
# TAO 7, KSP 169 |r|=2.947e-07 (ITERATING)
# TAO 7, KSP 170 |r|=2.846e-07 (ITERATING)
# TAO 7, KSP 171 |r|=2.787e-07 (ITERATING)
# TAO 7, KSP 172 |r|=2.728e-07 (ITERATING)
# TAO 7, KSP 173 |r|=2.638e-07 (ITERATING)
# TAO 7, KSP 174 |r|=2.552e-07 (ITERATING)
# TAO 7, KSP 175 |r|=2.466e-07 (ITERATING)
# TAO 7, KSP 176 |r|=2.409e-07 (ITERATING)
# TAO 7, KSP 177 |r|=2.318e-07 (ITERATING)
# TAO 7, KSP 178 |r|=2.213e-07 (ITERATING)
# TAO 7, KSP 179 |r|=2.150e-07 (ITERATING)
# TAO 7, KSP 180 |r|=2.101e-07 (ITERATING)
# TAO 7, KSP 181 |r|=2.044e-07 (ITERATING)
# TAO 7, KSP 182 |r|=1.979e-07 (ITERATING)
# TAO 7, KSP 183 |r|=1.908e-07 (ITERATING)
# TAO 7, KSP 184 |r|=1.875e-07 (ITERATING)
# TAO 7, KSP 185 |r|=1.835e-07 (ITERATING)
# TAO 7, KSP 186 |r|=1.816e-07 (ITERATING)
# TAO 7, KSP 187 |r|=1.799e-07 (ITERATING)
# TAO 7, KSP 188 |r|=1.757e-07 (ITERATING)
# TAO 7, KSP 189 |r|=1.692e-07 (ITERATING)
# TAO 7, KSP 190 |r|=1.649e-07 (ITERATING)
# TAO 7, KSP 191 |r|=1.613e-07 (ITERATING)
# TAO 7, KSP 192 |r|=1.564e-07 (ITERATING)
# TAO 7, KSP 193 |r|=1.500e-07 (ITERATING)
# TAO 7, KSP 194 |r|=1.435e-07 (ITERATING)
# TAO 7, KSP 195 |r|=1.361e-07 (ITERATING)
# TAO 7, KSP 196 |r|=1.309e-07 (ITERATING)
# TAO 7, KSP 197 |r|=1.268e-07 (ITERATING)
# TAO 7, KSP 198 |r|=1.220e-07 (ITERATING)
# TAO 7, KSP 199 |r|=1.176e-07 (ITERATING)
# TAO 7, KSP 200 |r|=1.111e-07 (ITERATING)
# TAO 7, KSP 201 |r|=1.068e-07 (ITERATING)
# TAO 7, KSP 202 |r|=1.021e-07 (ITERATING)
# TAO 7, KSP 203 |r|=9.889e-08 (ITERATING)
# TAO 7, KSP 204 |r|=9.540e-08 (ITERATING)
# TAO 7, KSP 205 |r|=9.155e-08 (ITERATING)
# TAO 7, KSP 206 |r|=8.843e-08 (ITERATING)
# TAO 7, KSP 207 |r|=8.542e-08 (ITERATING)
# TAO 7, KSP 208 |r|=8.231e-08 (ITERATING)
# TAO 7, KSP 209 |r|=7.881e-08 (ITERATING)
# TAO 7, KSP 210 |r|=7.566e-08 (ITERATING)
# TAO 7, KSP 211 |r|=7.177e-08 (ITERATING)
# TAO 7, KSP 212 |r|=6.910e-08 (ITERATING)
# TAO 7, KSP 213 |r|=6.683e-08 (ITERATING)
# TAO 7, KSP 214 |r|=6.421e-08 (ITERATING)
# TAO 7, KSP 215 |r|=6.142e-08 (ITERATING)
# TAO 7, KSP 216 |r|=5.981e-08 (ITERATING)
# TAO 7, KSP 217 |r|=5.812e-08 (ITERATING)
# TAO 7, KSP 218 |r|=5.716e-08 (ITERATING)
# TAO 7, KSP 219 |r|=5.589e-08 (ITERATING)
# TAO 7, KSP 220 |r|=5.386e-08 (ITERATING)
# TAO 7, KSP 221 |r|=5.195e-08 (ITERATING)
# TAO 8 (ITERATING)
# sub 0 [ 44k] |x|=1.556e+03 |J|=1.072e-05 (g)
# all |x|=1.556e+03 |J|=1.072e-05 |H|=7.388e+02 f=1.121e+04
Source
for problem in [tao_linear, tao]:
if problem.tao.getConvergedReason() <= 0:
raise RuntimeError("Optimisation did not converge.")
if np.any(g_linear.x.array < φ.x.array) or np.any(g.x.array < φ.x.array):
raise RuntimeError("Lower bound violated.")
if np.any(g_linear.x.array > ψ.x.array) or np.any(g.x.array > ψ.x.array):
raise RuntimeError("Upper bound violated.")
if comm.allreduce(dolfinx.fem.assemble_scalar(dolfinx.fem.form(S(g)))) >= comm.allreduce(
dolfinx.fem.assemble_scalar(dolfinx.fem.form(S(g_linear)))
):
raise RuntimeError("Nonlinear solution is less accurate than linear.")
def plot(f):
pv_grid = pyvista.UnstructuredGrid(*dolfinx.plot.vtk_mesh(mesh, 2))
surface = np.zeros((V.dofmap.index_map.size_local + V.dofmap.index_map.num_ghosts, 3))
surface[:, 2:3] = f.x.array.reshape(-1, 1)
pv_grid.point_data[f.name] = surface
pv_grid.warp_by_vector(f.name, inplace=True)
plotter = pyvista.Plotter(theme=dolfiny.pyvista.theme)
plotter.add_mesh(pv_grid, scalars=f.name, scalar_bar_args={"title": "Surface deflection [m]"})
plotter.add_axes()
plotter.camera.parallel_projection = False
plotter.camera.position = (10, -200, 200)
plotter.camera.focal_point = (60, 20, 0)
plotter.show()The surface¶
We end up with the following surface, that resembles the real world structure quite well.
plot(g)
Source
for f in [h, h_interpolated, g_linear, g, φ, ψ]:
with dolfinx.io.VTXWriter(V.mesh.comm, f"montreal/{f.name}.bp", f, "bp4") as file:
file.write(0.0)- López Gómez, A., Paniagua Padilla, D., & Ruiz Andrés, L. (2015). Pabellón alemán: EXPO’67, Montreal (Canadá): Frei Otto, Rolf Gutbrod: arquitectura textil, análisis del edificio [Working Paper]. Intensificación en Construcción y Tecnología Arquitectónicas. https://oa.upm.es/39614/
- Caffarelli, L. A. (1998). The obstacle problem revisited. J. Fourier Anal. Appl., 4(4–5), 383–402. 10.1007/BF02498216
