The obstacle problem

This demo showcases how to solve obstacle problems using the Dolfiny interface to PETSc/TAO. Both linear and non-linear formulations are considered.

The Surface Area Functional¶

Let us consider a surface $\mathcal{F} \subset \mathbb{R}^3$ which is parametrized by a regular paramatetrization $\Psi$ over $B \subset \mathbb{R}^2$ , i.e. $\mathcal{F} = \Psi(B)$ . We assume, $\Psi$ can be expressed as a height map over the cartesian coordinates

\Psi(x,y) = (x, y, g(x, y)).

(1)

The surface area of $\mathcal{F}$ is then given by

\begin{align*} S(g) &= \int_\mathcal{F} 1 \, \text{d} x \\ &= \int_{\Psi(B)} 1 \, \text{d} x \\ &= \int_{B} | \det ( D\Psi(x) ) | \, \text{d} x \\ &= \int_{B} \left| \frac{\partial \Psi}{\partial x} \times \frac{\partial \Psi}{\partial y} \right| \, \text{d} x \\ &= \int_{B} \left| \begin{bmatrix} 1, 0, \frac{\partial g}{\partial x} \end{bmatrix} \times \begin{bmatrix} 0, 1, \frac{\partial g}{\partial y} \end{bmatrix} \right| \, \text{d} x \\ &= \int_{B} \sqrt{ \left( \frac{\partial g}{\partial x}\right)^2 + \left(\frac{\partial g}{\partial y}\right)^2 + 1 } \, \text{d} x \\ &= \int_{B} \sqrt{|\nabla g|^2 + 1} \, \text{d} x. \end{align*}

(2)

Especially, the surface area is a nonlinear functional in $g$ . To circumvent the additional complexity of non-linear problems, often the linearized version is considered. The second order Taylor expansion of $\sqrt{x^2 + 1}$ around $x = 0$ reads

\begin{align*} \sqrt{x^2 + 1} &= \sqrt{0^2 + 1} + \frac{0}{\sqrt{0^2 + 1}} x + \frac{1}{2} \frac{1-0^2}{\left( 0^2 + 1 \right)^\frac{3}{2}} x^2 + \mathcal{O} (x^3) \\ &= 1 + \frac{1}{2} x^2 + \mathcal{O} (x^3). \end{align*}

(3)

Therefore the linearized surface area is given by

S_\text{linear}(g) = \int_{B} 1 + \frac{1}{2} |\nabla g|^2 \, \text{d} x.

(4)

The Obstacle Problem¶

The obstacle problem is the task of finding a surface of minimal area spanning over some obstacle $\phi: B \to \mathbb{R}$

\min_g S(g) \quad \text{ subject to } g \geq \phi \quad \text{(pointwise)}.

(5)

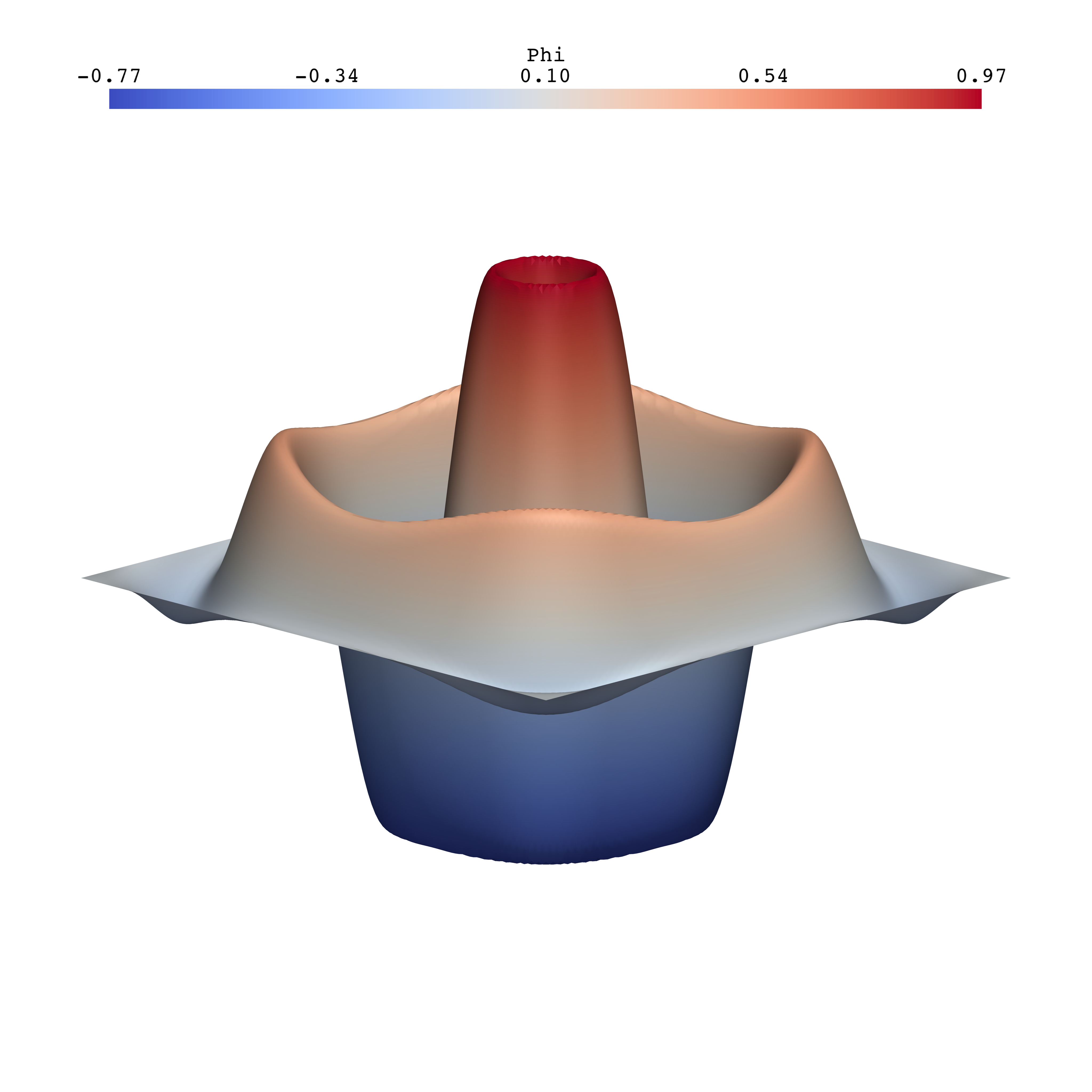

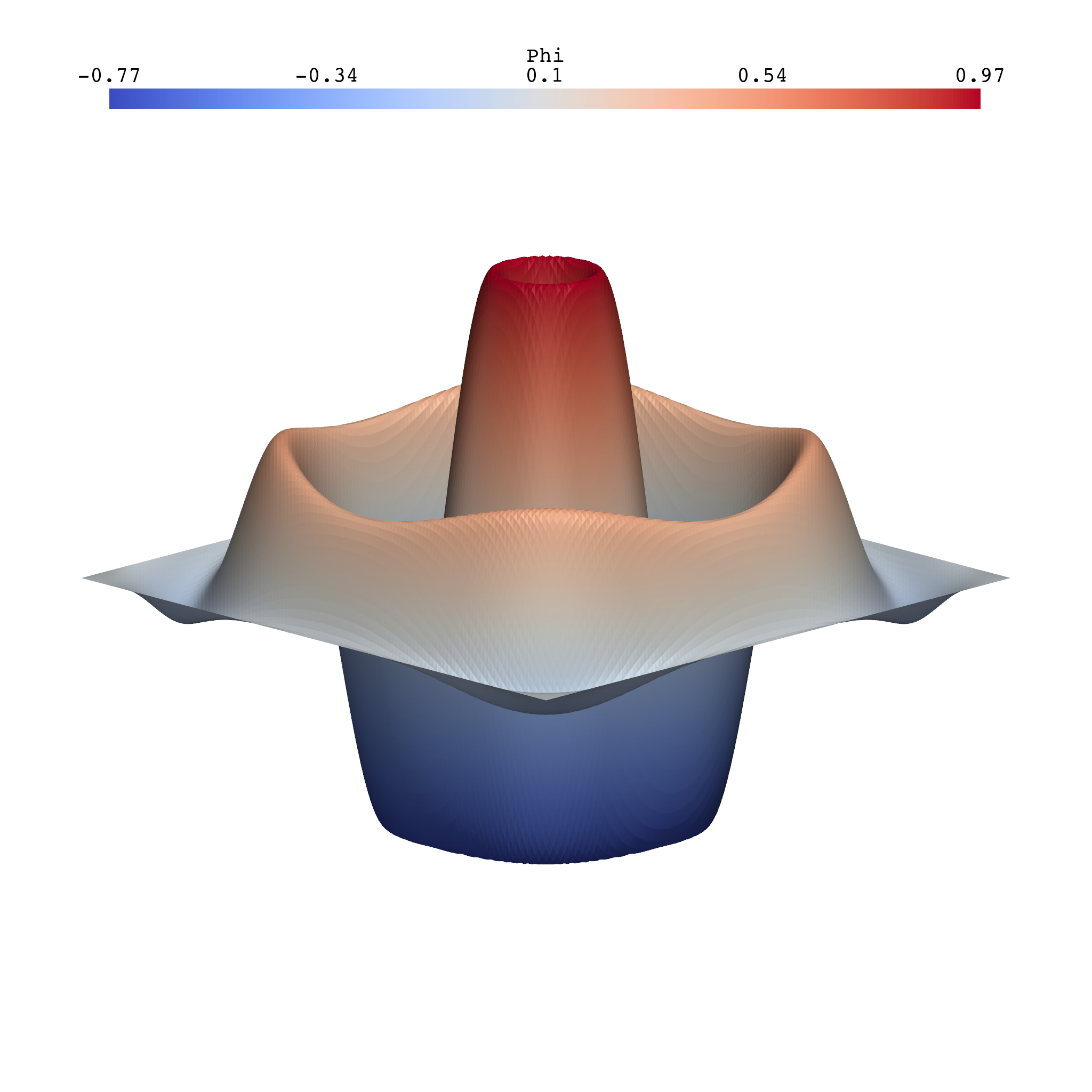

For this demonstration we choose $B = (-1,1)^2$ , and

\phi(x, y) = \sin \left(3\pi \sqrt{x^2 + y^2} \right) \left( 1-x^2 \right) \left( 1-y^2 \right).

(7)

from mpi4py import MPI
from petsc4py import PETSc

import dolfinx
import ufl

import numpy as np
import pyvista

import dolfiny
import dolfiny.taoproblem

comm = MPI.COMM_WORLD

msh = dolfinx.mesh.create_rectangle(comm, [[-1, -1], [1, 1]], [128, 128])

V = dolfinx.fem.functionspace(msh, ("Lagrange", 1))

msh.topology.create_connectivity(1, 2)
boundary_facets = dolfinx.mesh.exterior_facet_indices(msh.topology)
boundary_dofs = dolfinx.fem.locate_dofs_topological(V, 1, boundary_facets)
bc = dolfinx.fem.dirichletbc(np.array(0.0), dofs=boundary_dofs, V=V)

x = ufl.SpatialCoordinate(msh)
φ = ufl.sin(np.pi * 3 * ufl.sqrt(x[0] ** 2 + x[1] ** 2)) * (1 - x[0] ** 2) * (1 - x[1] ** 2)

lb = dolfinx.fem.Function(V, name="Phi")
lb.interpolate(dolfinx.fem.Expression(φ, V.element.interpolation_points))

opts = PETSc.Options("obstacle")  # type: ignore
opts["tao_type"] = "bnls"
opts["tao_max_it"] = "100"

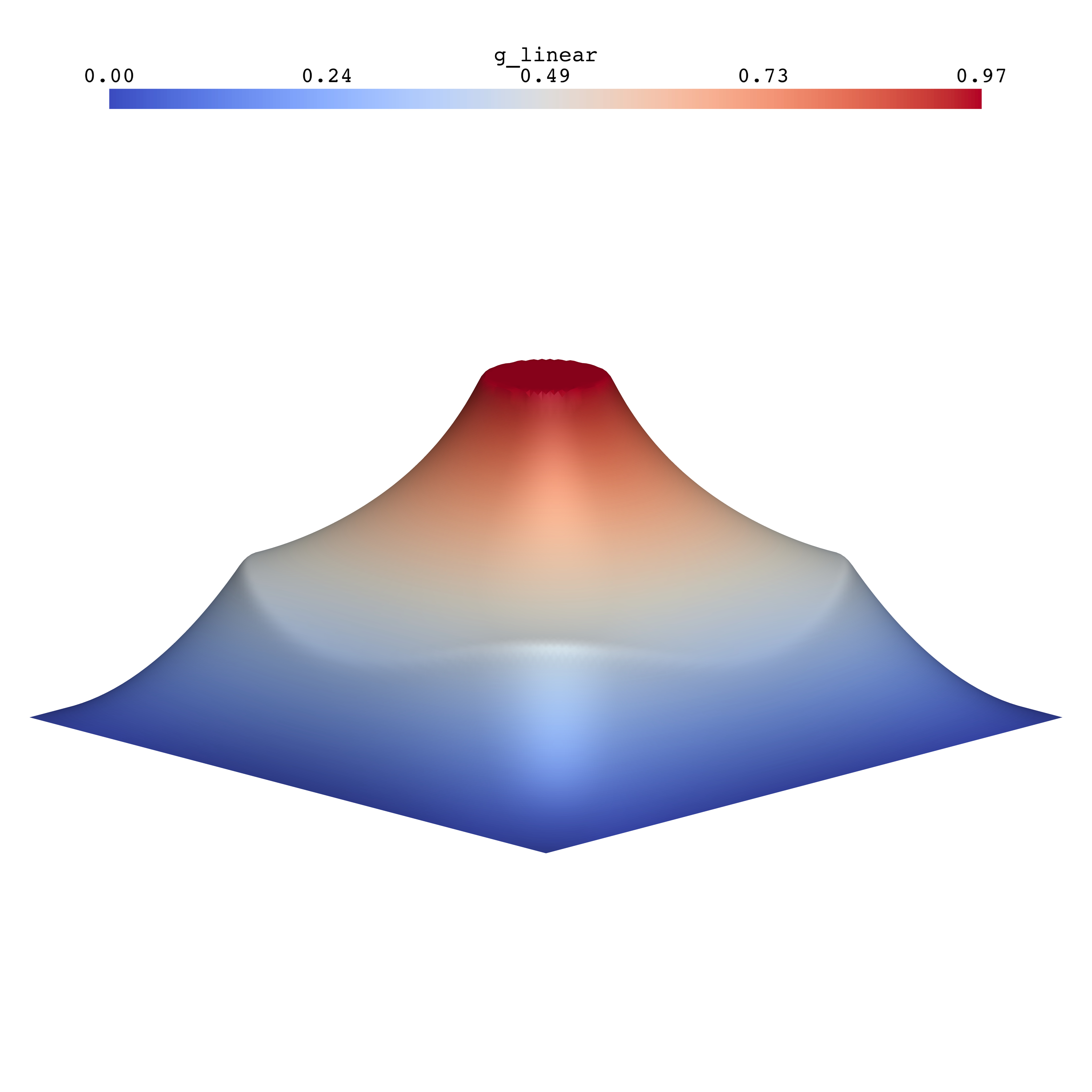

g_linear = dolfinx.fem.Function(V, name="g_linear")
S_linear = (1 + 0.5 * ufl.inner(ufl.grad(g_linear), ufl.grad(g_linear))) * ufl.dx
linear_problem = dolfiny.taoproblem.TAOProblem(
    S_linear, [g_linear], [bc], lb=[lb], prefix="obstacle"
)
linear_problem.solve()

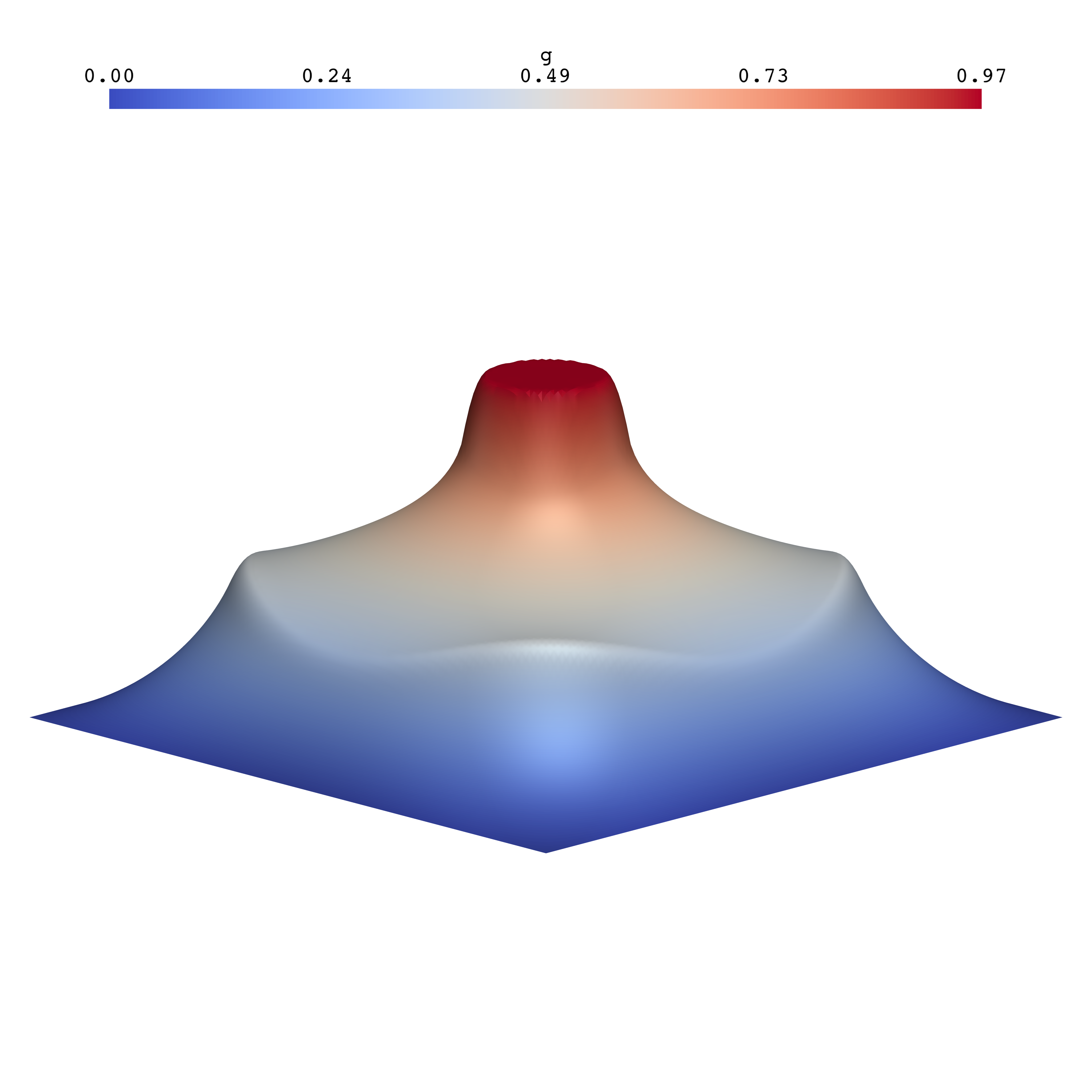

g = dolfinx.fem.Function(V, name="g")
S = ufl.sqrt(1 + ufl.inner(ufl.grad(g), ufl.grad(g))) * ufl.dx
problem = dolfiny.taoproblem.TAOProblem(S, [g], [bc], lb=[lb], prefix="obstacle")
problem.solve()

dolfiny.utils.pprint(f"S_linear(g) = {linear_problem.tao.getFunctionValue():.4f}")
dolfiny.utils.pprint(f"S(g)        = {problem.tao.getFunctionValue():.4f}")

# TAO   0 (ITERATING)

# sub   0 [ 16k] |x|=3.394e+01 |J|=2.006e+00 (g_linear)

# all            |x|=3.394e+01 |J|=2.006e+00 f=1.662e+01

# TAO   0, KSP   0      |r|=2.006e+00 (ITERATING)

# TAO   0, KSP   1      |r|=1.795e+00 (ITERATING)

# TAO   0, KSP   2      |r|=1.366e+00 (ITERATING)

# TAO   0, KSP   3      |r|=1.241e+00 (ITERATING)

# TAO   0, KSP   4      |r|=1.111e+00 (ITERATING)

# TAO   0, KSP   5      |r|=9.741e-01 (ITERATING)

# TAO   0, KSP   6      |r|=8.392e-01 (ITERATING)

# TAO   0, KSP   7      |r|=6.889e-01 (ITERATING)

# TAO   0, KSP   8      |r|=5.514e-01 (ITERATING)

# TAO   0, KSP   9      |r|=4.562e-01 (ITERATING)

# TAO   0, KSP  10      |r|=4.142e-01 (ITERATING)

# TAO   0, KSP  11      |r|=3.668e-01 (ITERATING)

# TAO   0, KSP  12      |r|=3.545e-01 (ITERATING)

# TAO   0, KSP  13      |r|=3.354e-01 (ITERATING)

# TAO   0, KSP  14      |r|=3.454e-01 (ITERATING)

# TAO   0, KSP  15      |r|=4.536e-01 (ITERATING)

# TAO   0, KSP  16      |r|=6.075e-01 (ITERATING)

# TAO   0, KSP  17      |r|=4.158e-01 (ITERATING)

# TAO   0, KSP  18      |r|=2.416e-01 (ITERATING)

# TAO   0, KSP  19      |r|=1.966e-01 (ITERATING)

# TAO   0, KSP  20      |r|=2.202e-01 (ITERATING)

# TAO   0, KSP  21      |r|=2.420e-01 (ITERATING)

# TAO   0, KSP  22      |r|=2.436e-01 (ITERATING)

# TAO   0, KSP  23      |r|=2.175e-01 (ITERATING)

# TAO   0, KSP  24      |r|=1.890e-01 (ITERATING)

# TAO   0, KSP  25      |r|=1.692e-01 (ITERATING)

# TAO   0, KSP  26      |r|=1.518e-01 (ITERATING)

# TAO   0, KSP  27      |r|=1.471e-01 (ITERATING)

# TAO   0, KSP  28      |r|=1.306e-01 (ITERATING)

# TAO   0, KSP  29      |r|=1.158e-01 (ITERATING)

# TAO   0, KSP  30      |r|=9.761e-02 (ITERATING)

# TAO   0, KSP  31      |r|=7.886e-02 (ITERATING)

# TAO   0, KSP  32      |r|=6.115e-02 (ITERATING)

# TAO   0, KSP  33      |r|=5.715e-02 (ITERATING)

# TAO   0, KSP  34      |r|=5.854e-02 (ITERATING)

# TAO   0, KSP  35      |r|=4.689e-02 (ITERATING)

# TAO   0, KSP  36      |r|=4.400e-02 (ITERATING)

# TAO   0, KSP  37      |r|=4.452e-02 (ITERATING)

# TAO   0, KSP  38      |r|=3.839e-02 (ITERATING)

# TAO   0, KSP  39      |r|=3.171e-02 (ITERATING)

# TAO   0, KSP  40      |r|=2.883e-02 (ITERATING)

# TAO   0, KSP  41      |r|=2.665e-02 (ITERATING)

# TAO   0, KSP  42      |r|=2.426e-02 (ITERATING)

# TAO   0, KSP  43      |r|=2.291e-02 (ITERATING)

# TAO   0, KSP  44      |r|=2.208e-02 (ITERATING)

# TAO   0, KSP  45      |r|=2.074e-02 (ITERATING)

# TAO   0, KSP  46      |r|=2.068e-02 (ITERATING)

# TAO   0, KSP  47      |r|=2.006e-02 (ITERATING)

# TAO   0, KSP  48      |r|=2.109e-02 (ITERATING)

# TAO   0, KSP  49      |r|=1.945e-02 (ITERATING)

# TAO   0, KSP  50      |r|=1.685e-02 (ITERATING)

# TAO   0, KSP  51      |r|=1.593e-02 (ITERATING)

# TAO   0, KSP  52      |r|=1.400e-02 (ITERATING)

# TAO   0, KSP  53      |r|=1.151e-02 (ITERATING)

# TAO   0, KSP  54      |r|=9.060e-03 (ITERATING)

# TAO   0, KSP  55      |r|=6.235e-03 (ITERATING)

# TAO   0, KSP  56      |r|=4.770e-03 (ITERATING)

# TAO   0, KSP  57      |r|=4.031e-03 (ITERATING)

# TAO   0, KSP  58      |r|=3.124e-03 (ITERATING)

# TAO   0, KSP  59      |r|=2.256e-03 (ITERATING)

# TAO   0, KSP  60      |r|=1.861e-03 (ITERATING)

# TAO   0, KSP  61      |r|=1.357e-03 (ITERATING)

# TAO   0, KSP  62      |r|=1.042e-03 (ITERATING)

# TAO   0, KSP  63      |r|=8.524e-04 (ITERATING)

# TAO   0, KSP  64      |r|=6.829e-04 (ITERATING)

# TAO   0, KSP  65      |r|=5.768e-04 (ITERATING)

# TAO   0, KSP  66      |r|=4.972e-04 (ITERATING)

# TAO   0, KSP  67      |r|=4.355e-04 (ITERATING)

# TAO   0, KSP  68      |r|=3.794e-04 (ITERATING)

# TAO   0, KSP  69      |r|=3.168e-04 (ITERATING)

# TAO   0, KSP  70      |r|=2.626e-04 (ITERATING)

# TAO   0, KSP  71      |r|=2.245e-04 (ITERATING)

# TAO   0, KSP  72      |r|=2.027e-04 (ITERATING)

# TAO   0, KSP  73      |r|=1.801e-04 (ITERATING)

# TAO   0, KSP  74      |r|=1.584e-04 (ITERATING)

# TAO   0, KSP  75      |r|=1.230e-04 (ITERATING)

# TAO   0, KSP  76      |r|=1.143e-04 (ITERATING)

# TAO   0, KSP  77      |r|=1.045e-04 (ITERATING)

# TAO   0, KSP  78      |r|=8.609e-05 (ITERATING)

# TAO   0, KSP  79      |r|=7.796e-05 (ITERATING)

# TAO   0, KSP  80      |r|=6.974e-05 (ITERATING)

# TAO   0, KSP  81      |r|=6.108e-05 (ITERATING)

# TAO   0, KSP  82      |r|=5.768e-05 (ITERATING)

# TAO   0, KSP  83      |r|=5.293e-05 (ITERATING)

# TAO   0, KSP  84      |r|=4.622e-05 (ITERATING)

# TAO   0, KSP  85      |r|=4.325e-05 (ITERATING)

# TAO   0, KSP  86      |r|=4.150e-05 (ITERATING)

# TAO   0, KSP  87      |r|=4.223e-05 (ITERATING)

# TAO   0, KSP  88      |r|=4.420e-05 (ITERATING)

# TAO   0, KSP  89      |r|=4.076e-05 (ITERATING)

# TAO   0, KSP  90      |r|=3.351e-05 (ITERATING)

# TAO   0, KSP  91      |r|=2.471e-05 (ITERATING)

# TAO   0, KSP  92      |r|=1.993e-05 (ITERATING)

# TAO   1 (ITERATING)

# sub   0 [ 16k] |x|=3.581e+01 |J|=2.297e+00 (g_linear)

# all            |x|=3.581e+01 |J|=2.297e+00 |H|=5.680e+02 f=1.304e+01

# TAO   1, KSP   0      |r|=2.297e+00 (ITERATING)

# TAO   1, KSP   1      |r|=1.589e+00 (ITERATING)

# TAO   1, KSP   2      |r|=8.738e-01 (ITERATING)

# TAO   1, KSP   3      |r|=5.927e-01 (ITERATING)

# TAO   1, KSP   4      |r|=4.682e-01 (ITERATING)

# TAO   1, KSP   5      |r|=3.243e-01 (ITERATING)

# TAO   1, KSP   6      |r|=2.389e-01 (ITERATING)

# TAO   1, KSP   7      |r|=1.994e-01 (ITERATING)

# TAO   1, KSP   8      |r|=1.922e-01 (ITERATING)

# TAO   1, KSP   9      |r|=1.940e-01 (ITERATING)

# TAO   1, KSP  10      |r|=1.875e-01 (ITERATING)

# TAO   1, KSP  11      |r|=1.622e-01 (ITERATING)

# TAO   1, KSP  12      |r|=1.347e-01 (ITERATING)

# TAO   1, KSP  13      |r|=1.148e-01 (ITERATING)

# TAO   1, KSP  14      |r|=1.028e-01 (ITERATING)

# TAO   1, KSP  15      |r|=1.007e-01 (ITERATING)

# TAO   1, KSP  16      |r|=9.509e-02 (ITERATING)

# TAO   1, KSP  17      |r|=9.444e-02 (ITERATING)

# TAO   1, KSP  18      |r|=1.043e-01 (ITERATING)

# TAO   1, KSP  19      |r|=1.140e-01 (ITERATING)

# TAO   1, KSP  20      |r|=1.021e-01 (ITERATING)

# TAO   1, KSP  21      |r|=8.165e-02 (ITERATING)

# TAO   1, KSP  22      |r|=8.297e-02 (ITERATING)

# TAO   1, KSP  23      |r|=6.873e-02 (ITERATING)

# TAO   1, KSP  24      |r|=4.779e-02 (ITERATING)

# TAO   1, KSP  25      |r|=3.462e-02 (ITERATING)

# TAO   1, KSP  26      |r|=2.687e-02 (ITERATING)

# TAO   1, KSP  27      |r|=2.515e-02 (ITERATING)

# TAO   1, KSP  28      |r|=2.604e-02 (ITERATING)

# TAO   1, KSP  29      |r|=2.780e-02 (ITERATING)

# TAO   1, KSP  30      |r|=2.852e-02 (ITERATING)

# TAO   1, KSP  31      |r|=2.775e-02 (ITERATING)

# TAO   1, KSP  32      |r|=2.700e-02 (ITERATING)

# TAO   1, KSP  33      |r|=2.494e-02 (ITERATING)

# TAO   1, KSP  34      |r|=2.371e-02 (ITERATING)

# TAO   1, KSP  35      |r|=2.029e-02 (ITERATING)

# TAO   1, KSP  36      |r|=1.546e-02 (ITERATING)

# TAO   1, KSP  37      |r|=1.266e-02 (ITERATING)

# TAO   1, KSP  38      |r|=1.035e-02 (ITERATING)

# TAO   1, KSP  39      |r|=8.632e-03 (ITERATING)

# TAO   1, KSP  40      |r|=7.557e-03 (ITERATING)

# TAO   1, KSP  41      |r|=6.693e-03 (ITERATING)

# TAO   1, KSP  42      |r|=5.168e-03 (ITERATING)

# TAO   1, KSP  43      |r|=4.172e-03 (ITERATING)

# TAO   1, KSP  44      |r|=4.039e-03 (ITERATING)

# TAO   1, KSP  45      |r|=3.550e-03 (ITERATING)

# TAO   1, KSP  46      |r|=3.356e-03 (ITERATING)

# TAO   1, KSP  47      |r|=2.857e-03 (ITERATING)

# TAO   1, KSP  48      |r|=2.197e-03 (ITERATING)

# TAO   1, KSP  49      |r|=1.768e-03 (ITERATING)

# TAO   1, KSP  50      |r|=1.438e-03 (ITERATING)

# TAO   1, KSP  51      |r|=1.215e-03 (ITERATING)

# TAO   1, KSP  52      |r|=1.007e-03 (ITERATING)

# TAO   1, KSP  53      |r|=8.858e-04 (ITERATING)

# TAO   1, KSP  54      |r|=8.289e-04 (ITERATING)

# TAO   1, KSP  55      |r|=6.889e-04 (ITERATING)

# TAO   1, KSP  56      |r|=6.545e-04 (ITERATING)

# TAO   1, KSP  57      |r|=6.251e-04 (ITERATING)

# TAO   1, KSP  58      |r|=5.259e-04 (ITERATING)

# TAO   1, KSP  59      |r|=4.152e-04 (ITERATING)

# TAO   1, KSP  60      |r|=2.926e-04 (ITERATING)

# TAO   1, KSP  61      |r|=2.361e-04 (ITERATING)

# TAO   1, KSP  62      |r|=2.329e-04 (ITERATING)

# TAO   1, KSP  63      |r|=2.039e-04 (ITERATING)

# TAO   1, KSP  64      |r|=1.782e-04 (ITERATING)

# TAO   1, KSP  65      |r|=1.620e-04 (ITERATING)

# TAO   1, KSP  66      |r|=1.243e-04 (ITERATING)

# TAO   1, KSP  67      |r|=9.533e-05 (ITERATING)

# TAO   1, KSP  68      |r|=7.665e-05 (ITERATING)

# TAO   1, KSP  69      |r|=6.523e-05 (ITERATING)

# TAO   1, KSP  70      |r|=5.458e-05 (ITERATING)

# TAO   1, KSP  71      |r|=4.509e-05 (ITERATING)

# TAO   1, KSP  72      |r|=3.613e-05 (ITERATING)

# TAO   1, KSP  73      |r|=2.906e-05 (ITERATING)

# TAO   1, KSP  74      |r|=2.326e-05 (ITERATING)

# TAO   1, KSP  75      |r|=2.029e-05 (ITERATING)

# TAO   2 (ITERATING)

# sub   0 [ 16k] |x|=3.815e+01 |J|=2.106e+00 (g_linear)

# all            |x|=3.815e+01 |J|=2.106e+00 |H|=5.680e+02 f=1.120e+01

# TAO   2, KSP   0      |r|=2.106e+00 (ITERATING)

# TAO   2, KSP   1      |r|=1.415e+00 (ITERATING)

# TAO   2, KSP   2      |r|=4.948e-01 (ITERATING)

# TAO   2, KSP   3      |r|=1.933e-01 (ITERATING)

# TAO   2, KSP   4      |r|=9.659e-02 (ITERATING)

# TAO   2, KSP   5      |r|=5.870e-02 (ITERATING)

# TAO   2, KSP   6      |r|=4.463e-02 (ITERATING)

# TAO   2, KSP   7      |r|=3.615e-02 (ITERATING)

# TAO   2, KSP   8      |r|=3.134e-02 (ITERATING)

# TAO   2, KSP   9      |r|=2.775e-02 (ITERATING)

# TAO   2, KSP  10      |r|=2.396e-02 (ITERATING)

# TAO   2, KSP  11      |r|=2.053e-02 (ITERATING)

# TAO   2, KSP  12      |r|=1.740e-02 (ITERATING)

# TAO   2, KSP  13      |r|=1.435e-02 (ITERATING)

# TAO   2, KSP  14      |r|=1.210e-02 (ITERATING)

# TAO   2, KSP  15      |r|=1.025e-02 (ITERATING)

# TAO   2, KSP  16      |r|=8.609e-03 (ITERATING)

# TAO   2, KSP  17      |r|=7.616e-03 (ITERATING)

# TAO   2, KSP  18      |r|=7.205e-03 (ITERATING)

# TAO   2, KSP  19      |r|=6.963e-03 (ITERATING)

# TAO   2, KSP  20      |r|=5.806e-03 (ITERATING)

# TAO   2, KSP  21      |r|=5.010e-03 (ITERATING)

# TAO   2, KSP  22      |r|=4.863e-03 (ITERATING)

# TAO   2, KSP  23      |r|=5.253e-03 (ITERATING)

# TAO   2, KSP  24      |r|=4.749e-03 (ITERATING)

# TAO   2, KSP  25      |r|=3.986e-03 (ITERATING)

# TAO   2, KSP  26      |r|=3.335e-03 (ITERATING)

# TAO   2, KSP  27      |r|=2.405e-03 (ITERATING)

# TAO   2, KSP  28      |r|=2.009e-03 (ITERATING)

# TAO   2, KSP  29      |r|=1.833e-03 (ITERATING)

# TAO   2, KSP  30      |r|=1.771e-03 (ITERATING)

# TAO   2, KSP  31      |r|=1.759e-03 (ITERATING)

# TAO   2, KSP  32      |r|=1.684e-03 (ITERATING)

# TAO   2, KSP  33      |r|=1.653e-03 (ITERATING)

# TAO   2, KSP  34      |r|=1.570e-03 (ITERATING)

# TAO   2, KSP  35      |r|=1.509e-03 (ITERATING)

# TAO   2, KSP  36      |r|=1.372e-03 (ITERATING)

# TAO   2, KSP  37      |r|=1.198e-03 (ITERATING)

# TAO   2, KSP  38      |r|=1.025e-03 (ITERATING)

# TAO   2, KSP  39      |r|=9.651e-04 (ITERATING)

# TAO   2, KSP  40      |r|=8.392e-04 (ITERATING)

# TAO   2, KSP  41      |r|=5.997e-04 (ITERATING)

# TAO   2, KSP  42      |r|=4.200e-04 (ITERATING)

# TAO   2, KSP  43      |r|=3.202e-04 (ITERATING)

# TAO   2, KSP  44      |r|=2.614e-04 (ITERATING)

# TAO   2, KSP  45      |r|=2.264e-04 (ITERATING)

# TAO   2, KSP  46      |r|=2.025e-04 (ITERATING)

# TAO   2, KSP  47      |r|=1.856e-04 (ITERATING)

# TAO   2, KSP  48      |r|=1.901e-04 (ITERATING)

# TAO   2, KSP  49      |r|=1.775e-04 (ITERATING)

# TAO   2, KSP  50      |r|=1.609e-04 (ITERATING)

# TAO   2, KSP  51      |r|=1.380e-04 (ITERATING)

# TAO   2, KSP  52      |r|=1.139e-04 (ITERATING)

# TAO   2, KSP  53      |r|=9.104e-05 (ITERATING)

# TAO   2, KSP  54      |r|=7.549e-05 (ITERATING)

# TAO   2, KSP  55      |r|=6.585e-05 (ITERATING)

# TAO   2, KSP  56      |r|=5.386e-05 (ITERATING)

# TAO   2, KSP  57      |r|=4.387e-05 (ITERATING)

# TAO   2, KSP  58      |r|=3.470e-05 (ITERATING)

# TAO   2, KSP  59      |r|=2.936e-05 (ITERATING)

# TAO   2, KSP  60      |r|=2.775e-05 (ITERATING)

# TAO   2, KSP  61      |r|=2.393e-05 (ITERATING)

# TAO   2, KSP  62      |r|=1.997e-05 (ITERATING)

# TAO   3 (ITERATING)

# sub   0 [ 16k] |x|=4.126e+01 |J|=1.872e+00 (g_linear)

# all            |x|=4.126e+01 |J|=1.872e+00 |H|=5.680e+02 f=9.660e+00

# TAO   3, KSP   0      |r|=1.872e+00 (ITERATING)

# TAO   3, KSP   1      |r|=1.280e+00 (ITERATING)

# TAO   3, KSP   2      |r|=5.014e-01 (ITERATING)

# TAO   3, KSP   3      |r|=1.867e-01 (ITERATING)

# TAO   3, KSP   4      |r|=1.009e-01 (ITERATING)

# TAO   3, KSP   5      |r|=6.423e-02 (ITERATING)

# TAO   3, KSP   6      |r|=4.826e-02 (ITERATING)

# TAO   3, KSP   7      |r|=3.740e-02 (ITERATING)

# TAO   3, KSP   8      |r|=3.174e-02 (ITERATING)

# TAO   3, KSP   9      |r|=2.732e-02 (ITERATING)

# TAO   3, KSP  10      |r|=2.363e-02 (ITERATING)

# TAO   3, KSP  11      |r|=2.120e-02 (ITERATING)

# TAO   3, KSP  12      |r|=1.874e-02 (ITERATING)

# TAO   3, KSP  13      |r|=1.613e-02 (ITERATING)

# TAO   3, KSP  14      |r|=1.388e-02 (ITERATING)

# TAO   3, KSP  15      |r|=1.192e-02 (ITERATING)

# TAO   3, KSP  16      |r|=9.831e-03 (ITERATING)

# TAO   3, KSP  17      |r|=8.372e-03 (ITERATING)

# TAO   3, KSP  18      |r|=7.222e-03 (ITERATING)

# TAO   3, KSP  19      |r|=6.144e-03 (ITERATING)

# TAO   3, KSP  20      |r|=5.257e-03 (ITERATING)

# TAO   3, KSP  21      |r|=4.305e-03 (ITERATING)

# TAO   3, KSP  22      |r|=3.744e-03 (ITERATING)

# TAO   3, KSP  23      |r|=3.855e-03 (ITERATING)

# TAO   3, KSP  24      |r|=3.818e-03 (ITERATING)

# TAO   3, KSP  25      |r|=3.331e-03 (ITERATING)

# TAO   3, KSP  26      |r|=2.929e-03 (ITERATING)

# TAO   3, KSP  27      |r|=2.460e-03 (ITERATING)

# TAO   3, KSP  28      |r|=1.953e-03 (ITERATING)

# TAO   3, KSP  29      |r|=1.590e-03 (ITERATING)

# TAO   3, KSP  30      |r|=1.280e-03 (ITERATING)

# TAO   3, KSP  31      |r|=1.043e-03 (ITERATING)

# TAO   3, KSP  32      |r|=8.727e-04 (ITERATING)

# TAO   3, KSP  33      |r|=7.208e-04 (ITERATING)

# TAO   3, KSP  34      |r|=6.118e-04 (ITERATING)

# TAO   3, KSP  35      |r|=5.350e-04 (ITERATING)

# TAO   3, KSP  36      |r|=4.625e-04 (ITERATING)

# TAO   3, KSP  37      |r|=4.294e-04 (ITERATING)

# TAO   3, KSP  38      |r|=3.963e-04 (ITERATING)

# TAO   3, KSP  39      |r|=3.619e-04 (ITERATING)

# TAO   3, KSP  40      |r|=3.357e-04 (ITERATING)

# TAO   3, KSP  41      |r|=3.243e-04 (ITERATING)

# TAO   3, KSP  42      |r|=2.880e-04 (ITERATING)

# TAO   3, KSP  43      |r|=2.557e-04 (ITERATING)

# TAO   3, KSP  44      |r|=2.377e-04 (ITERATING)

# TAO   3, KSP  45      |r|=2.004e-04 (ITERATING)

# TAO   3, KSP  46      |r|=1.602e-04 (ITERATING)

# TAO   3, KSP  47      |r|=1.339e-04 (ITERATING)

# TAO   3, KSP  48      |r|=1.039e-04 (ITERATING)

# TAO   3, KSP  49      |r|=7.744e-05 (ITERATING)

# TAO   3, KSP  50      |r|=6.304e-05 (ITERATING)

# TAO   3, KSP  51      |r|=5.408e-05 (ITERATING)

# TAO   3, KSP  52      |r|=5.041e-05 (ITERATING)

# TAO   3, KSP  53      |r|=5.300e-05 (ITERATING)

# TAO   3, KSP  54      |r|=5.682e-05 (ITERATING)

# TAO   3, KSP  55      |r|=5.506e-05 (ITERATING)

# TAO   3, KSP  56      |r|=4.916e-05 (ITERATING)

# TAO   3, KSP  57      |r|=4.635e-05 (ITERATING)

# TAO   3, KSP  58      |r|=4.193e-05 (ITERATING)

# TAO   3, KSP  59      |r|=3.835e-05 (ITERATING)

# TAO   3, KSP  60      |r|=3.509e-05 (ITERATING)

# TAO   3, KSP  61      |r|=2.935e-05 (ITERATING)

# TAO   3, KSP  62      |r|=2.591e-05 (ITERATING)

# TAO   3, KSP  63      |r|=2.221e-05 (ITERATING)

# TAO   3, KSP  64      |r|=1.897e-05 (ITERATING)

# TAO   3, KSP  65      |r|=1.697e-05 (ITERATING)

# TAO   4 (ITERATING)

# sub   0 [ 16k] |x|=4.464e+01 |J|=1.614e+00 (g_linear)

# all            |x|=4.464e+01 |J|=1.614e+00 |H|=5.680e+02 f=8.482e+00

# TAO   4, KSP   0      |r|=1.614e+00 (ITERATING)

# TAO   4, KSP   1      |r|=1.047e+00 (ITERATING)

# TAO   4, KSP   2      |r|=3.879e-01 (ITERATING)

# TAO   4, KSP   3      |r|=1.560e-01 (ITERATING)

# TAO   4, KSP   4      |r|=8.142e-02 (ITERATING)

# TAO   4, KSP   5      |r|=5.071e-02 (ITERATING)

# TAO   4, KSP   6      |r|=3.877e-02 (ITERATING)

# TAO   4, KSP   7      |r|=3.238e-02 (ITERATING)

# TAO   4, KSP   8      |r|=2.974e-02 (ITERATING)

# TAO   4, KSP   9      |r|=2.740e-02 (ITERATING)

# TAO   4, KSP  10      |r|=2.545e-02 (ITERATING)

# TAO   4, KSP  11      |r|=2.321e-02 (ITERATING)

# TAO   4, KSP  12      |r|=2.049e-02 (ITERATING)

# TAO   4, KSP  13      |r|=1.748e-02 (ITERATING)

# TAO   4, KSP  14      |r|=1.460e-02 (ITERATING)

# TAO   4, KSP  15      |r|=1.230e-02 (ITERATING)

# TAO   4, KSP  16      |r|=1.036e-02 (ITERATING)

# TAO   4, KSP  17      |r|=8.583e-03 (ITERATING)

# TAO   4, KSP  18      |r|=7.344e-03 (ITERATING)

# TAO   4, KSP  19      |r|=6.396e-03 (ITERATING)

# TAO   4, KSP  20      |r|=6.073e-03 (ITERATING)

# TAO   4, KSP  21      |r|=5.529e-03 (ITERATING)

# TAO   4, KSP  22      |r|=4.917e-03 (ITERATING)

# TAO   4, KSP  23      |r|=4.366e-03 (ITERATING)

# TAO   4, KSP  24      |r|=4.388e-03 (ITERATING)

# TAO   4, KSP  25      |r|=4.545e-03 (ITERATING)

# TAO   4, KSP  26      |r|=4.070e-03 (ITERATING)

# TAO   4, KSP  27      |r|=3.235e-03 (ITERATING)

# TAO   4, KSP  28      |r|=2.426e-03 (ITERATING)

# TAO   4, KSP  29      |r|=1.816e-03 (ITERATING)

# TAO   4, KSP  30      |r|=1.442e-03 (ITERATING)

# TAO   4, KSP  31      |r|=1.272e-03 (ITERATING)

# TAO   4, KSP  32      |r|=1.226e-03 (ITERATING)

# TAO   4, KSP  33      |r|=1.245e-03 (ITERATING)

# TAO   4, KSP  34      |r|=1.219e-03 (ITERATING)

# TAO   4, KSP  35      |r|=1.118e-03 (ITERATING)

# TAO   4, KSP  36      |r|=1.046e-03 (ITERATING)

# TAO   4, KSP  37      |r|=1.004e-03 (ITERATING)

# TAO   4, KSP  38      |r|=1.005e-03 (ITERATING)

# TAO   4, KSP  39      |r|=9.420e-04 (ITERATING)

# TAO   4, KSP  40      |r|=8.658e-04 (ITERATING)

# TAO   4, KSP  41      |r|=7.890e-04 (ITERATING)

# TAO   4, KSP  42      |r|=7.349e-04 (ITERATING)

# TAO   4, KSP  43      |r|=6.280e-04 (ITERATING)

# TAO   4, KSP  44      |r|=5.356e-04 (ITERATING)

# TAO   4, KSP  45      |r|=4.484e-04 (ITERATING)

# TAO   4, KSP  46      |r|=3.663e-04 (ITERATING)

# TAO   4, KSP  47      |r|=3.021e-04 (ITERATING)

# TAO   4, KSP  48      |r|=2.305e-04 (ITERATING)

# TAO   4, KSP  49      |r|=2.013e-04 (ITERATING)

# TAO   4, KSP  50      |r|=1.797e-04 (ITERATING)

# TAO   4, KSP  51      |r|=1.649e-04 (ITERATING)

# TAO   4, KSP  52      |r|=1.520e-04 (ITERATING)

# TAO   4, KSP  53      |r|=1.415e-04 (ITERATING)

# TAO   4, KSP  54      |r|=1.167e-04 (ITERATING)

# TAO   4, KSP  55      |r|=1.011e-04 (ITERATING)

# TAO   4, KSP  56      |r|=8.200e-05 (ITERATING)

# TAO   4, KSP  57      |r|=6.975e-05 (ITERATING)

# TAO   4, KSP  58      |r|=6.377e-05 (ITERATING)

# TAO   4, KSP  59      |r|=5.670e-05 (ITERATING)

# TAO   4, KSP  60      |r|=4.935e-05 (ITERATING)

# TAO   4, KSP  61      |r|=4.187e-05 (ITERATING)

# TAO   4, KSP  62      |r|=3.788e-05 (ITERATING)

# TAO   4, KSP  63      |r|=3.290e-05 (ITERATING)

# TAO   4, KSP  64      |r|=2.977e-05 (ITERATING)

# TAO   4, KSP  65      |r|=2.618e-05 (ITERATING)

# TAO   4, KSP  66      |r|=2.291e-05 (ITERATING)

# TAO   4, KSP  67      |r|=2.050e-05 (ITERATING)

# TAO   4, KSP  68      |r|=1.715e-05 (ITERATING)

# TAO   4, KSP  69      |r|=1.316e-05 (ITERATING)

# TAO   5 (ITERATING)

# sub   0 [ 16k] |x|=4.801e+01 |J|=1.340e+00 (g_linear)

# all            |x|=4.801e+01 |J|=1.340e+00 |H|=5.680e+02 f=7.619e+00

# TAO   5, KSP   0      |r|=1.340e+00 (ITERATING)

# TAO   5, KSP   1      |r|=8.646e-01 (ITERATING)

# TAO   5, KSP   2      |r|=3.268e-01 (ITERATING)

# TAO   5, KSP   3      |r|=1.339e-01 (ITERATING)

# TAO   5, KSP   4      |r|=7.308e-02 (ITERATING)

# TAO   5, KSP   5      |r|=4.699e-02 (ITERATING)

# TAO   5, KSP   6      |r|=3.704e-02 (ITERATING)

# TAO   5, KSP   7      |r|=3.058e-02 (ITERATING)

# TAO   5, KSP   8      |r|=2.733e-02 (ITERATING)

# TAO   5, KSP   9      |r|=2.463e-02 (ITERATING)

# TAO   5, KSP  10      |r|=2.280e-02 (ITERATING)

# TAO   5, KSP  11      |r|=2.153e-02 (ITERATING)

# TAO   5, KSP  12      |r|=1.983e-02 (ITERATING)

# TAO   5, KSP  13      |r|=1.754e-02 (ITERATING)

# TAO   5, KSP  14      |r|=1.513e-02 (ITERATING)

# TAO   5, KSP  15      |r|=1.305e-02 (ITERATING)

# TAO   5, KSP  16      |r|=1.112e-02 (ITERATING)

# TAO   5, KSP  17      |r|=9.164e-03 (ITERATING)

# TAO   5, KSP  18      |r|=7.382e-03 (ITERATING)

# TAO   5, KSP  19      |r|=6.217e-03 (ITERATING)

# TAO   5, KSP  20      |r|=5.510e-03 (ITERATING)

# TAO   5, KSP  21      |r|=5.052e-03 (ITERATING)

# TAO   5, KSP  22      |r|=4.674e-03 (ITERATING)

# TAO   5, KSP  23      |r|=4.377e-03 (ITERATING)

# TAO   5, KSP  24      |r|=3.979e-03 (ITERATING)

# TAO   5, KSP  25      |r|=3.893e-03 (ITERATING)

# TAO   5, KSP  26      |r|=3.951e-03 (ITERATING)

# TAO   5, KSP  27      |r|=3.494e-03 (ITERATING)

# TAO   5, KSP  28      |r|=2.639e-03 (ITERATING)

# TAO   5, KSP  29      |r|=1.891e-03 (ITERATING)

# TAO   5, KSP  30      |r|=1.369e-03 (ITERATING)

# TAO   5, KSP  31      |r|=1.172e-03 (ITERATING)

# TAO   5, KSP  32      |r|=1.142e-03 (ITERATING)

# TAO   5, KSP  33      |r|=1.171e-03 (ITERATING)

# TAO   5, KSP  34      |r|=1.203e-03 (ITERATING)

# TAO   5, KSP  35      |r|=1.149e-03 (ITERATING)

# TAO   5, KSP  36      |r|=1.077e-03 (ITERATING)

# TAO   5, KSP  37      |r|=9.848e-04 (ITERATING)

# TAO   5, KSP  38      |r|=9.640e-04 (ITERATING)

# TAO   5, KSP  39      |r|=9.186e-04 (ITERATING)

# TAO   5, KSP  40      |r|=8.350e-04 (ITERATING)

# TAO   5, KSP  41      |r|=7.052e-04 (ITERATING)

# TAO   5, KSP  42      |r|=6.430e-04 (ITERATING)

# TAO   5, KSP  43      |r|=6.257e-04 (ITERATING)

# TAO   5, KSP  44      |r|=5.698e-04 (ITERATING)

# TAO   5, KSP  45      |r|=4.857e-04 (ITERATING)

# TAO   5, KSP  46      |r|=4.281e-04 (ITERATING)

# TAO   5, KSP  47      |r|=3.641e-04 (ITERATING)

# TAO   5, KSP  48      |r|=2.985e-04 (ITERATING)

# TAO   5, KSP  49      |r|=2.508e-04 (ITERATING)

# TAO   5, KSP  50      |r|=1.870e-04 (ITERATING)

# TAO   5, KSP  51      |r|=1.602e-04 (ITERATING)

# TAO   5, KSP  52      |r|=1.534e-04 (ITERATING)

# TAO   5, KSP  53      |r|=1.476e-04 (ITERATING)

# TAO   5, KSP  54      |r|=1.292e-04 (ITERATING)

# TAO   5, KSP  55      |r|=1.115e-04 (ITERATING)

# TAO   5, KSP  56      |r|=8.999e-05 (ITERATING)

# TAO   5, KSP  57      |r|=6.888e-05 (ITERATING)

# TAO   5, KSP  58      |r|=5.654e-05 (ITERATING)

# TAO   5, KSP  59      |r|=4.659e-05 (ITERATING)

# TAO   5, KSP  60      |r|=4.323e-05 (ITERATING)

# TAO   5, KSP  61      |r|=3.566e-05 (ITERATING)

# TAO   5, KSP  62      |r|=3.193e-05 (ITERATING)

# TAO   5, KSP  63      |r|=2.901e-05 (ITERATING)

# TAO   5, KSP  64      |r|=2.558e-05 (ITERATING)

# TAO   5, KSP  65      |r|=2.387e-05 (ITERATING)

# TAO   5, KSP  66      |r|=2.351e-05 (ITERATING)

# TAO   5, KSP  67      |r|=2.099e-05 (ITERATING)

# TAO   5, KSP  68      |r|=1.777e-05 (ITERATING)

# TAO   5, KSP  69      |r|=1.548e-05 (ITERATING)

# TAO   5, KSP  70      |r|=1.393e-05 (ITERATING)

# TAO   5, KSP  71      |r|=1.233e-05 (ITERATING)

# TAO   6 (ITERATING)

# sub   0 [ 16k] |x|=5.108e+01 |J|=1.064e+00 (g_linear)

# all            |x|=5.108e+01 |J|=1.064e+00 |H|=5.680e+02 f=7.033e+00

# TAO   6, KSP   0      |r|=1.064e+00 (ITERATING)

# TAO   6, KSP   1      |r|=6.833e-01 (ITERATING)

# TAO   6, KSP   2      |r|=2.623e-01 (ITERATING)

# TAO   6, KSP   3      |r|=1.081e-01 (ITERATING)

# TAO   6, KSP   4      |r|=5.611e-02 (ITERATING)

# TAO   6, KSP   5      |r|=3.354e-02 (ITERATING)

# TAO   6, KSP   6      |r|=2.499e-02 (ITERATING)

# TAO   6, KSP   7      |r|=1.993e-02 (ITERATING)

# TAO   6, KSP   8      |r|=1.755e-02 (ITERATING)

# TAO   6, KSP   9      |r|=1.532e-02 (ITERATING)

# TAO   6, KSP  10      |r|=1.358e-02 (ITERATING)

# TAO   6, KSP  11      |r|=1.210e-02 (ITERATING)

# TAO   6, KSP  12      |r|=1.090e-02 (ITERATING)

# TAO   6, KSP  13      |r|=9.808e-03 (ITERATING)

# TAO   6, KSP  14      |r|=9.013e-03 (ITERATING)

# TAO   6, KSP  15      |r|=8.278e-03 (ITERATING)

# TAO   6, KSP  16      |r|=7.571e-03 (ITERATING)

# TAO   6, KSP  17      |r|=6.942e-03 (ITERATING)

# TAO   6, KSP  18      |r|=6.222e-03 (ITERATING)

# TAO   6, KSP  19      |r|=5.350e-03 (ITERATING)

# TAO   6, KSP  20      |r|=4.680e-03 (ITERATING)

# TAO   6, KSP  21      |r|=4.234e-03 (ITERATING)

# TAO   6, KSP  22      |r|=4.024e-03 (ITERATING)

# TAO   6, KSP  23      |r|=4.191e-03 (ITERATING)

# TAO   6, KSP  24      |r|=4.310e-03 (ITERATING)

# TAO   6, KSP  25      |r|=3.896e-03 (ITERATING)

# TAO   6, KSP  26      |r|=3.543e-03 (ITERATING)

# TAO   6, KSP  27      |r|=3.118e-03 (ITERATING)

# TAO   6, KSP  28      |r|=2.845e-03 (ITERATING)

# TAO   6, KSP  29      |r|=2.384e-03 (ITERATING)

# TAO   6, KSP  30      |r|=2.108e-03 (ITERATING)

# TAO   6, KSP  31      |r|=1.949e-03 (ITERATING)

# TAO   6, KSP  32      |r|=1.906e-03 (ITERATING)

# TAO   6, KSP  33      |r|=1.726e-03 (ITERATING)

# TAO   6, KSP  34      |r|=1.558e-03 (ITERATING)

# TAO   6, KSP  35      |r|=1.445e-03 (ITERATING)

# TAO   6, KSP  36      |r|=1.334e-03 (ITERATING)

# TAO   6, KSP  37      |r|=1.314e-03 (ITERATING)

# TAO   6, KSP  38      |r|=1.201e-03 (ITERATING)

# TAO   6, KSP  39      |r|=1.123e-03 (ITERATING)

# TAO   6, KSP  40      |r|=9.946e-04 (ITERATING)

# TAO   6, KSP  41      |r|=8.849e-04 (ITERATING)

# TAO   6, KSP  42      |r|=7.977e-04 (ITERATING)

# TAO   6, KSP  43      |r|=7.695e-04 (ITERATING)

# TAO   6, KSP  44      |r|=7.043e-04 (ITERATING)

# TAO   6, KSP  45      |r|=6.013e-04 (ITERATING)

# TAO   6, KSP  46      |r|=5.185e-04 (ITERATING)

# TAO   6, KSP  47      |r|=4.618e-04 (ITERATING)

# TAO   6, KSP  48      |r|=4.099e-04 (ITERATING)

# TAO   6, KSP  49      |r|=3.602e-04 (ITERATING)

# TAO   6, KSP  50      |r|=3.064e-04 (ITERATING)

# TAO   6, KSP  51      |r|=2.693e-04 (ITERATING)

# TAO   6, KSP  52      |r|=2.175e-04 (ITERATING)

# TAO   6, KSP  53      |r|=1.808e-04 (ITERATING)

# TAO   6, KSP  54      |r|=1.868e-04 (ITERATING)

# TAO   6, KSP  55      |r|=1.993e-04 (ITERATING)

# TAO   6, KSP  56      |r|=1.827e-04 (ITERATING)

# TAO   6, KSP  57      |r|=1.747e-04 (ITERATING)

# TAO   6, KSP  58      |r|=1.616e-04 (ITERATING)

# TAO   6, KSP  59      |r|=1.446e-04 (ITERATING)

# TAO   6, KSP  60      |r|=1.303e-04 (ITERATING)

# TAO   6, KSP  61      |r|=1.213e-04 (ITERATING)

# TAO   6, KSP  62      |r|=1.080e-04 (ITERATING)

# TAO   6, KSP  63      |r|=9.537e-05 (ITERATING)

# TAO   6, KSP  64      |r|=8.939e-05 (ITERATING)

# TAO   6, KSP  65      |r|=8.574e-05 (ITERATING)

# TAO   6, KSP  66      |r|=7.872e-05 (ITERATING)

# TAO   6, KSP  67      |r|=7.622e-05 (ITERATING)

# TAO   6, KSP  68      |r|=7.330e-05 (ITERATING)

# TAO   6, KSP  69      |r|=7.053e-05 (ITERATING)

# TAO   6, KSP  70      |r|=6.348e-05 (ITERATING)

# TAO   6, KSP  71      |r|=5.644e-05 (ITERATING)

# TAO   6, KSP  72      |r|=4.963e-05 (ITERATING)

# TAO   6, KSP  73      |r|=4.349e-05 (ITERATING)

# TAO   6, KSP  74      |r|=3.916e-05 (ITERATING)

# TAO   6, KSP  75      |r|=3.381e-05 (ITERATING)

# TAO   6, KSP  76      |r|=2.860e-05 (ITERATING)

# TAO   6, KSP  77      |r|=2.451e-05 (ITERATING)

# TAO   6, KSP  78      |r|=2.212e-05 (ITERATING)

# TAO   6, KSP  79      |r|=1.851e-05 (ITERATING)

# TAO   6, KSP  80      |r|=1.484e-05 (ITERATING)

# TAO   6, KSP  81      |r|=1.221e-05 (ITERATING)

# TAO   6, KSP  82      |r|=1.117e-05 (ITERATING)

# TAO   6, KSP  83      |r|=1.043e-05 (ITERATING)

# TAO   7 (ITERATING)

# sub   0 [ 16k] |x|=5.367e+01 |J|=7.905e-01 (g_linear)

# all            |x|=5.367e+01 |J|=7.905e-01 |H|=5.680e+02 f=6.673e+00

# TAO   7, KSP   0      |r|=7.905e-01 (ITERATING)

# TAO   7, KSP   1      |r|=4.984e-01 (ITERATING)

# TAO   7, KSP   2      |r|=2.037e-01 (ITERATING)

# TAO   7, KSP   3      |r|=8.509e-02 (ITERATING)

# TAO   7, KSP   4      |r|=4.409e-02 (ITERATING)

# TAO   7, KSP   5      |r|=2.709e-02 (ITERATING)

# TAO   7, KSP   6      |r|=2.102e-02 (ITERATING)

# TAO   7, KSP   7      |r|=1.788e-02 (ITERATING)

# TAO   7, KSP   8      |r|=1.605e-02 (ITERATING)

# TAO   7, KSP   9      |r|=1.401e-02 (ITERATING)

# TAO   7, KSP  10      |r|=1.222e-02 (ITERATING)

# TAO   7, KSP  11      |r|=1.066e-02 (ITERATING)

# TAO   7, KSP  12      |r|=9.421e-03 (ITERATING)

# TAO   7, KSP  13      |r|=8.407e-03 (ITERATING)

# TAO   7, KSP  14      |r|=7.624e-03 (ITERATING)

# TAO   7, KSP  15      |r|=6.963e-03 (ITERATING)

# TAO   7, KSP  16      |r|=6.324e-03 (ITERATING)

# TAO   7, KSP  17      |r|=5.772e-03 (ITERATING)

# TAO   7, KSP  18      |r|=5.284e-03 (ITERATING)

# TAO   7, KSP  19      |r|=4.862e-03 (ITERATING)

# TAO   7, KSP  20      |r|=4.477e-03 (ITERATING)

# TAO   7, KSP  21      |r|=4.144e-03 (ITERATING)

# TAO   7, KSP  22      |r|=3.854e-03 (ITERATING)

# TAO   7, KSP  23      |r|=3.489e-03 (ITERATING)

# TAO   7, KSP  24      |r|=3.640e-03 (ITERATING)

# TAO   7, KSP  25      |r|=3.909e-03 (ITERATING)

# TAO   7, KSP  26      |r|=3.694e-03 (ITERATING)

# TAO   7, KSP  27      |r|=3.366e-03 (ITERATING)

# TAO   7, KSP  28      |r|=3.009e-03 (ITERATING)

# TAO   7, KSP  29      |r|=2.935e-03 (ITERATING)

# TAO   7, KSP  30      |r|=2.425e-03 (ITERATING)

# TAO   7, KSP  31      |r|=1.933e-03 (ITERATING)

# TAO   7, KSP  32      |r|=1.563e-03 (ITERATING)

# TAO   7, KSP  33      |r|=1.314e-03 (ITERATING)

# TAO   7, KSP  34      |r|=1.119e-03 (ITERATING)

# TAO   7, KSP  35      |r|=9.610e-04 (ITERATING)

# TAO   7, KSP  36      |r|=8.754e-04 (ITERATING)

# TAO   7, KSP  37      |r|=8.232e-04 (ITERATING)

# TAO   7, KSP  38      |r|=7.511e-04 (ITERATING)

# TAO   7, KSP  39      |r|=6.850e-04 (ITERATING)

# TAO   7, KSP  40      |r|=6.383e-04 (ITERATING)

# TAO   7, KSP  41      |r|=5.882e-04 (ITERATING)

# TAO   7, KSP  42      |r|=5.402e-04 (ITERATING)

# TAO   7, KSP  43      |r|=4.977e-04 (ITERATING)

# TAO   7, KSP  44      |r|=4.394e-04 (ITERATING)

# TAO   7, KSP  45      |r|=3.911e-04 (ITERATING)

# TAO   7, KSP  46      |r|=3.422e-04 (ITERATING)

# TAO   7, KSP  47      |r|=3.051e-04 (ITERATING)

# TAO   7, KSP  48      |r|=2.703e-04 (ITERATING)

# TAO   7, KSP  49      |r|=2.441e-04 (ITERATING)

# TAO   7, KSP  50      |r|=2.199e-04 (ITERATING)

# TAO   7, KSP  51      |r|=1.898e-04 (ITERATING)

# TAO   7, KSP  52      |r|=1.621e-04 (ITERATING)

# TAO   7, KSP  53      |r|=1.592e-04 (ITERATING)

# TAO   7, KSP  54      |r|=1.489e-04 (ITERATING)

# TAO   7, KSP  55      |r|=1.264e-04 (ITERATING)

# TAO   7, KSP  56      |r|=1.226e-04 (ITERATING)

# TAO   7, KSP  57      |r|=1.262e-04 (ITERATING)

# TAO   7, KSP  58      |r|=1.254e-04 (ITERATING)

# TAO   7, KSP  59      |r|=1.221e-04 (ITERATING)

# TAO   7, KSP  60      |r|=1.209e-04 (ITERATING)

# TAO   7, KSP  61      |r|=1.110e-04 (ITERATING)

# TAO   7, KSP  62      |r|=1.002e-04 (ITERATING)

# TAO   7, KSP  63      |r|=8.980e-05 (ITERATING)

# TAO   7, KSP  64      |r|=7.907e-05 (ITERATING)

# TAO   7, KSP  65      |r|=7.238e-05 (ITERATING)

# TAO   7, KSP  66      |r|=6.654e-05 (ITERATING)

# TAO   7, KSP  67      |r|=5.773e-05 (ITERATING)

# TAO   7, KSP  68      |r|=5.159e-05 (ITERATING)

# TAO   7, KSP  69      |r|=4.768e-05 (ITERATING)

# TAO   7, KSP  70      |r|=4.287e-05 (ITERATING)

# TAO   7, KSP  71      |r|=3.803e-05 (ITERATING)

# TAO   7, KSP  72      |r|=3.396e-05 (ITERATING)

# TAO   7, KSP  73      |r|=3.031e-05 (ITERATING)

# TAO   7, KSP  74      |r|=2.649e-05 (ITERATING)

# TAO   7, KSP  75      |r|=2.427e-05 (ITERATING)

# TAO   7, KSP  76      |r|=2.159e-05 (ITERATING)

# TAO   7, KSP  77      |r|=1.989e-05 (ITERATING)

# TAO   7, KSP  78      |r|=1.801e-05 (ITERATING)

# TAO   7, KSP  79      |r|=1.660e-05 (ITERATING)

# TAO   7, KSP  80      |r|=1.511e-05 (ITERATING)

# TAO   7, KSP  81      |r|=1.449e-05 (ITERATING)

# TAO   7, KSP  82      |r|=1.344e-05 (ITERATING)

# TAO   7, KSP  83      |r|=1.122e-05 (ITERATING)

# TAO   7, KSP  84      |r|=9.060e-06 (ITERATING)

# TAO   7, KSP  85      |r|=7.150e-06 (ITERATING)

# TAO   8 (ITERATING)

# sub   0 [ 16k] |x|=5.565e+01 |J|=5.236e-01 (g_linear)

# all            |x|=5.565e+01 |J|=5.236e-01 |H|=5.680e+02 f=6.480e+00

# TAO   8, KSP   0      |r|=5.236e-01 (ITERATING)

# TAO   8, KSP   1      |r|=3.120e-01 (ITERATING)

# TAO   8, KSP   2      |r|=1.279e-01 (ITERATING)

# TAO   8, KSP   3      |r|=5.534e-02 (ITERATING)

# TAO   8, KSP   4      |r|=3.450e-02 (ITERATING)

# TAO   8, KSP   5      |r|=2.490e-02 (ITERATING)

# TAO   8, KSP   6      |r|=2.194e-02 (ITERATING)

# TAO   8, KSP   7      |r|=1.871e-02 (ITERATING)

# TAO   8, KSP   8      |r|=1.667e-02 (ITERATING)

# TAO   8, KSP   9      |r|=1.450e-02 (ITERATING)

# TAO   8, KSP  10      |r|=1.290e-02 (ITERATING)

# TAO   8, KSP  11      |r|=1.137e-02 (ITERATING)

# TAO   8, KSP  12      |r|=1.020e-02 (ITERATING)

# TAO   8, KSP  13      |r|=9.230e-03 (ITERATING)

# TAO   8, KSP  14      |r|=8.457e-03 (ITERATING)

# TAO   8, KSP  15      |r|=7.727e-03 (ITERATING)

# TAO   8, KSP  16      |r|=7.084e-03 (ITERATING)

# TAO   8, KSP  17      |r|=6.502e-03 (ITERATING)

# TAO   8, KSP  18      |r|=5.940e-03 (ITERATING)

# TAO   8, KSP  19      |r|=5.478e-03 (ITERATING)

# TAO   8, KSP  20      |r|=5.085e-03 (ITERATING)

# TAO   8, KSP  21      |r|=4.709e-03 (ITERATING)

# TAO   8, KSP  22      |r|=4.377e-03 (ITERATING)

# TAO   8, KSP  23      |r|=4.065e-03 (ITERATING)

# TAO   8, KSP  24      |r|=3.490e-03 (ITERATING)

# TAO   8, KSP  25      |r|=3.155e-03 (ITERATING)

# TAO   8, KSP  26      |r|=3.084e-03 (ITERATING)

# TAO   8, KSP  27      |r|=2.705e-03 (ITERATING)

# TAO   8, KSP  28      |r|=2.625e-03 (ITERATING)

# TAO   8, KSP  29      |r|=2.363e-03 (ITERATING)

# TAO   8, KSP  30      |r|=2.078e-03 (ITERATING)

# TAO   8, KSP  31      |r|=1.808e-03 (ITERATING)

# TAO   8, KSP  32      |r|=1.697e-03 (ITERATING)

# TAO   8, KSP  33      |r|=1.579e-03 (ITERATING)

# TAO   8, KSP  34      |r|=1.354e-03 (ITERATING)

# TAO   8, KSP  35      |r|=1.250e-03 (ITERATING)

# TAO   8, KSP  36      |r|=1.267e-03 (ITERATING)

# TAO   8, KSP  37      |r|=1.088e-03 (ITERATING)

# TAO   8, KSP  38      |r|=9.310e-04 (ITERATING)

# TAO   8, KSP  39      |r|=8.294e-04 (ITERATING)

# TAO   8, KSP  40      |r|=7.490e-04 (ITERATING)

# TAO   8, KSP  41      |r|=6.759e-04 (ITERATING)

# TAO   8, KSP  42      |r|=6.016e-04 (ITERATING)

# TAO   8, KSP  43      |r|=5.305e-04 (ITERATING)

# TAO   8, KSP  44      |r|=4.664e-04 (ITERATING)

# TAO   8, KSP  45      |r|=4.072e-04 (ITERATING)

# TAO   8, KSP  46      |r|=3.643e-04 (ITERATING)

# TAO   8, KSP  47      |r|=3.148e-04 (ITERATING)

# TAO   8, KSP  48      |r|=2.722e-04 (ITERATING)

# TAO   8, KSP  49      |r|=2.369e-04 (ITERATING)

# TAO   8, KSP  50      |r|=2.035e-04 (ITERATING)

# TAO   8, KSP  51      |r|=1.729e-04 (ITERATING)

# TAO   8, KSP  52      |r|=1.397e-04 (ITERATING)

# TAO   8, KSP  53      |r|=1.097e-04 (ITERATING)

# TAO   8, KSP  54      |r|=8.658e-05 (ITERATING)

# TAO   8, KSP  55      |r|=7.017e-05 (ITERATING)

# TAO   8, KSP  56      |r|=6.520e-05 (ITERATING)

# TAO   8, KSP  57      |r|=6.030e-05 (ITERATING)

# TAO   8, KSP  58      |r|=5.899e-05 (ITERATING)

# TAO   8, KSP  59      |r|=6.515e-05 (ITERATING)

# TAO   8, KSP  60      |r|=7.039e-05 (ITERATING)

# TAO   8, KSP  61      |r|=7.022e-05 (ITERATING)

# TAO   8, KSP  62      |r|=5.662e-05 (ITERATING)

# TAO   8, KSP  63      |r|=4.590e-05 (ITERATING)

# TAO   8, KSP  64      |r|=4.147e-05 (ITERATING)

# TAO   8, KSP  65      |r|=3.739e-05 (ITERATING)

# TAO   8, KSP  66      |r|=3.729e-05 (ITERATING)

# TAO   8, KSP  67      |r|=3.575e-05 (ITERATING)

# TAO   8, KSP  68      |r|=3.217e-05 (ITERATING)

# TAO   8, KSP  69      |r|=2.623e-05 (ITERATING)

# TAO   8, KSP  70      |r|=2.393e-05 (ITERATING)

# TAO   8, KSP  71      |r|=2.220e-05 (ITERATING)

# TAO   8, KSP  72      |r|=1.872e-05 (ITERATING)

# TAO   8, KSP  73      |r|=1.680e-05 (ITERATING)

# TAO   8, KSP  74      |r|=1.554e-05 (ITERATING)

# TAO   8, KSP  75      |r|=1.436e-05 (ITERATING)

# TAO   8, KSP  76      |r|=1.326e-05 (ITERATING)

# TAO   8, KSP  77      |r|=1.231e-05 (ITERATING)

# TAO   8, KSP  78      |r|=1.028e-05 (ITERATING)

# TAO   8, KSP  79      |r|=8.653e-06 (ITERATING)

# TAO   8, KSP  80      |r|=7.270e-06 (ITERATING)

# TAO   8, KSP  81      |r|=6.550e-06 (ITERATING)

# TAO   8, KSP  82      |r|=6.528e-06 (ITERATING)

# TAO   8, KSP  83      |r|=6.234e-06 (ITERATING)

# TAO   8, KSP  84      |r|=5.684e-06 (ITERATING)

# TAO   8, KSP  85      |r|=5.177e-06 (ITERATING)

# TAO   9 (ITERATING)

# sub   0 [ 16k] |x|=5.674e+01 |J|=3.204e-01 (g_linear)

# all            |x|=5.674e+01 |J|=3.204e-01 |H|=5.680e+02 f=6.409e+00

# TAO   9, KSP   0      |r|=3.204e-01 (ITERATING)

# TAO   9, KSP   1      |r|=1.407e-01 (ITERATING)

# TAO   9, KSP   2      |r|=5.570e-02 (ITERATING)

# TAO   9, KSP   3      |r|=3.114e-02 (ITERATING)

# TAO   9, KSP   4      |r|=2.510e-02 (ITERATING)

# TAO   9, KSP   5      |r|=2.012e-02 (ITERATING)

# TAO   9, KSP   6      |r|=1.703e-02 (ITERATING)

# TAO   9, KSP   7      |r|=1.385e-02 (ITERATING)

# TAO   9, KSP   8      |r|=1.202e-02 (ITERATING)

# TAO   9, KSP   9      |r|=1.043e-02 (ITERATING)

# TAO   9, KSP  10      |r|=9.222e-03 (ITERATING)

# TAO   9, KSP  11      |r|=8.139e-03 (ITERATING)

# TAO   9, KSP  12      |r|=7.272e-03 (ITERATING)

# TAO   9, KSP  13      |r|=6.544e-03 (ITERATING)

# TAO   9, KSP  14      |r|=5.975e-03 (ITERATING)

# TAO   9, KSP  15      |r|=5.405e-03 (ITERATING)

# TAO   9, KSP  16      |r|=4.966e-03 (ITERATING)

# TAO   9, KSP  17      |r|=4.586e-03 (ITERATING)

# TAO   9, KSP  18      |r|=4.227e-03 (ITERATING)

# TAO   9, KSP  19      |r|=3.937e-03 (ITERATING)

# TAO   9, KSP  20      |r|=3.683e-03 (ITERATING)

# TAO   9, KSP  21      |r|=3.424e-03 (ITERATING)

# TAO   9, KSP  22      |r|=3.230e-03 (ITERATING)

# TAO   9, KSP  23      |r|=3.056e-03 (ITERATING)

# TAO   9, KSP  24      |r|=2.882e-03 (ITERATING)

# TAO   9, KSP  25      |r|=2.712e-03 (ITERATING)

# TAO   9, KSP  26      |r|=2.394e-03 (ITERATING)

# TAO   9, KSP  27      |r|=2.137e-03 (ITERATING)

# TAO   9, KSP  28      |r|=1.899e-03 (ITERATING)

# TAO   9, KSP  29      |r|=1.529e-03 (ITERATING)

# TAO   9, KSP  30      |r|=1.323e-03 (ITERATING)

# TAO   9, KSP  31      |r|=1.082e-03 (ITERATING)

# TAO   9, KSP  32      |r|=9.121e-04 (ITERATING)

# TAO   9, KSP  33      |r|=8.883e-04 (ITERATING)

# TAO   9, KSP  34      |r|=8.505e-04 (ITERATING)

# TAO   9, KSP  35      |r|=7.009e-04 (ITERATING)

# TAO   9, KSP  36      |r|=6.388e-04 (ITERATING)

# TAO   9, KSP  37      |r|=5.870e-04 (ITERATING)

# TAO   9, KSP  38      |r|=5.126e-04 (ITERATING)

# TAO   9, KSP  39      |r|=4.587e-04 (ITERATING)

# TAO   9, KSP  40      |r|=4.020e-04 (ITERATING)

# TAO   9, KSP  41      |r|=3.611e-04 (ITERATING)

# TAO   9, KSP  42      |r|=3.176e-04 (ITERATING)

# TAO   9, KSP  43      |r|=2.742e-04 (ITERATING)

# TAO   9, KSP  44      |r|=2.363e-04 (ITERATING)

# TAO   9, KSP  45      |r|=2.047e-04 (ITERATING)

# TAO   9, KSP  46      |r|=1.719e-04 (ITERATING)

# TAO   9, KSP  47      |r|=1.502e-04 (ITERATING)

# TAO   9, KSP  48      |r|=1.299e-04 (ITERATING)

# TAO   9, KSP  49      |r|=1.102e-04 (ITERATING)

# TAO   9, KSP  50      |r|=8.983e-05 (ITERATING)

# TAO   9, KSP  51      |r|=7.880e-05 (ITERATING)

# TAO   9, KSP  52      |r|=7.317e-05 (ITERATING)

# TAO   9, KSP  53      |r|=6.590e-05 (ITERATING)

# TAO   9, KSP  54      |r|=5.128e-05 (ITERATING)

# TAO   9, KSP  55      |r|=4.052e-05 (ITERATING)

# TAO   9, KSP  56      |r|=3.404e-05 (ITERATING)

# TAO   9, KSP  57      |r|=3.207e-05 (ITERATING)

# TAO   9, KSP  58      |r|=3.324e-05 (ITERATING)

# TAO   9, KSP  59      |r|=3.486e-05 (ITERATING)

# TAO   9, KSP  60      |r|=3.224e-05 (ITERATING)

# TAO   9, KSP  61      |r|=3.036e-05 (ITERATING)

# TAO   9, KSP  62      |r|=2.872e-05 (ITERATING)

# TAO   9, KSP  63      |r|=2.600e-05 (ITERATING)

# TAO   9, KSP  64      |r|=2.372e-05 (ITERATING)

# TAO   9, KSP  65      |r|=2.383e-05 (ITERATING)

# TAO   9, KSP  66      |r|=2.284e-05 (ITERATING)

# TAO   9, KSP  67      |r|=2.215e-05 (ITERATING)

# TAO   9, KSP  68      |r|=2.150e-05 (ITERATING)

# TAO   9, KSP  69      |r|=2.034e-05 (ITERATING)

# TAO   9, KSP  70      |r|=1.954e-05 (ITERATING)

# TAO   9, KSP  71      |r|=1.790e-05 (ITERATING)

# TAO   9, KSP  72      |r|=1.582e-05 (ITERATING)

# TAO   9, KSP  73      |r|=1.436e-05 (ITERATING)

# TAO   9, KSP  74      |r|=1.294e-05 (ITERATING)

# TAO   9, KSP  75      |r|=1.102e-05 (ITERATING)

# TAO   9, KSP  76      |r|=9.970e-06 (ITERATING)

# TAO   9, KSP  77      |r|=8.800e-06 (ITERATING)

# TAO   9, KSP  78      |r|=7.994e-06 (ITERATING)

# TAO   9, KSP  79      |r|=6.459e-06 (ITERATING)

# TAO   9, KSP  80      |r|=5.557e-06 (ITERATING)

# TAO   9, KSP  81      |r|=4.799e-06 (ITERATING)

# TAO   9, KSP  82      |r|=4.805e-06 (ITERATING)

# TAO   9, KSP  83      |r|=4.713e-06 (ITERATING)

# TAO   9, KSP  84      |r|=4.281e-06 (ITERATING)

# TAO   9, KSP  85      |r|=3.830e-06 (ITERATING)

# TAO   9, KSP  86      |r|=3.298e-06 (ITERATING)

# TAO   9, KSP  87      |r|=2.521e-06 (ITERATING)

# TAO  10 (ITERATING)

# sub   0 [ 16k] |x|=5.722e+01 |J|=1.706e-01 (g_linear)

# all            |x|=5.722e+01 |J|=1.706e-01 |H|=5.680e+02 f=6.385e+00

# TAO  10, KSP   0      |r|=1.706e-01 (ITERATING)

# TAO  10, KSP   1      |r|=6.339e-02 (ITERATING)

# TAO  10, KSP   2      |r|=2.138e-02 (ITERATING)

# TAO  10, KSP   3      |r|=1.373e-02 (ITERATING)

# TAO  10, KSP   4      |r|=9.597e-03 (ITERATING)

# TAO  10, KSP   5      |r|=7.399e-03 (ITERATING)

# TAO  10, KSP   6      |r|=5.704e-03 (ITERATING)

# TAO  10, KSP   7      |r|=4.471e-03 (ITERATING)

# TAO  10, KSP   8      |r|=3.638e-03 (ITERATING)

# TAO  10, KSP   9      |r|=2.961e-03 (ITERATING)

# TAO  10, KSP  10      |r|=2.448e-03 (ITERATING)

# TAO  10, KSP  11      |r|=2.050e-03 (ITERATING)

# TAO  10, KSP  12      |r|=1.724e-03 (ITERATING)

# TAO  10, KSP  13      |r|=1.473e-03 (ITERATING)

# TAO  10, KSP  14      |r|=1.256e-03 (ITERATING)

# TAO  10, KSP  15      |r|=1.084e-03 (ITERATING)

# TAO  10, KSP  16      |r|=9.433e-04 (ITERATING)

# TAO  10, KSP  17      |r|=8.360e-04 (ITERATING)

# TAO  10, KSP  18      |r|=7.369e-04 (ITERATING)

# TAO  10, KSP  19      |r|=6.448e-04 (ITERATING)

# TAO  10, KSP  20      |r|=5.855e-04 (ITERATING)

# TAO  10, KSP  21      |r|=5.165e-04 (ITERATING)

# TAO  10, KSP  22      |r|=4.687e-04 (ITERATING)

# TAO  10, KSP  23      |r|=4.232e-04 (ITERATING)

# TAO  10, KSP  24      |r|=3.872e-04 (ITERATING)

# TAO  10, KSP  25      |r|=3.530e-04 (ITERATING)

# TAO  10, KSP  26      |r|=3.216e-04 (ITERATING)

# TAO  10, KSP  27      |r|=3.174e-04 (ITERATING)

# TAO  10, KSP  28      |r|=2.742e-04 (ITERATING)

# TAO  10, KSP  29      |r|=2.082e-04 (ITERATING)

# TAO  10, KSP  30      |r|=1.793e-04 (ITERATING)

# TAO  10, KSP  31      |r|=1.631e-04 (ITERATING)

# TAO  10, KSP  32      |r|=1.551e-04 (ITERATING)

# TAO  10, KSP  33      |r|=1.465e-04 (ITERATING)

# TAO  10, KSP  34      |r|=1.260e-04 (ITERATING)

# TAO  10, KSP  35      |r|=1.132e-04 (ITERATING)

# TAO  10, KSP  36      |r|=1.039e-04 (ITERATING)

# TAO  10, KSP  37      |r|=9.277e-05 (ITERATING)

# TAO  10, KSP  38      |r|=8.572e-05 (ITERATING)

# TAO  10, KSP  39      |r|=7.650e-05 (ITERATING)

# TAO  10, KSP  40      |r|=6.821e-05 (ITERATING)

# TAO  10, KSP  41      |r|=6.464e-05 (ITERATING)

# TAO  10, KSP  42      |r|=5.930e-05 (ITERATING)

# TAO  10, KSP  43      |r|=5.375e-05 (ITERATING)

# TAO  10, KSP  44      |r|=4.773e-05 (ITERATING)

# TAO  10, KSP  45      |r|=4.207e-05 (ITERATING)

# TAO  10, KSP  46      |r|=3.665e-05 (ITERATING)

# TAO  10, KSP  47      |r|=3.038e-05 (ITERATING)

# TAO  10, KSP  48      |r|=2.550e-05 (ITERATING)

# TAO  10, KSP  49      |r|=2.137e-05 (ITERATING)

# TAO  10, KSP  50      |r|=1.690e-05 (ITERATING)

# TAO  10, KSP  51      |r|=1.319e-05 (ITERATING)

# TAO  10, KSP  52      |r|=1.045e-05 (ITERATING)

# TAO  10, KSP  53      |r|=8.786e-06 (ITERATING)

# TAO  10, KSP  54      |r|=7.986e-06 (ITERATING)

# TAO  10, KSP  55      |r|=6.742e-06 (ITERATING)

# TAO  10, KSP  56      |r|=5.166e-06 (ITERATING)

# TAO  10, KSP  57      |r|=4.172e-06 (ITERATING)

# TAO  10, KSP  58      |r|=3.702e-06 (ITERATING)

# TAO  10, KSP  59      |r|=3.488e-06 (ITERATING)

# TAO  10, KSP  60      |r|=3.208e-06 (ITERATING)

# TAO  10, KSP  61      |r|=2.855e-06 (ITERATING)

# TAO  10, KSP  62      |r|=2.777e-06 (ITERATING)

# TAO  10, KSP  63      |r|=2.578e-06 (ITERATING)

# TAO  10, KSP  64      |r|=2.423e-06 (ITERATING)

# TAO  10, KSP  65      |r|=2.146e-06 (ITERATING)

# TAO  10, KSP  66      |r|=2.160e-06 (ITERATING)

# TAO  10, KSP  67      |r|=2.066e-06 (ITERATING)

# TAO  10, KSP  68      |r|=1.923e-06 (ITERATING)

# TAO  10, KSP  69      |r|=1.846e-06 (ITERATING)

# TAO  10, KSP  70      |r|=1.707e-06 (ITERATING)

# TAO  10, KSP  71      |r|=1.566e-06 (ITERATING)

# TAO  11 (ITERATING)

# sub   0 [ 16k] |x|=5.744e+01 |J|=6.067e-02 (g_linear)

# all            |x|=5.744e+01 |J|=6.067e-02 |H|=5.680e+02 f=6.379e+00

# TAO  11, KSP   0      |r|=6.067e-02 (ITERATING)

# TAO  11, KSP   1      |r|=2.537e-02 (ITERATING)

# TAO  11, KSP   2      |r|=1.203e-02 (ITERATING)

# TAO  11, KSP   3      |r|=8.217e-03 (ITERATING)

# TAO  11, KSP   4      |r|=5.939e-03 (ITERATING)

# TAO  11, KSP   5      |r|=4.442e-03 (ITERATING)

# TAO  11, KSP   6      |r|=3.473e-03 (ITERATING)

# TAO  11, KSP   7      |r|=2.750e-03 (ITERATING)

# TAO  11, KSP   8      |r|=2.227e-03 (ITERATING)

# TAO  11, KSP   9      |r|=1.829e-03 (ITERATING)

# TAO  11, KSP  10      |r|=1.528e-03 (ITERATING)

# TAO  11, KSP  11      |r|=1.286e-03 (ITERATING)

# TAO  11, KSP  12      |r|=1.099e-03 (ITERATING)

# TAO  11, KSP  13      |r|=9.414e-04 (ITERATING)

# TAO  11, KSP  14      |r|=8.120e-04 (ITERATING)

# TAO  11, KSP  15      |r|=7.056e-04 (ITERATING)

# TAO  11, KSP  16      |r|=6.168e-04 (ITERATING)

# TAO  11, KSP  17      |r|=5.396e-04 (ITERATING)

# TAO  11, KSP  18      |r|=4.807e-04 (ITERATING)

# TAO  11, KSP  19      |r|=4.225e-04 (ITERATING)

# TAO  11, KSP  20      |r|=3.821e-04 (ITERATING)

# TAO  11, KSP  21      |r|=3.395e-04 (ITERATING)

# TAO  11, KSP  22      |r|=3.096e-04 (ITERATING)

# TAO  11, KSP  23      |r|=2.792e-04 (ITERATING)

# TAO  11, KSP  24      |r|=2.566e-04 (ITERATING)

# TAO  11, KSP  25      |r|=2.343e-04 (ITERATING)

# TAO  11, KSP  26      |r|=2.170e-04 (ITERATING)

# TAO  11, KSP  27      |r|=1.988e-04 (ITERATING)

# TAO  11, KSP  28      |r|=1.088e-04 (ITERATING)

# TAO  11, KSP  29      |r|=1.014e-04 (ITERATING)

# TAO  11, KSP  30      |r|=1.085e-04 (ITERATING)

# TAO  11, KSP  31      |r|=8.735e-05 (ITERATING)

# TAO  11, KSP  32      |r|=7.727e-05 (ITERATING)

# TAO  11, KSP  33      |r|=7.515e-05 (ITERATING)

# TAO  11, KSP  34      |r|=6.976e-05 (ITERATING)

# TAO  11, KSP  35      |r|=6.553e-05 (ITERATING)

# TAO  11, KSP  36      |r|=6.317e-05 (ITERATING)

# TAO  11, KSP  37      |r|=5.799e-05 (ITERATING)

# TAO  11, KSP  38      |r|=5.314e-05 (ITERATING)

# TAO  11, KSP  39      |r|=4.956e-05 (ITERATING)

# TAO  11, KSP  40      |r|=4.459e-05 (ITERATING)

# TAO  11, KSP  41      |r|=4.162e-05 (ITERATING)

# TAO  11, KSP  42      |r|=3.773e-05 (ITERATING)

# TAO  11, KSP  43      |r|=3.372e-05 (ITERATING)

# TAO  11, KSP  44      |r|=3.043e-05 (ITERATING)

# TAO  11, KSP  45      |r|=2.691e-05 (ITERATING)

# TAO  11, KSP  46      |r|=2.329e-05 (ITERATING)

# TAO  11, KSP  47      |r|=2.007e-05 (ITERATING)

# TAO  11, KSP  48      |r|=1.709e-05 (ITERATING)

# TAO  11, KSP  49      |r|=1.442e-05 (ITERATING)

# TAO  11, KSP  50      |r|=1.259e-05 (ITERATING)

# TAO  11, KSP  51      |r|=1.094e-05 (ITERATING)

# TAO  11, KSP  52      |r|=9.673e-06 (ITERATING)

# TAO  11, KSP  53      |r|=9.157e-06 (ITERATING)

# TAO  11, KSP  54      |r|=9.178e-06 (ITERATING)

# TAO  11, KSP  55      |r|=8.922e-06 (ITERATING)

# TAO  11, KSP  56      |r|=7.659e-06 (ITERATING)

# TAO  11, KSP  57      |r|=6.990e-06 (ITERATING)

# TAO  11, KSP  58      |r|=7.374e-06 (ITERATING)

# TAO  11, KSP  59      |r|=6.941e-06 (ITERATING)

# TAO  11, KSP  60      |r|=7.667e-06 (ITERATING)

# TAO  11, KSP  61      |r|=7.634e-06 (ITERATING)

# TAO  11, KSP  62      |r|=6.744e-06 (ITERATING)

# TAO  11, KSP  63      |r|=5.698e-06 (ITERATING)

# TAO  11, KSP  64      |r|=4.973e-06 (ITERATING)

# TAO  11, KSP  65      |r|=4.656e-06 (ITERATING)

# TAO  11, KSP  66      |r|=4.323e-06 (ITERATING)

# TAO  11, KSP  67      |r|=3.838e-06 (ITERATING)

# TAO  11, KSP  68      |r|=3.396e-06 (ITERATING)

# TAO  11, KSP  69      |r|=3.014e-06 (ITERATING)

# TAO  11, KSP  70      |r|=2.692e-06 (ITERATING)

# TAO  11, KSP  71      |r|=2.442e-06 (ITERATING)

# TAO  11, KSP  72      |r|=2.186e-06 (ITERATING)

# TAO  11, KSP  73      |r|=1.985e-06 (ITERATING)

# TAO  11, KSP  74      |r|=1.789e-06 (ITERATING)

# TAO  11, KSP  75      |r|=1.649e-06 (ITERATING)

# TAO  11, KSP  76      |r|=1.511e-06 (ITERATING)

# TAO  11, KSP  77      |r|=1.411e-06 (ITERATING)

# TAO  11, KSP  78      |r|=1.282e-06 (ITERATING)

# TAO  11, KSP  79      |r|=1.155e-06 (ITERATING)

# TAO  11, KSP  80      |r|=1.051e-06 (ITERATING)

# TAO  11, KSP  81      |r|=8.864e-07 (ITERATING)

# TAO  11, KSP  82      |r|=7.494e-07 (ITERATING)

# TAO  11, KSP  83      |r|=6.512e-07 (ITERATING)

# TAO  11, KSP  84      |r|=5.483e-07 (ITERATING)

# TAO  12 (ITERATING)

# sub   0 [ 16k] |x|=5.748e+01 |J|=5.483e-07 (g_linear)

# all            |x|=5.748e+01 |J|=5.483e-07 |H|=5.680e+02 f=6.378e+00

# TAO  12, KSP   0      |r|=5.483e-07 (ITERATING)

# TAO  12, KSP   1      |r|=3.605e-07 (ITERATING)

# TAO  12, KSP   2      |r|=3.381e-07 (ITERATING)

# TAO  12, KSP   3      |r|=3.286e-07 (ITERATING)

# TAO  12, KSP   4      |r|=3.246e-07 (ITERATING)

# TAO  12, KSP   5      |r|=2.912e-07 (ITERATING)

# TAO  12, KSP   6      |r|=2.633e-07 (ITERATING)

# TAO  12, KSP   7      |r|=2.343e-07 (ITERATING)

# TAO  12, KSP   8      |r|=2.254e-07 (ITERATING)

# TAO  12, KSP   9      |r|=2.107e-07 (ITERATING)

# TAO  12, KSP  10      |r|=2.010e-07 (ITERATING)

# TAO  12, KSP  11      |r|=2.000e-07 (ITERATING)

# TAO  12, KSP  12      |r|=1.908e-07 (ITERATING)

# TAO  12, KSP  13      |r|=1.823e-07 (ITERATING)

# TAO  12, KSP  14      |r|=1.731e-07 (ITERATING)

# TAO  12, KSP  15      |r|=1.627e-07 (ITERATING)

# TAO  12, KSP  16      |r|=1.584e-07 (ITERATING)

# TAO  12, KSP  17      |r|=1.517e-07 (ITERATING)

# TAO  12, KSP  18      |r|=1.446e-07 (ITERATING)

# TAO  12, KSP  19      |r|=1.296e-07 (ITERATING)

# TAO  12, KSP  20      |r|=1.168e-07 (ITERATING)

# TAO  12, KSP  21      |r|=1.067e-07 (ITERATING)

# TAO  12, KSP  22      |r|=9.658e-08 (ITERATING)

# TAO  12, KSP  23      |r|=7.998e-08 (ITERATING)

# TAO  12, KSP  24      |r|=6.315e-08 (ITERATING)

# TAO  12, KSP  25      |r|=5.034e-08 (ITERATING)

# TAO  12, KSP  26      |r|=4.503e-08 (ITERATING)

# TAO  12, KSP  27      |r|=3.799e-08 (ITERATING)

# TAO  12, KSP  28      |r|=3.463e-08 (ITERATING)

# TAO  12, KSP  29      |r|=3.091e-08 (ITERATING)

# TAO  12, KSP  30      |r|=2.477e-08 (ITERATING)

# TAO  12, KSP  31      |r|=2.113e-08 (ITERATING)

# TAO  12, KSP  32      |r|=2.002e-08 (ITERATING)

# TAO  12, KSP  33      |r|=1.858e-08 (ITERATING)

# TAO  12, KSP  34      |r|=1.522e-08 (ITERATING)

# TAO  12, KSP  35      |r|=1.362e-08 (ITERATING)

# TAO  12, KSP  36      |r|=1.334e-08 (ITERATING)

# TAO  12, KSP  37      |r|=1.231e-08 (ITERATING)

# TAO  12, KSP  38      |r|=1.128e-08 (ITERATING)

# TAO  12, KSP  39      |r|=1.020e-08 (ITERATING)

# TAO  12, KSP  40      |r|=9.434e-09 (ITERATING)

# TAO  12, KSP  41      |r|=8.723e-09 (ITERATING)

# TAO  12, KSP  42      |r|=8.082e-09 (ITERATING)

# TAO  12, KSP  43      |r|=7.242e-09 (ITERATING)

# TAO  12, KSP  44      |r|=6.220e-09 (ITERATING)

# TAO  12, KSP  45      |r|=5.441e-09 (ITERATING)

# TAO  12, KSP  46      |r|=4.686e-09 (ITERATING)

# TAO  12, KSP  47      |r|=4.203e-09 (ITERATING)

# TAO  12, KSP  48      |r|=4.032e-09 (ITERATING)

# TAO  12, KSP  49      |r|=3.808e-09 (ITERATING)

# TAO  12, KSP  50      |r|=3.676e-09 (ITERATING)

# TAO  12, KSP  51      |r|=3.703e-09 (ITERATING)

# TAO  12, KSP  52      |r|=3.375e-09 (ITERATING)

# TAO  12, KSP  53      |r|=3.107e-09 (ITERATING)

# TAO  12, KSP  54      |r|=3.050e-09 (ITERATING)

# TAO  12, KSP  55      |r|=2.672e-09 (ITERATING)

# TAO  12, KSP  56      |r|=2.379e-09 (ITERATING)

# TAO  12, KSP  57      |r|=2.508e-09 (ITERATING)

# TAO  12, KSP  58      |r|=2.294e-09 (ITERATING)

# TAO  12, KSP  59      |r|=1.999e-09 (ITERATING)

# TAO  12, KSP  60      |r|=1.801e-09 (ITERATING)

# TAO  12, KSP  61      |r|=1.753e-09 (ITERATING)

# TAO  12, KSP  62      |r|=1.568e-09 (ITERATING)

# TAO  12, KSP  63      |r|=1.405e-09 (ITERATING)

# TAO  12, KSP  64      |r|=1.421e-09 (ITERATING)

# TAO  12, KSP  65      |r|=1.328e-09 (ITERATING)

# TAO  12, KSP  66      |r|=1.109e-09 (ITERATING)

# TAO  12, KSP  67      |r|=9.924e-10 (ITERATING)

# TAO  12, KSP  68      |r|=8.861e-10 (ITERATING)

# TAO  12, KSP  69      |r|=7.729e-10 (ITERATING)

# TAO  12, KSP  70      |r|=6.744e-10 (ITERATING)

# TAO  12, KSP  71      |r|=5.783e-10 (ITERATING)

# TAO  12, KSP  72      |r|=5.074e-10 (ITERATING)

# TAO  12, KSP  73      |r|=4.745e-10 (ITERATING)

# TAO  12, KSP  74      |r|=4.564e-10 (ITERATING)

# TAO  12, KSP  75      |r|=4.255e-10 (ITERATING)

# TAO  12, KSP  76      |r|=3.999e-10 (ITERATING)

# TAO  12, KSP  77      |r|=3.629e-10 (ITERATING)

# TAO  12, KSP  78      |r|=3.217e-10 (ITERATING)

# TAO  12, KSP  79      |r|=2.740e-10 (ITERATING)

# TAO  12, KSP  80      |r|=2.473e-10 (ITERATING)

# TAO  12, KSP  81      |r|=2.185e-10 (ITERATING)

# TAO  12, KSP  82      |r|=1.841e-10 (ITERATING)

# TAO  12, KSP  83      |r|=1.693e-10 (ITERATING)

# TAO  12, KSP  84      |r|=1.333e-10 (ITERATING)

# TAO  12, KSP  85      |r|=1.206e-10 (ITERATING)

# TAO  12, KSP  86      |r|=1.155e-10 (ITERATING)

# TAO  12, KSP  87      |r|=1.090e-10 (ITERATING)

# TAO  12, KSP  88      |r|=9.368e-11 (ITERATING)

# TAO  12, KSP  89      |r|=8.284e-11 (ITERATING)

# TAO  12, KSP  90      |r|=6.893e-11 (ITERATING)

# TAO  12, KSP  91      |r|=5.690e-11 (ITERATING)

# TAO  12, KSP  92      |r|=4.653e-11 (ITERATING)

# TAO  12, KSP  93      |r|=4.550e-11 (ITERATING)

# TAO  12, KSP  94      |r|=3.978e-11 (ITERATING)

# TAO  12, KSP  95      |r|=3.718e-11 (ITERATING)

# TAO  12, KSP  96      |r|=3.400e-11 (ITERATING)

# TAO  12, KSP  97      |r|=3.020e-11 (ITERATING)

# TAO  12, KSP  98      |r|=2.660e-11 (ITERATING)

# TAO  12, KSP  99      |r|=2.344e-11 (ITERATING)

# TAO  12, KSP 100      |r|=1.951e-11 (ITERATING)

# TAO  12, KSP 101      |r|=1.722e-11 (ITERATING)

# TAO  12, KSP 102      |r|=1.529e-11 (ITERATING)

# TAO  12, KSP 103      |r|=1.337e-11 (ITERATING)

# TAO  12, KSP 104      |r|=1.184e-11 (ITERATING)

# TAO  12, KSP 105      |r|=1.019e-11 (ITERATING)

# TAO  12, KSP 106      |r|=8.551e-12 (ITERATING)

# TAO  12, KSP 107      |r|=7.113e-12 (ITERATING)

# TAO  12, KSP 108      |r|=6.100e-12 (ITERATING)

# TAO  12, KSP 109      |r|=5.262e-12 (ITERATING)

# TAO  13 (ITERATING)

# sub   0 [ 16k] |x|=5.748e+01 |J|=5.262e-12 (g_linear)

# all            |x|=5.748e+01 |J|=5.262e-12 |H|=5.680e+02 f=6.378e+00

# TAO   0 (ITERATING)

# sub   0 [ 16k] |x|=3.394e+01 |J|=4.108e-01 (g)

# all            |x|=3.394e+01 |J|=4.108e-01 f=8.429e+00

# TAO   0, KSP   0      |r|=4.108e-01 (ITERATING)

# TAO   0, KSP   1      |r|=4.544e-01 (ITERATING)

# TAO   0, KSP   2      |r|=4.625e-01 (ITERATING)

# TAO   0, KSP   3      |r|=4.671e-01 (ITERATING)

# TAO   0, KSP   4      |r|=4.676e-01 (ITERATING)

# TAO   0, KSP   5      |r|=4.674e-01 (ITERATING)

# TAO   0, KSP   6      |r|=4.692e-01 (ITERATING)

# TAO   0, KSP   7      |r|=4.668e-01 (ITERATING)

# TAO   0, KSP   8      |r|=4.662e-01 (ITERATING)

# TAO   0, KSP   9      |r|=4.743e-01 (ITERATING)

# TAO   0, KSP  10      |r|=4.761e-01 (ITERATING)

# TAO   0, KSP  11      |r|=4.783e-01 (ITERATING)

# TAO   0, KSP  12      |r|=4.862e-01 (ITERATING)

# TAO   0, KSP  13      |r|=4.951e-01 (ITERATING)

# TAO   0, KSP  14      |r|=5.439e-01 (ITERATING)

# TAO   0, KSP  15      |r|=7.792e-01 (ITERATING)

# TAO   0, KSP  16      |r|=9.540e-01 (ITERATING)

# TAO   0, KSP  17      |r|=8.892e-01 (ITERATING)

# TAO   0, KSP  18      |r|=8.585e-01 (ITERATING)

# TAO   0, KSP  19      |r|=8.782e-01 (ITERATING)

# TAO   0, KSP  20      |r|=8.594e-01 (ITERATING)

# TAO   0, KSP  21      |r|=8.435e-01 (ITERATING)

# TAO   0, KSP  22      |r|=8.141e-01 (ITERATING)

# TAO   0, KSP  23      |r|=8.013e-01 (ITERATING)

# TAO   0, KSP  24      |r|=7.961e-01 (ITERATING)

# TAO   0, KSP  25      |r|=7.693e-01 (ITERATING)

# TAO   0, KSP  26      |r|=7.281e-01 (ITERATING)

# TAO   0, KSP  27      |r|=6.993e-01 (ITERATING)

# TAO   0, KSP  28      |r|=6.898e-01 (ITERATING)

# TAO   0, KSP  29      |r|=7.071e-01 (ITERATING)

# TAO   0, KSP  30      |r|=7.398e-01 (ITERATING)

# TAO   0, KSP  31      |r|=7.625e-01 (ITERATING)

# TAO   0, KSP  32      |r|=7.847e-01 (ITERATING)

# TAO   0, KSP  33      |r|=7.498e-01 (ITERATING)

# TAO   0, KSP  34      |r|=7.169e-01 (ITERATING)

# TAO   0, KSP  35      |r|=6.813e-01 (ITERATING)

# TAO   0, KSP  36      |r|=6.178e-01 (ITERATING)

# TAO   0, KSP  37      |r|=5.817e-01 (ITERATING)

# TAO   0, KSP  38      |r|=5.620e-01 (ITERATING)

# TAO   0, KSP  39      |r|=5.447e-01 (ITERATING)

# TAO   0, KSP  40      |r|=5.841e-01 (ITERATING)

# TAO   0, KSP  41      |r|=5.716e-01 (ITERATING)

# TAO   0, KSP  42      |r|=5.438e-01 (ITERATING)

# TAO   0, KSP  43      |r|=5.274e-01 (ITERATING)

# TAO   0, KSP  44      |r|=5.345e-01 (ITERATING)

# TAO   0, KSP  45      |r|=5.377e-01 (ITERATING)

# TAO   0, KSP  46      |r|=5.304e-01 (ITERATING)

# TAO   0, KSP  47      |r|=5.212e-01 (ITERATING)

# TAO   0, KSP  48      |r|=4.815e-01 (ITERATING)

# TAO   0, KSP  49      |r|=4.525e-01 (ITERATING)

# TAO   0, KSP  50      |r|=4.187e-01 (ITERATING)

# TAO   0, KSP  51      |r|=3.801e-01 (ITERATING)

# TAO   0, KSP  52      |r|=3.668e-01 (ITERATING)

# TAO   0, KSP  53      |r|=3.551e-01 (ITERATING)

# TAO   0, KSP  54      |r|=3.706e-01 (ITERATING)

# TAO   0, KSP  55      |r|=3.912e-01 (ITERATING)

# TAO   0, KSP  56      |r|=4.155e-01 (ITERATING)

# TAO   0, KSP  57      |r|=3.993e-01 (ITERATING)

# TAO   0, KSP  58      |r|=4.113e-01 (ITERATING)

# TAO   0, KSP  59      |r|=4.268e-01 (ITERATING)

# TAO   0, KSP  60      |r|=4.366e-01 (ITERATING)

# TAO   0, KSP  61      |r|=4.538e-01 (ITERATING)

# TAO   0, KSP  62      |r|=4.860e-01 (ITERATING)

# TAO   0, KSP  63      |r|=5.298e-01 (ITERATING)

# TAO   0, KSP  64      |r|=5.585e-01 (ITERATING)

# TAO   0, KSP  65      |r|=5.507e-01 (ITERATING)

# TAO   0, KSP  66      |r|=5.294e-01 (ITERATING)

# TAO   0, KSP  67      |r|=5.454e-01 (ITERATING)

# TAO   0, KSP  68      |r|=5.312e-01 (ITERATING)

# TAO   0, KSP  69      |r|=4.930e-01 (ITERATING)

# TAO   0, KSP  70      |r|=4.780e-01 (ITERATING)

# TAO   0, KSP  71      |r|=4.904e-01 (ITERATING)

# TAO   0, KSP  72      |r|=4.595e-01 (ITERATING)

# TAO   0, KSP  73      |r|=4.234e-01 (ITERATING)

# TAO   0, KSP  74      |r|=4.272e-01 (ITERATING)

# TAO   0, KSP  75      |r|=4.129e-01 (ITERATING)

# TAO   0, KSP  76      |r|=3.946e-01 (ITERATING)

# TAO   0, KSP  77      |r|=3.789e-01 (ITERATING)

# TAO   0, KSP  78      |r|=3.744e-01 (ITERATING)

# TAO   0, KSP  79      |r|=3.667e-01 (ITERATING)

# TAO   0, KSP  80      |r|=3.709e-01 (ITERATING)

# TAO   0, KSP  81      |r|=3.653e-01 (ITERATING)

# TAO   0, KSP  82      |r|=3.767e-01 (ITERATING)

# TAO   0, KSP  83      |r|=3.791e-01 (ITERATING)

# TAO   0, KSP  84      |r|=3.947e-01 (ITERATING)

# TAO   0, KSP  85      |r|=4.064e-01 (ITERATING)

# TAO   0, KSP  86      |r|=4.067e-01 (ITERATING)

# TAO   0, KSP  87      |r|=4.433e-01 (ITERATING)

# TAO   0, KSP  88      |r|=4.573e-01 (ITERATING)

# TAO   0, KSP  89      |r|=4.578e-01 (ITERATING)

# TAO   0, KSP  90      |r|=4.705e-01 (ITERATING)

# TAO   0, KSP  91      |r|=4.694e-01 (ITERATING)

# TAO   0, KSP  92      |r|=4.582e-01 (ITERATING)

# TAO   0, KSP  93      |r|=4.466e-01 (ITERATING)

# TAO   0, KSP  94      |r|=4.533e-01 (ITERATING)

# TAO   0, KSP  95      |r|=4.650e-01 (ITERATING)

# TAO   0, KSP  96      |r|=4.512e-01 (ITERATING)

# TAO   0, KSP  97      |r|=4.469e-01 (ITERATING)

# TAO   0, KSP  98      |r|=4.558e-01 (ITERATING)

# TAO   0, KSP  99      |r|=4.794e-01 (ITERATING)

# TAO   0, KSP 100      |r|=4.964e-01 (ITERATING)

# TAO   0, KSP 101      |r|=5.036e-01 (ITERATING)

# TAO   0, KSP 102      |r|=5.238e-01 (ITERATING)

# TAO   0, KSP 103      |r|=5.265e-01 (ITERATING)

# TAO   0, KSP 104      |r|=5.323e-01 (ITERATING)

# TAO   0, KSP 105      |r|=5.569e-01 (ITERATING)

# TAO   0, KSP 106      |r|=5.787e-01 (ITERATING)

# TAO   0, KSP 107      |r|=6.072e-01 (ITERATING)

# TAO   0, KSP 108      |r|=6.376e-01 (ITERATING)

# TAO   0, KSP 109      |r|=6.263e-01 (ITERATING)

# TAO   0, KSP 110      |r|=6.170e-01 (ITERATING)

# TAO   0, KSP 111      |r|=6.003e-01 (ITERATING)

# TAO   0, KSP 112      |r|=5.932e-01 (ITERATING)

# TAO   0, KSP 113      |r|=5.628e-01 (ITERATING)

# TAO   0, KSP 114      |r|=5.173e-01 (ITERATING)

# TAO   0, KSP 115      |r|=4.671e-01 (ITERATING)

# TAO   0, KSP 116      |r|=4.125e-01 (ITERATING)

# TAO   0, KSP 117      |r|=3.830e-01 (ITERATING)

# TAO   0, KSP 118      |r|=3.578e-01 (ITERATING)

# TAO   0, KSP 119      |r|=3.321e-01 (ITERATING)

# TAO   0, KSP 120      |r|=3.007e-01 (ITERATING)

# TAO   0, KSP 121      |r|=2.706e-01 (ITERATING)

# TAO   0, KSP 122      |r|=2.577e-01 (ITERATING)

# TAO   0, KSP 123      |r|=2.376e-01 (ITERATING)

# TAO   0, KSP 124      |r|=2.208e-01 (ITERATING)

# TAO   0, KSP 125      |r|=2.125e-01 (ITERATING)

# TAO   0, KSP 126      |r|=2.068e-01 (ITERATING)

# TAO   0, KSP 127      |r|=1.979e-01 (ITERATING)

# TAO   0, KSP 128      |r|=1.951e-01 (ITERATING)

# TAO   0, KSP 129      |r|=1.837e-01 (ITERATING)

# TAO   0, KSP 130      |r|=1.665e-01 (ITERATING)

# TAO   0, KSP 131      |r|=1.591e-01 (ITERATING)

# TAO   0, KSP 132      |r|=1.494e-01 (ITERATING)

# TAO   0, KSP 133      |r|=1.426e-01 (ITERATING)

# TAO   0, KSP 134      |r|=1.373e-01 (ITERATING)

# TAO   0, KSP 135      |r|=1.254e-01 (ITERATING)

# TAO   0, KSP 136      |r|=1.127e-01 (ITERATING)

# TAO   0, KSP 137      |r|=1.026e-01 (ITERATING)

# TAO   0, KSP 138      |r|=9.565e-02 (ITERATING)

# TAO   0, KSP 139      |r|=9.064e-02 (ITERATING)

# TAO   0, KSP 140      |r|=8.475e-02 (ITERATING)

# TAO   0, KSP 141      |r|=8.341e-02 (ITERATING)

# TAO   0, KSP 142      |r|=7.945e-02 (ITERATING)

# TAO   0, KSP 143      |r|=7.345e-02 (ITERATING)

# TAO   0, KSP 144      |r|=7.119e-02 (ITERATING)

# TAO   0, KSP 145      |r|=7.011e-02 (ITERATING)

# TAO   0, KSP 146      |r|=6.752e-02 (ITERATING)

# TAO   0, KSP 147      |r|=6.350e-02 (ITERATING)

# TAO   0, KSP 148      |r|=5.921e-02 (ITERATING)

# TAO   0, KSP 149      |r|=5.477e-02 (ITERATING)

# TAO   0, KSP 150      |r|=4.691e-02 (ITERATING)

# TAO   0, KSP 151      |r|=4.343e-02 (ITERATING)

# TAO   0, KSP 152      |r|=4.007e-02 (ITERATING)

# TAO   0, KSP 153      |r|=3.786e-02 (ITERATING)

# TAO   0, KSP 154      |r|=3.603e-02 (ITERATING)

# TAO   0, KSP 155      |r|=3.179e-02 (ITERATING)

# TAO   0, KSP 156      |r|=2.940e-02 (ITERATING)

# TAO   0, KSP 157      |r|=2.680e-02 (ITERATING)

# TAO   0, KSP 158      |r|=2.586e-02 (ITERATING)

# TAO   0, KSP 159      |r|=2.345e-02 (ITERATING)

# TAO   0, KSP 160      |r|=2.191e-02 (ITERATING)

# TAO   0, KSP 161      |r|=2.049e-02 (ITERATING)

# TAO   0, KSP 162      |r|=1.959e-02 (ITERATING)

# TAO   0, KSP 163      |r|=1.879e-02 (ITERATING)

# TAO   0, KSP 164      |r|=1.804e-02 (ITERATING)

# TAO   0, KSP 165      |r|=1.746e-02 (ITERATING)

# TAO   0, KSP 166      |r|=1.539e-02 (ITERATING)

# TAO   0, KSP 167      |r|=1.353e-02 (ITERATING)

# TAO   0, KSP 168      |r|=1.239e-02 (ITERATING)

# TAO   0, KSP 169      |r|=1.168e-02 (ITERATING)

# TAO   0, KSP 170      |r|=1.159e-02 (ITERATING)

# TAO   0, KSP 171      |r|=1.145e-02 (ITERATING)

# TAO   0, KSP 172      |r|=1.101e-02 (ITERATING)

# TAO   0, KSP 173      |r|=1.052e-02 (ITERATING)

# TAO   0, KSP 174      |r|=9.739e-03 (ITERATING)

# TAO   0, KSP 175      |r|=9.199e-03 (ITERATING)

# TAO   0, KSP 176      |r|=9.038e-03 (ITERATING)

# TAO   0, KSP 177      |r|=8.931e-03 (ITERATING)

# TAO   0, KSP 178      |r|=8.694e-03 (ITERATING)

# TAO   0, KSP 179      |r|=8.568e-03 (ITERATING)

# TAO   0, KSP 180      |r|=8.701e-03 (ITERATING)

# TAO   0, KSP 181      |r|=8.871e-03 (ITERATING)

# TAO   0, KSP 182      |r|=8.895e-03 (ITERATING)

# TAO   0, KSP 183      |r|=8.572e-03 (ITERATING)

# TAO   0, KSP 184      |r|=8.575e-03 (ITERATING)

# TAO   0, KSP 185      |r|=8.518e-03 (ITERATING)

# TAO   0, KSP 186      |r|=7.907e-03 (ITERATING)

# TAO   0, KSP 187      |r|=7.688e-03 (ITERATING)

# TAO   0, KSP 188      |r|=7.449e-03 (ITERATING)

# TAO   0, KSP 189      |r|=7.269e-03 (ITERATING)

# TAO   0, KSP 190      |r|=6.959e-03 (ITERATING)

# TAO   0, KSP 191      |r|=6.601e-03 (ITERATING)

# TAO   0, KSP 192      |r|=6.319e-03 (ITERATING)

# TAO   0, KSP 193      |r|=5.870e-03 (ITERATING)

# TAO   0, KSP 194      |r|=5.439e-03 (ITERATING)

# TAO   0, KSP 195      |r|=4.782e-03 (ITERATING)

# TAO   0, KSP 196      |r|=4.362e-03 (ITERATING)

# TAO   0, KSP 197      |r|=3.938e-03 (ITERATING)

# TAO   0, KSP 198      |r|=3.715e-03 (ITERATING)

# TAO   0, KSP 199      |r|=3.721e-03 (ITERATING)

# TAO   0, KSP 200      |r|=3.684e-03 (ITERATING)

# TAO   0, KSP 201      |r|=3.654e-03 (ITERATING)

# TAO   0, KSP 202      |r|=3.589e-03 (ITERATING)

# TAO   0, KSP 203      |r|=3.360e-03 (ITERATING)

# TAO   0, KSP 204      |r|=3.128e-03 (ITERATING)

# TAO   0, KSP 205      |r|=3.025e-03 (ITERATING)

# TAO   0, KSP 206      |r|=2.981e-03 (ITERATING)

# TAO   0, KSP 207      |r|=2.918e-03 (ITERATING)

# TAO   0, KSP 208      |r|=3.000e-03 (ITERATING)

# TAO   0, KSP 209      |r|=2.909e-03 (ITERATING)

# TAO   0, KSP 210      |r|=2.956e-03 (ITERATING)

# TAO   0, KSP 211      |r|=2.994e-03 (ITERATING)

# TAO   0, KSP 212      |r|=3.161e-03 (ITERATING)

# TAO   0, KSP 213      |r|=3.101e-03 (ITERATING)

# TAO   0, KSP 214      |r|=2.937e-03 (ITERATING)

# TAO   0, KSP 215      |r|=3.018e-03 (ITERATING)

# TAO   0, KSP 216      |r|=2.993e-03 (ITERATING)

# TAO   0, KSP 217      |r|=2.879e-03 (ITERATING)

# TAO   0, KSP 218      |r|=2.969e-03 (ITERATING)

# TAO   0, KSP 219      |r|=3.138e-03 (ITERATING)

# TAO   0, KSP 220      |r|=3.200e-03 (ITERATING)

# TAO   0, KSP 221      |r|=3.258e-03 (ITERATING)

# TAO   0, KSP 222      |r|=3.009e-03 (ITERATING)

# TAO   0, KSP 223      |r|=2.823e-03 (ITERATING)

# TAO   0, KSP 224      |r|=2.824e-03 (ITERATING)

# TAO   0, KSP 225      |r|=2.808e-03 (ITERATING)

# TAO   0, KSP 226      |r|=2.847e-03 (ITERATING)

# TAO   0, KSP 227      |r|=2.810e-03 (ITERATING)

# TAO   0, KSP 228      |r|=2.953e-03 (ITERATING)

# TAO   0, KSP 229      |r|=3.176e-03 (ITERATING)

# TAO   0, KSP 230      |r|=3.250e-03 (ITERATING)

# TAO   0, KSP 231      |r|=3.367e-03 (ITERATING)

# TAO   0, KSP 232      |r|=3.524e-03 (ITERATING)

# TAO   0, KSP 233      |r|=3.512e-03 (ITERATING)

# TAO   0, KSP 234      |r|=3.414e-03 (ITERATING)

# TAO   0, KSP 235      |r|=3.167e-03 (ITERATING)

# TAO   0, KSP 236      |r|=2.858e-03 (ITERATING)

# TAO   0, KSP 237      |r|=2.643e-03 (ITERATING)

# TAO   0, KSP 238      |r|=2.331e-03 (ITERATING)

# TAO   0, KSP 239      |r|=2.050e-03 (ITERATING)

# TAO   0, KSP 240      |r|=1.802e-03 (ITERATING)

# TAO   0, KSP 241      |r|=1.670e-03 (ITERATING)

# TAO   0, KSP 242      |r|=1.553e-03 (ITERATING)

# TAO   0, KSP 243      |r|=1.392e-03 (ITERATING)

# TAO   0, KSP 244      |r|=1.300e-03 (ITERATING)

# TAO   0, KSP 245      |r|=1.140e-03 (ITERATING)

# TAO   0, KSP 246      |r|=1.020e-03 (ITERATING)

# TAO   0, KSP 247      |r|=9.391e-04 (ITERATING)

# TAO   0, KSP 248      |r|=8.269e-04 (ITERATING)

# TAO   0, KSP 249      |r|=7.331e-04 (ITERATING)

# TAO   0, KSP 250      |r|=6.436e-04 (ITERATING)

# TAO   0, KSP 251      |r|=5.671e-04 (ITERATING)

# TAO   0, KSP 252      |r|=5.245e-04 (ITERATING)

# TAO   0, KSP 253      |r|=4.882e-04 (ITERATING)

# TAO   0, KSP 254      |r|=4.642e-04 (ITERATING)

# TAO   0, KSP 255      |r|=4.447e-04 (ITERATING)

# TAO   0, KSP 256      |r|=4.412e-04 (ITERATING)

# TAO   0, KSP 257      |r|=4.546e-04 (ITERATING)

# TAO   0, KSP 258      |r|=4.699e-04 (ITERATING)

# TAO   0, KSP 259      |r|=4.517e-04 (ITERATING)

# TAO   0, KSP 260      |r|=4.647e-04 (ITERATING)

# TAO   0, KSP 261      |r|=4.658e-04 (ITERATING)

# TAO   0, KSP 262      |r|=4.717e-04 (ITERATING)

# TAO   0, KSP 263      |r|=4.736e-04 (ITERATING)

# TAO   0, KSP 264      |r|=4.508e-04 (ITERATING)

# TAO   0, KSP 265      |r|=4.430e-04 (ITERATING)

# TAO   0, KSP 266      |r|=4.351e-04 (ITERATING)

# TAO   0, KSP 267      |r|=4.239e-04 (ITERATING)

# TAO   0, KSP 268      |r|=4.052e-04 (ITERATING)

# TAO   0, KSP 269      |r|=3.886e-04 (ITERATING)

# TAO   0, KSP 270      |r|=3.604e-04 (ITERATING)

# TAO   0, KSP 271      |r|=3.272e-04 (ITERATING)

# TAO   0, KSP 272      |r|=2.983e-04 (ITERATING)

# TAO   0, KSP 273      |r|=2.759e-04 (ITERATING)

# TAO   0, KSP 274      |r|=2.562e-04 (ITERATING)

# TAO   0, KSP 275      |r|=2.520e-04 (ITERATING)

# TAO   0, KSP 276      |r|=2.448e-04 (ITERATING)

# TAO   0, KSP 277      |r|=2.395e-04 (ITERATING)

# TAO   0, KSP 278      |r|=2.342e-04 (ITERATING)

# TAO   0, KSP 279      |r|=2.251e-04 (ITERATING)

# TAO   0, KSP 280      |r|=2.163e-04 (ITERATING)

# TAO   0, KSP 281      |r|=1.970e-04 (ITERATING)

# TAO   0, KSP 282      |r|=1.808e-04 (ITERATING)

# TAO   0, KSP 283      |r|=1.719e-04 (ITERATING)

# TAO   0, KSP 284      |r|=1.644e-04 (ITERATING)

# TAO   0, KSP 285      |r|=1.530e-04 (ITERATING)

# TAO   0, KSP 286      |r|=1.384e-04 (ITERATING)

# TAO   0, KSP 287      |r|=1.349e-04 (ITERATING)

# TAO   0, KSP 288      |r|=1.349e-04 (ITERATING)

# TAO   0, KSP 289      |r|=1.263e-04 (ITERATING)

# TAO   0, KSP 290      |r|=1.130e-04 (ITERATING)

# TAO   0, KSP 291      |r|=1.092e-04 (ITERATING)

# TAO   0, KSP 292      |r|=1.014e-04 (ITERATING)

# TAO   0, KSP 293      |r|=9.341e-05 (ITERATING)

# TAO   0, KSP 294      |r|=8.573e-05 (ITERATING)

# TAO   0, KSP 295      |r|=8.067e-05 (ITERATING)

# TAO   0, KSP 296      |r|=7.787e-05 (ITERATING)

# TAO   0, KSP 297      |r|=7.221e-05 (ITERATING)

# TAO   0, KSP 298      |r|=6.847e-05 (ITERATING)

# TAO   0, KSP 299      |r|=6.315e-05 (ITERATING)

# TAO   0, KSP 300      |r|=5.747e-05 (ITERATING)

# TAO   0, KSP 301      |r|=5.260e-05 (ITERATING)

# TAO   0, KSP 302      |r|=4.909e-05 (ITERATING)

# TAO   0, KSP 303      |r|=4.681e-05 (ITERATING)

# TAO   0, KSP 304      |r|=4.229e-05 (ITERATING)

# TAO   0, KSP 305      |r|=3.726e-05 (ITERATING)

# TAO   0, KSP 306      |r|=3.454e-05 (ITERATING)

# TAO   0, KSP 307      |r|=3.352e-05 (ITERATING)

# TAO   0, KSP 308      |r|=3.239e-05 (ITERATING)

# TAO   0, KSP 309      |r|=2.980e-05 (ITERATING)

# TAO   0, KSP 310      |r|=2.669e-05 (ITERATING)

# TAO   0, KSP 311      |r|=2.420e-05 (ITERATING)

# TAO   0, KSP 312      |r|=2.224e-05 (ITERATING)

# TAO   0, KSP 313      |r|=2.095e-05 (ITERATING)

# TAO   0, KSP 314      |r|=2.063e-05 (ITERATING)

# TAO   0, KSP 315      |r|=1.968e-05 (ITERATING)

# TAO   0, KSP 316      |r|=1.676e-05 (ITERATING)

# TAO   0, KSP 317      |r|=1.384e-05 (ITERATING)

# TAO   0, KSP 318      |r|=1.141e-05 (ITERATING)

# TAO   0, KSP 319      |r|=9.875e-06 (ITERATING)

# TAO   0, KSP 320      |r|=8.666e-06 (ITERATING)

# TAO   0, KSP 321      |r|=7.885e-06 (ITERATING)

# TAO   0, KSP 322      |r|=6.987e-06 (ITERATING)

# TAO   0, KSP 323      |r|=6.215e-06 (ITERATING)

# TAO   0, KSP 324      |r|=5.395e-06 (ITERATING)

# TAO   0, KSP 325      |r|=4.885e-06 (ITERATING)

# TAO   0, KSP 326      |r|=4.533e-06 (ITERATING)

# TAO   0, KSP 327      |r|=4.243e-06 (ITERATING)

# TAO   0, KSP 328      |r|=3.784e-06 (ITERATING)

# TAO   1 (ITERATING)

# sub   0 [ 16k] |x|=3.580e+01 |J|=4.145e-01 (g)

# all            |x|=3.580e+01 |J|=4.145e-01 |H|=4.115e+02 f=8.206e+00

# TAO   1, KSP   0      |r|=4.145e-01 (ITERATING)

# TAO   1, KSP   1      |r|=4.655e-01 (ITERATING)

# TAO   1, KSP   2      |r|=4.940e-01 (ITERATING)

# TAO   1, KSP   3      |r|=5.110e-01 (ITERATING)

# TAO   1, KSP   4      |r|=5.103e-01 (ITERATING)

# TAO   1, KSP   5      |r|=5.063e-01 (ITERATING)

# TAO   1, KSP   6      |r|=5.014e-01 (ITERATING)

# TAO   1, KSP   7      |r|=4.900e-01 (ITERATING)

# TAO   1, KSP   8      |r|=4.756e-01 (ITERATING)

# TAO   1, KSP   9      |r|=4.696e-01 (ITERATING)

# TAO   1, KSP  10      |r|=4.632e-01 (ITERATING)

# TAO   1, KSP  11      |r|=4.577e-01 (ITERATING)

# TAO   1, KSP  12      |r|=4.604e-01 (ITERATING)

# TAO   1, KSP  13      |r|=4.719e-01 (ITERATING)

# TAO   1, KSP  14      |r|=5.194e-01 (ITERATING)

# TAO   1, KSP  15      |r|=7.186e-01 (ITERATING)

# TAO   1, KSP  16      |r|=8.446e-01 (ITERATING)

# TAO   1, KSP  17      |r|=8.121e-01 (ITERATING)

# TAO   1, KSP  18      |r|=8.311e-01 (ITERATING)

# TAO   1, KSP  19      |r|=8.659e-01 (ITERATING)

# TAO   1, KSP  20      |r|=8.699e-01 (ITERATING)

# TAO   1, KSP  21      |r|=8.939e-01 (ITERATING)

# TAO   1, KSP  22      |r|=8.917e-01 (ITERATING)

# TAO   1, KSP  23      |r|=9.286e-01 (ITERATING)

# TAO   1, KSP  24      |r|=9.857e-01 (ITERATING)

# TAO   1, KSP  25      |r|=1.040e+00 (ITERATING)

# TAO   1, KSP  26      |r|=1.058e+00 (ITERATING)

# TAO   2 (ITERATING)

# sub   0 [ 16k] |x|=3.622e+01 |J|=7.399e-01 (g)

# all            |x|=3.622e+01 |J|=7.399e-01 |H|=4.129e+02 f=7.810e+00

# TAO   2, KSP   0      |r|=7.399e-01 (ITERATING)

# TAO   2, KSP   1      |r|=9.018e-01 (ITERATING)

# TAO   2, KSP   2      |r|=9.724e-01 (ITERATING)

# TAO   2, KSP   3      |r|=9.368e-01 (ITERATING)

# TAO   2, KSP   4      |r|=9.314e-01 (ITERATING)

# TAO   2, KSP   5      |r|=8.991e-01 (ITERATING)

# TAO   2, KSP   6      |r|=9.019e-01 (ITERATING)

# TAO   2, KSP   7      |r|=8.879e-01 (ITERATING)

# TAO   3 (ITERATING)

# sub   0 [ 16k] |x|=3.699e+01 |J|=7.081e-01 (g)

# all            |x|=3.699e+01 |J|=7.081e-01 |H|=3.997e+02 f=7.464e+00

# TAO   3, KSP   0      |r|=7.081e-01 (ITERATING)

# TAO   3, KSP   1      |r|=8.184e-01 (ITERATING)

# TAO   4 (ITERATING)

# sub   0 [ 16k] |x|=3.827e+01 |J|=1.042e+00 (g)

# all            |x|=3.827e+01 |J|=1.042e+00 |H|=4.004e+02 f=7.311e+00

# TAO   4, KSP   0      |r|=1.042e+00 (ITERATING)

# TAO   4, KSP   1      |r|=1.040e+00 (ITERATING)

# TAO   4, KSP   2      |r|=9.090e-01 (ITERATING)

# TAO   4, KSP   3      |r|=1.001e+00 (ITERATING)

# TAO   5 (ITERATING)

# sub   0 [ 16k] |x|=3.899e+01 |J|=7.362e-01 (g)

# all            |x|=3.899e+01 |J|=7.362e-01 |H|=3.856e+02 f=6.990e+00

# TAO   5, KSP   0      |r|=7.362e-01 (ITERATING)

# TAO   5, KSP   1      |r|=7.856e-01 (ITERATING)

# TAO   6 (ITERATING)

# sub   0 [ 16k] |x|=4.058e+01 |J|=1.065e+00 (g)

# all            |x|=4.058e+01 |J|=1.065e+00 |H|=3.966e+02 f=6.886e+00

# TAO   6, KSP   0      |r|=1.065e+00 (ITERATING)

# TAO   6, KSP   1      |r|=9.642e-01 (ITERATING)

# TAO   6, KSP   2      |r|=6.078e-01 (ITERATING)

# TAO   6, KSP   3      |r|=6.685e-01 (ITERATING)

# TAO   6, KSP   4      |r|=6.601e-01 (ITERATING)

# TAO   7 (ITERATING)

# sub   0 [ 16k] |x|=4.127e+01 |J|=7.170e-01 (g)

# all            |x|=4.127e+01 |J|=7.170e-01 |H|=3.830e+02 f=6.670e+00

# TAO   7, KSP   0      |r|=7.170e-01 (ITERATING)

# TAO   7, KSP   1      |r|=6.625e-01 (ITERATING)

# TAO   7, KSP   2      |r|=6.320e-01 (ITERATING)

# TAO   8 (ITERATING)

# sub   0 [ 16k] |x|=4.313e+01 |J|=6.981e-01 (g)

# all            |x|=4.313e+01 |J|=6.981e-01 |H|=3.979e+02 f=6.559e+00

# TAO   8, KSP   0      |r|=6.981e-01 (ITERATING)

# TAO   8, KSP   1      |r|=6.470e-01 (ITERATING)

# TAO   8, KSP   2      |r|=6.044e-01 (ITERATING)

# TAO   8, KSP   3      |r|=7.261e-01 (ITERATING)

# TAO   8, KSP   4      |r|=6.928e-01 (ITERATING)

# TAO   9 (ITERATING)

# sub   0 [ 16k] |x|=4.402e+01 |J|=5.471e-01 (g)

# all            |x|=4.402e+01 |J|=5.471e-01 |H|=4.011e+02 f=6.394e+00

# TAO   9, KSP   0      |r|=5.471e-01 (ITERATING)

# TAO   9, KSP   1      |r|=5.865e-01 (ITERATING)

# TAO   9, KSP   2      |r|=6.344e-01 (ITERATING)

# TAO  10 (ITERATING)

# sub   0 [ 16k] |x|=4.602e+01 |J|=8.294e-01 (g)

# all            |x|=4.602e+01 |J|=8.294e-01 |H|=4.089e+02 f=6.308e+00

# TAO  10, KSP   0      |r|=8.294e-01 (ITERATING)

# TAO  10, KSP   1      |r|=7.176e-01 (ITERATING)

# TAO  10, KSP   2      |r|=5.133e-01 (ITERATING)

# TAO  10, KSP   3      |r|=4.935e-01 (ITERATING)

# TAO  10, KSP   4      |r|=5.000e-01 (ITERATING)

# TAO  10, KSP   5      |r|=4.620e-01 (ITERATING)

# TAO  10, KSP   6      |r|=4.519e-01 (ITERATING)

# TAO  10, KSP   7      |r|=4.296e-01 (ITERATING)

# TAO  11 (ITERATING)

# sub   0 [ 16k] |x|=4.686e+01 |J|=5.810e-01 (g)

# all            |x|=4.686e+01 |J|=5.810e-01 |H|=4.003e+02 f=6.144e+00

# TAO  11, KSP   0      |r|=5.810e-01 (ITERATING)

# TAO  11, KSP   1      |r|=5.191e-01 (ITERATING)

# TAO  11, KSP   2      |r|=4.204e-01 (ITERATING)

# TAO  11, KSP   3      |r|=4.925e-01 (ITERATING)

# TAO  11, KSP   4      |r|=5.332e-01 (ITERATING)

# TAO  12 (ITERATING)

# sub   0 [ 16k] |x|=4.764e+01 |J|=4.026e-01 (g)

# all            |x|=4.764e+01 |J|=4.026e-01 |H|=4.116e+02 f=6.052e+00

# TAO  12, KSP   0      |r|=4.026e-01 (ITERATING)

# TAO  12, KSP   1      |r|=4.277e-01 (ITERATING)

# TAO  13 (ITERATING)

# sub   0 [ 16k] |x|=4.853e+01 |J|=3.673e-01 (g)

# all            |x|=4.853e+01 |J|=3.673e-01 |H|=4.159e+02 f=5.998e+00

# TAO  13, KSP   0      |r|=3.673e-01 (ITERATING)

# TAO  13, KSP   1      |r|=3.695e-01 (ITERATING)

# TAO  13, KSP   2      |r|=2.732e-01 (ITERATING)

# TAO  13, KSP   3      |r|=2.571e-01 (ITERATING)

# TAO  14 (ITERATING)

# sub   0 [ 16k] |x|=5.059e+01 |J|=3.607e-01 (g)

# all            |x|=5.059e+01 |J|=3.607e-01 |H|=4.163e+02 f=5.950e+00

# TAO  14, KSP   0      |r|=3.607e-01 (ITERATING)

# TAO  14, KSP   1      |r|=3.496e-01 (ITERATING)

# TAO  14, KSP   2      |r|=3.713e-01 (ITERATING)

# TAO  14, KSP   3      |r|=3.984e-01 (ITERATING)

# TAO  14, KSP   4      |r|=3.568e-01 (ITERATING)

# TAO  14, KSP   5      |r|=3.256e-01 (ITERATING)

# TAO  14, KSP   6      |r|=3.180e-01 (ITERATING)

# TAO  14, KSP   7      |r|=2.802e-01 (ITERATING)

# TAO  14, KSP   8      |r|=2.616e-01 (ITERATING)

# TAO  14, KSP   9      |r|=2.355e-01 (ITERATING)

# TAO  14, KSP  10      |r|=2.148e-01 (ITERATING)

# TAO  14, KSP  11      |r|=1.963e-01 (ITERATING)

# TAO  14, KSP  12      |r|=1.806e-01 (ITERATING)

# TAO  14, KSP  13      |r|=1.629e-01 (ITERATING)

# TAO  14, KSP  14      |r|=1.532e-01 (ITERATING)

# TAO  14, KSP  15      |r|=1.425e-01 (ITERATING)

# TAO  14, KSP  16      |r|=1.317e-01 (ITERATING)

# TAO  14, KSP  17      |r|=1.341e-01 (ITERATING)

# TAO  14, KSP  18      |r|=1.361e-01 (ITERATING)

# TAO  14, KSP  19      |r|=1.215e-01 (ITERATING)

# TAO  14, KSP  20      |r|=1.100e-01 (ITERATING)

# TAO  14, KSP  21      |r|=9.900e-02 (ITERATING)

# TAO  14, KSP  22      |r|=9.269e-02 (ITERATING)

# TAO  14, KSP  23      |r|=8.526e-02 (ITERATING)

# TAO  14, KSP  24      |r|=7.325e-02 (ITERATING)

# TAO  14, KSP  25      |r|=6.402e-02 (ITERATING)

# TAO  14, KSP  26      |r|=5.827e-02 (ITERATING)

# TAO  14, KSP  27      |r|=5.312e-02 (ITERATING)

# TAO  14, KSP  28      |r|=4.894e-02 (ITERATING)

# TAO  14, KSP  29      |r|=4.583e-02 (ITERATING)

# TAO  14, KSP  30      |r|=4.602e-02 (ITERATING)

# TAO  14, KSP  31      |r|=4.637e-02 (ITERATING)

# TAO  14, KSP  32      |r|=4.636e-02 (ITERATING)

# TAO  14, KSP  33      |r|=4.418e-02 (ITERATING)

# TAO  14, KSP  34      |r|=4.089e-02 (ITERATING)

# TAO  14, KSP  35      |r|=3.932e-02 (ITERATING)

# TAO  14, KSP  36      |r|=3.868e-02 (ITERATING)

# TAO  14, KSP  37      |r|=3.665e-02 (ITERATING)

# TAO  14, KSP  38      |r|=3.280e-02 (ITERATING)

# TAO  14, KSP  39      |r|=3.188e-02 (ITERATING)

# TAO  14, KSP  40      |r|=3.174e-02 (ITERATING)

# TAO  14, KSP  41      |r|=3.198e-02 (ITERATING)

# TAO  14, KSP  42      |r|=3.313e-02 (ITERATING)

# TAO  14, KSP  43      |r|=3.627e-02 (ITERATING)

# TAO  14, KSP  44      |r|=3.991e-02 (ITERATING)

# TAO  14, KSP  45      |r|=4.109e-02 (ITERATING)

# TAO  14, KSP  46      |r|=3.857e-02 (ITERATING)

# TAO  14, KSP  47      |r|=3.605e-02 (ITERATING)

# TAO  14, KSP  48      |r|=3.359e-02 (ITERATING)

# TAO  14, KSP  49      |r|=3.041e-02 (ITERATING)

# TAO  14, KSP  50      |r|=2.767e-02 (ITERATING)

# TAO  14, KSP  51      |r|=2.443e-02 (ITERATING)

# TAO  14, KSP  52      |r|=2.207e-02 (ITERATING)

# TAO  14, KSP  53      |r|=1.847e-02 (ITERATING)

# TAO  14, KSP  54      |r|=1.566e-02 (ITERATING)

# TAO  14, KSP  55      |r|=1.422e-02 (ITERATING)

# TAO  14, KSP  56      |r|=1.389e-02 (ITERATING)

# TAO  14, KSP  57      |r|=1.354e-02 (ITERATING)

# TAO  14, KSP  58      |r|=1.349e-02 (ITERATING)

# TAO  14, KSP  59      |r|=1.267e-02 (ITERATING)

# TAO  14, KSP  60      |r|=1.165e-02 (ITERATING)

# TAO  14, KSP  61      |r|=1.034e-02 (ITERATING)

# TAO  14, KSP  62      |r|=9.533e-03 (ITERATING)

# TAO  14, KSP  63      |r|=8.577e-03 (ITERATING)

# TAO  14, KSP  64      |r|=7.985e-03 (ITERATING)

# TAO  14, KSP  65      |r|=7.505e-03 (ITERATING)

# TAO  14, KSP  66      |r|=7.224e-03 (ITERATING)

# TAO  14, KSP  67      |r|=7.238e-03 (ITERATING)

# TAO  14, KSP  68      |r|=7.241e-03 (ITERATING)

# TAO  14, KSP  69      |r|=7.061e-03 (ITERATING)

# TAO  14, KSP  70      |r|=6.590e-03 (ITERATING)

# TAO  14, KSP  71      |r|=6.258e-03 (ITERATING)

# TAO  14, KSP  72      |r|=5.834e-03 (ITERATING)

# TAO  14, KSP  73      |r|=5.470e-03 (ITERATING)

# TAO  14, KSP  74      |r|=5.290e-03 (ITERATING)

# TAO  14, KSP  75      |r|=5.014e-03 (ITERATING)

# TAO  14, KSP  76      |r|=4.655e-03 (ITERATING)

# TAO  14, KSP  77      |r|=4.217e-03 (ITERATING)

# TAO  14, KSP  78      |r|=3.903e-03 (ITERATING)

# TAO  14, KSP  79      |r|=3.576e-03 (ITERATING)

# TAO  14, KSP  80      |r|=3.464e-03 (ITERATING)

# TAO  14, KSP  81      |r|=3.269e-03 (ITERATING)

# TAO  14, KSP  82      |r|=3.237e-03 (ITERATING)

# TAO  14, KSP  83      |r|=2.910e-03 (ITERATING)

# TAO  14, KSP  84      |r|=2.558e-03 (ITERATING)

# TAO  14, KSP  85      |r|=2.189e-03 (ITERATING)

# TAO  14, KSP  86      |r|=1.868e-03 (ITERATING)

# TAO  14, KSP  87      |r|=1.669e-03 (ITERATING)

# TAO  14, KSP  88      |r|=1.496e-03 (ITERATING)

# TAO  14, KSP  89      |r|=1.399e-03 (ITERATING)

# TAO  14, KSP  90      |r|=1.357e-03 (ITERATING)

# TAO  14, KSP  91      |r|=1.280e-03 (ITERATING)

# TAO  14, KSP  92      |r|=1.197e-03 (ITERATING)

# TAO  14, KSP  93      |r|=1.136e-03 (ITERATING)

# TAO  14, KSP  94      |r|=1.093e-03 (ITERATING)

# TAO  14, KSP  95      |r|=1.123e-03 (ITERATING)

# TAO  14, KSP  96      |r|=1.154e-03 (ITERATING)

# TAO  14, KSP  97      |r|=1.197e-03 (ITERATING)

# TAO  14, KSP  98      |r|=1.257e-03 (ITERATING)

# TAO  14, KSP  99      |r|=1.293e-03 (ITERATING)

# TAO  14, KSP 100      |r|=1.255e-03 (ITERATING)

# TAO  14, KSP 101      |r|=1.175e-03 (ITERATING)

# TAO  14, KSP 102      |r|=1.101e-03 (ITERATING)

# TAO  14, KSP 103      |r|=1.066e-03 (ITERATING)

# TAO  14, KSP 104      |r|=9.803e-04 (ITERATING)

# TAO  14, KSP 105      |r|=8.757e-04 (ITERATING)

# TAO  14, KSP 106      |r|=8.220e-04 (ITERATING)

# TAO  14, KSP 107      |r|=7.904e-04 (ITERATING)

# TAO  14, KSP 108      |r|=7.420e-04 (ITERATING)

# TAO  14, KSP 109      |r|=6.830e-04 (ITERATING)

# TAO  14, KSP 110      |r|=6.236e-04 (ITERATING)

# TAO  14, KSP 111      |r|=5.829e-04 (ITERATING)

# TAO  14, KSP 112      |r|=5.826e-04 (ITERATING)

# TAO  14, KSP 113      |r|=5.680e-04 (ITERATING)

# TAO  14, KSP 114      |r|=5.395e-04 (ITERATING)

# TAO  14, KSP 115      |r|=5.157e-04 (ITERATING)

# TAO  14, KSP 116      |r|=4.837e-04 (ITERATING)

# TAO  14, KSP 117      |r|=4.218e-04 (ITERATING)

# TAO  14, KSP 118      |r|=3.839e-04 (ITERATING)

# TAO  14, KSP 119      |r|=3.427e-04 (ITERATING)

# TAO  14, KSP 120      |r|=3.173e-04 (ITERATING)

# TAO  14, KSP 121      |r|=2.976e-04 (ITERATING)

# TAO  14, KSP 122      |r|=2.741e-04 (ITERATING)

# TAO  14, KSP 123      |r|=2.429e-04 (ITERATING)

# TAO  14, KSP 124      |r|=2.239e-04 (ITERATING)

# TAO  14, KSP 125      |r|=2.053e-04 (ITERATING)

# TAO  14, KSP 126      |r|=1.765e-04 (ITERATING)

# TAO  14, KSP 127      |r|=1.487e-04 (ITERATING)

# TAO  14, KSP 128      |r|=1.359e-04 (ITERATING)

# TAO  14, KSP 129      |r|=1.255e-04 (ITERATING)

# TAO  14, KSP 130      |r|=1.155e-04 (ITERATING)

# TAO  14, KSP 131      |r|=1.030e-04 (ITERATING)

# TAO  14, KSP 132      |r|=9.390e-05 (ITERATING)

# TAO  14, KSP 133      |r|=8.624e-05 (ITERATING)

# TAO  14, KSP 134      |r|=8.170e-05 (ITERATING)

# TAO  14, KSP 135      |r|=7.535e-05 (ITERATING)

# TAO  14, KSP 136      |r|=6.691e-05 (ITERATING)

# TAO  14, KSP 137      |r|=6.194e-05 (ITERATING)

# TAO  14, KSP 138      |r|=5.906e-05 (ITERATING)

# TAO  14, KSP 139      |r|=5.469e-05 (ITERATING)

# TAO  14, KSP 140      |r|=4.963e-05 (ITERATING)

# TAO  14, KSP 141      |r|=4.418e-05 (ITERATING)

# TAO  14, KSP 142      |r|=4.193e-05 (ITERATING)

# TAO  14, KSP 143      |r|=4.078e-05 (ITERATING)

# TAO  14, KSP 144      |r|=4.014e-05 (ITERATING)

# TAO  14, KSP 145      |r|=3.774e-05 (ITERATING)

# TAO  14, KSP 146      |r|=3.613e-05 (ITERATING)

# TAO  14, KSP 147      |r|=3.405e-05 (ITERATING)

# TAO  14, KSP 148      |r|=3.193e-05 (ITERATING)

# TAO  14, KSP 149      |r|=2.855e-05 (ITERATING)

# TAO  14, KSP 150      |r|=2.498e-05 (ITERATING)

# TAO  14, KSP 151      |r|=2.331e-05 (ITERATING)

# TAO  14, KSP 152      |r|=2.155e-05 (ITERATING)

# TAO  14, KSP 153      |r|=1.992e-05 (ITERATING)

# TAO  14, KSP 154      |r|=1.916e-05 (ITERATING)

# TAO  14, KSP 155      |r|=1.923e-05 (ITERATING)

# TAO  14, KSP 156      |r|=1.876e-05 (ITERATING)

# TAO  14, KSP 157      |r|=1.720e-05 (ITERATING)

# TAO  14, KSP 158      |r|=1.535e-05 (ITERATING)

# TAO  14, KSP 159      |r|=1.322e-05 (ITERATING)

# TAO  14, KSP 160      |r|=1.147e-05 (ITERATING)

# TAO  14, KSP 161      |r|=1.003e-05 (ITERATING)

# TAO  14, KSP 162      |r|=9.092e-06 (ITERATING)

# TAO  14, KSP 163      |r|=8.170e-06 (ITERATING)

# TAO  14, KSP 164      |r|=7.587e-06 (ITERATING)

# TAO  14, KSP 165      |r|=7.287e-06 (ITERATING)

# TAO  14, KSP 166      |r|=7.069e-06 (ITERATING)

# TAO  14, KSP 167      |r|=7.083e-06 (ITERATING)

# TAO  14, KSP 168      |r|=7.085e-06 (ITERATING)

# TAO  14, KSP 169      |r|=7.003e-06 (ITERATING)

# TAO  14, KSP 170      |r|=6.695e-06 (ITERATING)

# TAO  14, KSP 171      |r|=6.456e-06 (ITERATING)

# TAO  14, KSP 172      |r|=6.395e-06 (ITERATING)

# TAO  14, KSP 173      |r|=6.333e-06 (ITERATING)

# TAO  14, KSP 174      |r|=6.257e-06 (ITERATING)

# TAO  14, KSP 175      |r|=5.814e-06 (ITERATING)

# TAO  14, KSP 176      |r|=5.269e-06 (ITERATING)

# TAO  14, KSP 177      |r|=4.872e-06 (ITERATING)

# TAO  14, KSP 178      |r|=4.626e-06 (ITERATING)

# TAO  14, KSP 179      |r|=4.364e-06 (ITERATING)

# TAO  14, KSP 180      |r|=3.932e-06 (ITERATING)

# TAO  14, KSP 181      |r|=3.615e-06 (ITERATING)

# TAO  14, KSP 182      |r|=3.642e-06 (ITERATING)

# TAO  14, KSP 183      |r|=3.638e-06 (ITERATING)

# TAO  14, KSP 184      |r|=3.656e-06 (ITERATING)

# TAO  14, KSP 185      |r|=3.728e-06 (ITERATING)

# TAO  14, KSP 186      |r|=3.617e-06 (ITERATING)

# TAO  14, KSP 187      |r|=3.386e-06 (ITERATING)

# TAO  15 (ITERATING)

# sub   0 [ 16k] |x|=5.059e+01 |J|=2.667e-01 (g)

# all            |x|=5.059e+01 |J|=2.667e-01 |H|=4.095e+02 f=5.861e+00

# TAO  15, KSP   0      |r|=2.667e-01 (ITERATING)

# TAO  15, KSP   1      |r|=2.868e-01 (ITERATING)

# TAO  15, KSP   2      |r|=3.032e-01 (ITERATING)

# TAO  15, KSP   3      |r|=3.643e-01 (ITERATING)

# TAO  15, KSP   4      |r|=4.258e-01 (ITERATING)

# TAO  16 (ITERATING)

# sub   0 [ 16k] |x|=5.127e+01 |J|=2.445e-01 (g)

# all            |x|=5.127e+01 |J|=2.445e-01 |H|=4.151e+02 f=5.801e+00

# TAO  16, KSP   0      |r|=2.445e-01 (ITERATING)

# TAO  16, KSP   1      |r|=2.511e-01 (ITERATING)

# TAO  16, KSP   2      |r|=2.420e-01 (ITERATING)

# TAO  16, KSP   3      |r|=2.646e-01 (ITERATING)

# TAO  17 (ITERATING)

# sub   0 [ 16k] |x|=5.145e+01 |J|=2.654e-01 (g)

# all            |x|=5.145e+01 |J|=2.654e-01 |H|=4.096e+02 f=5.787e+00

# TAO  17, KSP   0      |r|=2.654e-01 (ITERATING)

# TAO  17, KSP   1      |r|=2.697e-01 (ITERATING)

# TAO  17, KSP   2      |r|=2.895e-01 (ITERATING)

# TAO  17, KSP   3      |r|=3.108e-01 (ITERATING)

# TAO  17, KSP   4      |r|=3.291e-01 (ITERATING)

# TAO  17, KSP   5      |r|=3.257e-01 (ITERATING)

# TAO  17, KSP   6      |r|=3.582e-01 (ITERATING)

# TAO  18 (ITERATING)

# sub   0 [ 16k] |x|=5.130e+01 |J|=1.956e-01 (g)

# all            |x|=5.130e+01 |J|=1.956e-01 |H|=4.025e+02 f=5.763e+00

# TAO  18, KSP   0      |r|=1.956e-01 (ITERATING)

# TAO  18, KSP   1      |r|=1.219e-01 (ITERATING)

# TAO  18, KSP   2      |r|=9.442e-02 (ITERATING)

# TAO  18, KSP   3      |r|=9.063e-02 (ITERATING)

# TAO  18, KSP   4      |r|=9.875e-02 (ITERATING)

# TAO  18, KSP   5      |r|=9.457e-02 (ITERATING)

# TAO  18, KSP   6      |r|=8.529e-02 (ITERATING)

# TAO  19 (ITERATING)

# sub   0 [ 16k] |x|=5.152e+01 |J|=1.103e-01 (g)

# all            |x|=5.152e+01 |J|=1.103e-01 |H|=4.039e+02 f=5.746e+00

# TAO  19, KSP   0      |r|=1.103e-01 (ITERATING)

# TAO  19, KSP   1      |r|=7.753e-02 (ITERATING)

# TAO  19, KSP   2      |r|=7.761e-02 (ITERATING)

# TAO  19, KSP   3      |r|=7.533e-02 (ITERATING)

# TAO  19, KSP   4      |r|=1.084e-01 (ITERATING)

# TAO  19, KSP   5      |r|=9.270e-02 (ITERATING)

# TAO  19, KSP   6      |r|=7.915e-02 (ITERATING)

# TAO  19, KSP   7      |r|=7.882e-02 (ITERATING)

# TAO  19, KSP   8      |r|=6.436e-02 (ITERATING)

# TAO  19, KSP   9      |r|=5.520e-02 (ITERATING)

# TAO  19, KSP  10      |r|=4.564e-02 (ITERATING)

# TAO  19, KSP  11      |r|=4.161e-02 (ITERATING)

# TAO  19, KSP  12      |r|=3.659e-02 (ITERATING)

# TAO  20 (ITERATING)

# sub   0 [ 16k] |x|=5.234e+01 |J|=1.062e-01 (g)

# all            |x|=5.234e+01 |J|=1.062e-01 |H|=4.013e+02 f=5.732e+00

# TAO  20, KSP   0      |r|=1.062e-01 (ITERATING)

# TAO  20, KSP   1      |r|=7.138e-02 (ITERATING)

# TAO  20, KSP   2      |r|=5.995e-02 (ITERATING)

# TAO  20, KSP   3      |r|=4.714e-02 (ITERATING)

# TAO  20, KSP   4      |r|=3.093e-02 (ITERATING)

# TAO  20, KSP   5      |r|=2.837e-02 (ITERATING)

# TAO  20, KSP   6      |r|=2.420e-02 (ITERATING)

# TAO  20, KSP   7      |r|=2.945e-02 (ITERATING)

# TAO  20, KSP   8      |r|=3.247e-02 (ITERATING)

# TAO  20, KSP   9      |r|=3.533e-02 (ITERATING)

# TAO  20, KSP  10      |r|=2.767e-02 (ITERATING)

# TAO  20, KSP  11      |r|=2.586e-02 (ITERATING)

# TAO  20, KSP  12      |r|=2.458e-02 (ITERATING)

# TAO  20, KSP  13      |r|=2.619e-02 (ITERATING)

# TAO  20, KSP  14      |r|=2.693e-02 (ITERATING)

# TAO  20, KSP  15      |r|=2.462e-02 (ITERATING)

# TAO  20, KSP  16      |r|=2.453e-02 (ITERATING)

# TAO  20, KSP  17      |r|=2.075e-02 (ITERATING)

# TAO  20, KSP  18      |r|=1.892e-02 (ITERATING)

# TAO  20, KSP  19      |r|=1.612e-02 (ITERATING)

# TAO  20, KSP  20      |r|=1.331e-02 (ITERATING)

# TAO  20, KSP  21      |r|=1.307e-02 (ITERATING)

# TAO  20, KSP  22      |r|=1.176e-02 (ITERATING)

# TAO  20, KSP  23      |r|=1.100e-02 (ITERATING)

# TAO  20, KSP  24      |r|=9.829e-03 (ITERATING)

# TAO  20, KSP  25      |r|=9.194e-03 (ITERATING)

# TAO  20, KSP  26      |r|=9.581e-03 (ITERATING)

# TAO  20, KSP  27      |r|=1.034e-02 (ITERATING)

# TAO  20, KSP  28      |r|=1.094e-02 (ITERATING)

# TAO  20, KSP  29      |r|=1.070e-02 (ITERATING)

# TAO  20, KSP  30      |r|=1.062e-02 (ITERATING)

# TAO  20, KSP  31      |r|=1.017e-02 (ITERATING)

# TAO  20, KSP  32      |r|=8.883e-03 (ITERATING)

# TAO  20, KSP  33      |r|=8.046e-03 (ITERATING)

# TAO  20, KSP  34      |r|=6.858e-03 (ITERATING)

# TAO  20, KSP  35      |r|=5.602e-03 (ITERATING)

# TAO  20, KSP  36      |r|=4.910e-03 (ITERATING)

# TAO  20, KSP  37      |r|=4.500e-03 (ITERATING)

# TAO  20, KSP  38      |r|=4.317e-03 (ITERATING)

# TAO  20, KSP  39      |r|=4.201e-03 (ITERATING)

# TAO  20, KSP  40      |r|=4.044e-03 (ITERATING)

# TAO  20, KSP  41      |r|=3.841e-03 (ITERATING)

# TAO  20, KSP  42      |r|=3.707e-03 (ITERATING)

# TAO  20, KSP  43      |r|=3.427e-03 (ITERATING)

# TAO  20, KSP  44      |r|=3.287e-03 (ITERATING)

# TAO  20, KSP  45      |r|=3.009e-03 (ITERATING)

# TAO  20, KSP  46      |r|=2.838e-03 (ITERATING)

# TAO  20, KSP  47      |r|=2.935e-03 (ITERATING)

# TAO  20, KSP  48      |r|=2.677e-03 (ITERATING)

# TAO  20, KSP  49      |r|=2.817e-03 (ITERATING)

# TAO  20, KSP  50      |r|=2.796e-03 (ITERATING)

# TAO  20, KSP  51      |r|=2.673e-03 (ITERATING)

# TAO  20, KSP  52      |r|=2.732e-03 (ITERATING)

# TAO  20, KSP  53      |r|=2.642e-03 (ITERATING)

# TAO  20, KSP  54      |r|=2.765e-03 (ITERATING)

# TAO  20, KSP  55      |r|=2.638e-03 (ITERATING)

# TAO  20, KSP  56      |r|=2.338e-03 (ITERATING)

# TAO  20, KSP  57      |r|=2.120e-03 (ITERATING)

# TAO  20, KSP  58      |r|=1.922e-03 (ITERATING)

# TAO  20, KSP  59      |r|=1.816e-03 (ITERATING)

# TAO  20, KSP  60      |r|=1.757e-03 (ITERATING)

# TAO  20, KSP  61      |r|=1.686e-03 (ITERATING)

# TAO  20, KSP  62      |r|=1.608e-03 (ITERATING)

# TAO  20, KSP  63      |r|=1.469e-03 (ITERATING)

# TAO  20, KSP  64      |r|=1.365e-03 (ITERATING)

# TAO  20, KSP  65      |r|=1.283e-03 (ITERATING)

# TAO  20, KSP  66      |r|=1.151e-03 (ITERATING)

# TAO  20, KSP  67      |r|=1.039e-03 (ITERATING)

# TAO  20, KSP  68      |r|=9.934e-04 (ITERATING)

# TAO  20, KSP  69      |r|=9.256e-04 (ITERATING)

# TAO  20, KSP  70      |r|=8.336e-04 (ITERATING)

# TAO  20, KSP  71      |r|=7.760e-04 (ITERATING)

# TAO  20, KSP  72      |r|=7.106e-04 (ITERATING)

# TAO  20, KSP  73      |r|=6.344e-04 (ITERATING)

# TAO  20, KSP  74      |r|=5.711e-04 (ITERATING)

# TAO  20, KSP  75      |r|=5.331e-04 (ITERATING)

# TAO  20, KSP  76      |r|=5.299e-04 (ITERATING)

# TAO  20, KSP  77      |r|=5.093e-04 (ITERATING)

# TAO  20, KSP  78      |r|=5.051e-04 (ITERATING)

# TAO  20, KSP  79      |r|=4.835e-04 (ITERATING)

# TAO  20, KSP  80      |r|=4.654e-04 (ITERATING)

# TAO  20, KSP  81      |r|=4.390e-04 (ITERATING)

# TAO  20, KSP  82      |r|=3.851e-04 (ITERATING)

# TAO  20, KSP  83      |r|=3.260e-04 (ITERATING)

# TAO  20, KSP  84      |r|=2.831e-04 (ITERATING)

# TAO  20, KSP  85      |r|=2.479e-04 (ITERATING)

# TAO  20, KSP  86      |r|=2.254e-04 (ITERATING)

# TAO  20, KSP  87      |r|=2.130e-04 (ITERATING)

# TAO  20, KSP  88      |r|=2.056e-04 (ITERATING)

# TAO  20, KSP  89      |r|=1.864e-04 (ITERATING)

# TAO  20, KSP  90      |r|=1.755e-04 (ITERATING)

# TAO  20, KSP  91      |r|=1.644e-04 (ITERATING)

# TAO  20, KSP  92      |r|=1.495e-04 (ITERATING)

# TAO  20, KSP  93      |r|=1.425e-04 (ITERATING)

# TAO  20, KSP  94      |r|=1.312e-04 (ITERATING)

# TAO  20, KSP  95      |r|=1.305e-04 (ITERATING)

# TAO  20, KSP  96      |r|=1.254e-04 (ITERATING)

# TAO  20, KSP  97      |r|=1.161e-04 (ITERATING)

# TAO  20, KSP  98      |r|=1.058e-04 (ITERATING)

# TAO  20, KSP  99      |r|=1.044e-04 (ITERATING)

# TAO  20, KSP 100      |r|=1.057e-04 (ITERATING)

# TAO  20, KSP 101      |r|=1.072e-04 (ITERATING)

# TAO  20, KSP 102      |r|=1.065e-04 (ITERATING)

# TAO  20, KSP 103      |r|=1.088e-04 (ITERATING)

# TAO  20, KSP 104      |r|=1.077e-04 (ITERATING)

# TAO  20, KSP 105      |r|=1.008e-04 (ITERATING)

# TAO  20, KSP 106      |r|=9.004e-05 (ITERATING)

# TAO  20, KSP 107      |r|=8.581e-05 (ITERATING)

# TAO  20, KSP 108      |r|=8.062e-05 (ITERATING)

# TAO  20, KSP 109      |r|=7.609e-05 (ITERATING)

# TAO  20, KSP 110      |r|=7.463e-05 (ITERATING)

# TAO  20, KSP 111      |r|=7.325e-05 (ITERATING)

# TAO  20, KSP 112      |r|=6.876e-05 (ITERATING)

# TAO  20, KSP 113      |r|=6.462e-05 (ITERATING)

# TAO  20, KSP 114      |r|=6.054e-05 (ITERATING)

# TAO  20, KSP 115      |r|=5.859e-05 (ITERATING)

# TAO  20, KSP 116      |r|=5.474e-05 (ITERATING)

# TAO  20, KSP 117      |r|=5.183e-05 (ITERATING)

# TAO  20, KSP 118      |r|=4.718e-05 (ITERATING)

# TAO  20, KSP 119      |r|=4.347e-05 (ITERATING)

# TAO  20, KSP 120      |r|=4.076e-05 (ITERATING)

# TAO  20, KSP 121      |r|=3.935e-05 (ITERATING)

# TAO  20, KSP 122      |r|=3.524e-05 (ITERATING)

# TAO  20, KSP 123      |r|=3.209e-05 (ITERATING)

# TAO  20, KSP 124      |r|=2.949e-05 (ITERATING)

# TAO  20, KSP 125      |r|=2.760e-05 (ITERATING)

# TAO  20, KSP 126      |r|=2.514e-05 (ITERATING)

# TAO  20, KSP 127      |r|=2.338e-05 (ITERATING)

# TAO  20, KSP 128      |r|=2.161e-05 (ITERATING)

# TAO  20, KSP 129      |r|=1.943e-05 (ITERATING)

# TAO  20, KSP 130      |r|=1.715e-05 (ITERATING)

# TAO  20, KSP 131      |r|=1.517e-05 (ITERATING)

# TAO  20, KSP 132      |r|=1.337e-05 (ITERATING)

# TAO  20, KSP 133      |r|=1.174e-05 (ITERATING)

# TAO  20, KSP 134      |r|=1.154e-05 (ITERATING)

# TAO  20, KSP 135      |r|=1.086e-05 (ITERATING)

# TAO  20, KSP 136      |r|=1.047e-05 (ITERATING)

# TAO  20, KSP 137      |r|=9.953e-06 (ITERATING)

# TAO  20, KSP 138      |r|=9.722e-06 (ITERATING)

# TAO  20, KSP 139      |r|=9.377e-06 (ITERATING)

# TAO  20, KSP 140      |r|=8.527e-06 (ITERATING)

# TAO  20, KSP 141      |r|=8.038e-06 (ITERATING)

# TAO  20, KSP 142      |r|=7.819e-06 (ITERATING)

# TAO  20, KSP 143      |r|=7.524e-06 (ITERATING)

# TAO  20, KSP 144      |r|=7.168e-06 (ITERATING)

# TAO  20, KSP 145      |r|=6.856e-06 (ITERATING)

# TAO  20, KSP 146      |r|=6.465e-06 (ITERATING)

# TAO  20, KSP 147      |r|=6.231e-06 (ITERATING)

# TAO  20, KSP 148      |r|=6.181e-06 (ITERATING)

# TAO  20, KSP 149      |r|=6.150e-06 (ITERATING)

# TAO  20, KSP 150      |r|=6.145e-06 (ITERATING)

# TAO  20, KSP 151      |r|=6.078e-06 (ITERATING)

# TAO  20, KSP 152      |r|=5.788e-06 (ITERATING)

# TAO  20, KSP 153      |r|=5.298e-06 (ITERATING)

# TAO  20, KSP 154      |r|=4.864e-06 (ITERATING)

# TAO  20, KSP 155      |r|=4.421e-06 (ITERATING)

# TAO  20, KSP 156      |r|=4.171e-06 (ITERATING)

# TAO  20, KSP 157      |r|=3.570e-06 (ITERATING)

# TAO  20, KSP 158      |r|=3.268e-06 (ITERATING)

# TAO  20, KSP 159      |r|=2.840e-06 (ITERATING)

# TAO  20, KSP 160      |r|=2.577e-06 (ITERATING)

# TAO  20, KSP 161      |r|=2.448e-06 (ITERATING)

# TAO  20, KSP 162      |r|=2.218e-06 (ITERATING)

# TAO  20, KSP 163      |r|=2.013e-06 (ITERATING)

# TAO  20, KSP 164      |r|=1.764e-06 (ITERATING)

# TAO  20, KSP 165      |r|=1.484e-06 (ITERATING)

# TAO  20, KSP 166      |r|=1.326e-06 (ITERATING)

# TAO  20, KSP 167      |r|=1.270e-06 (ITERATING)

# TAO  20, KSP 168      |r|=1.240e-06 (ITERATING)

# TAO  20, KSP 169      |r|=1.258e-06 (ITERATING)

# TAO  20, KSP 170      |r|=1.285e-06 (ITERATING)

# TAO  20, KSP 171      |r|=1.281e-06 (ITERATING)

# TAO  20, KSP 172      |r|=1.200e-06 (ITERATING)

# TAO  20, KSP 173      |r|=1.144e-06 (ITERATING)

# TAO  20, KSP 174      |r|=1.100e-06 (ITERATING)

# TAO  20, KSP 175      |r|=1.087e-06 (ITERATING)

# TAO  20, KSP 176      |r|=1.060e-06 (ITERATING)

# TAO  21 (ITERATING)

# sub   0 [ 16k] |x|=5.299e+01 |J|=6.565e-02 (g)

# all            |x|=5.299e+01 |J|=6.565e-02 |H|=3.944e+02 f=5.727e+00

# TAO  21, KSP   0      |r|=6.565e-02 (ITERATING)

# TAO  21, KSP   1      |r|=4.400e-02 (ITERATING)

# TAO  21, KSP   2      |r|=2.698e-02 (ITERATING)

# TAO  21, KSP   3      |r|=2.333e-02 (ITERATING)

# TAO  21, KSP   4      |r|=1.786e-02 (ITERATING)

# TAO  21, KSP   5      |r|=1.218e-02 (ITERATING)

# TAO  21, KSP   6      |r|=9.639e-03 (ITERATING)

# TAO  21, KSP   7      |r|=8.168e-03 (ITERATING)

# TAO  21, KSP   8      |r|=6.312e-03 (ITERATING)

# TAO  21, KSP   9      |r|=5.025e-03 (ITERATING)

# TAO  21, KSP  10      |r|=3.957e-03 (ITERATING)

# TAO  21, KSP  11      |r|=3.674e-03 (ITERATING)

# TAO  21, KSP  12      |r|=3.505e-03 (ITERATING)

# TAO  21, KSP  13      |r|=2.912e-03 (ITERATING)

# TAO  21, KSP  14      |r|=2.355e-03 (ITERATING)

# TAO  21, KSP  15      |r|=2.062e-03 (ITERATING)

# TAO  21, KSP  16      |r|=1.907e-03 (ITERATING)

# TAO  21, KSP  17      |r|=1.855e-03 (ITERATING)

# TAO  21, KSP  18      |r|=1.741e-03 (ITERATING)

# TAO  21, KSP  19      |r|=1.557e-03 (ITERATING)

# TAO  21, KSP  20      |r|=1.260e-03 (ITERATING)

# TAO  21, KSP  21      |r|=1.045e-03 (ITERATING)

# TAO  21, KSP  22      |r|=9.722e-04 (ITERATING)

# TAO  21, KSP  23      |r|=8.957e-04 (ITERATING)

# TAO  21, KSP  24      |r|=7.787e-04 (ITERATING)

# TAO  21, KSP  25      |r|=6.625e-04 (ITERATING)

# TAO  21, KSP  26      |r|=5.723e-04 (ITERATING)

# TAO  21, KSP  27      |r|=5.505e-04 (ITERATING)

# TAO  21, KSP  28      |r|=5.245e-04 (ITERATING)

# TAO  21, KSP  29      |r|=4.494e-04 (ITERATING)

# TAO  21, KSP  30      |r|=4.377e-04 (ITERATING)

# TAO  21, KSP  31      |r|=3.949e-04 (ITERATING)

# TAO  21, KSP  32      |r|=3.808e-04 (ITERATING)

# TAO  21, KSP  33      |r|=3.566e-04 (ITERATING)

# TAO  21, KSP  34      |r|=3.407e-04 (ITERATING)

# TAO  21, KSP  35      |r|=3.343e-04 (ITERATING)

# TAO  21, KSP  36      |r|=3.109e-04 (ITERATING)

# TAO  21, KSP  37      |r|=3.075e-04 (ITERATING)

# TAO  21, KSP  38      |r|=2.904e-04 (ITERATING)

# TAO  21, KSP  39      |r|=2.811e-04 (ITERATING)

# TAO  21, KSP  40      |r|=2.577e-04 (ITERATING)

# TAO  21, KSP  41      |r|=2.464e-04 (ITERATING)

# TAO  21, KSP  42      |r|=2.259e-04 (ITERATING)

# TAO  21, KSP  43      |r|=2.025e-04 (ITERATING)

# TAO  21, KSP  44      |r|=1.858e-04 (ITERATING)

# TAO  21, KSP  45      |r|=1.900e-04 (ITERATING)

# TAO  21, KSP  46      |r|=1.831e-04 (ITERATING)

# TAO  21, KSP  47      |r|=1.918e-04 (ITERATING)

# TAO  21, KSP  48      |r|=1.764e-04 (ITERATING)

# TAO  21, KSP  49      |r|=1.673e-04 (ITERATING)

# TAO  21, KSP  50      |r|=1.662e-04 (ITERATING)

# TAO  21, KSP  51      |r|=1.616e-04 (ITERATING)

# TAO  21, KSP  52      |r|=1.550e-04 (ITERATING)

# TAO  21, KSP  53      |r|=1.419e-04 (ITERATING)

# TAO  21, KSP  54      |r|=1.391e-04 (ITERATING)

# TAO  21, KSP  55      |r|=1.426e-04 (ITERATING)

# TAO  21, KSP  56      |r|=1.450e-04 (ITERATING)

# TAO  21, KSP  57      |r|=1.410e-04 (ITERATING)

# TAO  21, KSP  58      |r|=1.317e-04 (ITERATING)

# TAO  21, KSP  59      |r|=1.201e-04 (ITERATING)

# TAO  21, KSP  60      |r|=1.101e-04 (ITERATING)

# TAO  21, KSP  61      |r|=9.587e-05 (ITERATING)

# TAO  21, KSP  62      |r|=8.943e-05 (ITERATING)

# TAO  21, KSP  63      |r|=8.127e-05 (ITERATING)

# TAO  21, KSP  64      |r|=7.524e-05 (ITERATING)

# TAO  21, KSP  65      |r|=6.956e-05 (ITERATING)

# TAO  21, KSP  66      |r|=6.598e-05 (ITERATING)

# TAO  21, KSP  67      |r|=5.986e-05 (ITERATING)

# TAO  21, KSP  68      |r|=5.530e-05 (ITERATING)

# TAO  21, KSP  69      |r|=4.942e-05 (ITERATING)

# TAO  21, KSP  70      |r|=4.417e-05 (ITERATING)

# TAO  21, KSP  71      |r|=4.099e-05 (ITERATING)

# TAO  21, KSP  72      |r|=3.916e-05 (ITERATING)

# TAO  21, KSP  73      |r|=3.680e-05 (ITERATING)

# TAO  21, KSP  74      |r|=3.529e-05 (ITERATING)

# TAO  21, KSP  75      |r|=3.543e-05 (ITERATING)

# TAO  21, KSP  76      |r|=3.276e-05 (ITERATING)

# TAO  21, KSP  77      |r|=3.115e-05 (ITERATING)

# TAO  21, KSP  78      |r|=3.018e-05 (ITERATING)

# TAO  21, KSP  79      |r|=2.662e-05 (ITERATING)

# TAO  21, KSP  80      |r|=2.421e-05 (ITERATING)

# TAO  21, KSP  81      |r|=2.156e-05 (ITERATING)

# TAO  21, KSP  82      |r|=1.890e-05 (ITERATING)

# TAO  21, KSP  83      |r|=1.654e-05 (ITERATING)

# TAO  21, KSP  84      |r|=1.522e-05 (ITERATING)

# TAO  21, KSP  85      |r|=1.382e-05 (ITERATING)

# TAO  21, KSP  86      |r|=1.268e-05 (ITERATING)

# TAO  21, KSP  87      |r|=1.208e-05 (ITERATING)

# TAO  21, KSP  88      |r|=1.158e-05 (ITERATING)

# TAO  21, KSP  89      |r|=1.087e-05 (ITERATING)

# TAO  21, KSP  90      |r|=1.021e-05 (ITERATING)

# TAO  21, KSP  91      |r|=9.524e-06 (ITERATING)

# TAO  21, KSP  92      |r|=8.672e-06 (ITERATING)

# TAO  21, KSP  93      |r|=7.657e-06 (ITERATING)

# TAO  21, KSP  94      |r|=7.075e-06 (ITERATING)

# TAO  21, KSP  95      |r|=6.289e-06 (ITERATING)

# TAO  21, KSP  96      |r|=5.940e-06 (ITERATING)

# TAO  21, KSP  97      |r|=5.503e-06 (ITERATING)

# TAO  21, KSP  98      |r|=5.266e-06 (ITERATING)

# TAO  21, KSP  99      |r|=4.891e-06 (ITERATING)

# TAO  21, KSP 100      |r|=4.302e-06 (ITERATING)

# TAO  21, KSP 101      |r|=3.774e-06 (ITERATING)

# TAO  21, KSP 102      |r|=3.248e-06 (ITERATING)

# TAO  21, KSP 103      |r|=2.841e-06 (ITERATING)

# TAO  21, KSP 104      |r|=2.700e-06 (ITERATING)

# TAO  21, KSP 105      |r|=2.448e-06 (ITERATING)

# TAO  21, KSP 106      |r|=2.287e-06 (ITERATING)

# TAO  21, KSP 107      |r|=2.033e-06 (ITERATING)

# TAO  21, KSP 108      |r|=1.885e-06 (ITERATING)

# TAO  21, KSP 109      |r|=1.715e-06 (ITERATING)

# TAO  21, KSP 110      |r|=1.622e-06 (ITERATING)

# TAO  21, KSP 111      |r|=1.579e-06 (ITERATING)

# TAO  21, KSP 112      |r|=1.489e-06 (ITERATING)

# TAO  21, KSP 113      |r|=1.417e-06 (ITERATING)

# TAO  21, KSP 114      |r|=1.302e-06 (ITERATING)

# TAO  21, KSP 115      |r|=1.243e-06 (ITERATING)

# TAO  21, KSP 116      |r|=1.182e-06 (ITERATING)

# TAO  21, KSP 117      |r|=1.173e-06 (ITERATING)

# TAO  21, KSP 118      |r|=1.169e-06 (ITERATING)

# TAO  21, KSP 119      |r|=1.169e-06 (ITERATING)

# TAO  21, KSP 120      |r|=1.149e-06 (ITERATING)

# TAO  21, KSP 121      |r|=1.051e-06 (ITERATING)

# TAO  21, KSP 122      |r|=1.016e-06 (ITERATING)

# TAO  21, KSP 123      |r|=1.036e-06 (ITERATING)

# TAO  21, KSP 124      |r|=1.058e-06 (ITERATING)

# TAO  21, KSP 125      |r|=1.009e-06 (ITERATING)

# TAO  21, KSP 126      |r|=9.492e-07 (ITERATING)

# TAO  21, KSP 127      |r|=8.676e-07 (ITERATING)

# TAO  21, KSP 128      |r|=8.155e-07 (ITERATING)

# TAO  21, KSP 129      |r|=7.575e-07 (ITERATING)

# TAO  21, KSP 130      |r|=7.163e-07 (ITERATING)

# TAO  21, KSP 131      |r|=6.829e-07 (ITERATING)

# TAO  21, KSP 132      |r|=6.353e-07 (ITERATING)

# TAO  22 (ITERATING)

# sub   0 [ 16k] |x|=5.305e+01 |J|=2.535e-02 (g)

# all            |x|=5.305e+01 |J|=2.535e-02 |H|=3.903e+02 f=5.726e+00

# TAO  22, KSP   0      |r|=2.535e-02 (ITERATING)

# TAO  22, KSP   1      |r|=1.299e-02 (ITERATING)

# TAO  22, KSP   2      |r|=7.752e-03 (ITERATING)

# TAO  22, KSP   3      |r|=8.606e-03 (ITERATING)

# TAO  22, KSP   4      |r|=6.081e-03 (ITERATING)

# TAO  22, KSP   5      |r|=4.180e-03 (ITERATING)

# TAO  22, KSP   6      |r|=3.450e-03 (ITERATING)

# TAO  22, KSP   7      |r|=3.104e-03 (ITERATING)

# TAO  22, KSP   8      |r|=2.480e-03 (ITERATING)

# TAO  22, KSP   9      |r|=1.916e-03 (ITERATING)

# TAO  22, KSP  10      |r|=1.524e-03 (ITERATING)

# TAO  22, KSP  11      |r|=1.386e-03 (ITERATING)

# TAO  22, KSP  12      |r|=1.315e-03 (ITERATING)

# TAO  22, KSP  13      |r|=1.145e-03 (ITERATING)

# TAO  22, KSP  14      |r|=9.901e-04 (ITERATING)

# TAO  22, KSP  15      |r|=8.248e-04 (ITERATING)

# TAO  22, KSP  16      |r|=7.256e-04 (ITERATING)

# TAO  22, KSP  17      |r|=6.629e-04 (ITERATING)

# TAO  22, KSP  18      |r|=6.115e-04 (ITERATING)

# TAO  22, KSP  19      |r|=5.539e-04 (ITERATING)

# TAO  22, KSP  20      |r|=5.560e-04 (ITERATING)

# TAO  22, KSP  21      |r|=5.342e-04 (ITERATING)

# TAO  22, KSP  22      |r|=5.041e-04 (ITERATING)

# TAO  22, KSP  23      |r|=4.160e-04 (ITERATING)

# TAO  22, KSP  24      |r|=3.844e-04 (ITERATING)

# TAO  22, KSP  25      |r|=3.687e-04 (ITERATING)

# TAO  22, KSP  26      |r|=3.656e-04 (ITERATING)

# TAO  22, KSP  27      |r|=3.631e-04 (ITERATING)

# TAO  22, KSP  28      |r|=3.318e-04 (ITERATING)

# TAO  22, KSP  29      |r|=3.047e-04 (ITERATING)

# TAO  22, KSP  30      |r|=2.850e-04 (ITERATING)

# TAO  22, KSP  31      |r|=2.632e-04 (ITERATING)

# TAO  22, KSP  32      |r|=2.336e-04 (ITERATING)

# TAO  22, KSP  33      |r|=2.201e-04 (ITERATING)

# TAO  22, KSP  34      |r|=2.076e-04 (ITERATING)

# TAO  22, KSP  35      |r|=2.102e-04 (ITERATING)

# TAO  22, KSP  36      |r|=1.974e-04 (ITERATING)

# TAO  22, KSP  37      |r|=2.092e-04 (ITERATING)

# TAO  22, KSP  38      |r|=1.974e-04 (ITERATING)

# TAO  22, KSP  39      |r|=1.734e-04 (ITERATING)

# TAO  22, KSP  40      |r|=1.607e-04 (ITERATING)

# TAO  22, KSP  41      |r|=1.476e-04 (ITERATING)

# TAO  22, KSP  42      |r|=1.498e-04 (ITERATING)

# TAO  22, KSP  43      |r|=1.386e-04 (ITERATING)

# TAO  22, KSP  44      |r|=1.397e-04 (ITERATING)

# TAO  22, KSP  45      |r|=1.309e-04 (ITERATING)

# TAO  22, KSP  46      |r|=1.304e-04 (ITERATING)

# TAO  22, KSP  47      |r|=1.288e-04 (ITERATING)

# TAO  22, KSP  48      |r|=1.238e-04 (ITERATING)

# TAO  22, KSP  49      |r|=1.205e-04 (ITERATING)

# TAO  22, KSP  50      |r|=1.135e-04 (ITERATING)

# TAO  22, KSP  51      |r|=1.009e-04 (ITERATING)

# TAO  22, KSP  52      |r|=9.516e-05 (ITERATING)

# TAO  22, KSP  53      |r|=8.367e-05 (ITERATING)

# TAO  22, KSP  54      |r|=7.822e-05 (ITERATING)

# TAO  22, KSP  55      |r|=6.816e-05 (ITERATING)

# TAO  22, KSP  56      |r|=6.333e-05 (ITERATING)

# TAO  22, KSP  57      |r|=6.394e-05 (ITERATING)

# TAO  22, KSP  58      |r|=5.970e-05 (ITERATING)

# TAO  22, KSP  59      |r|=5.966e-05 (ITERATING)

# TAO  22, KSP  60      |r|=6.060e-05 (ITERATING)

# TAO  22, KSP  61      |r|=5.827e-05 (ITERATING)

# TAO  22, KSP  62      |r|=5.958e-05 (ITERATING)

# TAO  22, KSP  63      |r|=5.875e-05 (ITERATING)

# TAO  22, KSP  64      |r|=5.469e-05 (ITERATING)

# TAO  22, KSP  65      |r|=5.106e-05 (ITERATING)

# TAO  22, KSP  66      |r|=4.672e-05 (ITERATING)

# TAO  22, KSP  67      |r|=4.100e-05 (ITERATING)

# TAO  22, KSP  68      |r|=3.932e-05 (ITERATING)

# TAO  22, KSP  69      |r|=3.693e-05 (ITERATING)

# TAO  22, KSP  70      |r|=3.637e-05 (ITERATING)

# TAO  22, KSP  71      |r|=3.436e-05 (ITERATING)

# TAO  22, KSP  72      |r|=3.598e-05 (ITERATING)

# TAO  22, KSP  73      |r|=3.147e-05 (ITERATING)

# TAO  22, KSP  74      |r|=3.004e-05 (ITERATING)

# TAO  22, KSP  75      |r|=2.755e-05 (ITERATING)

# TAO  22, KSP  76      |r|=2.368e-05 (ITERATING)

# TAO  22, KSP  77      |r|=2.050e-05 (ITERATING)

# TAO  22, KSP  78      |r|=1.767e-05 (ITERATING)

# TAO  22, KSP  79      |r|=1.428e-05 (ITERATING)

# TAO  22, KSP  80      |r|=1.335e-05 (ITERATING)

# TAO  22, KSP  81      |r|=1.383e-05 (ITERATING)

# TAO  22, KSP  82      |r|=1.265e-05 (ITERATING)

# TAO  22, KSP  83      |r|=1.207e-05 (ITERATING)

# TAO  22, KSP  84      |r|=1.127e-05 (ITERATING)

# TAO  22, KSP  85      |r|=1.048e-05 (ITERATING)

# TAO  22, KSP  86      |r|=9.271e-06 (ITERATING)

# TAO  22, KSP  87      |r|=8.688e-06 (ITERATING)

# TAO  22, KSP  88      |r|=7.156e-06 (ITERATING)

# TAO  22, KSP  89      |r|=5.927e-06 (ITERATING)

# TAO  22, KSP  90      |r|=4.764e-06 (ITERATING)

# TAO  22, KSP  91      |r|=4.052e-06 (ITERATING)

# TAO  22, KSP  92      |r|=3.753e-06 (ITERATING)

# TAO  22, KSP  93      |r|=3.322e-06 (ITERATING)

# TAO  22, KSP  94      |r|=2.874e-06 (ITERATING)

# TAO  22, KSP  95      |r|=2.600e-06 (ITERATING)

# TAO  22, KSP  96      |r|=2.667e-06 (ITERATING)

# TAO  22, KSP  97      |r|=2.815e-06 (ITERATING)

# TAO  22, KSP  98      |r|=2.763e-06 (ITERATING)

# TAO  22, KSP  99      |r|=2.689e-06 (ITERATING)

# TAO  22, KSP 100      |r|=2.560e-06 (ITERATING)

# TAO  22, KSP 101      |r|=2.389e-06 (ITERATING)

# TAO  22, KSP 102      |r|=2.133e-06 (ITERATING)

# TAO  22, KSP 103      |r|=2.046e-06 (ITERATING)

# TAO  22, KSP 104      |r|=1.929e-06 (ITERATING)

# TAO  22, KSP 105      |r|=1.777e-06 (ITERATING)

# TAO  22, KSP 106      |r|=1.629e-06 (ITERATING)

# TAO  22, KSP 107      |r|=1.435e-06 (ITERATING)

# TAO  22, KSP 108      |r|=1.232e-06 (ITERATING)

# TAO  22, KSP 109      |r|=1.108e-06 (ITERATING)

# TAO  22, KSP 110      |r|=1.000e-06 (ITERATING)

# TAO  22, KSP 111      |r|=8.544e-07 (ITERATING)

# TAO  22, KSP 112      |r|=8.101e-07 (ITERATING)

# TAO  22, KSP 113      |r|=7.361e-07 (ITERATING)

# TAO  22, KSP 114      |r|=7.541e-07 (ITERATING)

# TAO  22, KSP 115      |r|=7.621e-07 (ITERATING)

# TAO  22, KSP 116      |r|=7.472e-07 (ITERATING)

# TAO  22, KSP 117      |r|=7.948e-07 (ITERATING)

# TAO  22, KSP 118      |r|=8.045e-07 (ITERATING)

# TAO  22, KSP 119      |r|=7.907e-07 (ITERATING)

# TAO  22, KSP 120      |r|=7.090e-07 (ITERATING)

# TAO  22, KSP 121      |r|=6.733e-07 (ITERATING)

# TAO  22, KSP 122      |r|=6.682e-07 (ITERATING)

# TAO  22, KSP 123      |r|=5.846e-07 (ITERATING)

# TAO  22, KSP 124      |r|=5.492e-07 (ITERATING)

# TAO  22, KSP 125      |r|=4.727e-07 (ITERATING)

# TAO  22, KSP 126      |r|=4.707e-07 (ITERATING)

# TAO  22, KSP 127      |r|=4.526e-07 (ITERATING)

# TAO  22, KSP 128      |r|=4.153e-07 (ITERATING)

# TAO  22, KSP 129      |r|=4.010e-07 (ITERATING)

# TAO  22, KSP 130      |r|=3.765e-07 (ITERATING)

# TAO  22, KSP 131      |r|=3.663e-07 (ITERATING)

# TAO  22, KSP 132      |r|=3.590e-07 (ITERATING)

# TAO  22, KSP 133      |r|=3.377e-07 (ITERATING)

# TAO  22, KSP 134      |r|=3.115e-07 (ITERATING)

# TAO  22, KSP 135      |r|=3.069e-07 (ITERATING)

# TAO  22, KSP 136      |r|=3.007e-07 (ITERATING)

# TAO  22, KSP 137      |r|=2.958e-07 (ITERATING)

# TAO  22, KSP 138      |r|=2.967e-07 (ITERATING)

# TAO  22, KSP 139      |r|=2.800e-07 (ITERATING)

# TAO  22, KSP 140      |r|=2.707e-07 (ITERATING)

# TAO  22, KSP 141      |r|=2.649e-07 (ITERATING)

# TAO  22, KSP 142      |r|=2.604e-07 (ITERATING)

# TAO  22, KSP 143      |r|=2.571e-07 (ITERATING)

# TAO  22, KSP 144      |r|=2.583e-07 (ITERATING)

# TAO  22, KSP 145      |r|=2.344e-07 (ITERATING)

# TAO  23 (ITERATING)

# sub   0 [ 16k] |x|=5.305e+01 |J|=4.034e-03 (g)

# all            |x|=5.305e+01 |J|=4.034e-03 |H|=3.899e+02 f=5.726e+00

# TAO  23, KSP   0      |r|=4.034e-03 (ITERATING)

# TAO  23, KSP   1      |r|=2.373e-03 (ITERATING)

# TAO  23, KSP   2      |r|=2.505e-03 (ITERATING)

# TAO  23, KSP   3      |r|=2.074e-03 (ITERATING)

# TAO  23, KSP   4      |r|=1.048e-03 (ITERATING)

# TAO  23, KSP   5      |r|=8.868e-04 (ITERATING)

# TAO  23, KSP   6      |r|=7.687e-04 (ITERATING)

# TAO  23, KSP   7      |r|=6.286e-04 (ITERATING)

# TAO  23, KSP   8      |r|=4.823e-04 (ITERATING)

# TAO  23, KSP   9      |r|=3.376e-04 (ITERATING)

# TAO  23, KSP  10      |r|=2.857e-04 (ITERATING)

# TAO  23, KSP  11      |r|=2.701e-04 (ITERATING)

# TAO  23, KSP  12      |r|=2.554e-04 (ITERATING)

# TAO  23, KSP  13      |r|=2.108e-04 (ITERATING)

# TAO  23, KSP  14      |r|=1.829e-04 (ITERATING)

# TAO  23, KSP  15      |r|=1.560e-04 (ITERATING)

# TAO  23, KSP  16      |r|=1.326e-04 (ITERATING)

# TAO  23, KSP  17      |r|=1.219e-04 (ITERATING)

# TAO  23, KSP  18      |r|=1.016e-04 (ITERATING)

# TAO  23, KSP  19      |r|=8.647e-05 (ITERATING)

# TAO  23, KSP  20      |r|=7.772e-05 (ITERATING)

# TAO  23, KSP  21      |r|=6.887e-05 (ITERATING)

# TAO  23, KSP  22      |r|=6.051e-05 (ITERATING)

# TAO  23, KSP  23      |r|=5.495e-05 (ITERATING)

# TAO  23, KSP  24      |r|=5.076e-05 (ITERATING)

# TAO  23, KSP  25      |r|=4.184e-05 (ITERATING)

# TAO  23, KSP  26      |r|=3.605e-05 (ITERATING)

# TAO  23, KSP  27      |r|=3.509e-05 (ITERATING)

# TAO  23, KSP  28      |r|=3.165e-05 (ITERATING)

# TAO  23, KSP  29      |r|=3.083e-05 (ITERATING)

# TAO  23, KSP  30      |r|=2.940e-05 (ITERATING)

# TAO  23, KSP  31      |r|=2.716e-05 (ITERATING)

# TAO  23, KSP  32      |r|=2.694e-05 (ITERATING)

# TAO  23, KSP  33      |r|=2.399e-05 (ITERATING)

# TAO  23, KSP  34      |r|=2.289e-05 (ITERATING)

# TAO  23, KSP  35      |r|=2.221e-05 (ITERATING)

# TAO  23, KSP  36      |r|=2.176e-05 (ITERATING)

# TAO  23, KSP  37      |r|=2.210e-05 (ITERATING)

# TAO  23, KSP  38      |r|=1.987e-05 (ITERATING)

# TAO  23, KSP  39      |r|=1.834e-05 (ITERATING)

# TAO  23, KSP  40      |r|=1.720e-05 (ITERATING)

# TAO  23, KSP  41      |r|=1.746e-05 (ITERATING)

# TAO  23, KSP  42      |r|=1.665e-05 (ITERATING)

# TAO  23, KSP  43      |r|=1.586e-05 (ITERATING)

# TAO  23, KSP  44      |r|=1.625e-05 (ITERATING)

# TAO  23, KSP  45      |r|=1.653e-05 (ITERATING)

# TAO  23, KSP  46      |r|=1.657e-05 (ITERATING)

# TAO  23, KSP  47      |r|=1.611e-05 (ITERATING)

# TAO  23, KSP  48      |r|=1.486e-05 (ITERATING)

# TAO  23, KSP  49      |r|=1.492e-05 (ITERATING)

# TAO  23, KSP  50      |r|=1.431e-05 (ITERATING)

# TAO  23, KSP  51      |r|=1.414e-05 (ITERATING)

# TAO  23, KSP  52      |r|=1.315e-05 (ITERATING)

# TAO  23, KSP  53      |r|=1.189e-05 (ITERATING)

# TAO  23, KSP  54      |r|=1.163e-05 (ITERATING)

# TAO  23, KSP  55      |r|=1.083e-05 (ITERATING)

# TAO  23, KSP  56      |r|=9.839e-06 (ITERATING)

# TAO  23, KSP  57      |r|=8.989e-06 (ITERATING)

# TAO  23, KSP  58      |r|=7.864e-06 (ITERATING)

# TAO  23, KSP  59      |r|=7.473e-06 (ITERATING)

# TAO  23, KSP  60      |r|=6.827e-06 (ITERATING)

# TAO  23, KSP  61      |r|=6.335e-06 (ITERATING)

# TAO  23, KSP  62      |r|=5.719e-06 (ITERATING)

# TAO  23, KSP  63      |r|=5.329e-06 (ITERATING)

# TAO  23, KSP  64      |r|=5.308e-06 (ITERATING)

# TAO  23, KSP  65      |r|=4.964e-06 (ITERATING)

# TAO  23, KSP  66      |r|=4.486e-06 (ITERATING)

# TAO  23, KSP  67      |r|=4.117e-06 (ITERATING)

# TAO  23, KSP  68      |r|=3.849e-06 (ITERATING)

# TAO  23, KSP  69      |r|=3.995e-06 (ITERATING)

# TAO  23, KSP  70      |r|=3.847e-06 (ITERATING)

# TAO  23, KSP  71      |r|=3.843e-06 (ITERATING)

# TAO  23, KSP  72      |r|=3.955e-06 (ITERATING)

# TAO  23, KSP  73      |r|=3.684e-06 (ITERATING)

# TAO  23, KSP  74      |r|=3.452e-06 (ITERATING)

# TAO  23, KSP  75      |r|=3.144e-06 (ITERATING)

# TAO  23, KSP  76      |r|=2.840e-06 (ITERATING)

# TAO  23, KSP  77      |r|=2.582e-06 (ITERATING)

# TAO  23, KSP  78      |r|=2.599e-06 (ITERATING)

# TAO  23, KSP  79      |r|=2.282e-06 (ITERATING)

# TAO  23, KSP  80      |r|=2.182e-06 (ITERATING)

# TAO  23, KSP  81      |r|=2.175e-06 (ITERATING)

# TAO  23, KSP  82      |r|=2.086e-06 (ITERATING)

# TAO  23, KSP  83      |r|=1.998e-06 (ITERATING)

# TAO  23, KSP  84      |r|=1.822e-06 (ITERATING)

# TAO  23, KSP  85      |r|=1.582e-06 (ITERATING)

# TAO  23, KSP  86      |r|=1.446e-06 (ITERATING)

# TAO  23, KSP  87      |r|=1.413e-06 (ITERATING)

# TAO  23, KSP  88      |r|=1.314e-06 (ITERATING)

# TAO  23, KSP  89      |r|=1.151e-06 (ITERATING)

# TAO  23, KSP  90      |r|=9.513e-07 (ITERATING)

# TAO  23, KSP  91      |r|=7.502e-07 (ITERATING)

# TAO  23, KSP  92      |r|=6.716e-07 (ITERATING)

# TAO  23, KSP  93      |r|=5.699e-07 (ITERATING)

# TAO  23, KSP  94      |r|=5.309e-07 (ITERATING)

# TAO  23, KSP  95      |r|=4.836e-07 (ITERATING)

# TAO  23, KSP  96      |r|=4.862e-07 (ITERATING)

# TAO  23, KSP  97      |r|=4.667e-07 (ITERATING)

# TAO  23, KSP  98      |r|=4.504e-07 (ITERATING)

# TAO  23, KSP  99      |r|=4.274e-07 (ITERATING)

# TAO  23, KSP 100      |r|=4.077e-07 (ITERATING)

# TAO  23, KSP 101      |r|=4.098e-07 (ITERATING)

# TAO  23, KSP 102      |r|=3.941e-07 (ITERATING)

# TAO  23, KSP 103      |r|=3.856e-07 (ITERATING)

# TAO  23, KSP 104      |r|=3.719e-07 (ITERATING)

# TAO  23, KSP 105      |r|=3.582e-07 (ITERATING)

# TAO  23, KSP 106      |r|=3.565e-07 (ITERATING)

# TAO  23, KSP 107      |r|=3.669e-07 (ITERATING)

# TAO  23, KSP 108      |r|=3.475e-07 (ITERATING)

# TAO  23, KSP 109      |r|=3.241e-07 (ITERATING)

# TAO  23, KSP 110      |r|=3.130e-07 (ITERATING)

# TAO  23, KSP 111      |r|=2.997e-07 (ITERATING)

# TAO  23, KSP 112      |r|=2.756e-07 (ITERATING)

# TAO  23, KSP 113      |r|=2.741e-07 (ITERATING)

# TAO  23, KSP 114      |r|=2.512e-07 (ITERATING)

# TAO  23, KSP 115      |r|=2.420e-07 (ITERATING)

# TAO  23, KSP 116      |r|=2.282e-07 (ITERATING)

# TAO  23, KSP 117      |r|=2.077e-07 (ITERATING)

# TAO  23, KSP 118      |r|=1.870e-07 (ITERATING)

# TAO  23, KSP 119      |r|=1.750e-07 (ITERATING)

# TAO  23, KSP 120      |r|=1.636e-07 (ITERATING)

# TAO  23, KSP 121      |r|=1.589e-07 (ITERATING)

# TAO  23, KSP 122      |r|=1.560e-07 (ITERATING)

# TAO  23, KSP 123      |r|=1.493e-07 (ITERATING)

# TAO  23, KSP 124      |r|=1.390e-07 (ITERATING)

# TAO  23, KSP 125      |r|=1.298e-07 (ITERATING)

# TAO  23, KSP 126      |r|=1.206e-07 (ITERATING)

# TAO  23, KSP 127      |r|=1.139e-07 (ITERATING)

# TAO  23, KSP 128      |r|=1.109e-07 (ITERATING)

# TAO  23, KSP 129      |r|=1.090e-07 (ITERATING)

# TAO  23, KSP 130      |r|=9.617e-08 (ITERATING)

# TAO  23, KSP 131      |r|=9.200e-08 (ITERATING)

# TAO  23, KSP 132      |r|=8.727e-08 (ITERATING)

# TAO  23, KSP 133      |r|=8.168e-08 (ITERATING)

# TAO  23, KSP 134      |r|=7.317e-08 (ITERATING)

# TAO  23, KSP 135      |r|=7.012e-08 (ITERATING)

# TAO  23, KSP 136      |r|=6.917e-08 (ITERATING)

# TAO  23, KSP 137      |r|=6.298e-08 (ITERATING)

# TAO  23, KSP 138      |r|=5.643e-08 (ITERATING)

# TAO  23, KSP 139      |r|=5.013e-08 (ITERATING)

# TAO  23, KSP 140      |r|=4.852e-08 (ITERATING)

# TAO  23, KSP 141      |r|=4.183e-08 (ITERATING)

# TAO  23, KSP 142      |r|=3.612e-08 (ITERATING)

# TAO  24 (ITERATING)

# sub   0 [ 16k] |x|=5.306e+01 |J|=2.390e-03 (g)

# all            |x|=5.306e+01 |J|=2.390e-03 |H|=3.899e+02 f=5.726e+00

# TAO  24, KSP   0      |r|=2.390e-03 (ITERATING)

# TAO  24, KSP   1      |r|=3.913e-03 (ITERATING)

# TAO  24, KSP   2      |r|=3.335e-03 (ITERATING)

# TAO  24, KSP   3      |r|=1.625e-03 (ITERATING)

# TAO  24, KSP   4      |r|=1.379e-03 (ITERATING)

# TAO  24, KSP   5      |r|=1.319e-03 (ITERATING)

# TAO  24, KSP   6      |r|=9.604e-04 (ITERATING)

# TAO  24, KSP   7      |r|=7.523e-04 (ITERATING)

# TAO  24, KSP   8      |r|=6.956e-04 (ITERATING)

# TAO  24, KSP   9      |r|=6.278e-04 (ITERATING)

# TAO  24, KSP  10      |r|=5.297e-04 (ITERATING)

# TAO  24, KSP  11      |r|=4.555e-04 (ITERATING)

# TAO  24, KSP  12      |r|=4.014e-04 (ITERATING)

# TAO  24, KSP  13      |r|=3.583e-04 (ITERATING)

# TAO  24, KSP  14      |r|=3.228e-04 (ITERATING)

# TAO  24, KSP  15      |r|=2.842e-04 (ITERATING)

# TAO  24, KSP  16      |r|=2.439e-04 (ITERATING)

# TAO  24, KSP  17      |r|=2.191e-04 (ITERATING)

# TAO  24, KSP  18      |r|=2.109e-04 (ITERATING)

# TAO  24, KSP  19      |r|=2.082e-04 (ITERATING)

# TAO  24, KSP  20      |r|=1.894e-04 (ITERATING)

# TAO  24, KSP  21      |r|=1.698e-04 (ITERATING)

# TAO  24, KSP  22      |r|=1.602e-04 (ITERATING)

# TAO  24, KSP  23      |r|=1.486e-04 (ITERATING)

# TAO  24, KSP  24      |r|=1.324e-04 (ITERATING)

# TAO  24, KSP  25      |r|=1.231e-04 (ITERATING)

# TAO  24, KSP  26      |r|=1.214e-04 (ITERATING)

# TAO  24, KSP  27      |r|=1.195e-04 (ITERATING)

# TAO  24, KSP  28      |r|=1.149e-04 (ITERATING)

# TAO  24, KSP  29      |r|=1.086e-04 (ITERATING)

# TAO  24, KSP  30      |r|=1.042e-04 (ITERATING)

# TAO  24, KSP  31      |r|=1.038e-04 (ITERATING)

# TAO  24, KSP  32      |r|=1.012e-04 (ITERATING)

# TAO  24, KSP  33      |r|=9.062e-05 (ITERATING)

# TAO  24, KSP  34      |r|=8.125e-05 (ITERATING)

# TAO  24, KSP  35      |r|=7.847e-05 (ITERATING)

# TAO  24, KSP  36      |r|=7.580e-05 (ITERATING)

# TAO  24, KSP  37      |r|=7.204e-05 (ITERATING)

# TAO  24, KSP  38      |r|=6.895e-05 (ITERATING)

# TAO  24, KSP  39      |r|=6.601e-05 (ITERATING)

# TAO  24, KSP  40      |r|=6.431e-05 (ITERATING)

# TAO  24, KSP  41      |r|=6.194e-05 (ITERATING)

# TAO  24, KSP  42      |r|=6.127e-05 (ITERATING)

# TAO  24, KSP  43      |r|=5.976e-05 (ITERATING)

# TAO  24, KSP  44      |r|=5.636e-05 (ITERATING)

# TAO  24, KSP  45      |r|=5.687e-05 (ITERATING)

# TAO  24, KSP  46      |r|=5.502e-05 (ITERATING)

# TAO  24, KSP  47      |r|=5.189e-05 (ITERATING)

# TAO  24, KSP  48      |r|=4.894e-05 (ITERATING)

# TAO  24, KSP  49      |r|=5.168e-05 (ITERATING)

# TAO  24, KSP  50      |r|=4.723e-05 (ITERATING)

# TAO  24, KSP  51      |r|=4.454e-05 (ITERATING)

# TAO  24, KSP  52      |r|=4.164e-05 (ITERATING)

# TAO  24, KSP  53      |r|=3.985e-05 (ITERATING)

# TAO  24, KSP  54      |r|=3.686e-05 (ITERATING)

# TAO  24, KSP  55      |r|=3.513e-05 (ITERATING)

# TAO  24, KSP  56      |r|=3.123e-05 (ITERATING)

# TAO  24, KSP  57      |r|=2.967e-05 (ITERATING)

# TAO  24, KSP  58      |r|=2.624e-05 (ITERATING)

# TAO  24, KSP  59      |r|=2.296e-05 (ITERATING)

# TAO  24, KSP  60      |r|=2.285e-05 (ITERATING)

# TAO  24, KSP  61      |r|=2.040e-05 (ITERATING)

# TAO  24, KSP  62      |r|=1.800e-05 (ITERATING)

# TAO  24, KSP  63      |r|=1.749e-05 (ITERATING)

# TAO  24, KSP  64      |r|=1.726e-05 (ITERATING)

# TAO  24, KSP  65      |r|=1.502e-05 (ITERATING)

# TAO  24, KSP  66      |r|=1.342e-05 (ITERATING)

# TAO  24, KSP  67      |r|=1.337e-05 (ITERATING)

# TAO  24, KSP  68      |r|=1.223e-05 (ITERATING)

# TAO  24, KSP  69      |r|=1.249e-05 (ITERATING)

# TAO  24, KSP  70      |r|=1.265e-05 (ITERATING)

# TAO  24, KSP  71      |r|=1.167e-05 (ITERATING)

# TAO  24, KSP  72      |r|=1.113e-05 (ITERATING)

# TAO  24, KSP  73      |r|=1.005e-05 (ITERATING)

# TAO  24, KSP  74      |r|=9.023e-06 (ITERATING)

# TAO  24, KSP  75      |r|=8.334e-06 (ITERATING)

# TAO  24, KSP  76      |r|=7.307e-06 (ITERATING)

# TAO  24, KSP  77      |r|=6.191e-06 (ITERATING)

# TAO  24, KSP  78      |r|=5.698e-06 (ITERATING)

# TAO  24, KSP  79      |r|=5.146e-06 (ITERATING)

# TAO  24, KSP  80      |r|=4.676e-06 (ITERATING)

# TAO  24, KSP  81      |r|=4.388e-06 (ITERATING)

# TAO  24, KSP  82      |r|=4.003e-06 (ITERATING)

# TAO  24, KSP  83      |r|=3.964e-06 (ITERATING)

# TAO  24, KSP  84      |r|=3.974e-06 (ITERATING)

# TAO  24, KSP  85      |r|=3.928e-06 (ITERATING)

# TAO  24, KSP  86      |r|=3.760e-06 (ITERATING)

# TAO  24, KSP  87      |r|=3.431e-06 (ITERATING)

# TAO  24, KSP  88      |r|=3.128e-06 (ITERATING)

# TAO  24, KSP  89      |r|=3.082e-06 (ITERATING)

# TAO  24, KSP  90      |r|=2.953e-06 (ITERATING)

# TAO  24, KSP  91      |r|=2.771e-06 (ITERATING)

# TAO  24, KSP  92      |r|=2.694e-06 (ITERATING)

# TAO  24, KSP  93      |r|=2.537e-06 (ITERATING)

# TAO  24, KSP  94      |r|=2.499e-06 (ITERATING)

# TAO  24, KSP  95      |r|=2.408e-06 (ITERATING)

# TAO  24, KSP  96      |r|=2.245e-06 (ITERATING)

# TAO  24, KSP  97      |r|=2.007e-06 (ITERATING)

# TAO  24, KSP  98      |r|=1.859e-06 (ITERATING)

# TAO  24, KSP  99      |r|=1.760e-06 (ITERATING)

# TAO  24, KSP 100      |r|=1.781e-06 (ITERATING)

# TAO  24, KSP 101      |r|=1.816e-06 (ITERATING)

# TAO  24, KSP 102      |r|=1.647e-06 (ITERATING)

# TAO  24, KSP 103      |r|=1.549e-06 (ITERATING)

# TAO  24, KSP 104      |r|=1.551e-06 (ITERATING)

# TAO  24, KSP 105      |r|=1.534e-06 (ITERATING)

# TAO  24, KSP 106      |r|=1.413e-06 (ITERATING)

# TAO  24, KSP 107      |r|=1.379e-06 (ITERATING)

# TAO  24, KSP 108      |r|=1.345e-06 (ITERATING)

# TAO  24, KSP 109      |r|=1.351e-06 (ITERATING)

# TAO  24, KSP 110      |r|=1.283e-06 (ITERATING)

# TAO  24, KSP 111      |r|=1.278e-06 (ITERATING)

# TAO  24, KSP 112      |r|=1.174e-06 (ITERATING)

# TAO  24, KSP 113      |r|=1.161e-06 (ITERATING)

# TAO  24, KSP 114      |r|=1.127e-06 (ITERATING)

# TAO  24, KSP 115      |r|=9.712e-07 (ITERATING)

# TAO  24, KSP 116      |r|=8.635e-07 (ITERATING)

# TAO  24, KSP 117      |r|=7.806e-07 (ITERATING)

# TAO  24, KSP 118      |r|=8.395e-07 (ITERATING)

# TAO  24, KSP 119      |r|=7.609e-07 (ITERATING)

# TAO  24, KSP 120      |r|=7.841e-07 (ITERATING)

# TAO  24, KSP 121      |r|=6.356e-07 (ITERATING)

# TAO  24, KSP 122      |r|=5.749e-07 (ITERATING)

# TAO  24, KSP 123      |r|=4.911e-07 (ITERATING)

# TAO  24, KSP 124      |r|=4.636e-07 (ITERATING)

# TAO  24, KSP 125      |r|=4.148e-07 (ITERATING)

# TAO  24, KSP 126      |r|=3.999e-07 (ITERATING)

# TAO  24, KSP 127      |r|=3.506e-07 (ITERATING)

# TAO  24, KSP 128      |r|=3.160e-07 (ITERATING)

# TAO  24, KSP 129      |r|=3.012e-07 (ITERATING)

# TAO  24, KSP 130      |r|=2.681e-07 (ITERATING)

# TAO  24, KSP 131      |r|=2.731e-07 (ITERATING)

# TAO  24, KSP 132      |r|=2.303e-07 (ITERATING)

# TAO  24, KSP 133      |r|=2.156e-07 (ITERATING)

# TAO  24, KSP 134      |r|=2.103e-07 (ITERATING)

# TAO  24, KSP 135      |r|=1.855e-07 (ITERATING)

# TAO  24, KSP 136      |r|=1.803e-07 (ITERATING)

# TAO  24, KSP 137      |r|=1.630e-07 (ITERATING)

# TAO  24, KSP 138      |r|=1.440e-07 (ITERATING)

# TAO  24, KSP 139      |r|=1.373e-07 (ITERATING)

# TAO  24, KSP 140      |r|=1.237e-07 (ITERATING)

# TAO  24, KSP 141      |r|=1.165e-07 (ITERATING)

# TAO  24, KSP 142      |r|=1.143e-07 (ITERATING)

# TAO  24, KSP 143      |r|=1.113e-07 (ITERATING)

# TAO  24, KSP 144      |r|=1.028e-07 (ITERATING)

# TAO  24, KSP 145      |r|=9.928e-08 (ITERATING)

# TAO  24, KSP 146      |r|=9.212e-08 (ITERATING)

# TAO  24, KSP 147      |r|=8.469e-08 (ITERATING)

# TAO  24, KSP 148      |r|=8.051e-08 (ITERATING)

# TAO  24, KSP 149      |r|=7.789e-08 (ITERATING)

# TAO  24, KSP 150      |r|=7.079e-08 (ITERATING)

# TAO  24, KSP 151      |r|=6.257e-08 (ITERATING)

# TAO  24, KSP 152      |r|=5.600e-08 (ITERATING)

# TAO  24, KSP 153      |r|=5.013e-08 (ITERATING)

# TAO  24, KSP 154      |r|=4.292e-08 (ITERATING)

# TAO  24, KSP 155      |r|=3.448e-08 (ITERATING)

# TAO  24, KSP 156      |r|=3.072e-08 (ITERATING)

# TAO  24, KSP 157      |r|=2.859e-08 (ITERATING)

# TAO  24, KSP 158      |r|=2.530e-08 (ITERATING)

# TAO  24, KSP 159      |r|=2.237e-08 (ITERATING)

# TAO  25 (ITERATING)

# sub   0 [ 16k] |x|=5.307e+01 |J|=1.332e-03 (g)

# all            |x|=5.307e+01 |J|=1.332e-03 |H|=3.898e+02 f=5.726e+00

# TAO  25, KSP   0      |r|=1.332e-03 (ITERATING)

# TAO  25, KSP   1      |r|=4.180e-04 (ITERATING)

# TAO  25, KSP   2      |r|=2.354e-04 (ITERATING)

# TAO  25, KSP   3      |r|=2.050e-04 (ITERATING)

# TAO  25, KSP   4      |r|=1.684e-04 (ITERATING)

# TAO  25, KSP   5      |r|=1.376e-04 (ITERATING)

# TAO  25, KSP   6      |r|=1.324e-04 (ITERATING)

# TAO  25, KSP   7      |r|=1.305e-04 (ITERATING)

# TAO  25, KSP   8      |r|=1.087e-04 (ITERATING)

# TAO  25, KSP   9      |r|=8.715e-05 (ITERATING)

# TAO  25, KSP  10      |r|=7.874e-05 (ITERATING)

# TAO  25, KSP  11      |r|=7.513e-05 (ITERATING)

# TAO  25, KSP  12      |r|=6.837e-05 (ITERATING)

# TAO  25, KSP  13      |r|=5.956e-05 (ITERATING)

# TAO  25, KSP  14      |r|=5.320e-05 (ITERATING)

# TAO  25, KSP  15      |r|=4.810e-05 (ITERATING)

# TAO  25, KSP  16      |r|=4.253e-05 (ITERATING)

# TAO  25, KSP  17      |r|=3.717e-05 (ITERATING)

# TAO  25, KSP  18      |r|=3.334e-05 (ITERATING)

# TAO  25, KSP  19      |r|=3.078e-05 (ITERATING)

# TAO  25, KSP  20      |r|=2.841e-05 (ITERATING)

# TAO  25, KSP  21      |r|=2.610e-05 (ITERATING)

# TAO  25, KSP  22      |r|=2.453e-05 (ITERATING)

# TAO  25, KSP  23      |r|=2.293e-05 (ITERATING)

# TAO  25, KSP  24      |r|=2.106e-05 (ITERATING)

# TAO  25, KSP  25      |r|=1.910e-05 (ITERATING)

# TAO  25, KSP  26      |r|=1.697e-05 (ITERATING)

# TAO  25, KSP  27      |r|=1.549e-05 (ITERATING)

# TAO  25, KSP  28      |r|=1.450e-05 (ITERATING)

# TAO  25, KSP  29      |r|=1.391e-05 (ITERATING)

# TAO  25, KSP  30      |r|=1.323e-05 (ITERATING)

# TAO  25, KSP  31      |r|=1.230e-05 (ITERATING)

# TAO  25, KSP  32      |r|=1.162e-05 (ITERATING)

# TAO  25, KSP  33      |r|=1.108e-05 (ITERATING)

# TAO  25, KSP  34      |r|=1.031e-05 (ITERATING)

# TAO  25, KSP  35      |r|=9.507e-06 (ITERATING)

# TAO  25, KSP  36      |r|=8.943e-06 (ITERATING)

# TAO  25, KSP  37      |r|=8.581e-06 (ITERATING)

# TAO  25, KSP  38      |r|=8.017e-06 (ITERATING)

# TAO  25, KSP  39      |r|=7.251e-06 (ITERATING)

# TAO  25, KSP  40      |r|=6.832e-06 (ITERATING)

# TAO  25, KSP  41      |r|=6.773e-06 (ITERATING)

# TAO  25, KSP  42      |r|=6.590e-06 (ITERATING)

# TAO  25, KSP  43      |r|=6.057e-06 (ITERATING)

# TAO  25, KSP  44      |r|=5.602e-06 (ITERATING)

# TAO  25, KSP  45      |r|=5.413e-06 (ITERATING)

# TAO  25, KSP  46      |r|=5.119e-06 (ITERATING)

# TAO  25, KSP  47      |r|=4.611e-06 (ITERATING)

# TAO  25, KSP  48      |r|=4.200e-06 (ITERATING)

# TAO  25, KSP  49      |r|=4.069e-06 (ITERATING)

# TAO  25, KSP  50      |r|=3.979e-06 (ITERATING)

# TAO  25, KSP  51      |r|=3.789e-06 (ITERATING)

# TAO  25, KSP  52      |r|=3.669e-06 (ITERATING)

# TAO  25, KSP  53      |r|=3.581e-06 (ITERATING)

# TAO  25, KSP  54      |r|=3.467e-06 (ITERATING)

# TAO  25, KSP  55      |r|=3.308e-06 (ITERATING)

# TAO  25, KSP  56      |r|=3.088e-06 (ITERATING)

# TAO  25, KSP  57      |r|=2.923e-06 (ITERATING)

# TAO  25, KSP  58      |r|=2.813e-06 (ITERATING)

# TAO  25, KSP  59      |r|=2.732e-06 (ITERATING)

# TAO  25, KSP  60      |r|=2.617e-06 (ITERATING)

# TAO  25, KSP  61      |r|=2.494e-06 (ITERATING)

# TAO  25, KSP  62      |r|=2.493e-06 (ITERATING)

# TAO  25, KSP  63      |r|=2.328e-06 (ITERATING)

# TAO  25, KSP  64      |r|=2.237e-06 (ITERATING)

# TAO  25, KSP  65      |r|=2.153e-06 (ITERATING)

# TAO  25, KSP  66      |r|=2.122e-06 (ITERATING)

# TAO  25, KSP  67      |r|=1.892e-06 (ITERATING)

# TAO  25, KSP  68      |r|=1.840e-06 (ITERATING)

# TAO  25, KSP  69      |r|=1.606e-06 (ITERATING)

# TAO  25, KSP  70      |r|=1.560e-06 (ITERATING)

# TAO  25, KSP  71      |r|=1.501e-06 (ITERATING)

# TAO  25, KSP  72      |r|=1.471e-06 (ITERATING)

# TAO  25, KSP  73      |r|=1.422e-06 (ITERATING)

# TAO  25, KSP  74      |r|=1.393e-06 (ITERATING)

# TAO  25, KSP  75      |r|=1.243e-06 (ITERATING)

# TAO  25, KSP  76      |r|=1.171e-06 (ITERATING)

# TAO  25, KSP  77      |r|=1.069e-06 (ITERATING)

# TAO  25, KSP  78      |r|=9.715e-07 (ITERATING)

# TAO  25, KSP  79      |r|=8.793e-07 (ITERATING)

# TAO  25, KSP  80      |r|=8.169e-07 (ITERATING)

# TAO  25, KSP  81      |r|=7.576e-07 (ITERATING)

# TAO  25, KSP  82      |r|=6.940e-07 (ITERATING)

# TAO  25, KSP  83      |r|=6.291e-07 (ITERATING)

# TAO  25, KSP  84      |r|=5.483e-07 (ITERATING)

# TAO  25, KSP  85      |r|=4.838e-07 (ITERATING)

# TAO  25, KSP  86      |r|=4.297e-07 (ITERATING)

# TAO  25, KSP  87      |r|=3.930e-07 (ITERATING)

# TAO  25, KSP  88      |r|=3.597e-07 (ITERATING)

# TAO  25, KSP  89      |r|=3.172e-07 (ITERATING)

# TAO  25, KSP  90      |r|=2.794e-07 (ITERATING)

# TAO  25, KSP  91      |r|=2.540e-07 (ITERATING)

# TAO  25, KSP  92      |r|=2.332e-07 (ITERATING)

# TAO  25, KSP  93      |r|=2.132e-07 (ITERATING)

# TAO  25, KSP  94      |r|=1.954e-07 (ITERATING)

# TAO  25, KSP  95      |r|=1.816e-07 (ITERATING)

# TAO  25, KSP  96      |r|=1.656e-07 (ITERATING)

# TAO  25, KSP  97      |r|=1.515e-07 (ITERATING)

# TAO  25, KSP  98      |r|=1.434e-07 (ITERATING)

# TAO  25, KSP  99      |r|=1.347e-07 (ITERATING)

# TAO  25, KSP 100      |r|=1.279e-07 (ITERATING)

# TAO  25, KSP 101      |r|=1.186e-07 (ITERATING)

# TAO  25, KSP 102      |r|=1.076e-07 (ITERATING)

# TAO  25, KSP 103      |r|=1.013e-07 (ITERATING)

# TAO  25, KSP 104      |r|=9.197e-08 (ITERATING)

# TAO  25, KSP 105      |r|=8.260e-08 (ITERATING)

# TAO  25, KSP 106      |r|=7.519e-08 (ITERATING)

# TAO  25, KSP 107      |r|=6.758e-08 (ITERATING)

# TAO  25, KSP 108      |r|=6.347e-08 (ITERATING)

# TAO  25, KSP 109      |r|=5.901e-08 (ITERATING)

# TAO  25, KSP 110      |r|=5.416e-08 (ITERATING)

# TAO  25, KSP 111      |r|=4.866e-08 (ITERATING)

# TAO  25, KSP 112      |r|=4.512e-08 (ITERATING)

# TAO  25, KSP 113      |r|=4.247e-08 (ITERATING)

# TAO  25, KSP 114      |r|=4.014e-08 (ITERATING)

# TAO  25, KSP 115      |r|=3.838e-08 (ITERATING)

# TAO  25, KSP 116      |r|=3.628e-08 (ITERATING)

# TAO  25, KSP 117      |r|=3.367e-08 (ITERATING)

# TAO  25, KSP 118      |r|=3.152e-08 (ITERATING)

# TAO  25, KSP 119      |r|=3.050e-08 (ITERATING)

# TAO  25, KSP 120      |r|=2.934e-08 (ITERATING)

# TAO  25, KSP 121      |r|=2.842e-08 (ITERATING)

# TAO  25, KSP 122      |r|=2.717e-08 (ITERATING)

# TAO  25, KSP 123      |r|=2.656e-08 (ITERATING)

# TAO  25, KSP 124      |r|=2.531e-08 (ITERATING)

# TAO  25, KSP 125      |r|=2.418e-08 (ITERATING)

# TAO  25, KSP 126      |r|=2.207e-08 (ITERATING)

# TAO  25, KSP 127      |r|=2.045e-08 (ITERATING)

# TAO  25, KSP 128      |r|=2.003e-08 (ITERATING)

# TAO  25, KSP 129      |r|=1.954e-08 (ITERATING)

# TAO  25, KSP 130      |r|=1.920e-08 (ITERATING)

# TAO  25, KSP 131      |r|=1.901e-08 (ITERATING)

# TAO  25, KSP 132      |r|=1.859e-08 (ITERATING)

# TAO  25, KSP 133      |r|=1.757e-08 (ITERATING)

# TAO  25, KSP 134      |r|=1.617e-08 (ITERATING)

# TAO  25, KSP 135      |r|=1.473e-08 (ITERATING)

# TAO  25, KSP 136      |r|=1.354e-08 (ITERATING)

# TAO  25, KSP 137      |r|=1.318e-08 (ITERATING)

# TAO  26 (ITERATING)

# sub   0 [ 16k] |x|=5.307e+01 |J|=1.045e-03 (g)

# all            |x|=5.307e+01 |J|=1.045e-03 |H|=3.897e+02 f=5.726e+00

# TAO  26, KSP   0      |r|=1.045e-03 (ITERATING)

# TAO  26, KSP   1      |r|=3.192e-04 (ITERATING)

# TAO  26, KSP   2      |r|=1.332e-04 (ITERATING)

# TAO  26, KSP   3      |r|=7.724e-05 (ITERATING)

# TAO  26, KSP   4      |r|=5.191e-05 (ITERATING)

# TAO  26, KSP   5      |r|=3.472e-05 (ITERATING)

# TAO  26, KSP   6      |r|=2.352e-05 (ITERATING)

# TAO  26, KSP   7      |r|=1.786e-05 (ITERATING)

# TAO  26, KSP   8      |r|=1.361e-05 (ITERATING)

# TAO  26, KSP   9      |r|=9.512e-06 (ITERATING)

# TAO  26, KSP  10      |r|=6.640e-06 (ITERATING)

# TAO  26, KSP  11      |r|=5.265e-06 (ITERATING)

# TAO  26, KSP  12      |r|=4.517e-06 (ITERATING)

# TAO  26, KSP  13      |r|=3.756e-06 (ITERATING)

# TAO  26, KSP  14      |r|=3.130e-06 (ITERATING)

# TAO  26, KSP  15      |r|=2.791e-06 (ITERATING)

# TAO  26, KSP  16      |r|=2.537e-06 (ITERATING)

# TAO  26, KSP  17      |r|=2.161e-06 (ITERATING)

# TAO  26, KSP  18      |r|=1.761e-06 (ITERATING)

# TAO  26, KSP  19      |r|=1.513e-06 (ITERATING)

# TAO  26, KSP  20      |r|=1.367e-06 (ITERATING)

# TAO  26, KSP  21      |r|=1.219e-06 (ITERATING)

# TAO  26, KSP  22      |r|=1.095e-06 (ITERATING)

# TAO  26, KSP  23      |r|=1.009e-06 (ITERATING)

# TAO  26, KSP  24      |r|=9.311e-07 (ITERATING)

# TAO  26, KSP  25      |r|=8.447e-07 (ITERATING)

# TAO  26, KSP  26      |r|=7.484e-07 (ITERATING)

# TAO  26, KSP  27      |r|=6.800e-07 (ITERATING)

# TAO  26, KSP  28      |r|=6.379e-07 (ITERATING)

# TAO  26, KSP  29      |r|=5.996e-07 (ITERATING)

# TAO  26, KSP  30      |r|=5.698e-07 (ITERATING)

# TAO  26, KSP  31      |r|=5.408e-07 (ITERATING)

# TAO  26, KSP  32      |r|=4.993e-07 (ITERATING)

# TAO  26, KSP  33      |r|=4.594e-07 (ITERATING)

# TAO  26, KSP  34      |r|=4.320e-07 (ITERATING)

# TAO  26, KSP  35      |r|=3.953e-07 (ITERATING)

# TAO  26, KSP  36      |r|=3.640e-07 (ITERATING)

# TAO  26, KSP  37      |r|=3.581e-07 (ITERATING)

# TAO  26, KSP  38      |r|=3.537e-07 (ITERATING)

# TAO  26, KSP  39      |r|=3.394e-07 (ITERATING)

# TAO  26, KSP  40      |r|=3.090e-07 (ITERATING)

# TAO  26, KSP  41      |r|=2.886e-07 (ITERATING)

# TAO  26, KSP  42      |r|=2.819e-07 (ITERATING)

# TAO  26, KSP  43      |r|=2.633e-07 (ITERATING)

# TAO  26, KSP  44      |r|=2.523e-07 (ITERATING)

# TAO  26, KSP  45      |r|=2.403e-07 (ITERATING)

# TAO  26, KSP  46      |r|=2.317e-07 (ITERATING)

# TAO  26, KSP  47      |r|=2.162e-07 (ITERATING)

# TAO  26, KSP  48      |r|=2.089e-07 (ITERATING)

# TAO  26, KSP  49      |r|=1.967e-07 (ITERATING)

# TAO  26, KSP  50      |r|=1.936e-07 (ITERATING)

# TAO  26, KSP  51      |r|=1.882e-07 (ITERATING)

# TAO  26, KSP  52      |r|=1.749e-07 (ITERATING)

# TAO  26, KSP  53      |r|=1.672e-07 (ITERATING)

# TAO  26, KSP  54      |r|=1.680e-07 (ITERATING)

# TAO  26, KSP  55      |r|=1.562e-07 (ITERATING)

# TAO  26, KSP  56      |r|=1.463e-07 (ITERATING)

# TAO  26, KSP  57      |r|=1.444e-07 (ITERATING)

# TAO  26, KSP  58      |r|=1.373e-07 (ITERATING)

# TAO  26, KSP  59      |r|=1.326e-07 (ITERATING)

# TAO  26, KSP  60      |r|=1.280e-07 (ITERATING)

# TAO  26, KSP  61      |r|=1.238e-07 (ITERATING)

# TAO  26, KSP  62      |r|=1.209e-07 (ITERATING)

# TAO  26, KSP  63      |r|=1.196e-07 (ITERATING)

# TAO  26, KSP  64      |r|=1.131e-07 (ITERATING)

# TAO  26, KSP  65      |r|=1.043e-07 (ITERATING)

# TAO  26, KSP  66      |r|=1.067e-07 (ITERATING)

# TAO  26, KSP  67      |r|=9.870e-08 (ITERATING)

# TAO  26, KSP  68      |r|=9.439e-08 (ITERATING)

# TAO  26, KSP  69      |r|=9.288e-08 (ITERATING)

# TAO  26, KSP  70      |r|=8.400e-08 (ITERATING)

# TAO  26, KSP  71      |r|=7.975e-08 (ITERATING)

# TAO  26, KSP  72      |r|=7.549e-08 (ITERATING)

# TAO  26, KSP  73      |r|=6.960e-08 (ITERATING)

# TAO  26, KSP  74      |r|=6.400e-08 (ITERATING)

# TAO  26, KSP  75      |r|=5.985e-08 (ITERATING)

# TAO  26, KSP  76      |r|=5.552e-08 (ITERATING)

# TAO  26, KSP  77      |r|=5.202e-08 (ITERATING)

# TAO  26, KSP  78      |r|=4.736e-08 (ITERATING)

# TAO  26, KSP  79      |r|=4.276e-08 (ITERATING)

# TAO  26, KSP  80      |r|=3.888e-08 (ITERATING)

# TAO  26, KSP  81      |r|=3.518e-08 (ITERATING)

# TAO  26, KSP  82      |r|=3.198e-08 (ITERATING)

# TAO  26, KSP  83      |r|=2.876e-08 (ITERATING)

# TAO  26, KSP  84      |r|=2.736e-08 (ITERATING)

# TAO  26, KSP  85      |r|=2.493e-08 (ITERATING)

# TAO  26, KSP  86      |r|=2.173e-08 (ITERATING)

# TAO  26, KSP  87      |r|=1.932e-08 (ITERATING)

# TAO  26, KSP  88      |r|=1.697e-08 (ITERATING)

# TAO  26, KSP  89      |r|=1.520e-08 (ITERATING)

# TAO  26, KSP  90      |r|=1.351e-08 (ITERATING)

# TAO  26, KSP  91      |r|=1.210e-08 (ITERATING)

# TAO  26, KSP  92      |r|=1.127e-08 (ITERATING)

# TAO  26, KSP  93      |r|=1.086e-08 (ITERATING)

# TAO  26, KSP  94      |r|=1.039e-08 (ITERATING)

# TAO  27 (ITERATING)

# sub   0 [ 16k] |x|=5.307e+01 |J|=8.221e-04 (g)

# all            |x|=5.307e+01 |J|=8.221e-04 |H|=3.897e+02 f=5.726e+00

# TAO  27, KSP   0      |r|=8.221e-04 (ITERATING)

# TAO  28 (ITERATING)

# sub   0 [ 16k] |x|=5.307e+01 |J|=3.222e-04 (g)

# all            |x|=5.307e+01 |J|=3.222e-04 |H|=3.897e+02 f=5.726e+00

# TAO  28, KSP   0      |r|=3.222e-04 (ITERATING)

# TAO  28, KSP   1      |r|=1.234e-04 (ITERATING)

# TAO  28, KSP   2      |r|=7.421e-05 (ITERATING)

# TAO  28, KSP   3      |r|=3.402e-05 (ITERATING)

# TAO  28, KSP   4      |r|=2.219e-05 (ITERATING)

# TAO  28, KSP   5      |r|=1.266e-05 (ITERATING)

# TAO  28, KSP   6      |r|=8.790e-06 (ITERATING)

# TAO  28, KSP   7      |r|=5.811e-06 (ITERATING)

# TAO  28, KSP   8      |r|=4.120e-06 (ITERATING)

# TAO  28, KSP   9      |r|=3.029e-06 (ITERATING)

# TAO  28, KSP  10      |r|=2.231e-06 (ITERATING)

# TAO  28, KSP  11      |r|=1.768e-06 (ITERATING)

# TAO  28, KSP  12      |r|=1.328e-06 (ITERATING)

# TAO  28, KSP  13      |r|=1.130e-06 (ITERATING)

# TAO  28, KSP  14      |r|=8.982e-07 (ITERATING)

# TAO  28, KSP  15      |r|=7.674e-07 (ITERATING)

# TAO  28, KSP  16      |r|=6.019e-07 (ITERATING)

# TAO  28, KSP  17      |r|=5.277e-07 (ITERATING)

# TAO  28, KSP  18      |r|=4.382e-07 (ITERATING)

# TAO  28, KSP  19      |r|=3.904e-07 (ITERATING)

# TAO  28, KSP  20      |r|=3.423e-07 (ITERATING)

# TAO  28, KSP  21      |r|=3.050e-07 (ITERATING)

# TAO  28, KSP  22      |r|=2.808e-07 (ITERATING)

# TAO  28, KSP  23      |r|=2.534e-07 (ITERATING)

# TAO  28, KSP  24      |r|=2.424e-07 (ITERATING)

# TAO  28, KSP  25      |r|=2.159e-07 (ITERATING)

# TAO  28, KSP  26      |r|=2.032e-07 (ITERATING)

# TAO  28, KSP  27      |r|=1.841e-07 (ITERATING)

# TAO  28, KSP  28      |r|=1.720e-07 (ITERATING)

# TAO  28, KSP  29      |r|=1.557e-07 (ITERATING)

# TAO  28, KSP  30      |r|=1.443e-07 (ITERATING)

# TAO  28, KSP  31      |r|=1.328e-07 (ITERATING)

# TAO  28, KSP  32      |r|=1.211e-07 (ITERATING)

# TAO  28, KSP  33      |r|=1.161e-07 (ITERATING)

# TAO  28, KSP  34      |r|=1.044e-07 (ITERATING)

# TAO  28, KSP  35      |r|=9.988e-08 (ITERATING)

# TAO  28, KSP  36      |r|=9.406e-08 (ITERATING)

# TAO  28, KSP  37      |r|=9.054e-08 (ITERATING)

# TAO  28, KSP  38      |r|=8.557e-08 (ITERATING)

# TAO  28, KSP  39      |r|=8.296e-08 (ITERATING)

# TAO  28, KSP  40      |r|=8.196e-08 (ITERATING)

# TAO  28, KSP  41      |r|=7.887e-08 (ITERATING)

# TAO  28, KSP  42      |r|=7.267e-08 (ITERATING)

# TAO  28, KSP  43      |r|=6.652e-08 (ITERATING)

# TAO  28, KSP  44      |r|=6.223e-08 (ITERATING)

# TAO  28, KSP  45      |r|=5.676e-08 (ITERATING)

# TAO  28, KSP  46      |r|=5.297e-08 (ITERATING)

# TAO  28, KSP  47      |r|=5.075e-08 (ITERATING)

# TAO  28, KSP  48      |r|=4.577e-08 (ITERATING)

# TAO  28, KSP  49      |r|=4.358e-08 (ITERATING)

# TAO  28, KSP  50      |r|=3.971e-08 (ITERATING)

# TAO  28, KSP  51      |r|=3.797e-08 (ITERATING)

# TAO  28, KSP  52      |r|=3.415e-08 (ITERATING)

# TAO  28, KSP  53      |r|=3.371e-08 (ITERATING)

# TAO  28, KSP  54      |r|=3.133e-08 (ITERATING)

# TAO  28, KSP  55      |r|=2.727e-08 (ITERATING)

# TAO  28, KSP  56      |r|=2.625e-08 (ITERATING)

# TAO  28, KSP  57      |r|=2.591e-08 (ITERATING)

# TAO  28, KSP  58      |r|=2.512e-08 (ITERATING)

# TAO  28, KSP  59      |r|=2.380e-08 (ITERATING)

# TAO  28, KSP  60      |r|=2.454e-08 (ITERATING)

# TAO  28, KSP  61      |r|=2.286e-08 (ITERATING)

# TAO  28, KSP  62      |r|=2.251e-08 (ITERATING)

# TAO  28, KSP  63      |r|=2.258e-08 (ITERATING)

# TAO  28, KSP  64      |r|=2.166e-08 (ITERATING)

# TAO  28, KSP  65      |r|=2.086e-08 (ITERATING)

# TAO  28, KSP  66      |r|=2.120e-08 (ITERATING)

# TAO  28, KSP  67      |r|=2.026e-08 (ITERATING)

# TAO  28, KSP  68      |r|=2.038e-08 (ITERATING)

# TAO  28, KSP  69      |r|=1.959e-08 (ITERATING)

# TAO  28, KSP  70      |r|=1.817e-08 (ITERATING)

# TAO  28, KSP  71      |r|=1.768e-08 (ITERATING)

# TAO  28, KSP  72      |r|=1.683e-08 (ITERATING)

# TAO  28, KSP  73      |r|=1.601e-08 (ITERATING)

# TAO  28, KSP  74      |r|=1.528e-08 (ITERATING)

# TAO  28, KSP  75      |r|=1.465e-08 (ITERATING)

# TAO  28, KSP  76      |r|=1.360e-08 (ITERATING)

# TAO  28, KSP  77      |r|=1.313e-08 (ITERATING)

# TAO  28, KSP  78      |r|=1.319e-08 (ITERATING)

# TAO  28, KSP  79      |r|=1.271e-08 (ITERATING)

# TAO  28, KSP  80      |r|=1.237e-08 (ITERATING)

# TAO  28, KSP  81      |r|=1.104e-08 (ITERATING)

# TAO  28, KSP  82      |r|=9.888e-09 (ITERATING)

# TAO  28, KSP  83      |r|=8.974e-09 (ITERATING)

# TAO  28, KSP  84      |r|=8.038e-09 (ITERATING)

# TAO  28, KSP  85      |r|=7.385e-09 (ITERATING)

# TAO  28, KSP  86      |r|=6.888e-09 (ITERATING)

# TAO  28, KSP  87      |r|=6.227e-09 (ITERATING)

# TAO  28, KSP  88      |r|=5.766e-09 (ITERATING)

# TAO  28, KSP  89      |r|=5.475e-09 (ITERATING)

# TAO  28, KSP  90      |r|=5.029e-09 (ITERATING)

# TAO  28, KSP  91      |r|=4.728e-09 (ITERATING)

# TAO  28, KSP  92      |r|=4.334e-09 (ITERATING)

# TAO  28, KSP  93      |r|=4.147e-09 (ITERATING)

# TAO  28, KSP  94      |r|=3.922e-09 (ITERATING)

# TAO  28, KSP  95      |r|=3.770e-09 (ITERATING)

# TAO  28, KSP  96      |r|=3.498e-09 (ITERATING)

# TAO  28, KSP  97      |r|=3.233e-09 (ITERATING)

# TAO  28, KSP  98      |r|=3.103e-09 (ITERATING)

# TAO  29 (ITERATING)

# sub   0 [ 16k] |x|=5.307e+01 |J|=3.008e-08 (g)

# all            |x|=5.307e+01 |J|=3.008e-08 |H|=3.897e+02 f=5.726e+00

S_linear(g) = 6.3780

S(g)        = 5.7258

pyvista.set_jupyter_backend("static")
pv_grid = pyvista.UnstructuredGrid(*dolfinx.plot.vtk_mesh(msh, 2))


def plot_deflected(f):
    if comm.size != 1:
        return

    # Extend to 3D: u = [0, 0, f]
    u = np.zeros((V.dofmap.index_map.size_local, 3))
    u[:, 2:3] = f.x.array.reshape(-1, 1)
    pv_grid.point_data[f.name] = u

    plotter = pyvista.Plotter(theme=dolfiny.pyvista.theme)

    warped = pv_grid.warp_by_vector(f.name, factor=1.0)
    warped.active_scalars_name = f.name
    plotter.add_mesh(warped, component=2, scalar_bar_args={"title": f.name})

    plotter.camera.elevation -= 20
    plotter.show()

plot_deflected(lb)

<PIL.Image.Image image mode=RGB size=4096x4096>

plot_deflected(g_linear)

plot_deflected(g)

with dolfinx.io.VTXWriter(V.mesh.comm, "direct.bp", lb, "bp4") as file:
    file.write(0.0)
with dolfinx.io.VTXWriter(V.mesh.comm, "g.bp", g, "bp4") as file:
    file.write(0.0)
with dolfinx.io.VTXWriter(V.mesh.comm, "g_linear.bp", g_linear, "bp4") as file:
    file.write(0.0)

# TODO: add CI relevant checking here - converged?, error norms?...

Dolfiny

Obstacle problems

Minimal surfaces in architecture
