Rate-independent monolithic J2 plasticity

This demo solves a quasi-static finite-strain boundary value problem in 3D with monolithic $J_2$ (von Mises) plasticity, isotropic- and kinematic hardening. The unknown displacement $u$ , plastic strain tensor $P$ , and hardening variables $h$ and $B$ are solved simultaneously in one coupled nonlinear system. The constitutive setting is in the spirit of unified cyclic-plasticity models for metals, see Tirpitz & Schwesig (1992).

In particular, this demo emphasizes:

monolithic solution of a multi-field problem in one coupled nonlinear system,
quadrature-element discretisation of plastic strain and hardening variables, and

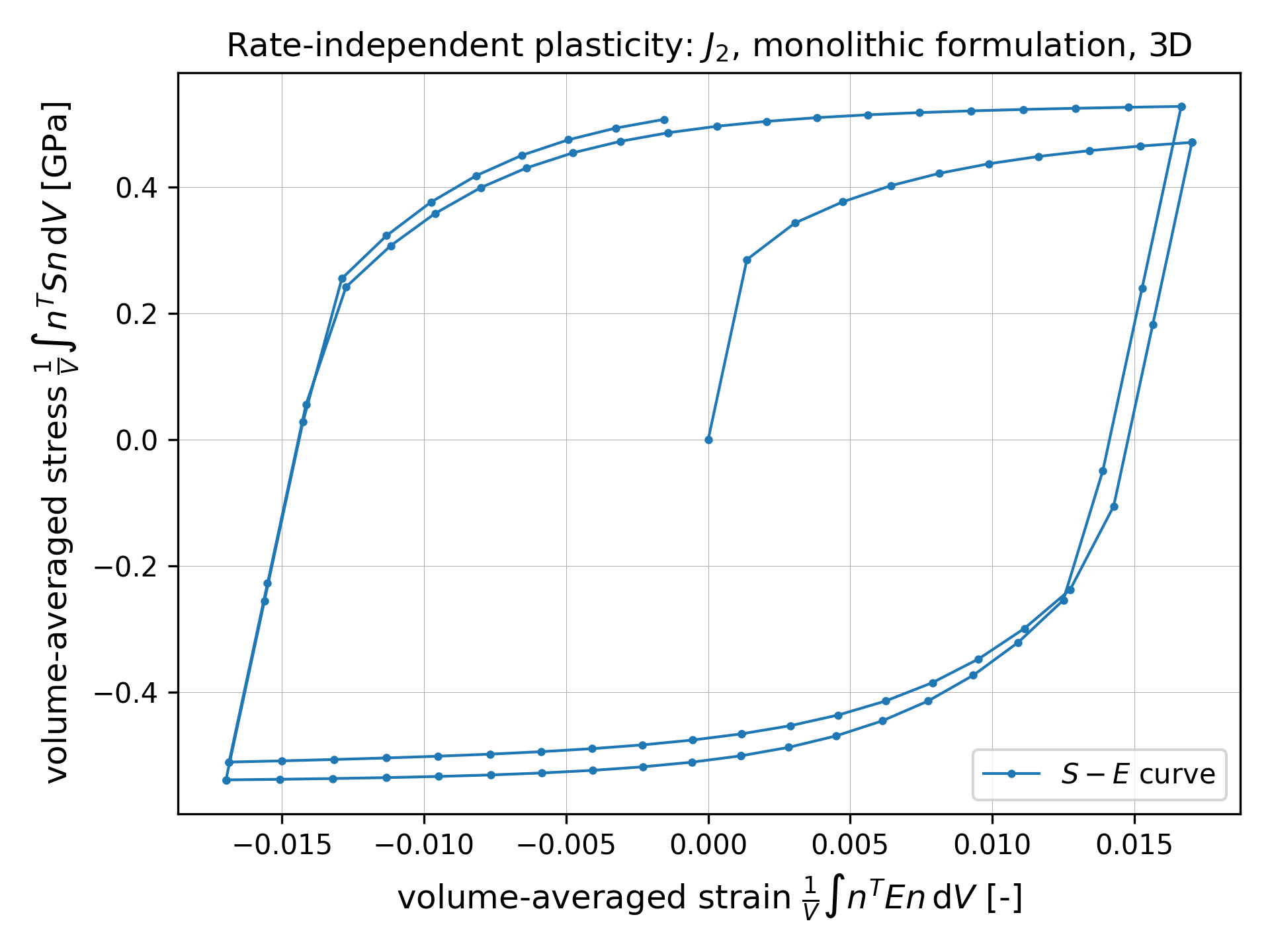

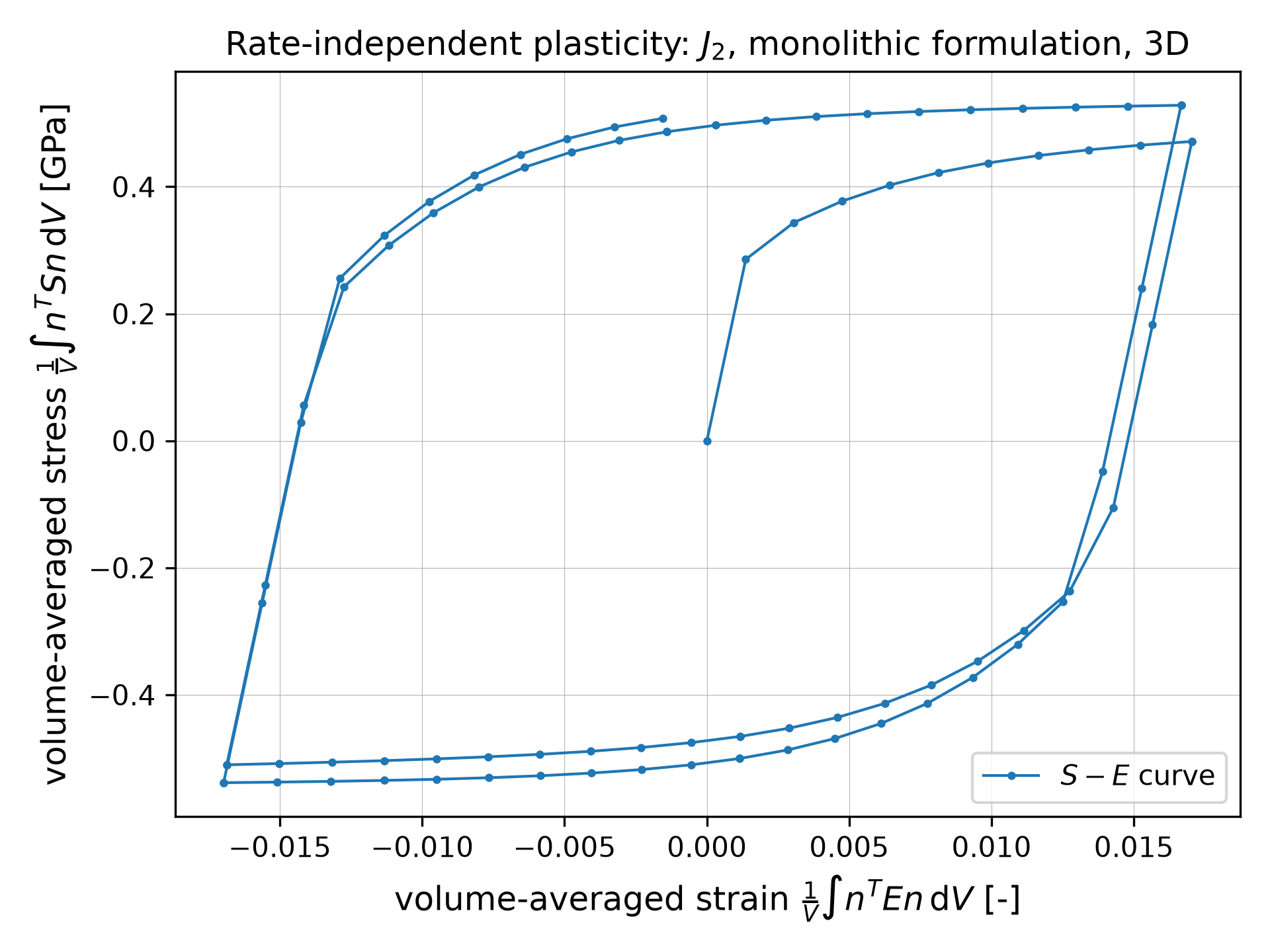

cyclic finite-strain plasticity with both isotropic and kinematic hardening.

Model¶

The kinematics and additive split are

F = I + \nabla u, \qquad E = \tfrac{1}{2}(F^T F - I) = E_{\mathrm{el}} + P.

(1)

Here $I$ is the identity tensor, $\nabla$ denotes the gradient with respect to the reference coordinates, $F$ is the deformation gradient, $E$ is the total Green-Lagrange strain, $E_{\mathrm{el}}$ is the elastic strain, and $P$ is the plastic strain tensor. The constitutive law that relates the 2nd Piola-Kirchhoff stress $S$ to the elastic strain is the St. Venant-Kirchhoff material model:

S = 2\mu E_{\mathrm{el}} + \lambda \text{tr}(E_{\mathrm{el}}) I.

(2)

Yielding is driven by

f(S, B, h) = \sqrt{3 J_2(S - B)} - (S_y + h) \le 0

(3)

where $\mu$ and $\lambda$ are the Lame constants. The variables $B$ and $h$ denote the kinematic and isotropic hardening contributions, $S_y$ is the initial yield stress, and $J_2(A) = \tfrac{1}{2} \text{dev}(A) : \text{dev}(A)$ is the second deviatoric invariant, where $\text{dev}(A)$ denotes the deviatoric part of $A$ and $A : B$ is the Frobenius product.

The hardening follows the standard linear evolution equations

\dot{h} = \dot{\lambda} b_h (q_h - h), \qquad \dot{B} = \dot{\lambda} b_b (q_b \partial_S g - B)

(4)

where $\dot{\lambda}$ is the plastic multiplier rate and $b_h$ , $q_h$ , $b_b$ , and $q_b$ are material parameters. For associated flow, the plastic potential equals the yield function ( $g=f$ ),

\dot{P} = \dot{\lambda} \frac{\partial g}{\partial S}, \qquad \dot{\lambda} \ge 0, \quad f \le 0, \quad \dot{\lambda} f = 0

(5)

Monolithic weak formulation¶

Instead of predictor-corrector return mapping, the full system is solved directly in weak form. Complementarity is encoded by the Macaulay bracket

\Delta\lambda = [f]_+ = \max(f, 0),

(6)

and the time-discrete weak form requires, for all test functions $(\delta u, \delta P, \delta h, \delta B)$ ,

\begin{align} \int_\Omega \delta E : S \,\text{d}x &= 0, \\ \int_\Omega \delta P : \big[(P - P_0) - \Delta\lambda \, \partial_S g\big] \,\text{d}x &= 0, \\ \int_\Omega \delta h \big[(h - h_0) - \Delta\lambda b_h (q_h - h)\big] \,\text{d}x &= 0, \\ \int_\Omega \delta B : \big[(B - B_0) - \Delta\lambda b_b (q_b \partial_S g - B)\big] \,\text{d}x &= 0 \end{align}

(7)

Here $\Omega$ is the reference configuration, $\delta E$ is the variation of the Green-Lagrange strain induced by $\delta u$ , and $\partial_S g$ is shorthand for $\partial g / \partial S$ . Subscript 0 denotes the converged state from the previous load step.

Parameters and mesh¶

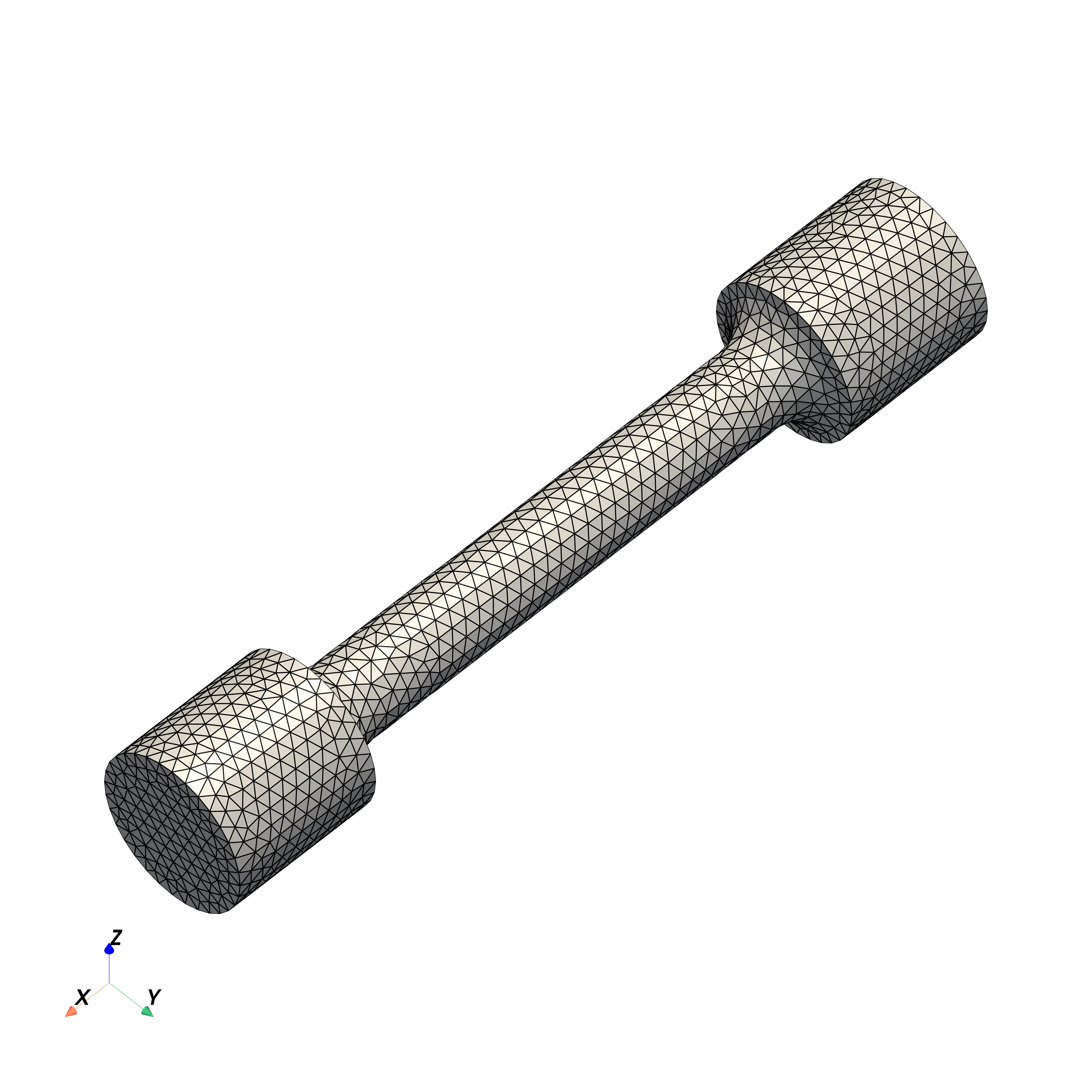

We model a standard dog-bone tensile specimen (ISO 6892) with gauge length $l_0 = 100$ mm and diameter $d_0 = 20$ mm. Physical groups identify the gauge volume and the two grip surfaces where Dirichlet boundary conditions are applied.

Material parameters correspond to a generic structural metal: $\mu = 100$ GPa, $\lambda = 10$ GPa, initial yield stress $S_y = 0.3$ GPa. The hardening moduli set the post-yield shape:

Isotropic: $b_h = 20$ , $q_h = 0.1$ GPa — flow stress saturates at $S_y + q_h = 0.4$ GPa.
Kinematic: $b_b = 250$ , $q_b = 0.1$ GPa — rapid back-stress saturation drives the Bauschinger effect. Related cyclic mild-steel and structural-steel modelling contexts are discussed in Kowalsky et al. (2012) and Heinrich (2022).

A maximum axial strain $\varepsilon_{\max} = 1\%$ is applied in $K = 10$ increments per phase over $Z = 2$ tension-compression cycles (load, unload, reverse, recover). Later on, the scalar load factor $\mu \in [-1, 1]$ scales the reference boundary displacement field.

from mpi4py import MPI
from petsc4py import PETSc

import basix
import dolfinx
import ufl
from dolfinx import default_scalar_type as scalar

import matplotlib.pyplot as plt
import mesh_iso6892_gmshapi as mg
import numpy as np
import pyvista

import dolfiny

# Basic settings
name = "J2_monolithic"
comm = MPI.COMM_WORLD

# Geometry and mesh parameters
l0, d0 = 0.10, 0.02  # [m]
nr = 5
# Geometry and physics ansatz order
o, p = 1, 1

# Create the mesh of the specimen with given dimensions
gmsh_model, tdim = mg.mesh_iso6892_gmshapi(name, l0, d0, nr, order=o)

# Create the mesh of the specimen with given dimensions and save as msh, then read into gmsh model
# mg.mesh_iso6892_gmshapi(name, l0, d0, nr, order=o, msh_file=f"{name}.msh")
# gmsh_model, tdim = dolfiny.mesh.msh_to_gmsh(f"{name}.msh")

# Get mesh and meshtags
mesh_data = dolfinx.io.gmsh.model_to_mesh(gmsh_model, comm, rank=0)
mesh = mesh_data.mesh

# Define shorthands for labelled tags
domain_gauge = mesh_data.physical_groups["domain_gauge"].tag
surface_1 = mesh_data.physical_groups["surface_grip_left"].tag
surface_2 = mesh_data.physical_groups["surface_grip_right"].tag

if comm.size == 1:
    grid = pyvista.UnstructuredGrid(*dolfinx.plot.vtk_mesh(mesh))
    plotter = pyvista.Plotter(off_screen=True, theme=dolfiny.pyvista.theme)
    plotter.add_mesh(
        grid, show_edges=True, color="white", line_width=dolfiny.pyvista.pixels // 1000
    )
    plotter.show_axes()
    plotter.camera.elevation = 15
    plotter.screenshot("J2_monolithic_mesh.png")
    plotter.close()
    plotter.deep_clean()

# Solid: material parameters
mu = dolfinx.fem.Constant(mesh, scalar(100.0))  # [1e-9 * 1e+11 N/m^2 = 100 GPa]
la = dolfinx.fem.Constant(mesh, scalar(10.00))  # [1e-9 * 1e+10 N/m^2 =  10 GPa]
Sy = dolfinx.fem.Constant(mesh, scalar(0.300))  # initial yield stress [GPa]
bh = dolfinx.fem.Constant(mesh, scalar(20.00))  # isotropic hardening: saturation rate  [-]
qh = dolfinx.fem.Constant(mesh, scalar(0.100))  # isotropic hardening: saturation value [GPa]
bb = dolfinx.fem.Constant(mesh, scalar(250.0))  # kinematic hardening: saturation rate  [-]
qb = dolfinx.fem.Constant(mesh, scalar(0.100))  # kinematic hardening: saturation value [GPa]

# Solid: load parameters
μ = dolfinx.fem.Constant(mesh, scalar(1.0))  # load factor


def u_bar(x):
    eps_max = 0.01
    return μ.value * np.array([l0 * eps_max * np.sign(x[0]), 0.0 * x[1], 0.0 * x[2]])
